WMS2

(6901-100149 <01>)

Thank you for choosing the Sanus WMS2 speaker mount. The Sanus WMS2 speaker mount is designed to support a

speaker sized up to 30 cm (12 in.) deep and weighing up to 6.5 kg (15 lbs).

Do not use this product for any purpose not explicitly specied by Sanus Systems. Improper assembly may cause

property damage or personal injury. If you do not understand these directions, or have doubts about the safety

of the assembly, contact Customer Service or call a qualied contractor. Sanus Systems is not responsible for

damage or injury caused by incorrect assembly or use.

CAUTION

OPT

Hardware and procedures for multiple mounting configurations are included.When you see this symbol,

choose the correct configuration to suit your needs. Not all hardware included will be used.

IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS

001556.eps

This product contains small items that could be a choking hazard if swallowed. Keep these items away

from young children!

WARNING

This product is designed for use in wood stud walls only! The wall must be capable of supporting up to ve times

the weight of the speaker and mount combined. If you have any doubts about the ability of the wall to support

the speaker, contact Sanus Customer Service, or a qualied contractor.

CAUTION

6901-100149 <01>

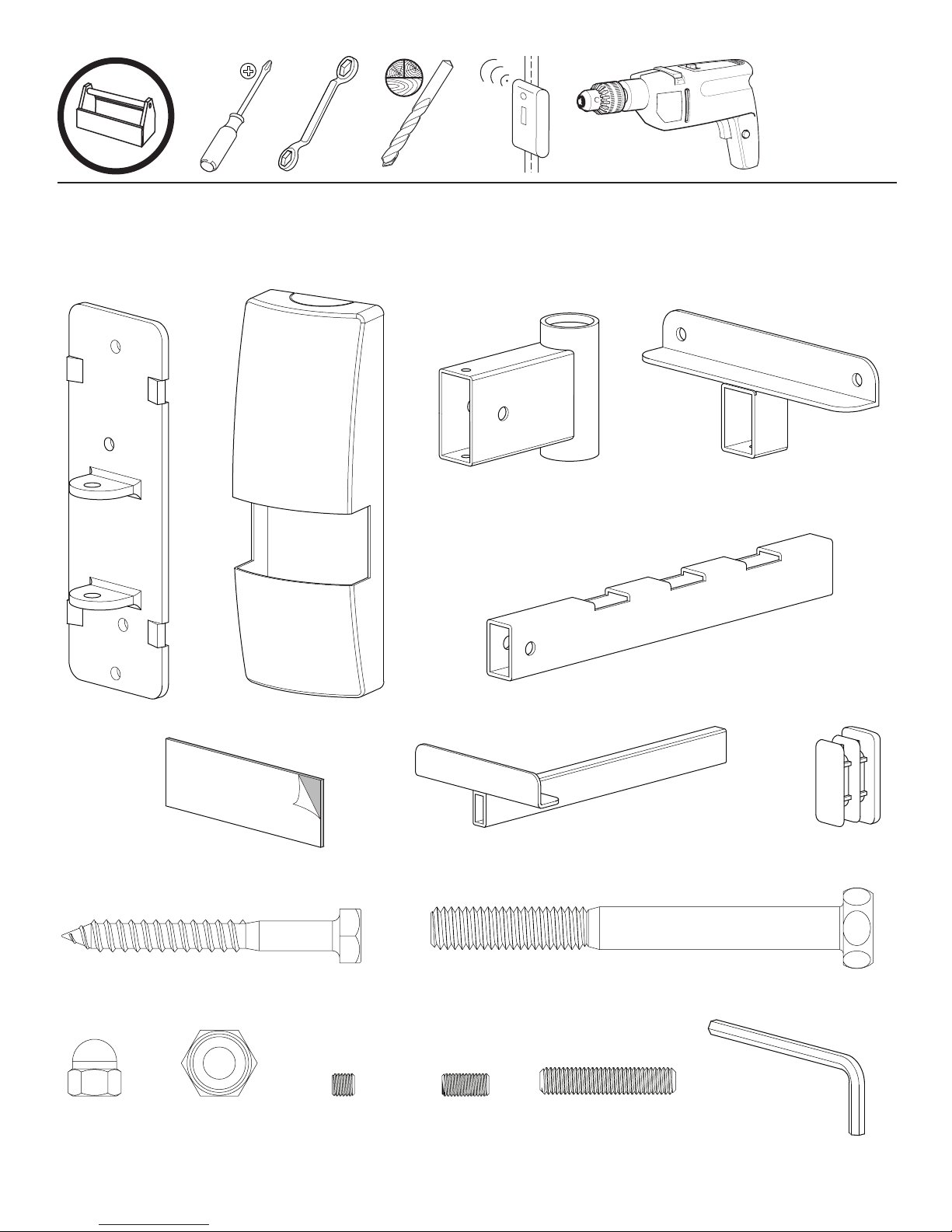

Supplied Parts and Hardware

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the item

to your dealer; contact Customer Service. Never use damaged parts!

[16] x 1

[01] x 2

001542.eps

[02] x 2

001543.eps

[03] x 2

001544.eps

[07] x 2

001546.eps

[04] x 2

001545.eps

001547.eps

[05] x 2

[11] x 4

001549.eps

1/4 x 2.375 in.

3/8-16 M5 x 10mm M5 x 6mm

M6 x 30mm

3/8-16 x 3.5 in.

[08] x 2

001548.eps

[12] x 2

001549.eps

1/4 x 2.375 in.

3/8-16 M5 x 10mm M5 x 6mm

M6 x 30mm

3/8-16 x 3.5 in.

[14] x 6

001549.eps

1/4 x 2.375 in.

3/8-16 M5 x 10mm M5 x 6mm

M6 x 30mm

3/8-16 x 3.5 in.

[13] x 2

001549.eps

1/4 x 2.375 in.

3/8-16 M5 x 10mm M5 x 6mm

M6 x 30mm

3/8-16 x 3.5 in.

[15] x 2

001549.eps

1/4 x 2.375 in.

3/8-16 M5 x 10mm M5 x 6mm

M6 x 30mm

3/8-16 x 3.5 in.

[09] x 8

001549.eps

1/4 x 2.375 in.

3/8-16 M5 x 10mm M5 x 6mm

M6 x 30mm

3/8-16 x 3.5 in.

[10] x 2

001549.eps

1/4 x 2.375 in.

3/8-16 M5 x 10mm M5 x 6mm

M6 x 30mm

3/8-16 x 3.5 in.

[06] x 1

3/16 in.

6901-100149 <01>

001550.eps

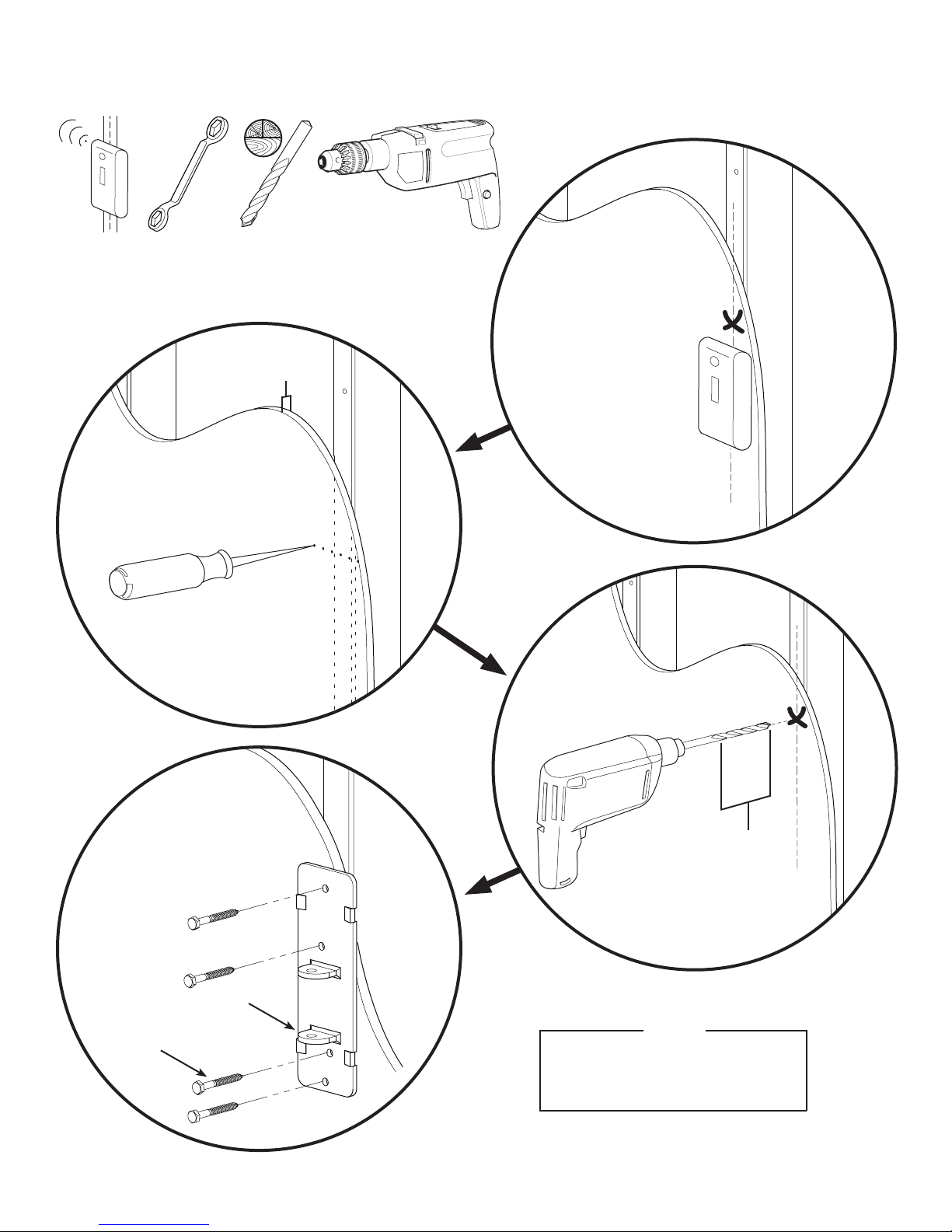

1: Attach Plate to Wall

3/16 in.

[01]

Do not overtighten the lag bolts [09].

Tighten only until the plate [01] is

pulled rmly against the wall.

NOTE

[09]

001550.eps

60 mm

(2.375 in.)

< 16 mm

(5/8 in.)

6901-100149 <01>

2: Install Pivot

3: Install Arm

001552.eps

[03]

[12]

[10]

001551.eps

[05]

[11]

[14]

[11]

[15]

[16]

6901-100149 <01>

4: Install Cover

001553.eps

[02]

5: Install Foot and Extension

[16]

001554.eps

[07]

[04]

[13]

[14]

6901-100149 <01>

Milestone AV Technologies, Inc. and its affiliated corporations and subsidiaries (collectively,“Milestone”), intend to make this manual accurate and complete. However,

Milestone makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in

connection with the installation or use of this product.The information contained in this document is subject to change without notice or obligation of any kind.

Milestone makes no representation of warranty, expressed or implied,regarding the information contained herein. Milestone assumes no responsibility for accuracy,

completeness or sufficiency of the information contained in this document.

001556.eps

6: Install Foam Strips and Cap

001555.eps

[08]

7: Mount Speaker

[15]

20 x 130 mm

(3/4 x 5-1/8 in.)
