Sanus SA405 Manuale utente

SA405

INSTRUCTION MANUAL

If you have any questions along the way, just give us a call:

1-800-359-5520 we’re ready to help!

We’ll Make It Stress-Free

2

WARNING:

 This soundbar mount is only designed to be used with TV wall mounts that meet third

party safety certiﬁcations.

 This soundbar mount is only designed to mount sound bars BELOW the television (see

Figure 1).

Please check the following items:

Your TV and any accessories you plan to use do not exceed the speciﬁed weight limit of

your TV wall mount.

You read and understand these directions.

You refer to the documentation that came with your sound bar and TV wall mount for

additional guidance.

You have the tools needed for installation.

If you have any questions, please contact Customer Service:

1-800-359-5520

.

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Before You Begin

3

 If the TV wall mount does not include TV interface

spacers; do not use the TV interface spacers included

with this soundbar mount.

 If the TV wall mount has built-in or integrated spacers

(see Figure 2); do not use this product.

 This soundbar mount should only be installed into TV

interface bracket slots or holes that are less than 11 mm

(.43 in.) wide; do not over-tighten washer (see Figure 3).

 This soundbar mount was designed to be installed

and utilized only as speciﬁed in this manual. The

manufacturer is not responsible for improper assembly,

use, or handling of this product.

 The wall must be capable of supporting ﬁve times the

weight of the TV, mount, and soundbar combined.

 Failure to follow these instructions could result in an

unstable situation that may result in property damage or

personal injury.

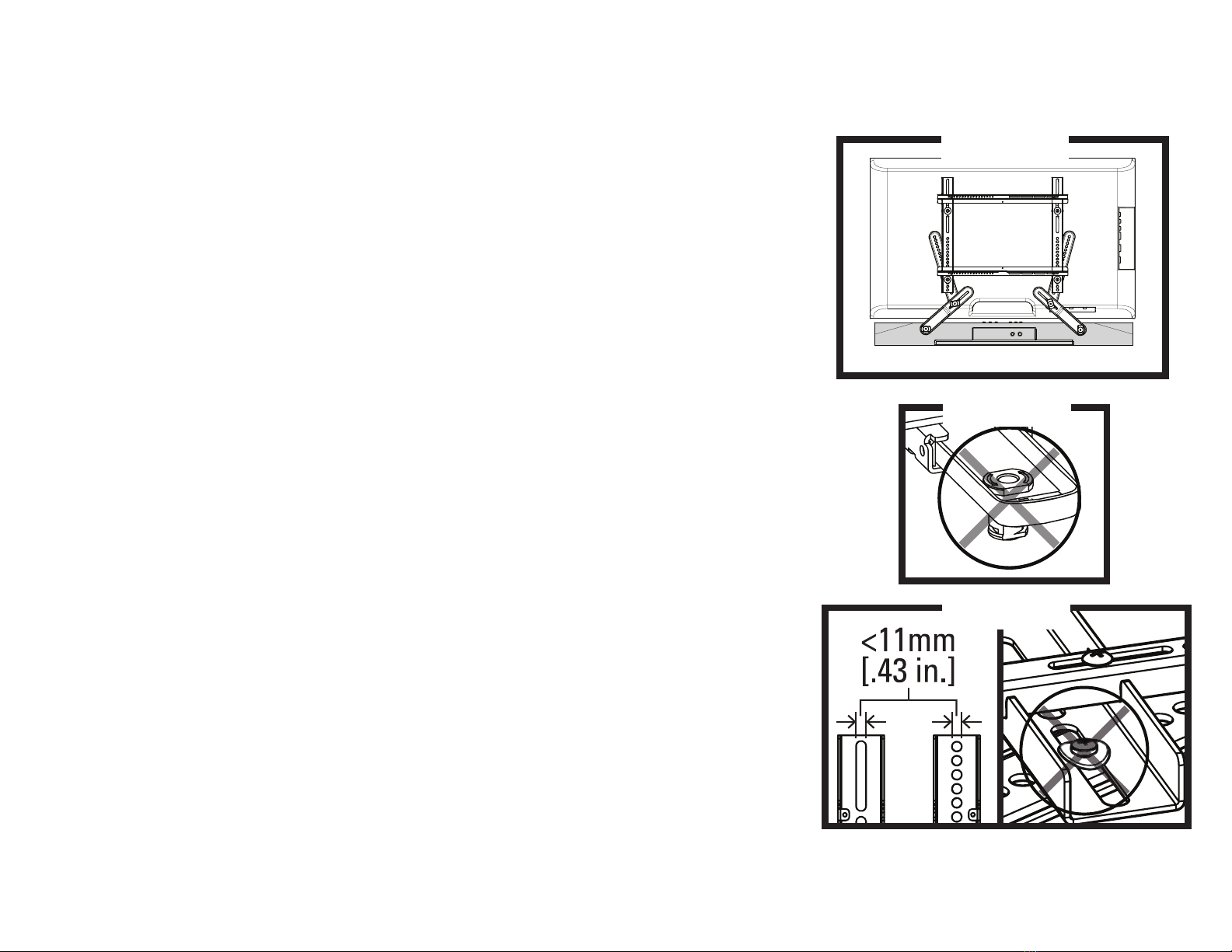

Figure 1

TV

Soundbar

Figure 2

Figure 3

4

3RD PARTY CERTIFIED TV WALL MOUNT*

*Your TV wall mount may vary from the TV wall

mount shown throughout this manual. That is OK. The

installation procedure will be the same.

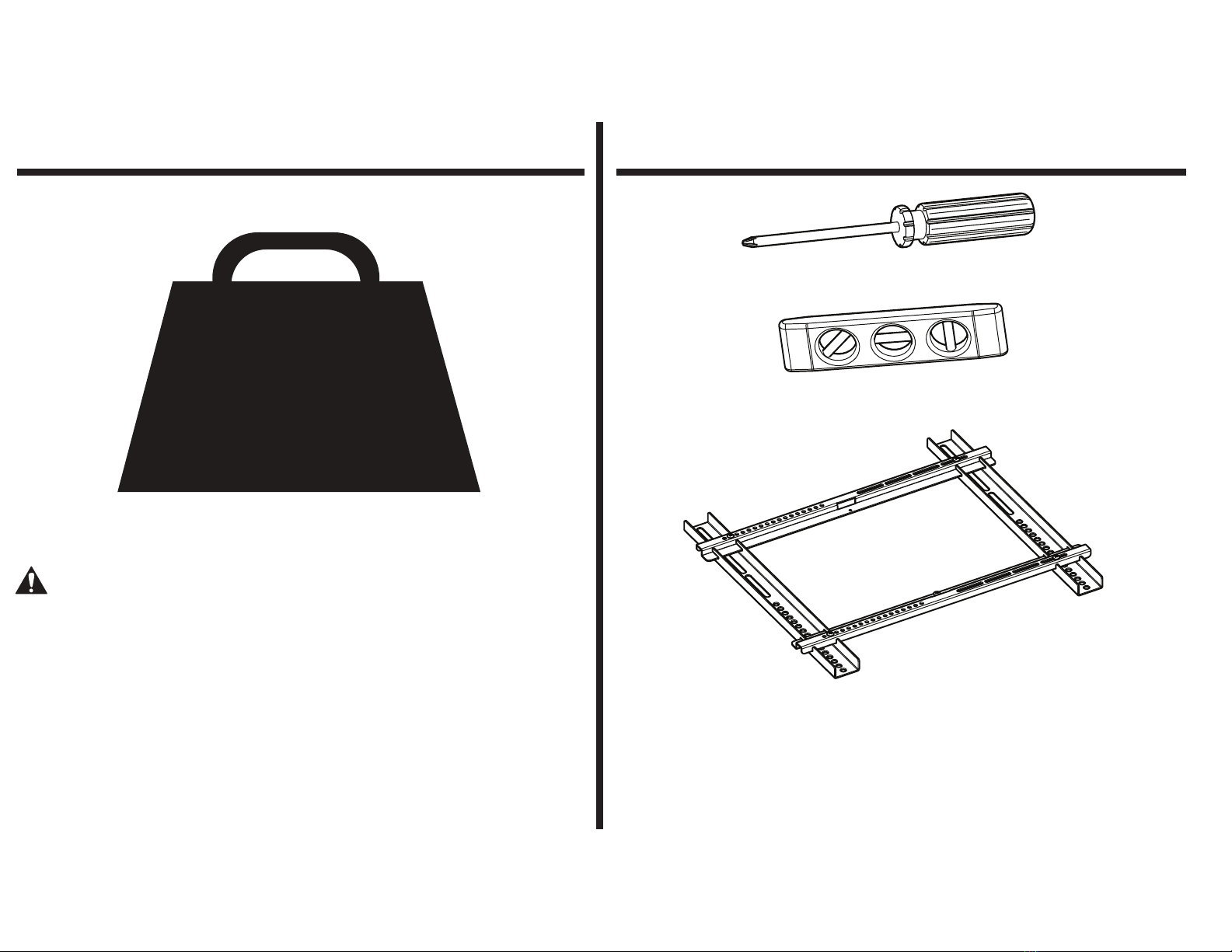

Weight Limit for the SA405 Items Needed

15 lb (6.8 kg)

DO NOT EXCEED!

Phillips Screwdriver

Level

CAUTION: Avoid potential personal injuries

and property damage!

You must verify that the weight of the TV plus the

soundbar mount, soundbar, and any accessories

is lower than the maximum weight rating of the

TV mount.

5

05 05

05

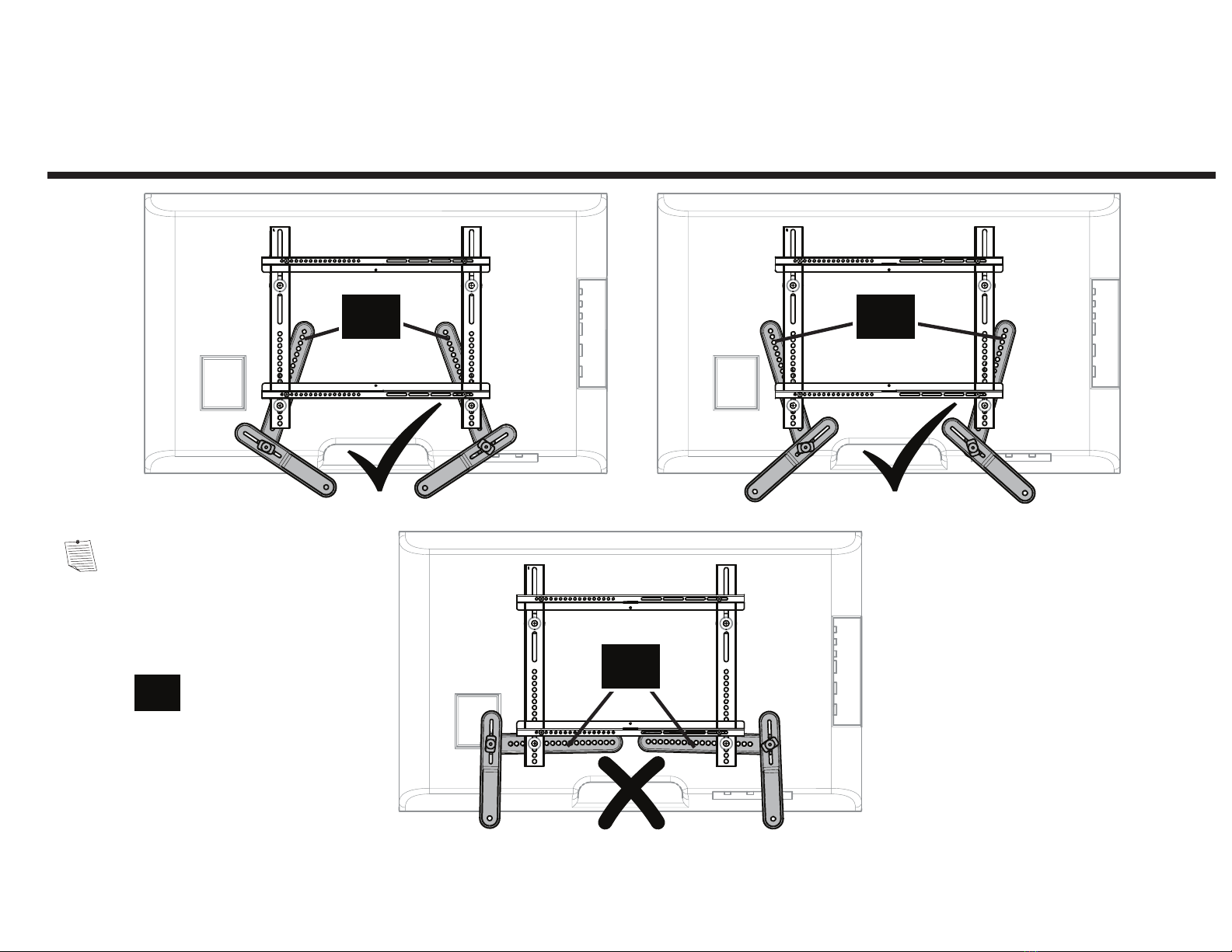

NOTE: Before you

begin assembling this

soundbar mount, please

note that theTV/bracket

arms 05 should be

positioned as vertically

as possible.

Arm Position

6

NOTE: Not all hardware included will be used.

Supplied Parts and Hardware

WARNING:

This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged,

do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

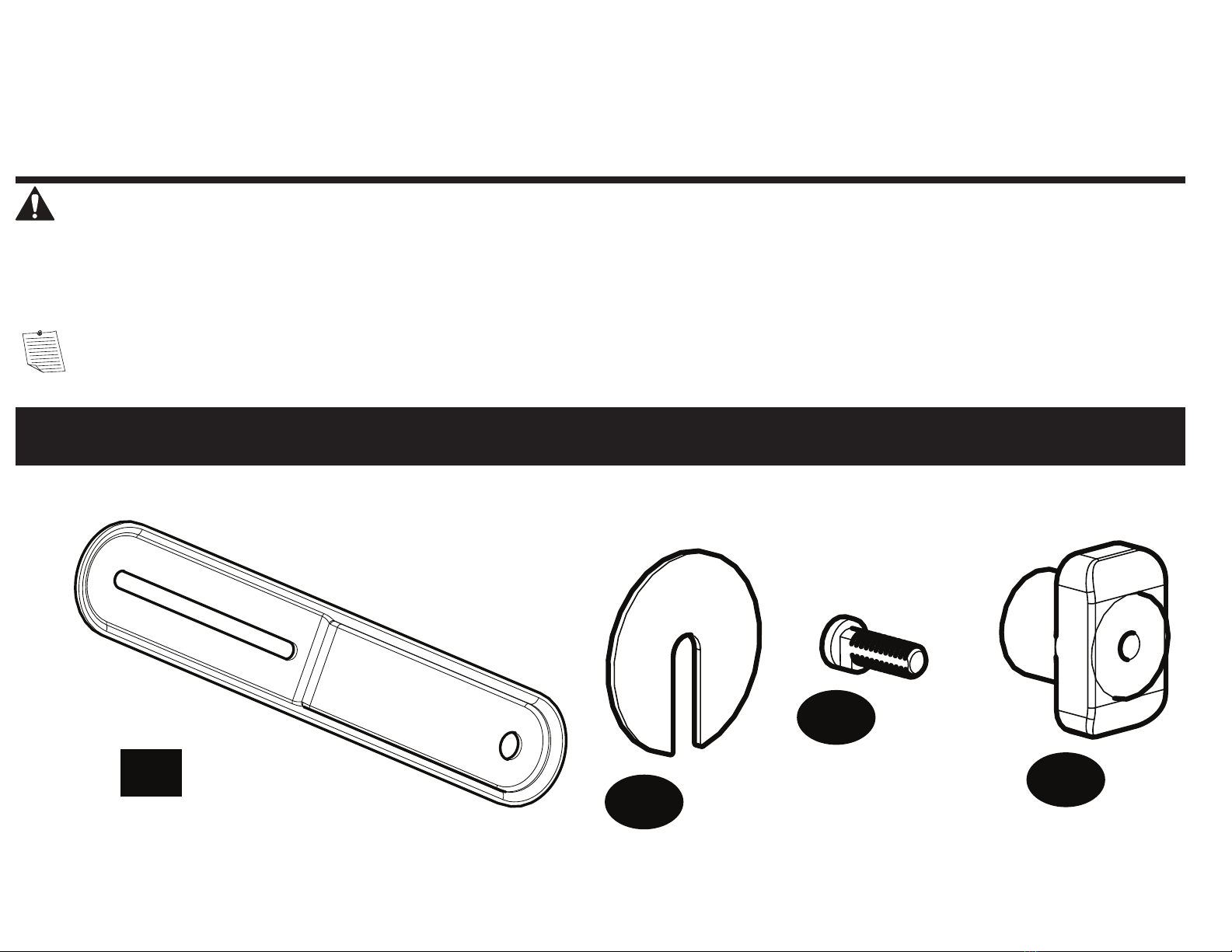

Parts and Hardware for STEP 1 (and 3)

01 x 2 x 2

02

x 2

03

x 4

04

Soundbar Bracket Arm “C” Washer

Keyhole Screw

Knob

7

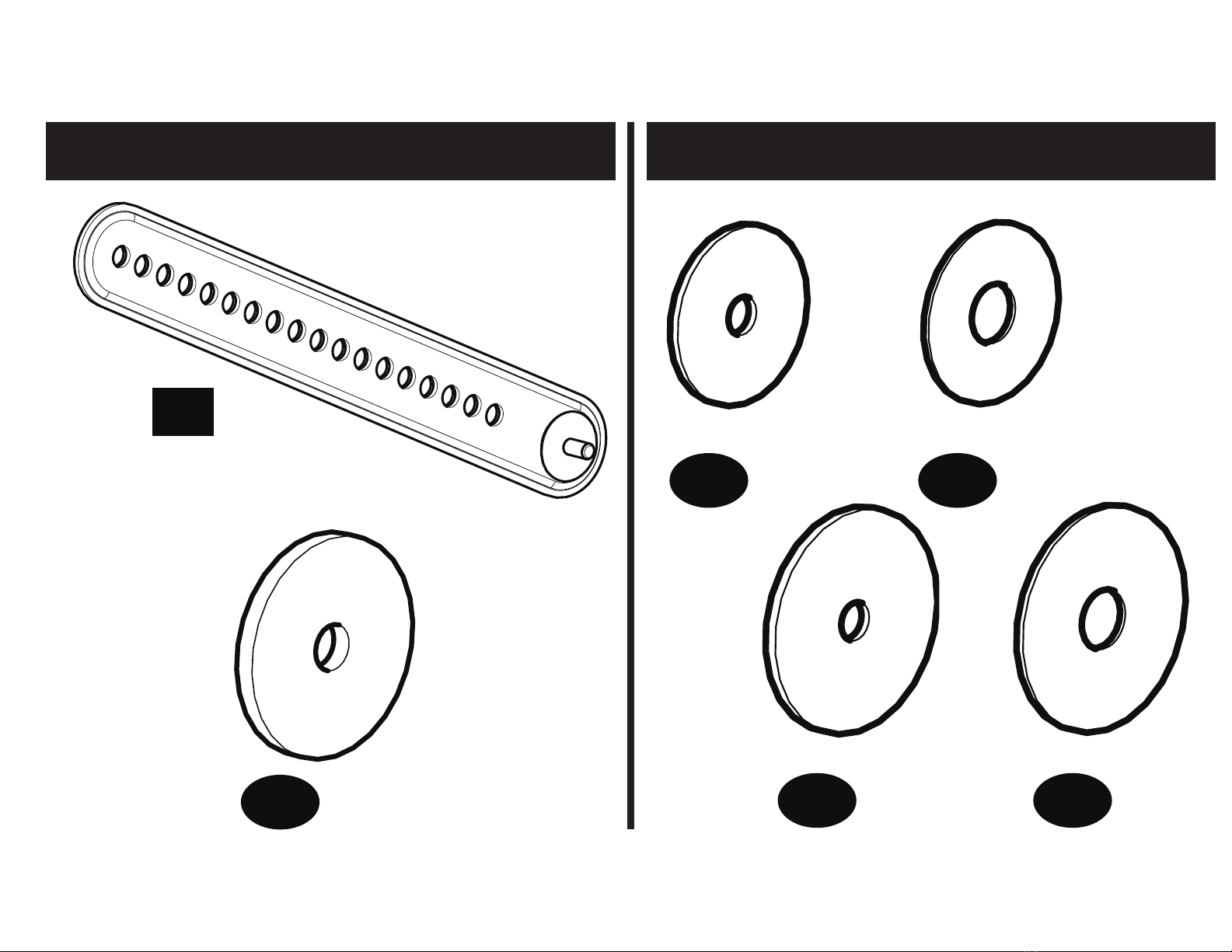

05 x 2

x 2

06

TV Bracket Arm

Parts and Hardware for STEP 3 Hardware for TV Bracket

M4/M5

07 x 4

Large M4/M5

09 x 4

M6/M8

08 x 4

Large M6/M8

10 x 4

TV Screw Washers

Soundbar

Mount Spacer

8

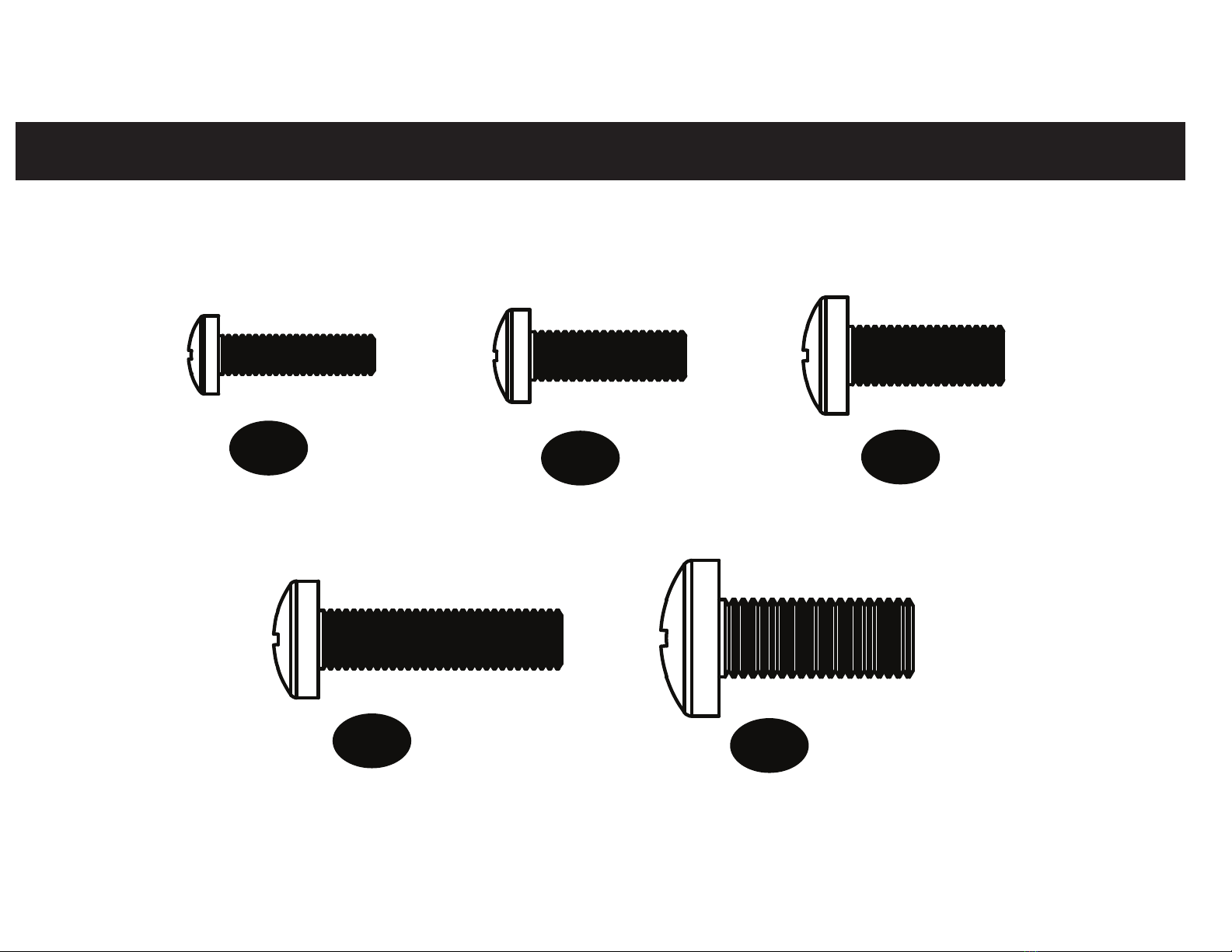

Hardware for TV Bracket

M8 x 20mm

15 x 4

M6 x 25mm

14 x 4

M6 x 16mm

13 x 4

M5 x 16mm

12 x 4

M4 x 16mm

11 x 4

Screws for TVs with a Flat/Unobstructed Back

9

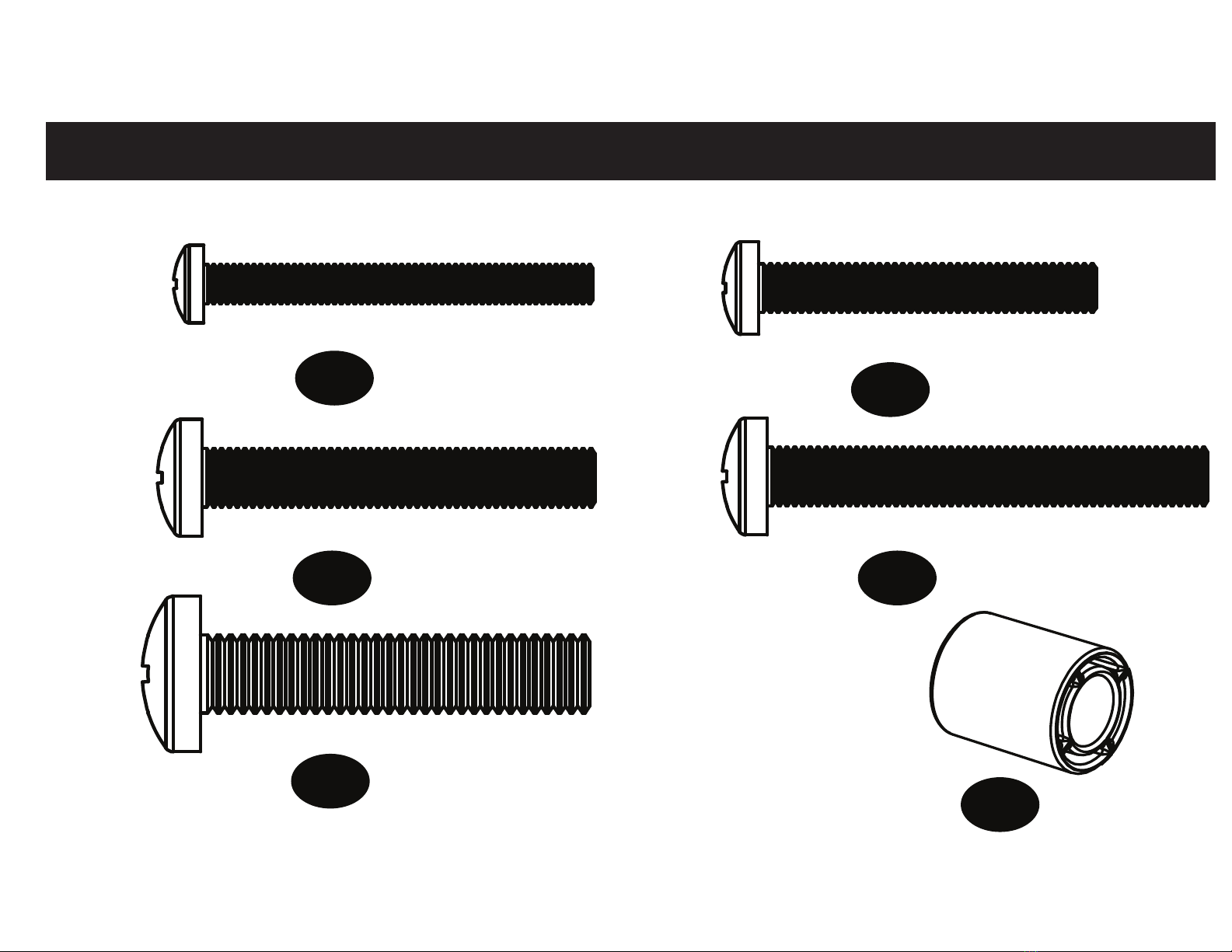

Hardware for TV Bracket

M8 x 40mm

20 x 4

M6 x 50mm

19 x 4

M6 x 40mm

18 x 4

M5 x 40mm

17 x 4

M4 x 40mm

16 x 4

Screws for TVs with Irregular/Obstructed Backs

21 x 4

Spacer for TVs

with Irregular/

Obstructed Backs

10

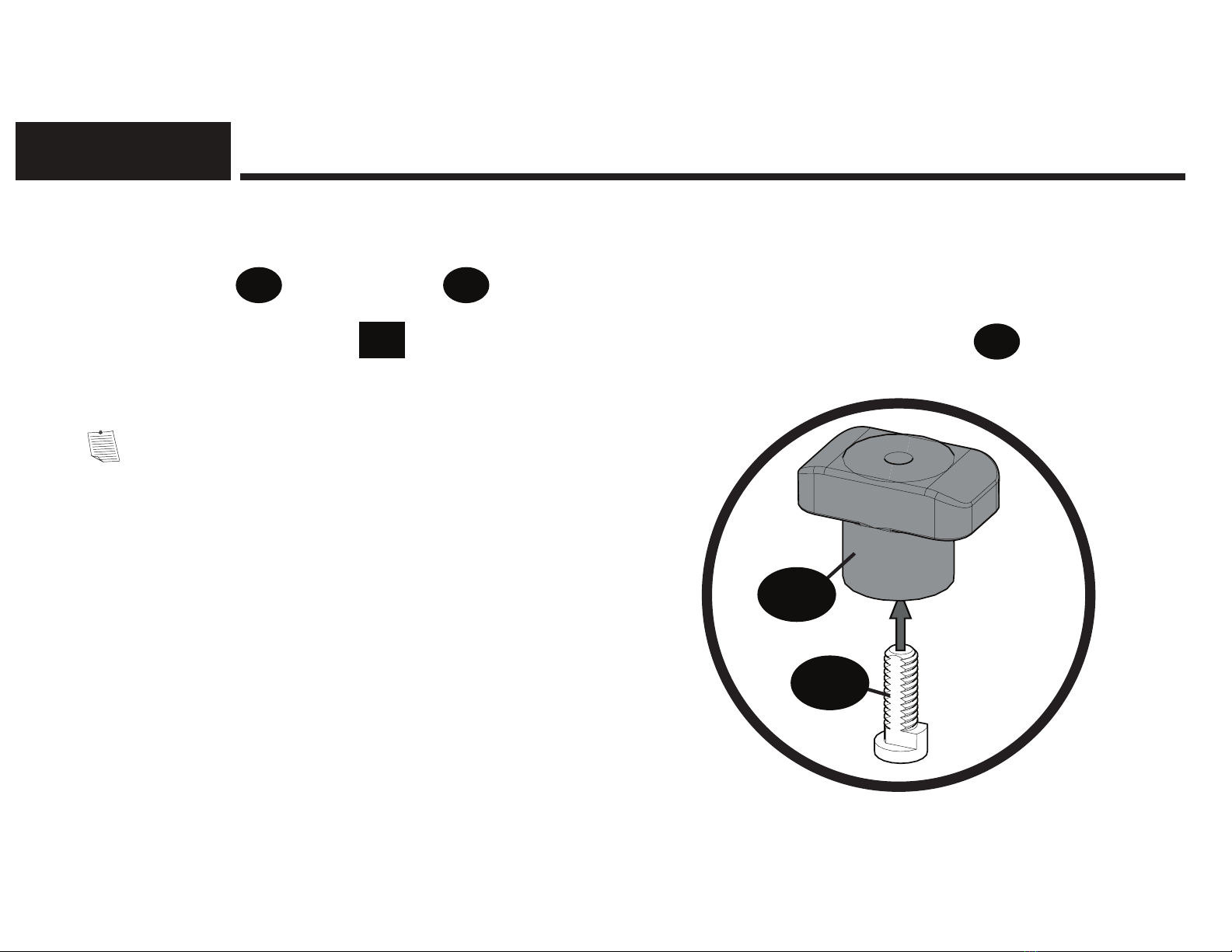

Check the compatibility of the soundbar bracket with your soundbar.

Assemble knobs 04 and screws 03 .

Attach the soundbar arms 01 to soundbar. Do not fully tighten the knobs 04 .

04

03

NOTE: When planning on the position of

the soundbar, make sure you will be able

to access the control buttons.

Mount Bracket Arms to Soundbar - Option 1

STEP 1
