SLT

INSTRUCTION MANUAL

We’ll Make It Stress-Free

If you have any questions along the way, just give us a call.

1-888-333-1376 (UK: 0800-056-2853). We’re ready to help!

Scan for easy install video

http://san.us/937

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

—

Perfect!

Yes

—

This mount is NOT compatible. Visit Simplicity.Sanus.com or call

1-888-333-1376 (UK: 0800-056-2853) to ﬁnd a compatible mount.

—

Perfect!

Yes

—

This mount is NOT compatible. Visit Simplicity.Sanus.com or call

1-888-333-1376 (UK: 0800-056-2853) to ﬁnd a compatible mount.

Before getting started, let’s make sure this mount is perfect for you!

2What is your

wall made of? Drywall

with steel

studs?

Unsure?

Drywall

with wood

studs?

Solid concrete

or concrete

block?

180 lb

(81.6 kg)

130 lb

(59 kg)

Call Customer Service: 1-888-333-1376 (UK: 0800-056-2853)

Perfect! Perfect!

Steel Stud Kit required

For walls with

wood studs, solid

concrete, and

concrete block walls:

For walls with

steel studs:

CAUTION:

DO NOT

install into

drywall alone

Does your TV

(including accessories)

weigh MORE than?

Para Español ver página 24

Please read through these instructions completely to be sure you’re comfortable with this easy install process.

Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use

of this product, contact Customer Service at 1-888-333-1376 (UK: 0800-056-2853).

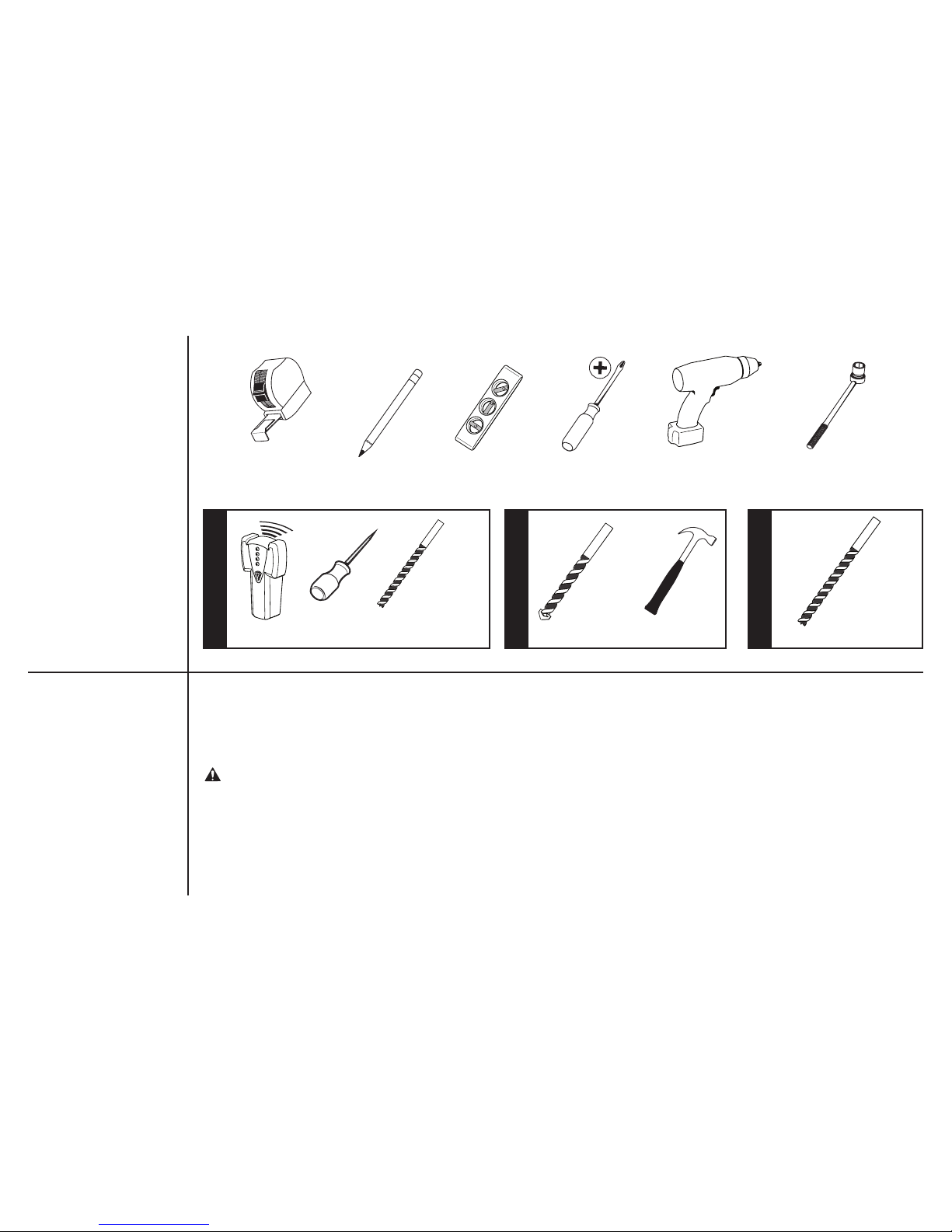

Do you have

all the tools

needed?

CAUTION: Avoid potential personal injuries and property damage!

●This product includes directions and hardware for use with wood stud, solid concrete and concrete block walls –

DO NOT install into drywall alone. For information on how to use this product with steel stud walls contact Customer

Service and ask about the steel stud mounting kit

●The wall must be capable of supporting ﬁve times the weight of the TV and mount combined

●Do not use this product for any purpose not explicitly speciﬁed by manufacturer

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

Ready to

begin?

Awl

Pencil Level

Stud Finder

ScrewdriverTape Measure

7/32 in.

(5.5 mm)

Wood

Drill Bit

Electric Drill

Hammer

1/2 in.

(13 mm)

Socket Wrench

Drill Bit

3/8 in.

(10 mm)

Concrete

1/2 in.

(13 mm)

Steel Stud

Drill Bit

Wood Stud Install

Concrete Install

Steel Stud Install

10º

7º

Features

TV brackets adjust to

ﬁt TV hole patterns

from 100 x 100 mm up

to 625 x 420 mm

Adjustment knobs allow

ﬁngertip control or to restrict

movement

TV brackets snap into place

on wall plate for added

safety

Level adjustment creates a

worry-free installation

TV tilts up

or down for

the perfect

viewing angle

Dimensions

16.5 in.

(420 mm)

Up to 24.6 in.

(625 mm)

4.7 in.

(120 mm)

27.0 in.

(686 mm)

7.1 in.

(180 mm)

17.5 in.

(445 mm)

1.8 in.

(46 mm)

2.8 in.

(72 mm)

25.0 in.

(635 mm)

2.0 in.

(51 mm)

10°

7°

M4 x 12mm

M4 x 35mm M4

M6 / M8

M6 x 12mm

M6 x 35mm

M6 x 20mm

M8 x 16mm

M8 x 35mm

M8 x 20mm

5/16 x 2¾ in.

.695 x .350 x .075 in.

UX 10 x 60

M8 x 25mm

2.5mm 22mm

M8 x 45mm

M8 x 50mm

Parts and Hardware for STEP 1

NOTE: Not all hardware included will be used.

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to

your dealer; contact Customer Service. Never use damaged parts!

Supplied Parts and Hardware

03 x4 06 x4

04 x4 07 x4

05 x4 08 x4

01 x1 02 x1

TV Brackets TV Screws

M4 x 12mm

M4 x 35mm M4

M6 / M8

M6 x 12mm

M6 x 35mm

M6 x 20mm

M8 x 16mm

M8 x 35mm

M8 x 20mm

5/16 x 2¾ in.

.695 x .350 x .075 in.

UX 10 x 60

M8 x 25mm

2.5mm 22mm

M8 x 45mm

M8 x 50mm

09 x4

10 x4

11 x4

12 x4

13 x4

14 x4

TV Screws

15 x4

16 x4 17 x4

Washers

Spacers

M4 x 12mm

M4 x 35mm M4

M6 / M8

M6 x 12mm

M6 x 35mm

M6 x 20mm

M8 x 16mm

M8 x 35mm

M8 x 20mm

5/16 x 2¾ in.

.695 x .350 x .075 in.

UX 10 x 60

M8 x 25mm

2.5mm 22mm

M8 x 45mm

M8 x 50mm

Parts and Hardware for STEP 2

Wall Plate Template Lag Bolts

Lag Bolt Washer

Wall Plate

20 x4

21 x4

18 x1

19 x1 Concrete Anchors

For concrete installations ONLY

CAUTION: Do not use in drywall or wood

Fischer UX10 x 60R

22 x4

Parts and Hardware for STEP 2C

Steel Stud Anchor Kit (not included) - contact Customer Service at 1-888-333-1376 (UK: 0800-056-2853) t

o have the addtional

hardware shipped directly to you.

1/4-20 x 1¾ in.

1/4 in.

1/4-20 SnapToggle BB

S1 x4

S2 x4 S3 x4

FLAT BACK ROUND BACK CABLESINSET HOLES

ab16 17

M6 M8M4

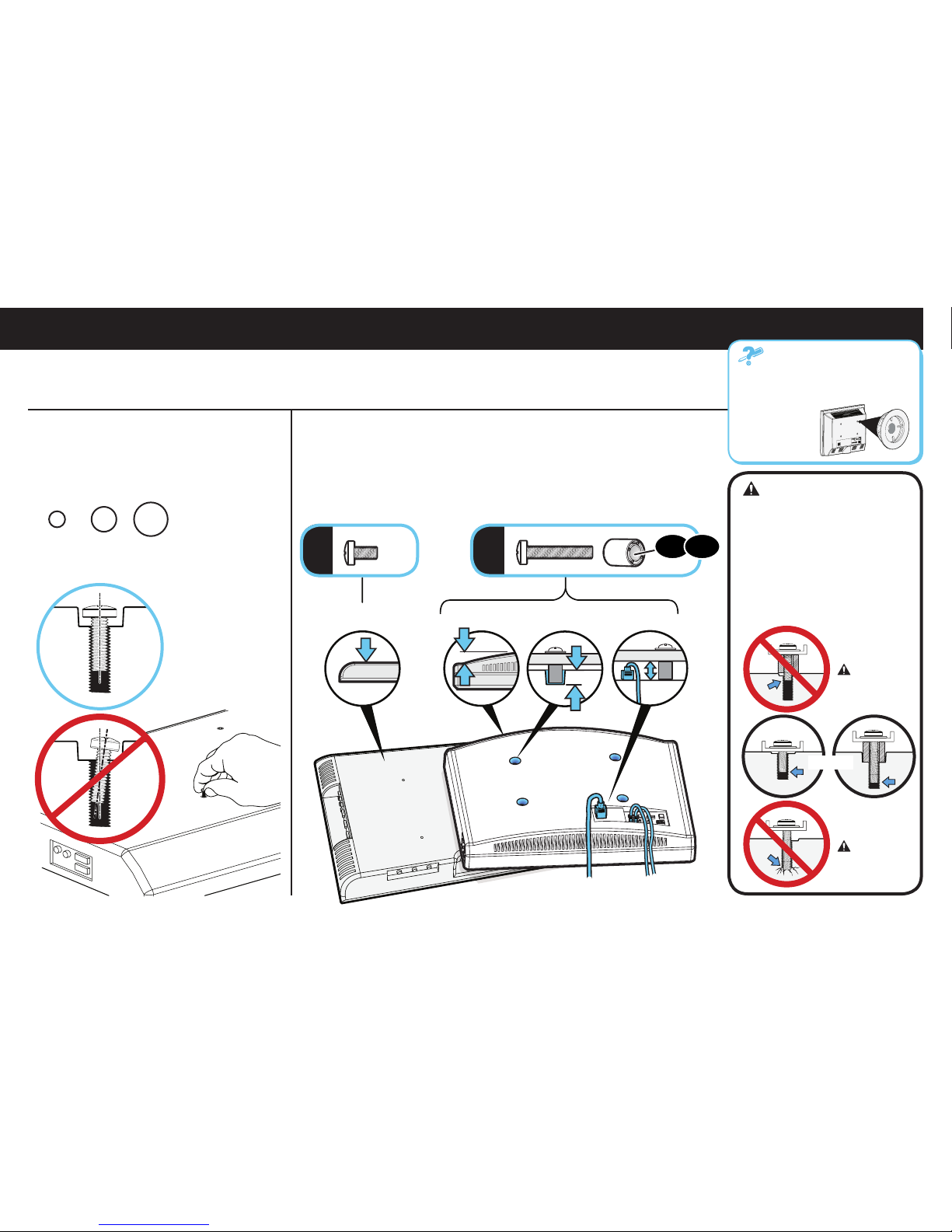

1.1 Select TV

Screw Diameter

1.2 Select TV

Screw Length

Hand thread screws into the threaded

inserts on the back of your TV to

determine which screw diameter

(M4, M6, or M8) to use.

STEP 1 Attach Brackets to TV

a:If your TV has a

flat back AND you

want your TV closer

to the wall, use the

shorter screws.

b:Spacers and longer screws are

supplied to accommodate:

●Round (irregular) back TVs

●TVs with inset mounting holes

●Extra space needed for cables

Too Short

Too Long

CAUTION:

Verify adequate thread

engagement with the screw/

washer/spacer combination

AND TV Bracket (STEP 1.3).

-Too short will not hold the TV.

-Too long will damage the TV.

Correct

If your TV included

inset spacers or wall mount

adapters, see Troubleshooting

on PAGE 23.
