INSTRUCTION MANUAL
Scan for easy install video
http://san.us/311
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
1-888-333-1376 (UK: 0800-056-2853). We’re ready to help!
2
(27 kg)
60 lb
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
Does your TV weigh more than 27 kg (60 lb) including accessories?
No
—
Perfect!
Yes
—
This mount is NOT compatible. Visit Simplicity.Sanus.com or call 1-888-333-1376 (UK: 0800-056-2853) to find a compatible mount.
5.5 mm
(7/32 in.)
10 mm
(3/8 in.)
13 mm
(1/2 in.)
Ready to begin?
Please read through these instructions completely to be sure you’re comfortable with this easy install process. Also check your TV
owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact
Customer Service at 1-888-333-1376 (UK: 0800-056-2853).
Do you have all of the tools needed?
Before getting started, let’s make sure this mount is perfect for you!
1
2
3
4
What is your wall made of?
Unsure?
?
Perfect! Perfect! Call 1-888-333-1376 (UK: 0800-056-2853)
Drywall with
wood studs
Solid concrete or
concrete block
3
Features
75 x 75 mm
400 x 400 mm
TV bracket expands
to fit TV hole patterns
from 75 x 75 mm up to
400 x 400 mm
Fully articulating arm
creates 3-point movement
for optimal viewing position
TV tilts up or down for the
perfect viewing angle
Level
adjustment
creates a
worry-free
installation
Cable tie holes
hold cables
along mount
arm for a
clean look
Adjustment knobs allow fingertip
control or restriction of movement
4
15.75
400.0
14.10
358.1
13.44
341.4
11.81
300.0
10.66
270.7
10.66
270.7
11.81
300.0
13.44
341.4
14.10
358.1
15.75
400.0
12.85
326.5
11.81
300.0
11.40
289.4
10.36
263.2
9.63
244.7
11.40
289.4
12.85
326.5
14.92
378.9
15.75
400.0
17.83
453.0

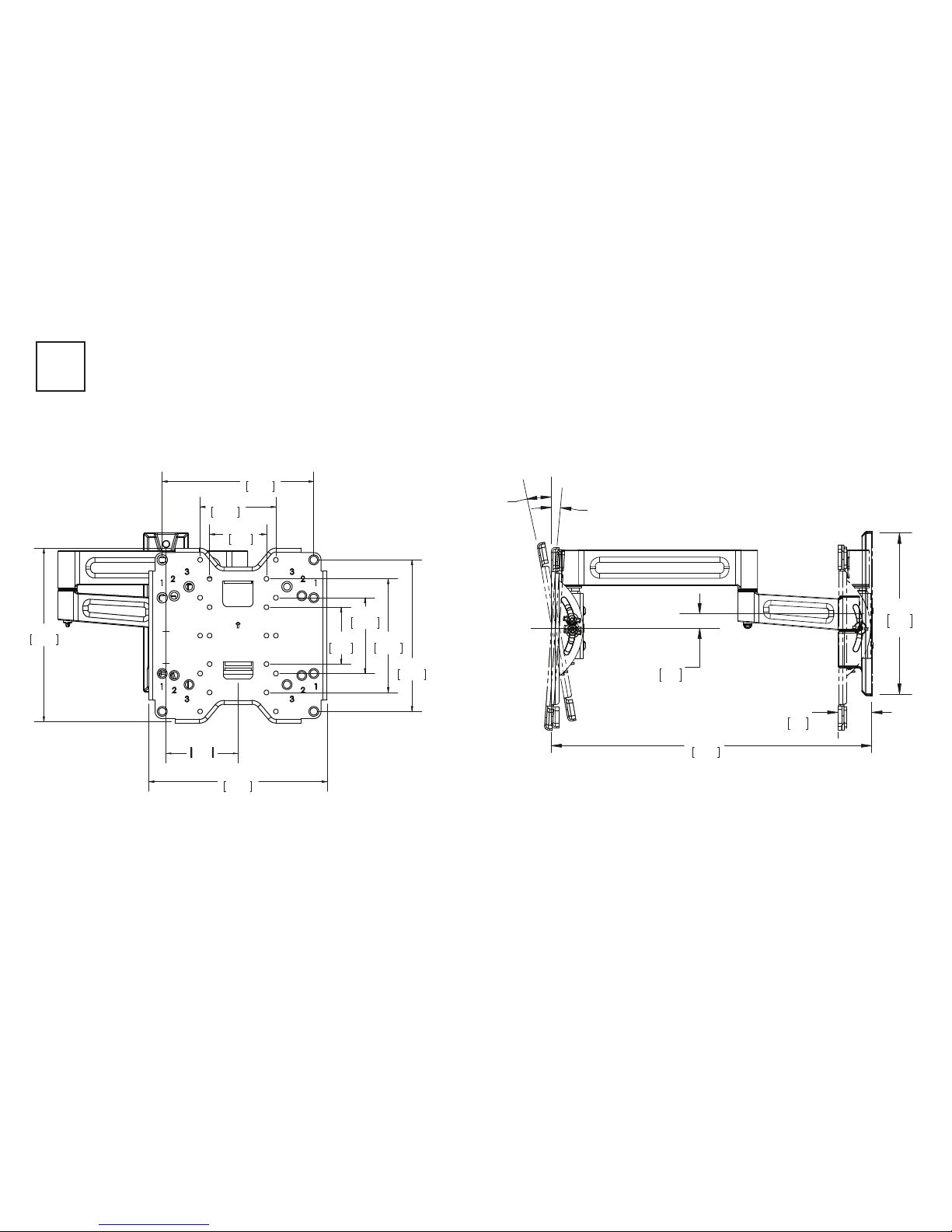

Dimensions
in.
[mm]
19.01
482.8
16.68
423.6
15.75
400.0
13.44
341.4
11.81
300.0
7.87
200.0
5
in.
[mm]
7.87
200.0
3.94
100.0
2.95
75.0
7.87
200.0
5.91
150.0
3.94
100.0
2.95
75.0
9.02
229.0
9.25
235.0
3.73
94.8
OFFSET
16.13
409.6
8.11
206.0
10°
4°
1.70
43.1
0.74
18.7
6
1/4-20 x 3/8 in.
M4
M6/M8
Spacer
M4 x 35mmM4 x 12mm
M6 x 35mm
M6 x 12mm
M6 x 20mm
M8 x 16mm M8 x 35mm
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to
your dealer; contact Customer Service. Never use damaged parts!
STEP 1 Parts and Hardware
Supplied Parts and Hardware
06
10
07
08 11
12
13
14
x4
x4
x4
x4 x4
x4
x4
x4
09
04
05
x8
x4 x4
01
02
03
x2
x2
TV BRACKET
EXTENSIONS
7
Cable Tie
Additional Parts
Concrete Anchor
5/16 in. x 2 3/4 in.
5/16 in.
1/4-20 x 1/2 in.
5/32 in.
1615
17
18
20
21
22
19
x3
x3
x3
x3
Wall PlateWall Plate Template
STEP 2 Parts and Hardware STEP 3 Parts and Hardware
8
B
A
STEP 1 Attach TV Bracket to TV
These smaller hole patterns only use TV bracket 01 .
Discard the extensions 02 and 03 and screws 04 .
Assemble extensions 02 and 03 onto TV bracket 01 as shown.
Secure using eight screws 04 in the corner holes and hole pattern "1."
75 x 75
100 x 100
200 x 100
200 x 200
300 x 300
400 x 400
01
01
03
200 400
300
100
75
200
100
75
400 300
1-1 Measure Your TV Hole Pattern
1-2 Assemble Your TV Bracket
Measure the width and height of your TV hole pattern in mm.
Record your measurements:
Determine which TV bracket configuration to use, A, B, C, D or E based on your TV hole pattern measurements.
0302
02
75 mm = 7.5 cm = 3 in.
100 mm = 10 cm = 4 in.
200 mm = 20 cm = 7 7/8 in.
300 mm = 30 cm = 11 3/4 in.
400 mm = 40 cm = 15 3/4 in.
cm
inches
xHeight
Width mm mm
inch dimensions approximate
02 03
04 21
04
9
E
D
C
Assemble extensions 02 and 03 onto TV bracket 01 as shown.
Secure using eight screws 04 in the corner holes and hole pattern "2."
Assemble extensions 02 and 03 onto TV bracket 01 as shown.
Secure using eight screws 04 in the corner holes and hole pattern "3."
Assemble extensions 02 and 03 onto TV
bracket 01 as shown.
Secure using eight screws 04 in the corner
holes and hole pattern "3."
400 x 300 200 x 300
200 x 400
300 x 200
400 x 200
01
01
400
400
300
200
200
300
01
400
300
03 02
0302
02
02 03
03
0203
02
03
04
20
04
20 04 20
10
M6 M8
FLAT BACK ROUND BACK CABLES
Too Short
Correct
Too Long
INSET HOLES
M4
1-3 Select TV Screw Diameter 1-4 Select TV Screw Length
If your TV has a flat back, use the shorter screws.
Spacers and longer screws are supplied to accommodate:
●irregular / round back TVs
●TVs with inset mounting holes
●extra space needed for cables
Hand thread screws into the threaded inserts
on the back of your TV to determine which
screw diameter (M4, M6, or M8) to use.
CAUTION:
Verify adequate thread
engagment with the screw or
screw/spacer combination.
-Too short will not hold the TV.
-Too long will damage the TV.
