Sanyipace 9723D Manuale utente
Pipe Sewer Pipeline Inspection Camera
User Manual
Model No.：9723D
-------------------------------------------------------------------------------------------------------------------------------------------
Please contact us at first time if you got issues with the product
SanyiMrchan@gmail.com
Catalog
1. Notice ................................................................................ 1
2. Scope of Product Use ....................................................... 1
3. Product Specification .........................................................1
4. Device Parts Details .......................................................... 2
(1) Screen Operation .........................................................2
(2) 4500mAh Battery ......................................................... 4
(3) Camera Probe (Waterproof Level IP68) ...................... 5
(4) Cable Coil .................................................................... 5
5. Accessories List .................................................................6
6. System Install (as below picture) .......................................6
7. Power Charger .................................................................. 7
8. Failure and Diagnosis ........................................................7
9. Warranty ............................................................................ 8
Attention: The illustrations and screenshots of this manual are to
explain the product's operation, which may be a little different from
actual products due to the products' version upgrades and
different production batches. If the content in this manual does not
match your machine, please refer to the machine!
—1—
1. Notice
a. Please read the manual carefully before using the product.
b. Handle the device with care when operating, do not drop or push hard.
c. Do not dismantle the machine without permission.
d. Please turn off the monitor and disconnect the device after use.
e. Before inserting the TF card into the device, please back up the
information on the TF card to avoid loss of information.
f. Do not cut off the power suddenly during recording and playback,
otherwise, the product and video files may be damaged.
2. Scope of Product Use
a. Household pipeline blockage inspection
b. Pipe inspection camera, pipeline tools
c. Underground water pipes, HVAC systems, oil and gas pipelines
d. Rescue operations in narrow spaces
e. For underground exploration
f. Scientific research on underwater riverbeds
g. Sewer system inspection
h. Any other hard-to-reach locations/areas
3. Product Specification
---Camera and Cable---
Sensor: 1/3 CMOS
Camera probe size: 0.87in*1.7in/22mm*42mm
Charger: 100VAC-240VAC DC 12.6V 1000MA
Battery: lithium battery 4500mAh
Battery continuous working time: about 6-8 hours
Max Inspection depth/material: 66ft/20m, 100ft/30m, 165ft/50m (optional)
high tenacity cable
Camera line source: 12pcs 1W high white LED (adjustable)
—2—
Camera angle and clarity: 145-degree/1000TVL
Camera shell material: stainless steel/IP68 waterproof
Camera protective cover size: 1.5in*1.1in/38mm*28mm
Camera protective cover material: plastic steel
---Monitor Screen---
Monitor Screen: 7-inch TFT color monitor
SD card: includes 16GB SD card, max support 16GB
Display resolution: 16:9, 960*480
Menu Language: Chinese/English optional
Display video format: AVI, marked with Year,Month,Date,Time and Seconds
Display operation: button
Working temperature: -4~140℉/-20~60℃
Storage temperature: -22~176℉/-30~80℃
4. Device Parts Details:

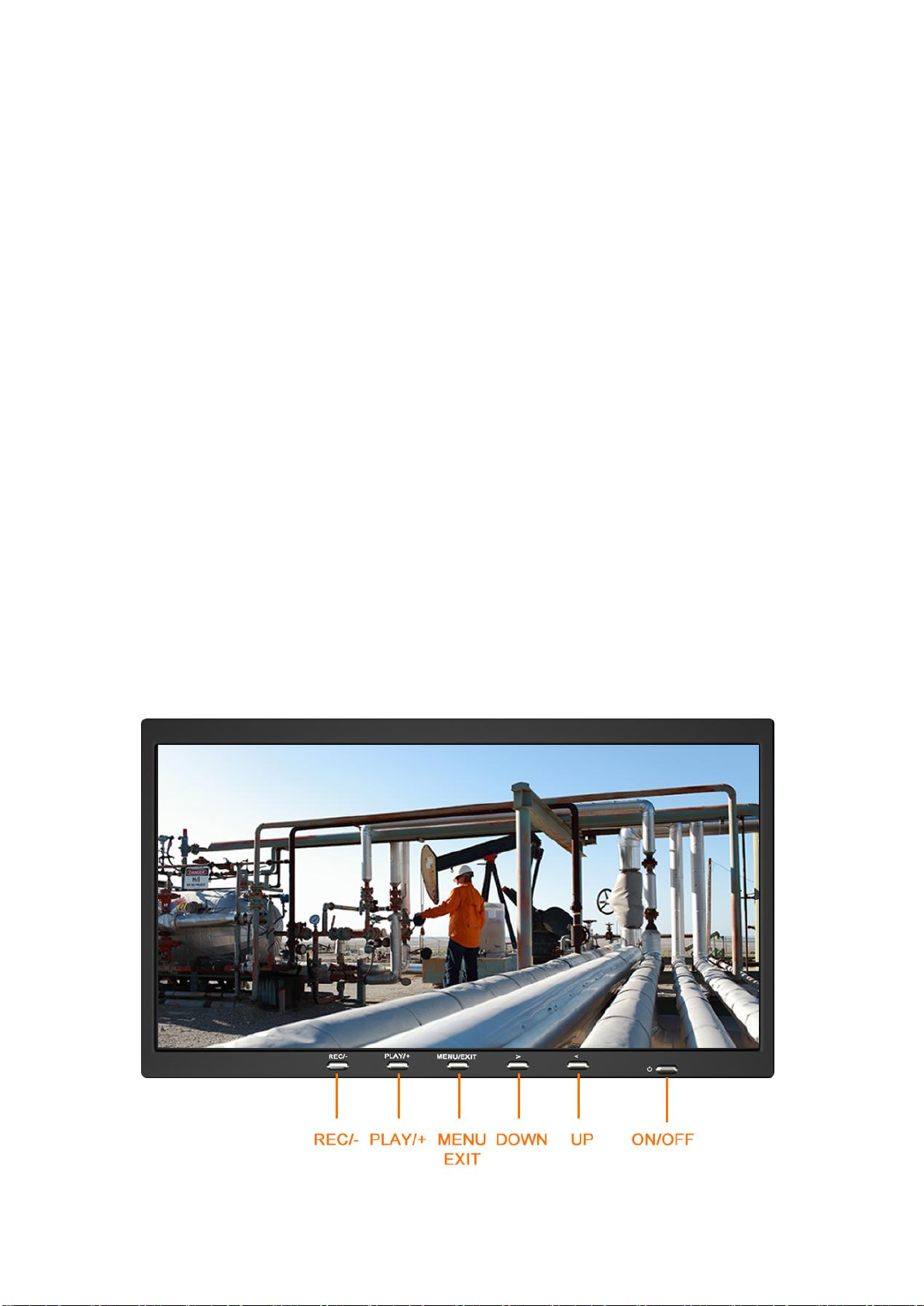

(1) Screen Operation
—3—
a.Turn On
Connect the connectors, turn on the battery switch, press the power button
on the screen, and the system will start to work.
b.Setting
Press MENU enter, after selecting Set, press “Play/+ ” or “Rec/- ” to confirm,
Can set language/image/storage/clock .
c.Video Recording
Press “Rec/- ” to start recording, press “Rec/- ” again to stop.
d.Video Browsing and Play
Press “PLAY/+” to play a video, press “>” or “<” to play the next video, and
press “Menu” to exit.
e.Take Photo
Press “>” to take a photo quickly, but it does not work in video recording
mode.
f.Picture browsing
Press “<” to view pictures quickly.
How to take out the memory card?

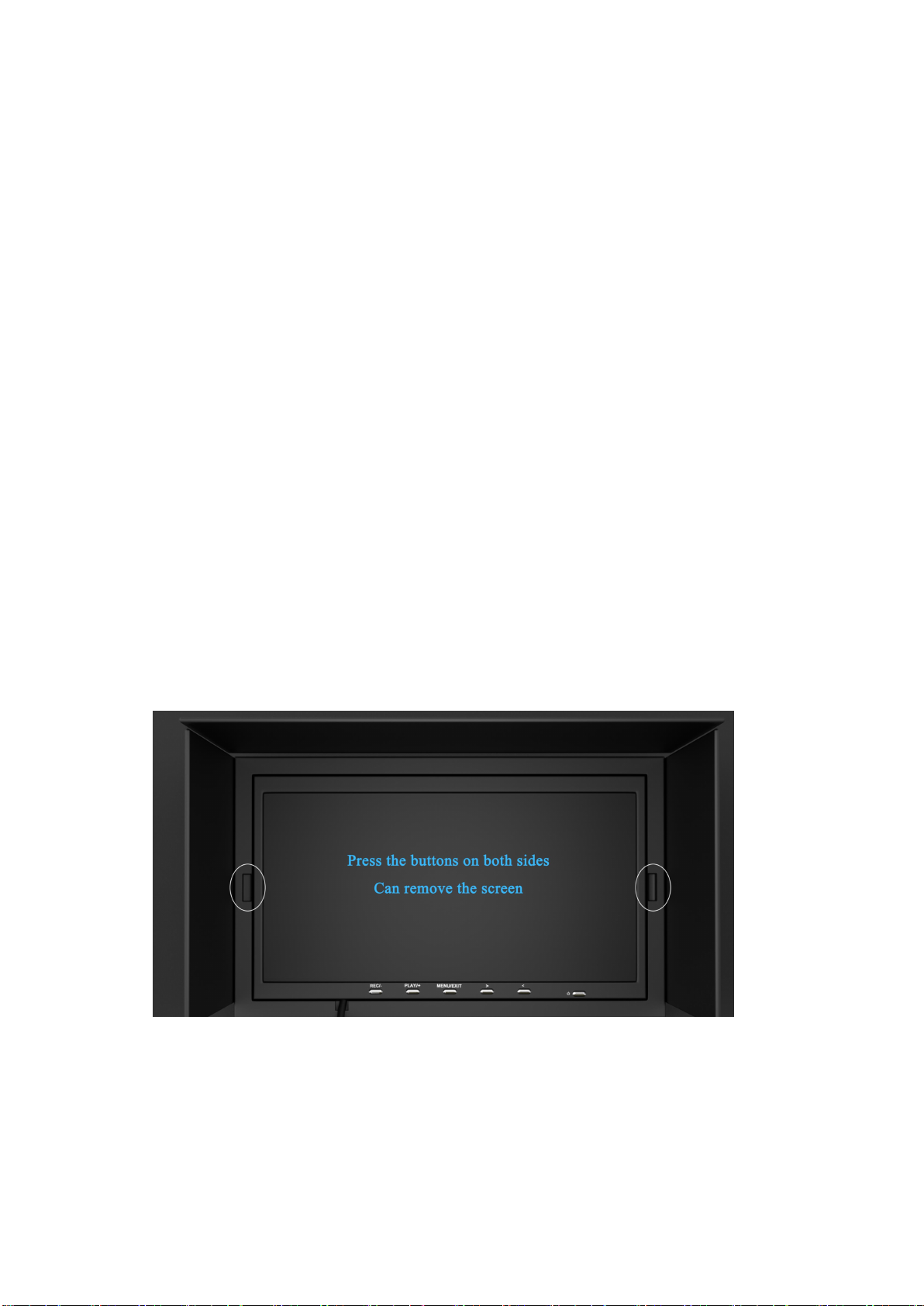

A. Press the buttons on both sides of the display at the same time to pop the
display out.
—4—

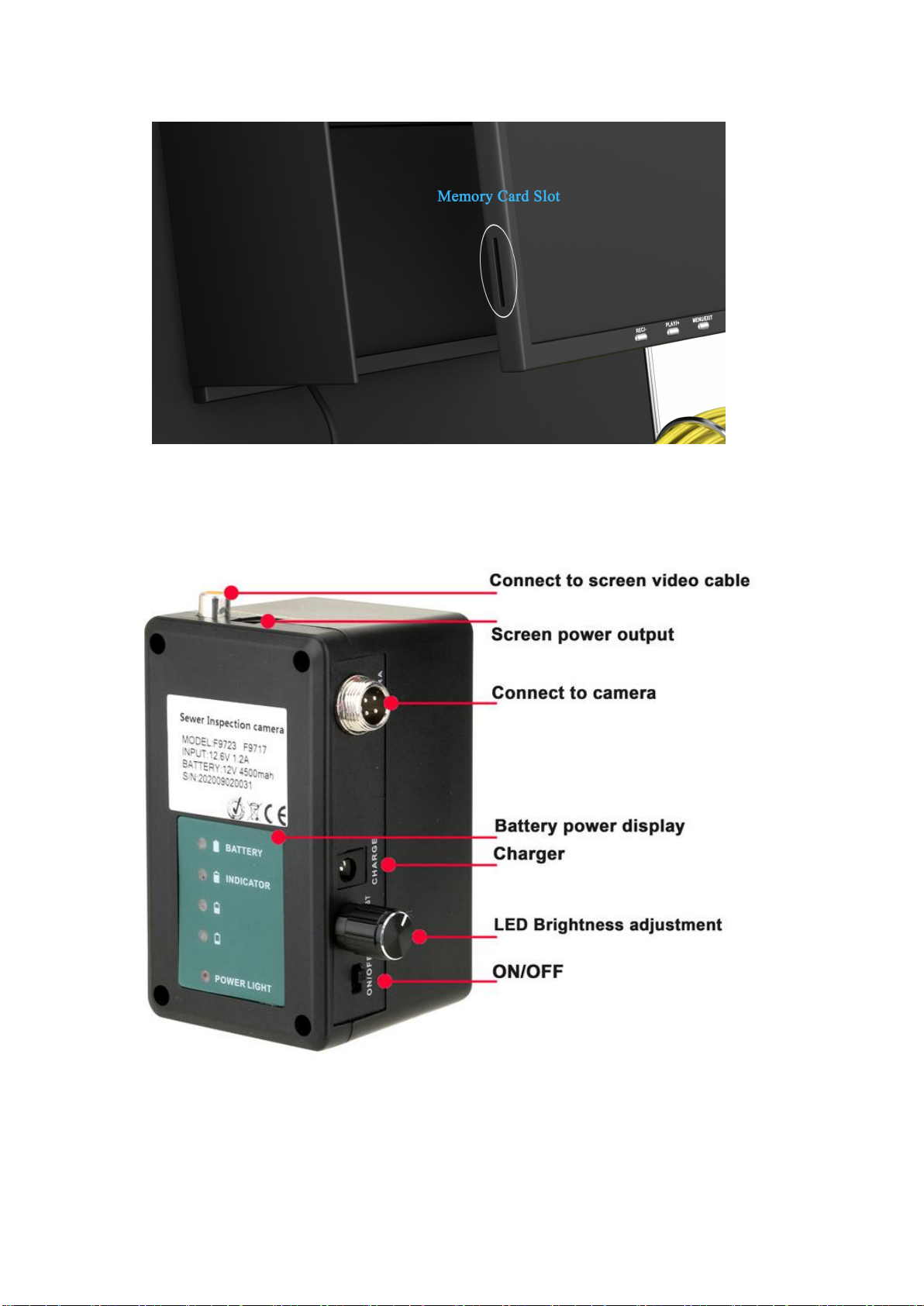

B. There is an SD card slot on the left side of the screen, press it to pop out.
(2) 4500mAh Battery
It takes about 4-5 hours to be full. The charging voltage is DC 12.6V, and
the battery power is displayed on the battery.
—5—

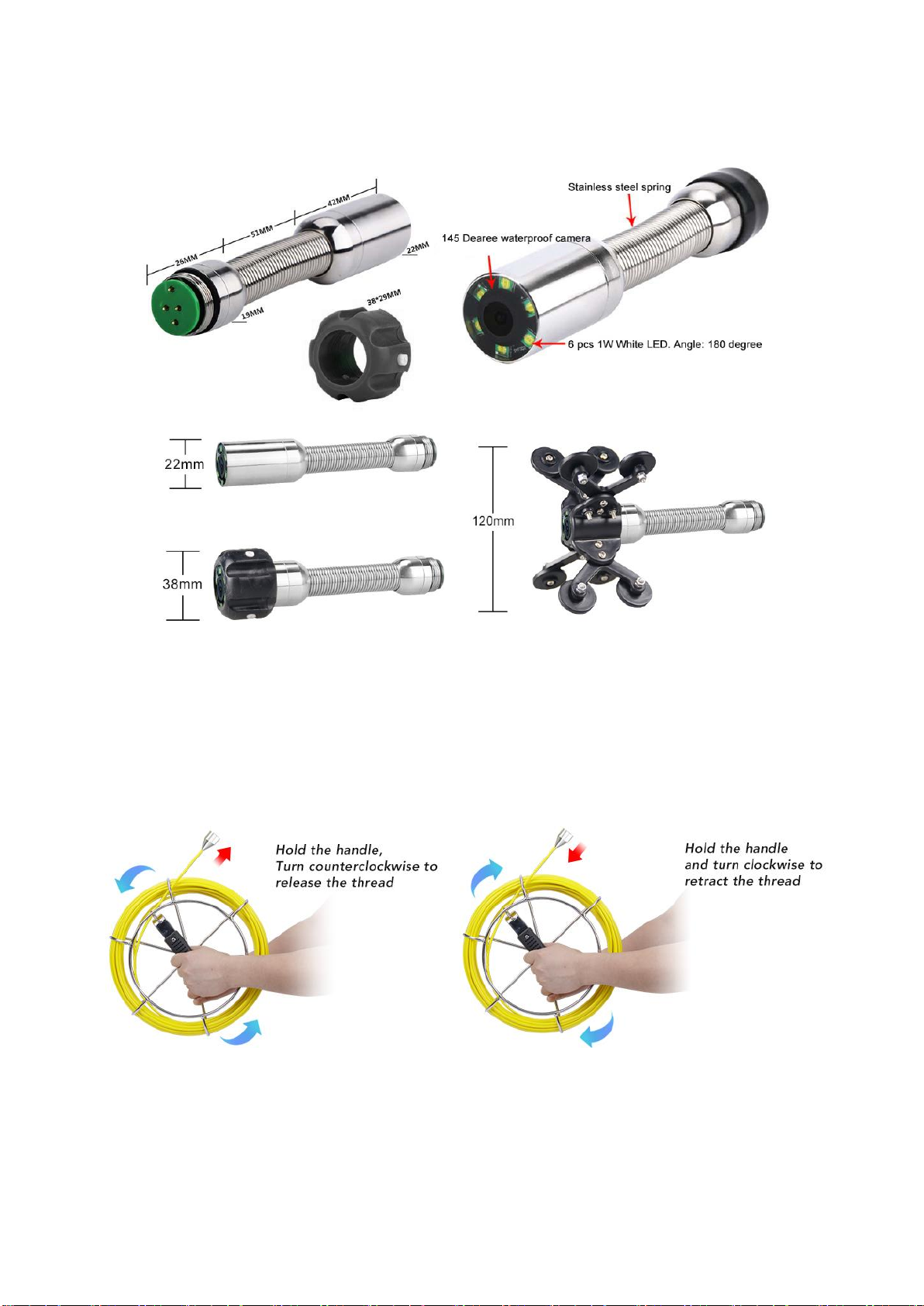

(3) Camera Probe (Waterproof Level IP68)
(4) Cable Coil
Put the cable on the hook, pull to release, or push back to coil the cable.
—6—

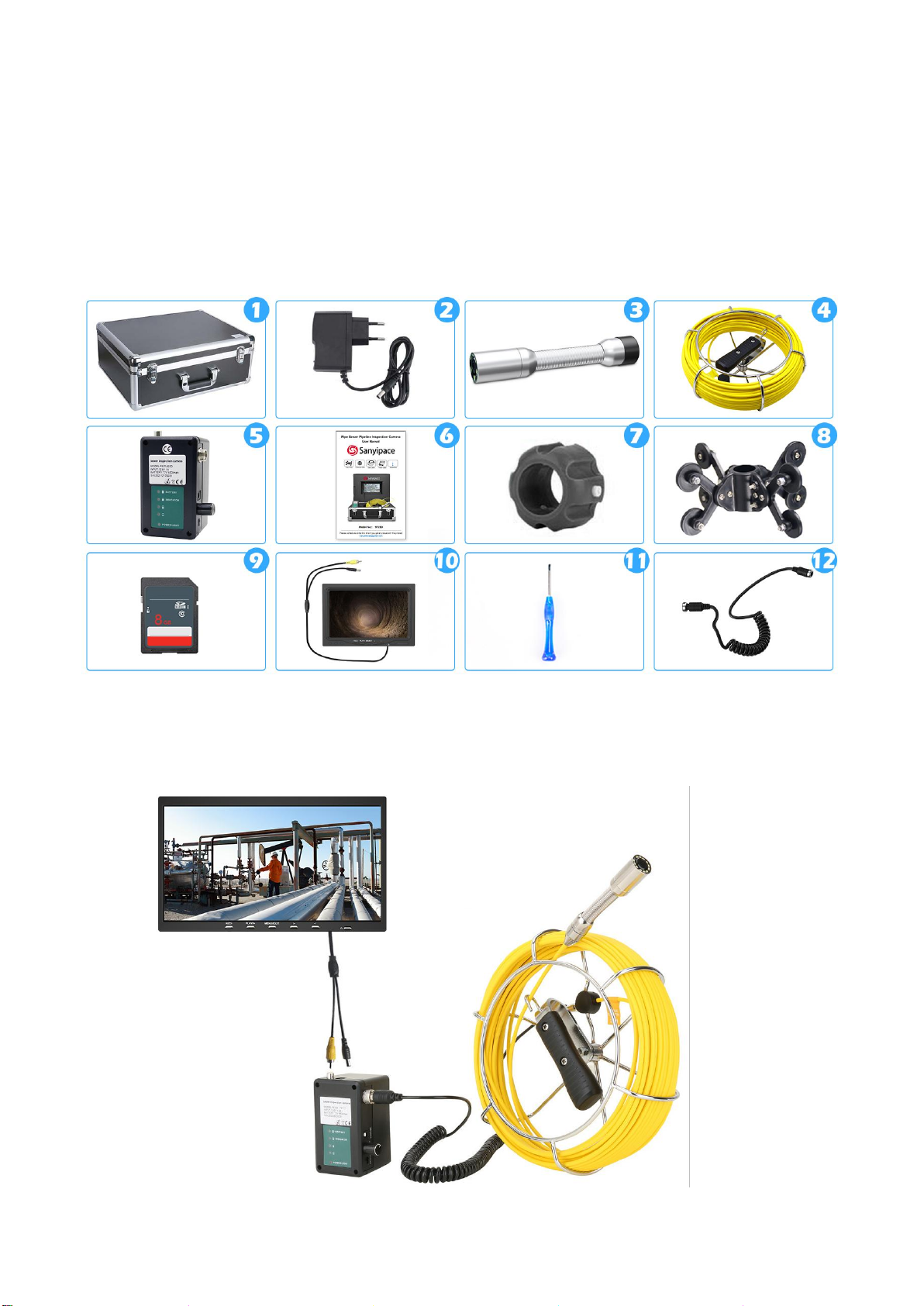

5. Accessories List
①Aluminum Box * 1 ②Power Charger * 1 ③Camera Probe * 1
④Cable Coil * 1 ⑤Battery * 1 ⑥User Manual * 1
⑦Camera Protective Cover*1 ⑧Pipe Pulley * 1 ⑨16GB SD card * 1
⑩LCD Monitor * 1 ⑪Mini Screwdriver * 1 ⑫Connection Cable * 1
6. System Install (as below picture)
—7—

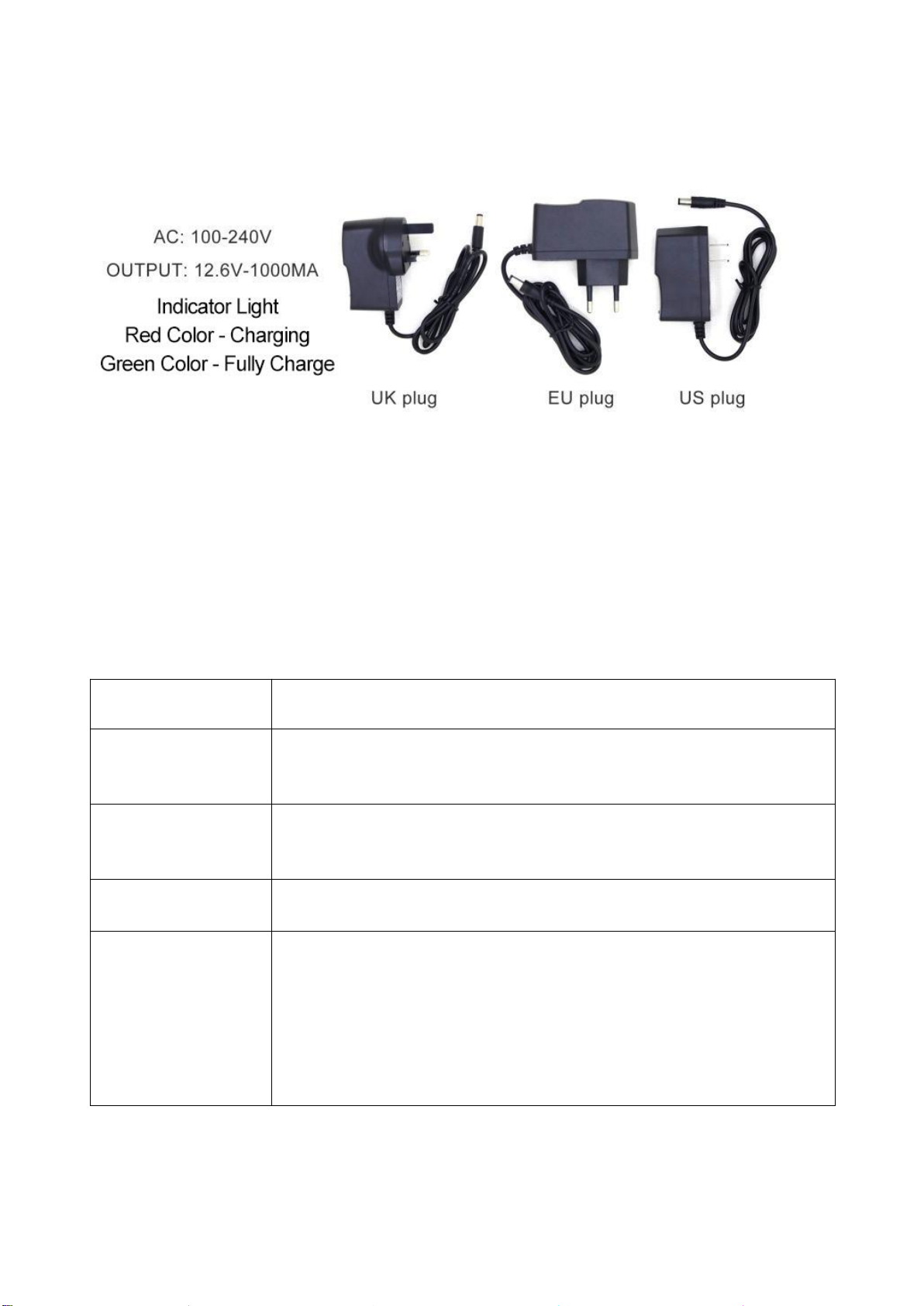

7. Power Charger
When the battery is low power (< 20% ), please recharge it, the charging time
is about 4-5 hours. Working time is 6-8 hours after full charging
Note: To make sure the battery has longer use age, please recharge it timely;
otherwise, the battery may be damaged.
8. Failure and Diagnosis
Problems / faults
Solutions
No power
a. Check whether each interface is connected correctly;
b. Check whether the battery is out of power, check the power
display.
Can't record videos
a. Whether the SD card is inserted correctly;
b. Insufficient SD card memory, format the SD card to try again;
c. Check whether the power was off during the recording process.
Can not be charged
a. Is the DC adapter plug-in correctly;
b. Check if the indicator light of the DC adapter is on.
Camera probe light
up but screen
shows "no signal"
a. Check whether the camera probe end is damaged or rust;
b. Adjust the camera probe and turn it slowly to confirm whether it
is loose;
c. Check that connections are well connected and make sure all
cables are properly connected;
d. You can use a voltage tester pen to test the device parts one by
one, find out the damaged part and contact us for replacement.
—8—
9. Warranty
We provide a one-year product quality warranty from the date of purchase
and provide free lifetime product technical support. For normal faults or
quality problems within the warranty period, we provide free replacement or
repair services. For damage caused by manual operation, we will charge
the cost of product parts for repair. Our technical support team is at your
service 24 hours a day. If you encounter any problems during use, please
feel free to contact us.
----Contact Us----
Go to our website to download the user manual or view more products:
https://www.sanyipace.com
Amazon After-sale: sanyimrchan@gmail.com
Facebook: Sanyipace
WhatsApp: +86 137 1399 9105
