Sanyipace F9723WF Manuale utente
Wireless Sewer Camera
User Manual
Model No.: F9723WF
-------------------------------------------------------------------------------------------------------------------------------------------
Please contact us at first time if you got issues with the product
SanyiMrchan@gmail.com
Catalog
1. Notice.......................................................................................................................... 1
2. Scope of Product Use .............................................................................................. 1
3. Product Specification ................................................................................................1
4. Product Parts Details ................................................................................................2
(1) 7-inch Screen ..................................................................................................... 2
(2) 4500mAh Battery...............................................................................................3
(3) Camera (Waterproof Level IP68) ....................................................................3
(4) Cable Coil ........................................................................................................... 4
5. Accessories list.......................................................................................................... 4
6. Device Install ..............................................................................................................5
7. APP Installation & Operation ...................................................................................5
8. Charger....................................................................................................................... 7
9. Failure and Diagnosis .............................................................................................. 7
10. Warranty................................................................................................................... 8
Attention: The illustrations and screenshots of this manual are to explain
product's operation, which may be little different from actual products due to
the products' version upgrades and different production batches. If the
content in this manual does not match your machine, please refer to the
machine!
1
1. Notice
a. Please read the manual carefully before using the product.
b. Handle the device with care when operating, do not drop or push hard.
c. If the user disassembles or damages the machine intentionally, it will not
be covered by the warranty.
d. Please turn off the monitor and battery button, and disconnect all the
connection joints after use.
e. Before inserting the TF card into the device, please back up the
information on the TF card to avoid loss of information.
f. Do not cut off the power suddenly during recording and playback,
otherwise, the product and video files may be damaged.
2. Scope of Product Use
a. Household pipeline blockage inspection
b. Pipe inspection camera, pipeline tools
c. Underground water pipes, HVAC systems, oil and gas pipelines
d. Rescue operations in narrow spaces
e. For underground exploration
f. Scientific research on underwater riverbeds
g. Sewer system inspection
h. Any other hard-to-reach locations/areas
3. Product Specification
---Camera and Cable---
Sensor: 1/3 CMOS
Camera Size: 0.87in*1.7in / 22mm*42mm
Charger: 100VAC-240VAC DC 12.6V 1000MA
Battery: lithium battery 4500mAh
Battery continuous working time: about 6-8 hours
Cable length: 66ft/20m, 100ft/30m, 164ft/50m (optional)
Cable diameter: 0.2in/5mm high elastic cable
Camera line source: 12 pcs 1W high white LED(adjustable)
Camera angle and clarity: 145 degree / 1000TVL
Camera material: stainless steel / IP68 waterproof camera
2
Camera protective cover size/material: 1.5in*1.1in/38mm*28mm plastic steel
---Monitor Screen---
Size: 7-inch
Camera/monitor picture: color
Monitor input voltage: DC 12V
SD card: package includes 16GB card, support max 16GB
Display resolution: 16:9, 960*480 TFT
Menu Language: Chinese/English
Screen operation: press buttons
Video format: AVI with Year,Month,Date,Time and Seconds
Photo format: JPG
Working temperature: -4~140℉/-20~60℃
Storage temperature: -22~176℉/-30~80℃
4. Product Parts Details

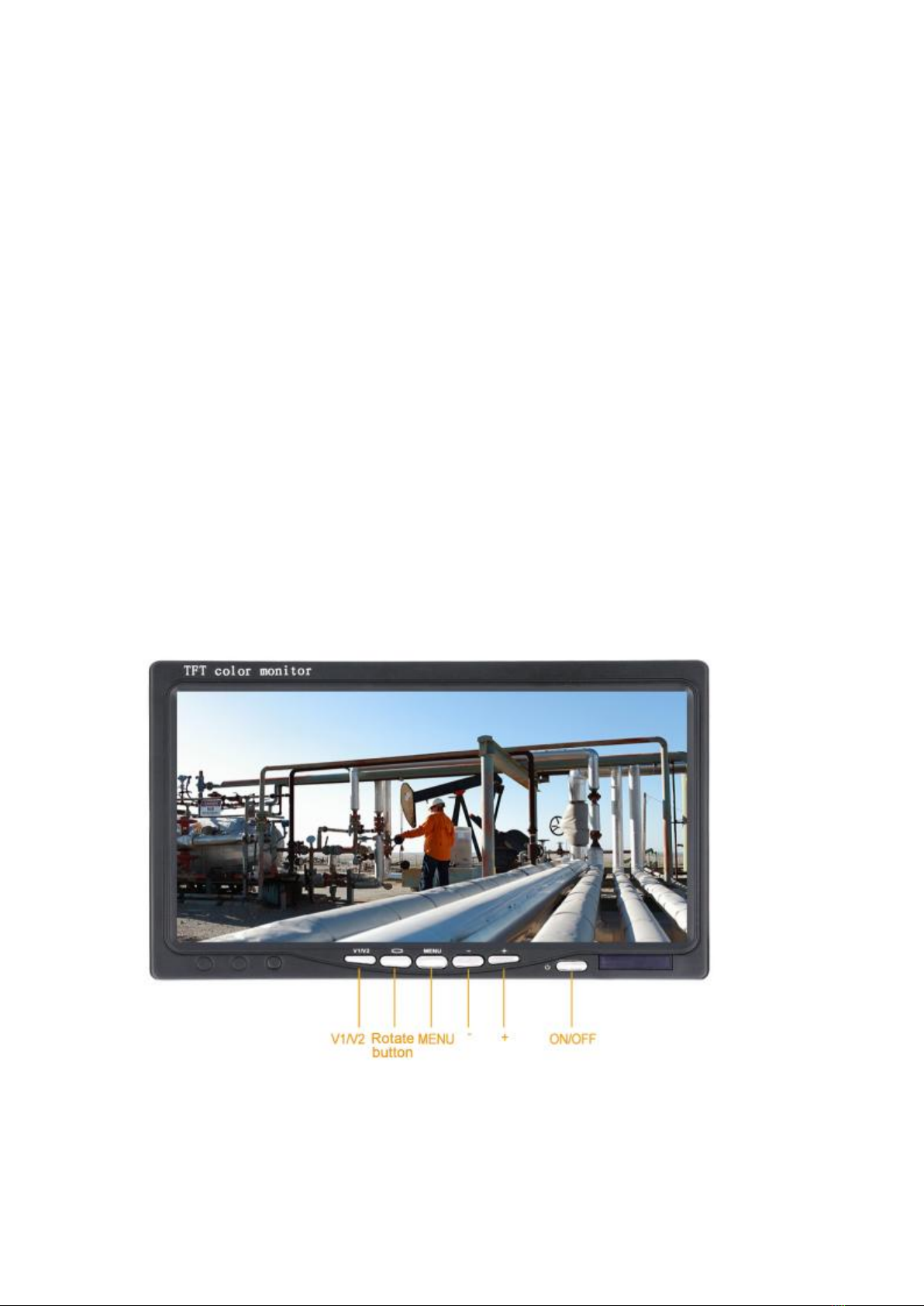

(1) 7-inch Screen
V1/V2: video channels switch, it is useless for this (9723WF) product
1.Rotate Button: press it to rotate the image
2.MENU Button
(1) Brightness setting: Press MENU button enter, press +/- to set, then
3
press MENU exit.
(2) Contrast setting: press MENU button twice enter contrast setting, press
+/- to set, then press MENU exit.
(3) Color setting: Press MENU three times to enter settings, press +/- to
set,then press MENU exit.

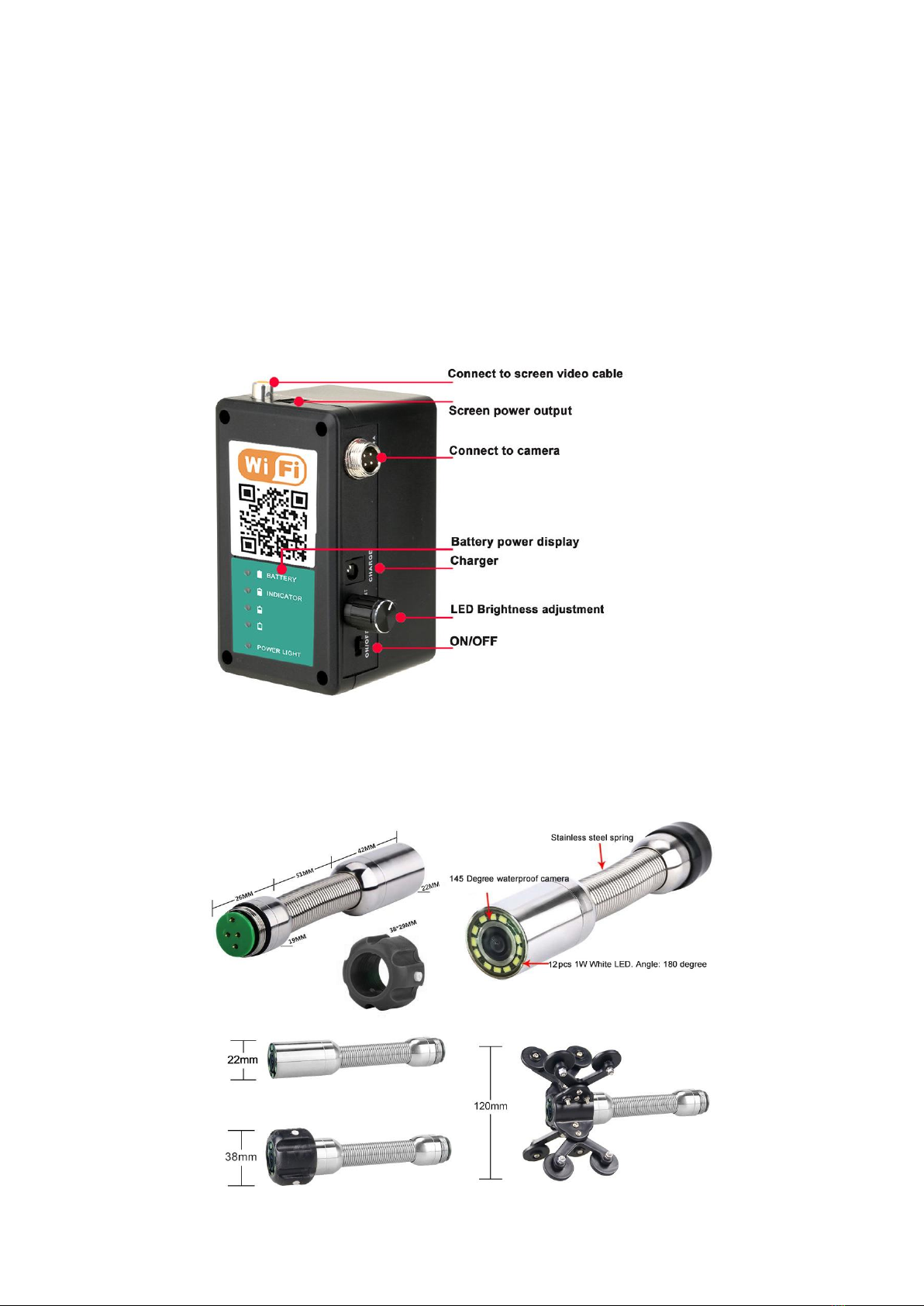

(2) 4500mAh Battery
(3) Camera Probe (Waterproof Level IP68)
4
(4) Cable Coil
Put the cable on the hook, pull to release or push back to coil the cable.

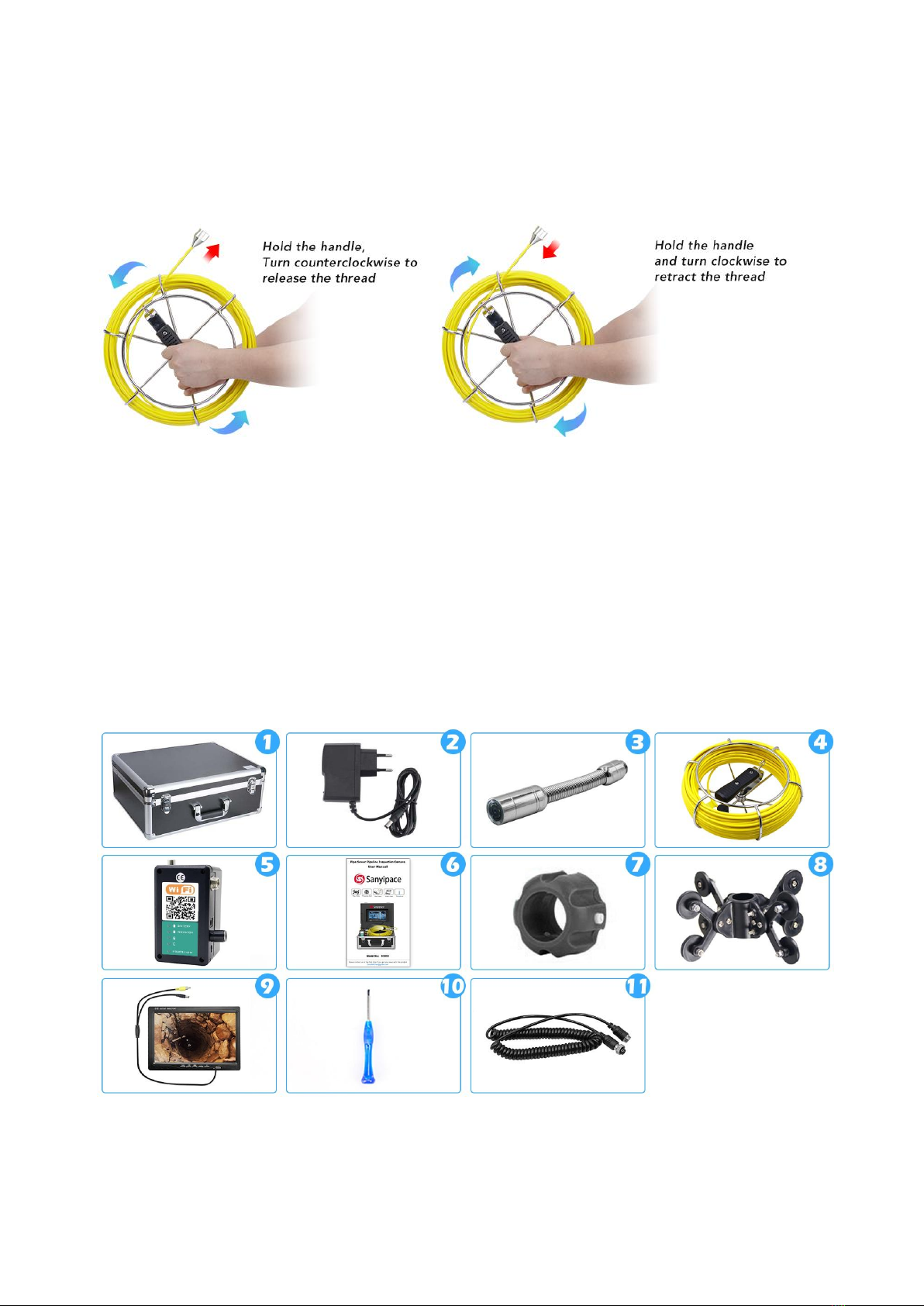

5. Accessories list
①Aluminum Box*1 ②Charger*1 ③Camera Head*1 ④Cable Coil*1
⑤Battery*1 ⑥User Manual*1 ⑦Camera Protective Cover*1
⑧Camera Pulley*1 ⑨Screen*1 ⑩Mini Screwdriver*1 ⑪Connection
Cable*1
5
6. Device Install
Connect the device according to the wiring diagram, then turn on and using.
7. APP Installation & Operation
*WIFi Signal Receive Distance: Max to 100 meters.
Compatible with Android & IOS

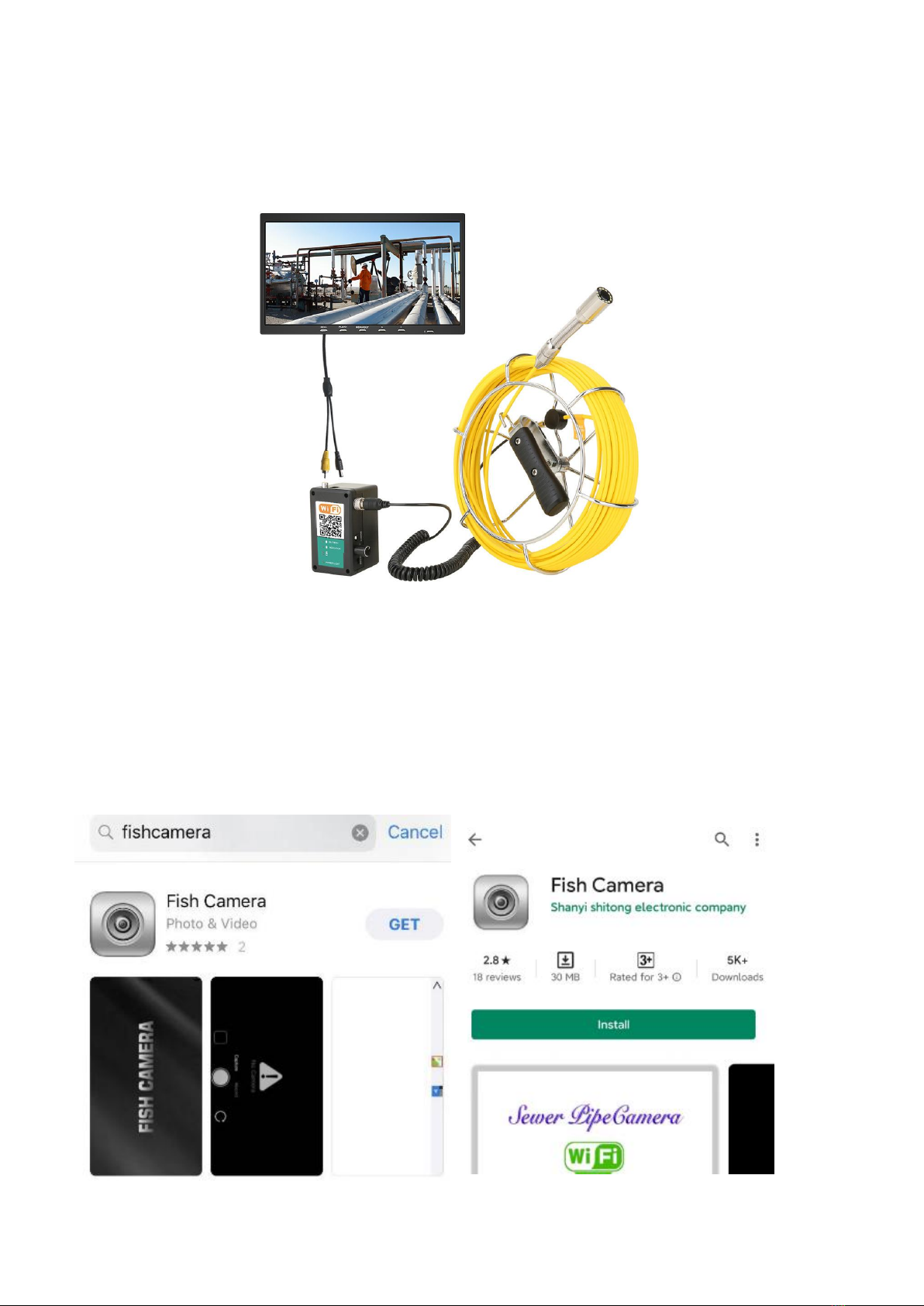

1. APP download: Scan the QR code on the battery pack (search “fish
camera” in APP Store or Google Play directly), then download and install.
6
2. Connecting all the parts and turn on the power supply.

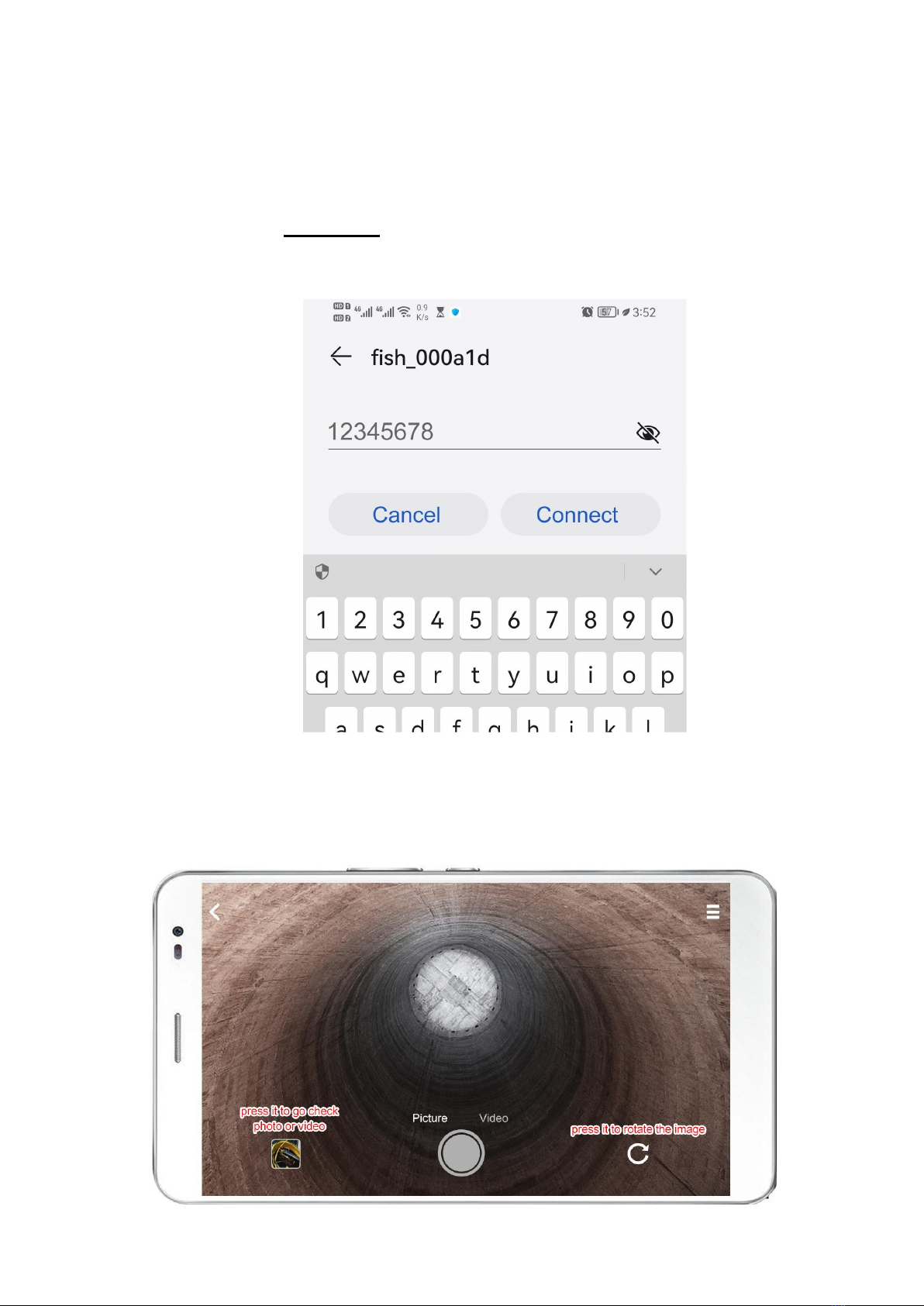

3. After about 15 seconds, Click the “WLAN” setting on your mobile device,
find the WLAN named “ fish_*** ”, click it and enter the initial password
(default password: 12345678), select "Connect".
(If APP connecting successful between device and mobile phone,it will
appear “connected”)
4. Back to the mobile desktop, and click the Fish Camera icon to run the APP.
5. Agree the APP to access and save photo files on your device, and APP
starts to show video in real-time
7

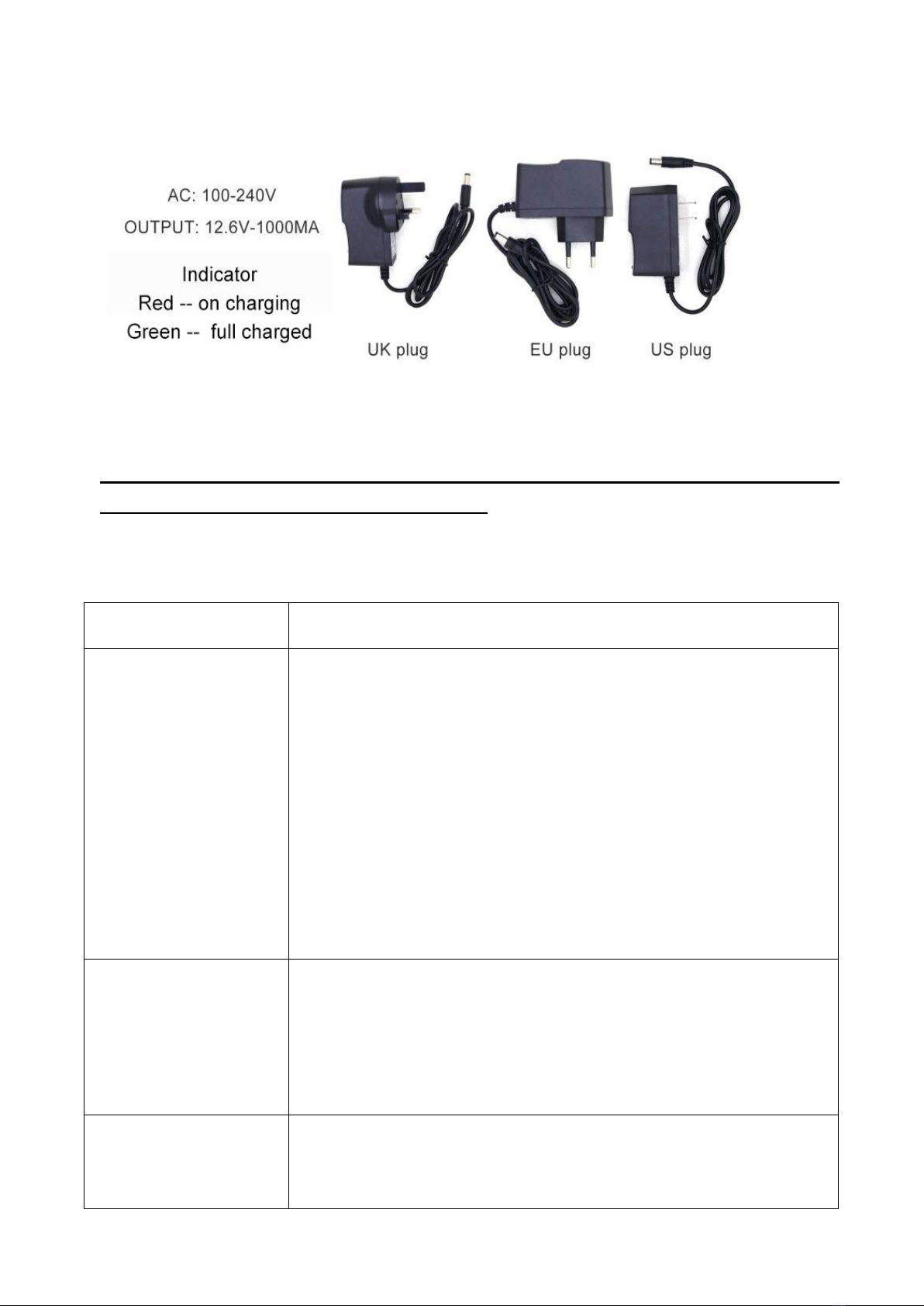

8. Charger
When the battery is low power (power is less than 20% ), please recharge it,
the recharge time is about 4-5 hours.
Notes: To make sure the battery has longer use age, please recharge it timely;
otherwise, the battery may be damaged.
9. Failure and Diagnosis
problems / faults
Solutions
“no signal” error
1: Check whether each connector is connected
correctly and well;
2: Check if the battery is fully charged and try again
after it is fully charged;
3: loosen or tighten a little slowly the camera head to
the cable coil, check if there is image appears;
4: Use the test cable in the box to judge if the camera
head and the cable coil are defective, or use a
multimeter to test every part carefully, find out the
defective part and contact us for a replace
With images on
monitor but
camera Light
doesn’t work
1: battery is going to out of power, recharge battery
and try again
2: Check if there the pins on the end of the camera
probe are broken or out of shape
3: Check if the camera is flooded
Monitor can’t
open
1: Check if the monitor cables are connected to the
battery correctly and well
2: Check if the battery is out of power, and try to
8
10. Warranty
We provide a one-year product quality warranty from the date of purchase
and provide free lifetime product technical support. For normal faults or
quality problems within the warranty period, we provide free replacement or
repair services. For damage caused by manual operation, we will charge
the cost of product parts for repair. Our technical support team is at your
service 24 hours a day. If you encounter any problems during use, please
feel free to contact us.
----Contact Us----
Go to our website to download the user manual or view more products:
https://www.sanyipace.com
Website After-sale: service@sanyipace.com
Amazon After-sale: sanyimrchan@gmail.com
Facebook: Sanyipace
WhatsApp: +86 137 1399 9105
recharge it
3: press the power button on the monitor to turn it on
Can’t find the
WLAN named
“fish_***”
1: Restart the device.
2: Restart the WLAN setting on your phone to search
the WLAN again
Can not be
charged
1: check the charger indicator light is on?
2: Is the DC plug connected well?
