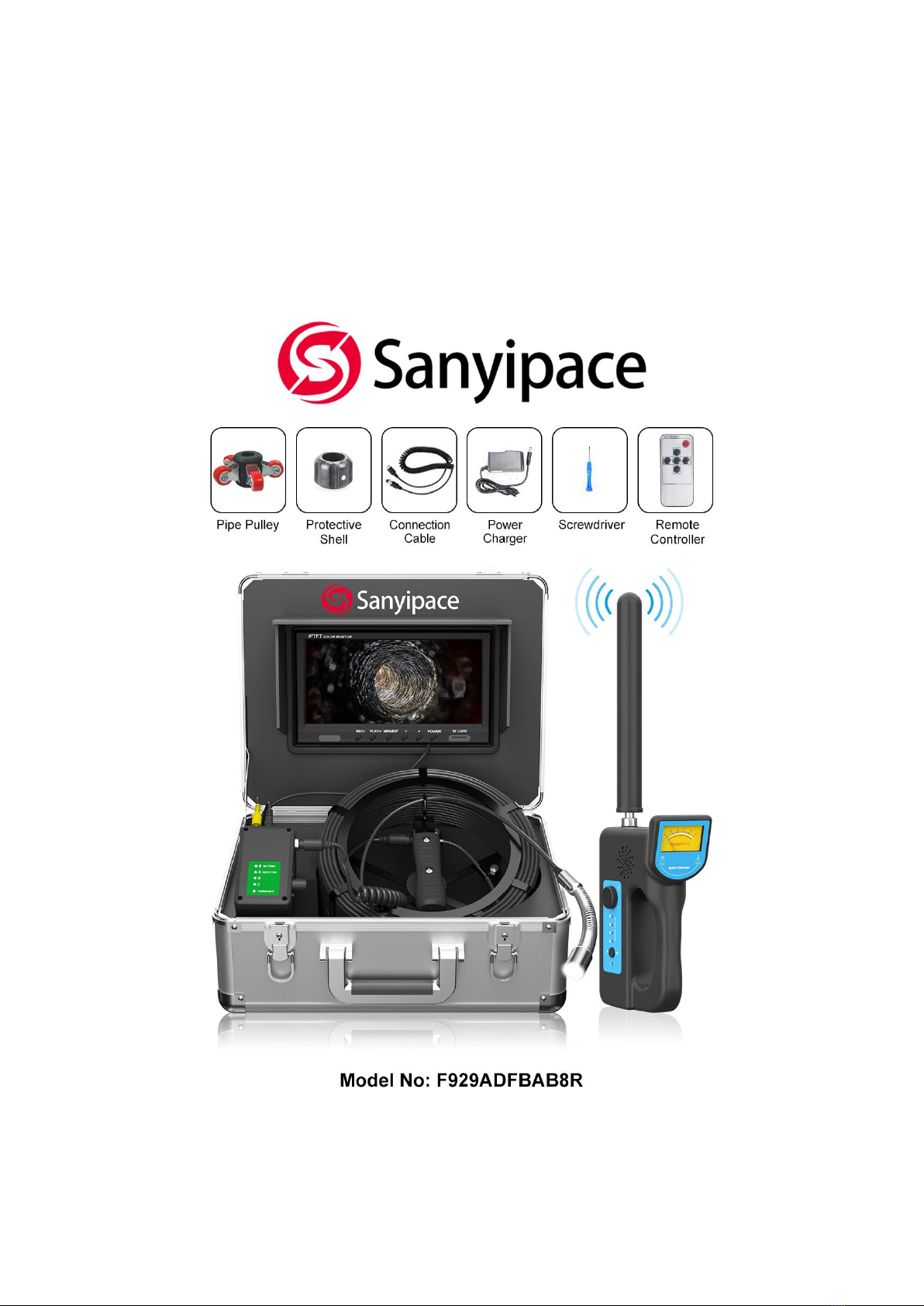

Sanyipace F929ADFBAB8R Manuale utente

FHD Sewer Camera with

512Hz Transmitter and Detector Locator

Set

User Manual

----------------------------------------------------------------------------------------------------------------------

Please contact us at the first time if you got issues with the product

SanyiMrchan@gmail.com

Catalog

1. Notice ............................................................................................1

2. Range of Product Use ..................................................................1

3. Product Specification ....................................................................1

4. 9’’ LCD Monitor Operation ............................................................2

5. 4500mAh Battery ..........................................................................4

6. Power Charger ............................................................................. 5

7. Cable Coil ..................................................................................... 5

8. Remote Controller ........................................................................ 6

9. Camera with Self-leveling Function & 512Hz Transmitter .......... 7

10. 512HZ Locator Detector .............................................................8

11. Wire Diagram ............................................................................10

12. Failure and Diagnosis .............................................................. 11

13. Warranty ................................................................................... 12

Attention: The illustrations and screenshots of this manual are to

explain the product's operation, which may be a little different from

actual products due to the products' version upgrades and different

production batches. If the content in this manual does not match

your machine, please refer to the machine!

—1—

1. Notice

a. Please read the manual carefully before using the product.

b. Handle the device with care when operating, do not drop or

push hard.

c. Do not dismantle the machine without permission.

d. Please turn off the monitor and disconnect the device after

use.

e. Before inserting the TF card into the device, please back up

the information on the TF card to avoid loss of information.

f. Do not cut off the power suddenly during recording and

playback, otherwise, the product and video files may be

damaged.

2. Range of Product Use

a. Household pipeline blockage inspection

b. Pipe inspection camera, pipeline tools

c. Underground water pipes, HVAC systems, oil and gas

pipelines

d. Rescue operations in narrow spaces

e. For underground exploration

f. Scientific research on underwater riverbeds

g. Sewer system inspection

h. Any other hard-to-reach locations/areas

3. Product Specification

---Camera and Cable---

Sensor: 1/3 CMOS

Resolution: AHD 1080P

Camera angle: 145 degrees

—2—

Camera diameter: 0.9in/23mm (built-in 512Hz transmitter,

self-leveling)

Camera light source: 12pcs 1W high white LED (adjustable)

Camera material: stainless steel, sapphire lens, IP68 waterproof

Camera protective cover size: 1.5in*1.1in/38mm*28mm

Camera pipe pulley: 5.1in*1.1in/130mm*28mm

Cable Length: 100ft/30m, 164ft/50m (optional)

Cable diameter and material: 0.2in/5mm high elastic cable

---Monitor Screen---

Size: 9-inch

Camera/monitor picture: IPS LCD color

Monitor input voltage: DC 12V

TF card: package includes 16GB card, support max 128GB

Display resolution: 1024*600 IPS

Menu Language: English/Germany/French optional

Screen port: power input/video

Screen operation: press buttons

Video format: AVI with Year,Month,Date,Time and Seconds

Photo format: JPG

Working temperature: -4~140℉/-20~60℃

Storage temperature: -22~176℉/-30~80℃

---Battery Box---

Charger: 100VAC-240VAC/DC 12.6V 1000MA

Charging time: about 5 hours

Battery: lithium battery 12V 4500mAh

Battery continuous working time: about 6-8 hours

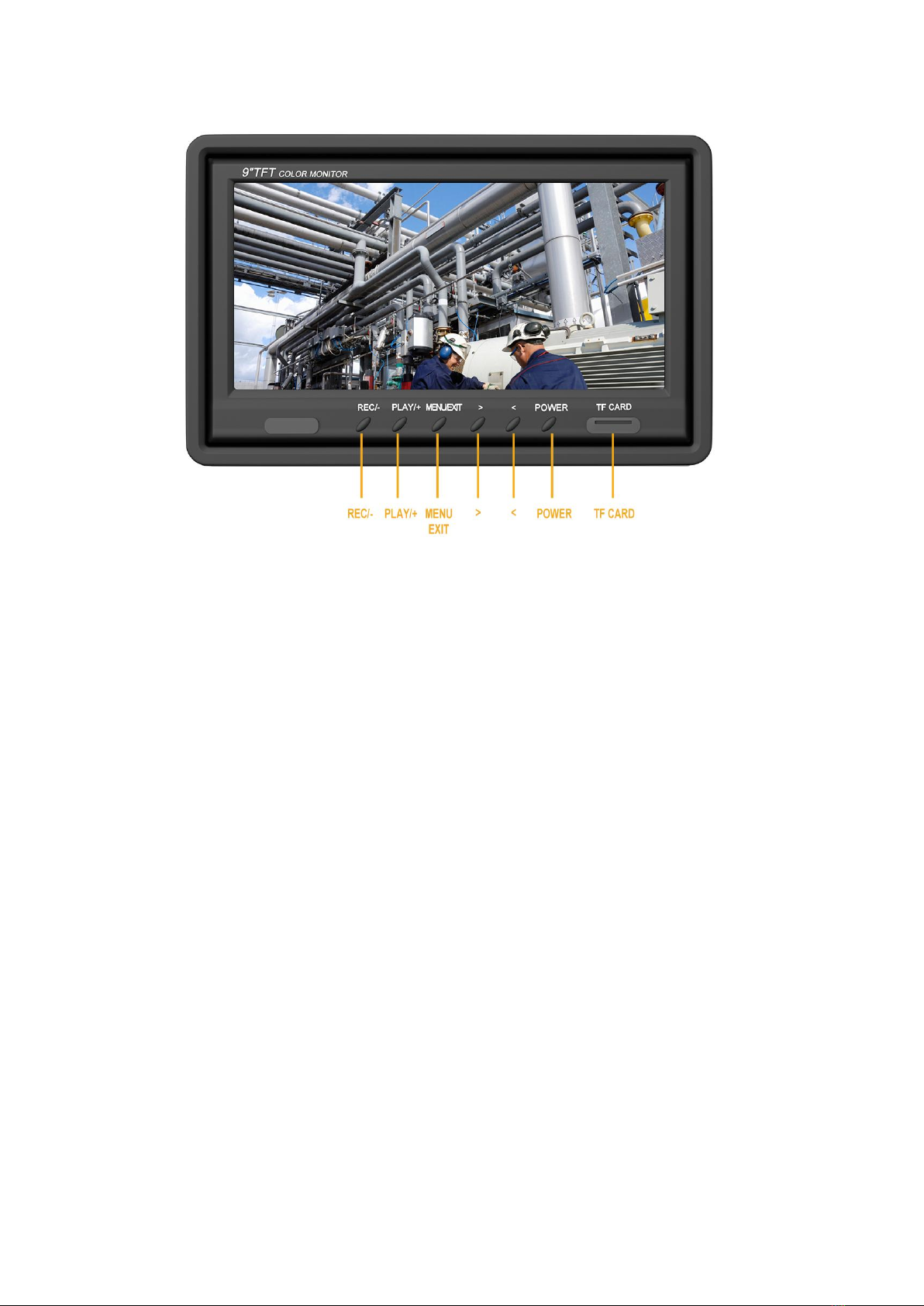

4. 9’’ LCD Monitor Operation

(Built-in microphone and speaker)

—3—

Display Operation :

-Turn on

Connect each component, turn on the switch button on battery

and press the power button on screen, the system starts working

-Menu setting (need to exit the REC mode)

Press MENU to enter, Press "<" ">" to select, press “Rec/- ” to

confirm your selection, Press EXIT to back. you can set display

setting/playback/video setting/storage/system setting.

-How to zoom in image when recording

Press "<" to zoom in and 5 gears in total, press it 5 times to zoom

in to the limit, and at the 6th time pressing to return to normal

-How to record a video

Press “Rec/- ” to start recording , press “Rec/- ” again to stop.

-How to take a snapshot

Press “>” to take photo quickly

-Video Browsing

press “PLAY/+” first time to enter photo viewing, press it second

time to enter video playback, press it again to exit.

Press “>” “<” to select, press “REC/-” to play.

—4—

-How to delete the picture or video

press “PLAY/+” to enter photo/video viewing, press “>” to choose

one of the pictures or videos, press “MENU” and “>” to enter

selection of delete or delete all, press “REC” to confirm the

selection, press “PLAY/+” again to exit.

-How to revise the video length of recording

The recorded video will be divided into fixed-length videos and

stored on the memory card, the default duration is 3mins, you can

revise it to up to 10mins. press "Menu" and ">" to choose "Video

Menu" and press "REC/-" times to revise it to 5mins, 10mins,

1mins or 3mins, at last press "Menu" to exit

-How to turn off the audio record function

Press Menu "Menu" and ">" to choose "system setting", press

"REC/-" go to the sub-option, press ">" to find "sound settings",

press "REC/-" to turn on or off, press Menu to exit

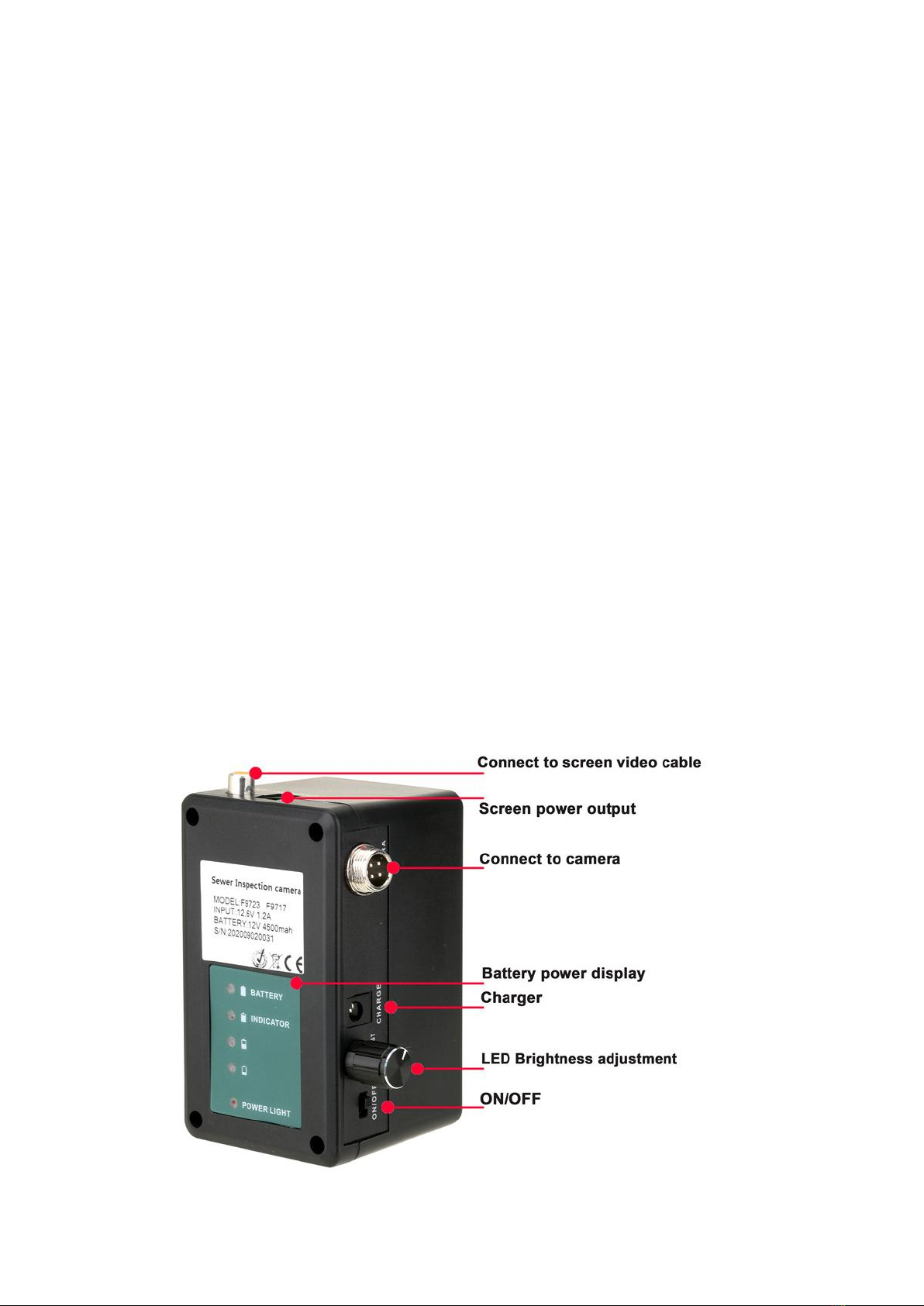

5. 4500mAh Battery

—5—

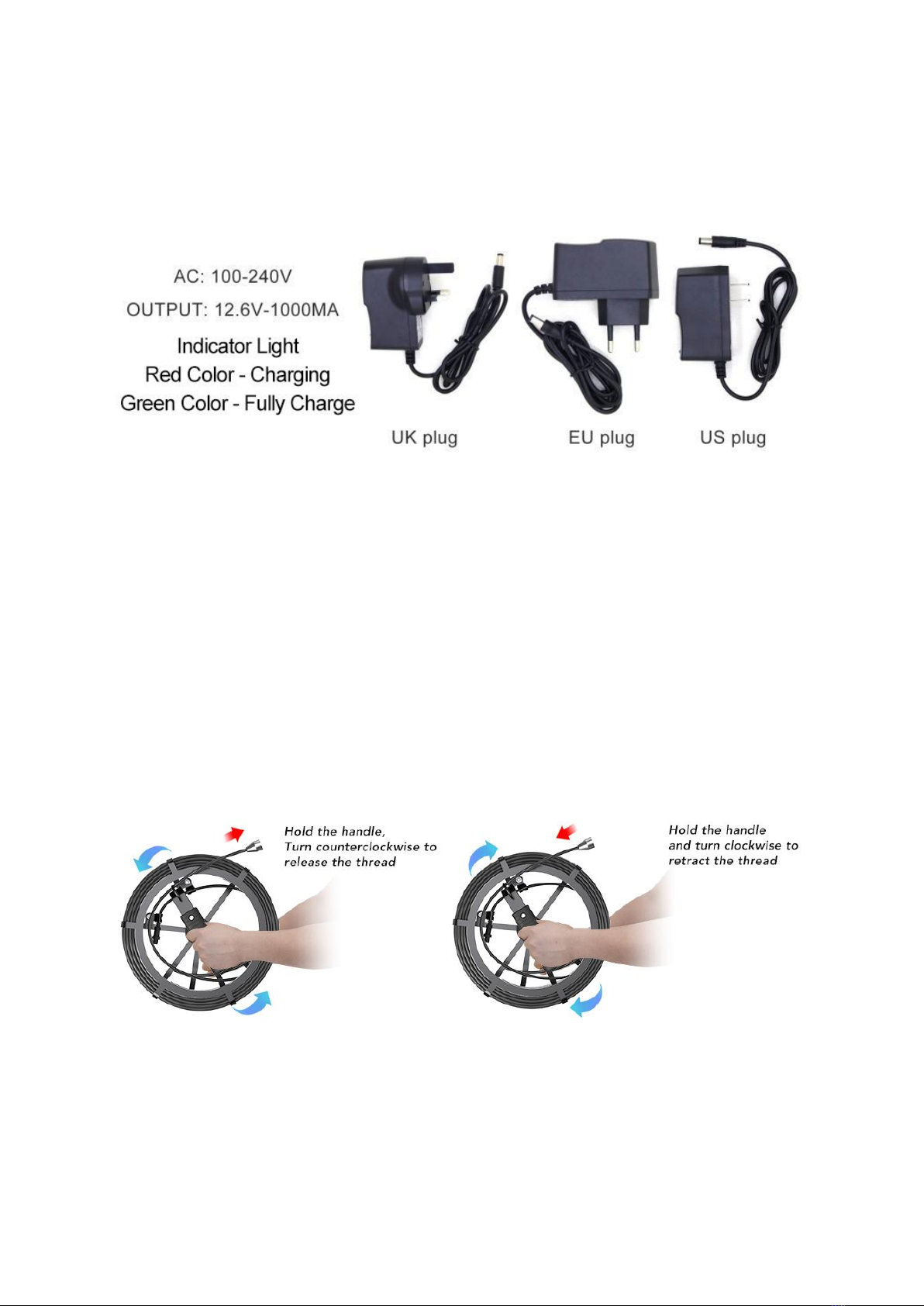

6. Power Charger

When the battery is low power (< 20% ), please recharge it, the

charging time is about 4-5 hours. Working time is 6-8 hours after

full charging

Note: To make sure the battery has longer use age, please

recharge it timely; otherwise, the battery may be damaged.

7. Cable Coil

put the cable on the hook, pull to release or push back to coil the cable.

—6—

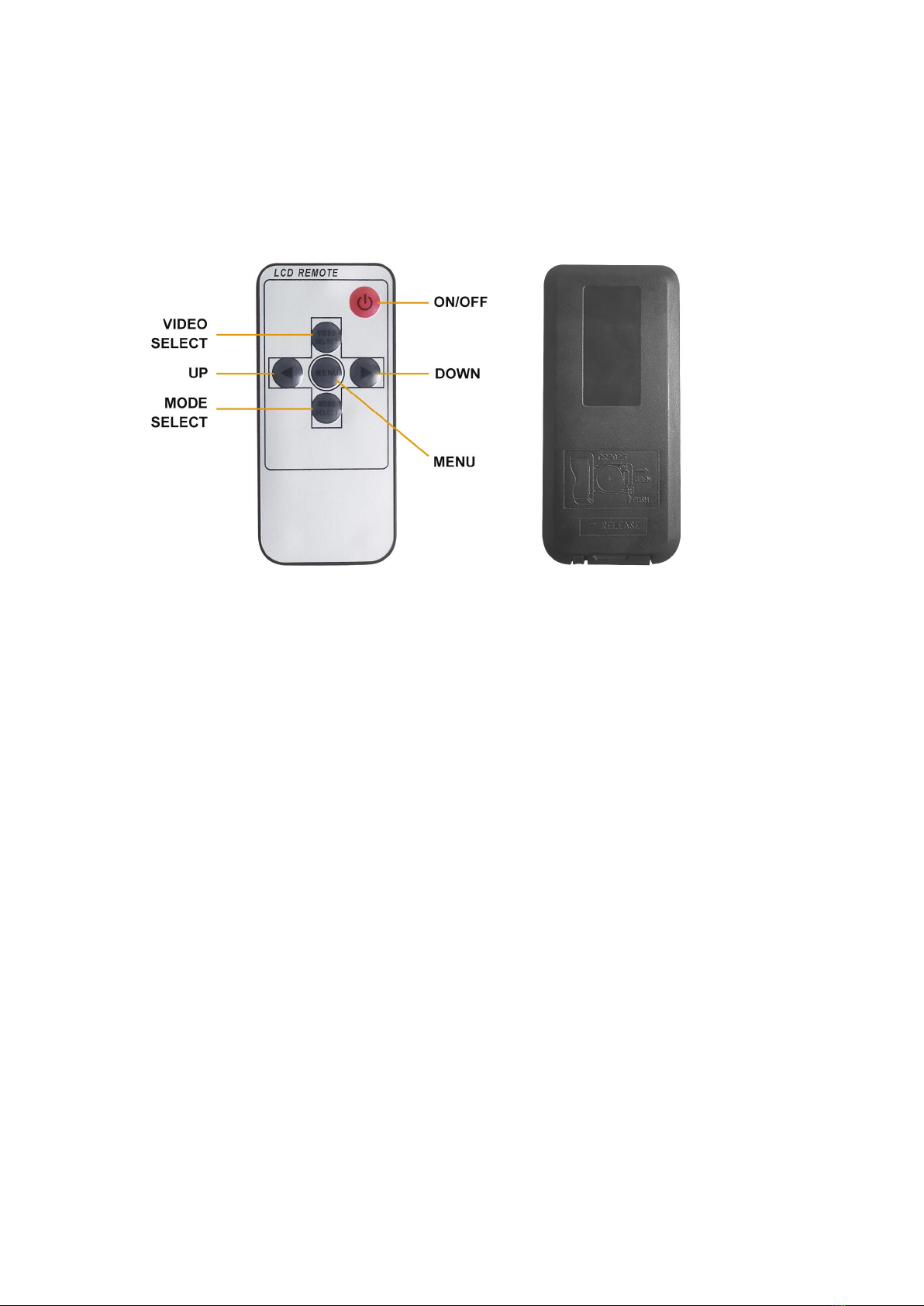

8. Remote Controller

Please be noted that the transparent insulating card protects the

battery, you need to remove it before use.

VIDEO SELECT: function same with the screen button “PLAY/+”

MODE SELECT: function same with the screen button “REC/-”

◀: function same with the screen button “<”

▶: function same with the screen button “>”

—7—

9. Camera with Self-leveling Function &

512Hz Transmitter

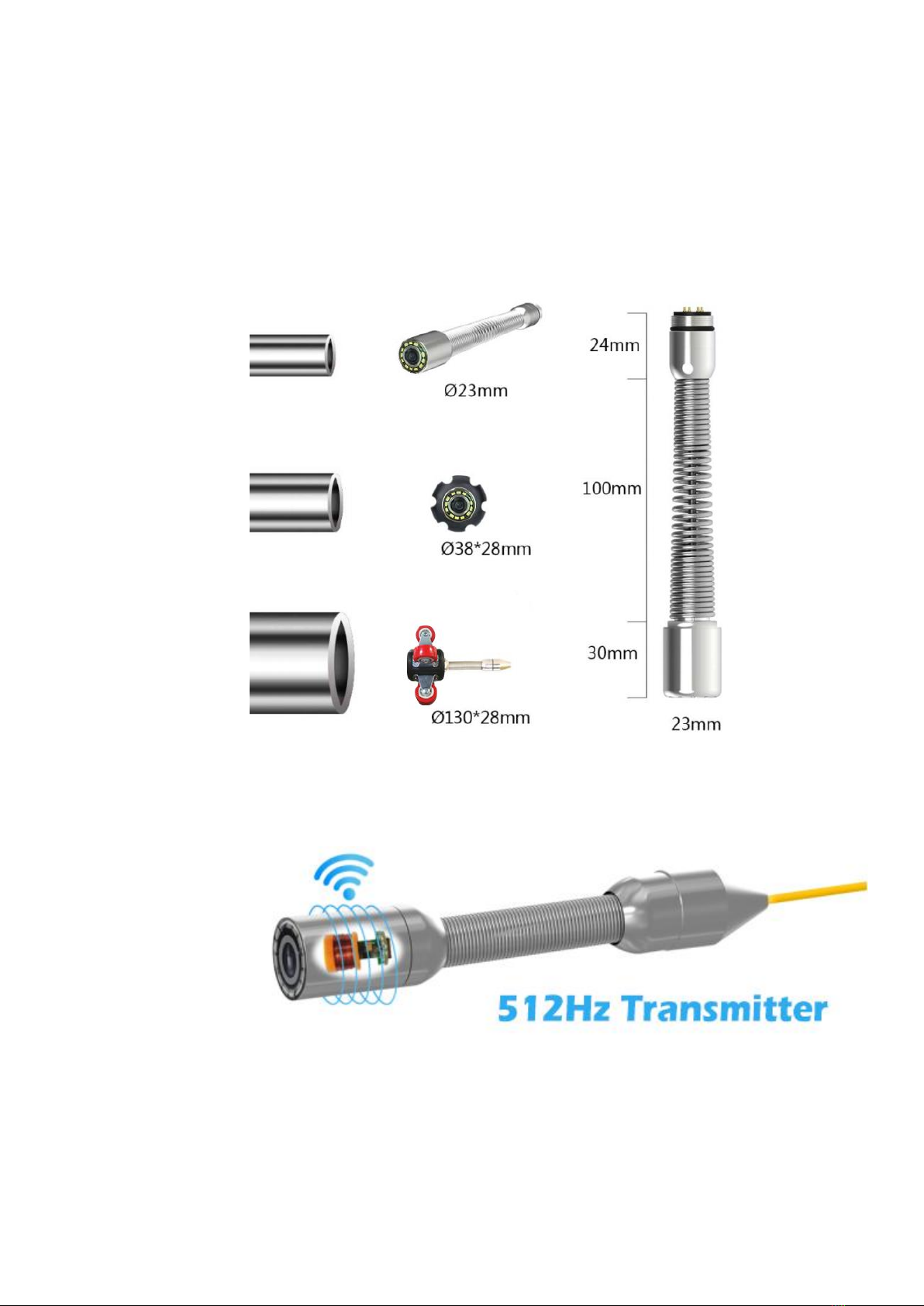

Camera probe size details:

The Camera probe has a built-in 512Hz transmitter, which

transmits a 512Hz frequency signal through a built-in chip,

compatible with any 512Hz pipe locator.

Transmit Frequency: 512Hz

Output Waveform: sine wave

Transmit Distance: about 16.4ft/5m

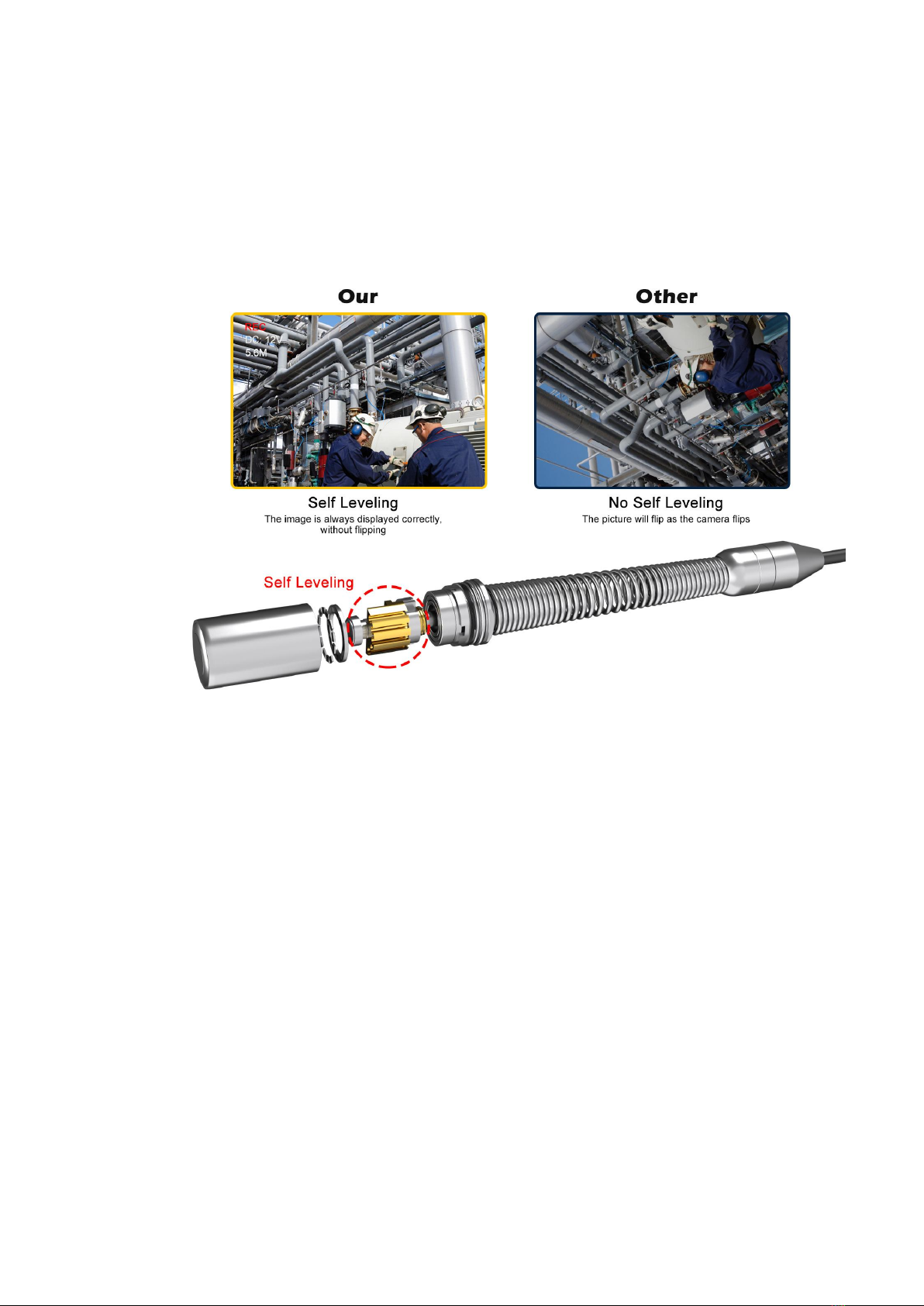

Self-leveling can be defined as the ability of any instrument to

—8—

level itself regardless of the angle of inclination.

Camera probe is equipped with a self-leveling gravity bearing

on the camera probe that could automatically adjust direction

and level when taking videos/pictures to deliver upright pictures

all time, helping users to position.

10. 512HZ Locator Detector

The detector locator has a built-in induction coil to receive the

magnetic signal from the pipeline, and the coil generates an

induced current to calculate the direction and position of the

transmitter.

The detector locator has two detecting modes: far mode and near

mode. Firstly, open the sensitivity to the strongest gear, and

switch to far mode (about 16.4ft/5m) to detect and find the signal

source, adjust the sensitivity knob, \when its signal is up to the full

strongest signal position (far mode), switch to near mode

(detecting depth: 3.3ft/1m) to detect until the 512Hz signal reach

strongest signal position (near mode).
