PROJECTOR COMMUNICATIONS KIT
ATTENTION!
PLEASE READ THIS DOCUMENT FOR IMPORTANT
INSTALLATION INSTRUCTIONS
THIS KIT HAS BEEN SHIPPED WITH THE FOLLOWING COMPONENTS:
Kit Type: SANYO
Included Communications Adapter(s):
Quantity Part Number Description
1 26-467-01 ADP, UNV, “A”
1 26-489-01 ADP, UNV, “J”
THE TABLE BELOW LISTS THE POSSIBLE CONFIGURATION(S) AND CORRESPONDING
COMMUNICATIONS ADAPTER(S) FOR YOUR PROJECTOR MANUFACTURER’S VARIOUS
MODELS. PLEASE NOTE THAT YOUR SWITCHER HAS BEEN CONFIGURED AS
INDICATED BY THE “✔”IN THE “CONFIG AS” COLUMN. IF YOUR PROJECTOR MODEL
DIFFERS FROM THIS CONFIGURATION, YOU MUST RECONFIGURE YOUR SWITCHER
WITH THE CORRECT SETTINGS.
PLEASE REFER TO THE FOLLOWING PAGES FOR COMPLETE CONFIGURATION AND
SIGNAL CONNECTION INSTRUCTIONS.
THIS SWITCHER HAS BEEN CONFIGURED FOR: SANYO PLC
CONFIG MODEL SW1 SW2 SW3 SW4 SW5 SW6 PROJ COMM
AS 1 2 3 4 CABLE ADAPTER
✔PLC off on off on 0 0 1 E 0 J15 26-467-01
✔PLC 8810 off on off on 0 0 1 E 0 J15 26-489-01
PLC XP10 off on off on 0 0 1 E 0 J15 26-489-01
PLC XP30 off on off on 0 1 1 E 0 J15 26-489-01
Extron • System 4
xixi
xixi
xi
Switcher Series • User’s Manual • P/N 68-402-02 Rev. E
Sanyo Installation Configuration and Connections
Page2
(Note: Information depends on
S
y
stem 4
N
E
setu
p
.
)
(See note.)
(See note.)
(See note.)
(See note.)
[System 4
NE
model and software
version displayed here]
Connecting System 4xixi
xixi
xi to Sanyo PLC
If the System 4xi is already configured for a Sanyo PLC projector, go to step 4.
If it is not set up correctly, it will be necessary to change switch settings on the
System 4xi ’s Main Controller Board. Begin at Step 1 to verify the correct
configuration.
1. Use the Front Panel to display the Information Menu to verify that the System 4xi
is already set up for the Sanyo PLC. Apply power to the System 4xi and do the
following:
a. Press to display the MENU SELECT on the LCD screen.
b. Press or to step to Menu 8.
c. Press to select this menu.
d. Press or to display the configuration. The example to the left is general,
yours will show the System 4xi model name, the software version and the
following information:
PRJ = SANYO
PRJ BAUD = 19200
UNIT No. = 000
HST BAUD = 9600 (value depends upon setup Menu 3)
2. Go to the procedure on page 2-3 of the
System 4
xi
User’s Manual
to remove the
System 4xi cover. Then go to page 2-4 and refer to the configuration below to
set up the Main Controller board. Continue with Step 3 (below) when the
configuration is correct.
Config Projector SW1: 1-2-3-4 SW2 SW3 SW4 SW5 SW6 Prj Cable Comm
as Adapter
✔Sanyo PLC off-on-off-on 0 0 1 E 0 J15 26-467-01
or 26-489-01
3. Double-check your work and be sure the System 4xi cover is on securely.
4. Install the System 4xi in its place of operation (i.e. rack), but not powered on.
__________ Changes in some switch configurations are not detected until the power is
removed at the AC cord, and then restored.
Refer to the following connection diagram and continue.
}
SW1
ON
SW2
SW4
SW3 SW5
J15
34
12
Extron • System 4
xixi
xixi
xi
Switcher Series • User’s Manual • P/N 68-402-02 Rev. E
Configuration and ConnectionsSanyo Installation
Page3
5. The Sanyo PLC Comm Adapter (26-467-01) has a 9-pin male connector that
accommodates the Comm Extension cable. The other end of the Comm Adapter
plugs into the projector’s RS-232C port.
6. Plug the 15-pin HD connector of the Projector Communications Extension cable
into the PJ Comm port on the System 4xi.
______ Secure all of the connector screws.
7. Plug the (4 or 5) BNC connectors from one end of the (user-supplied) RGBS/HV
cable onto the System 4xi output and those on the other end onto the matching
BNCs on the Sanyo PLC connector panel.

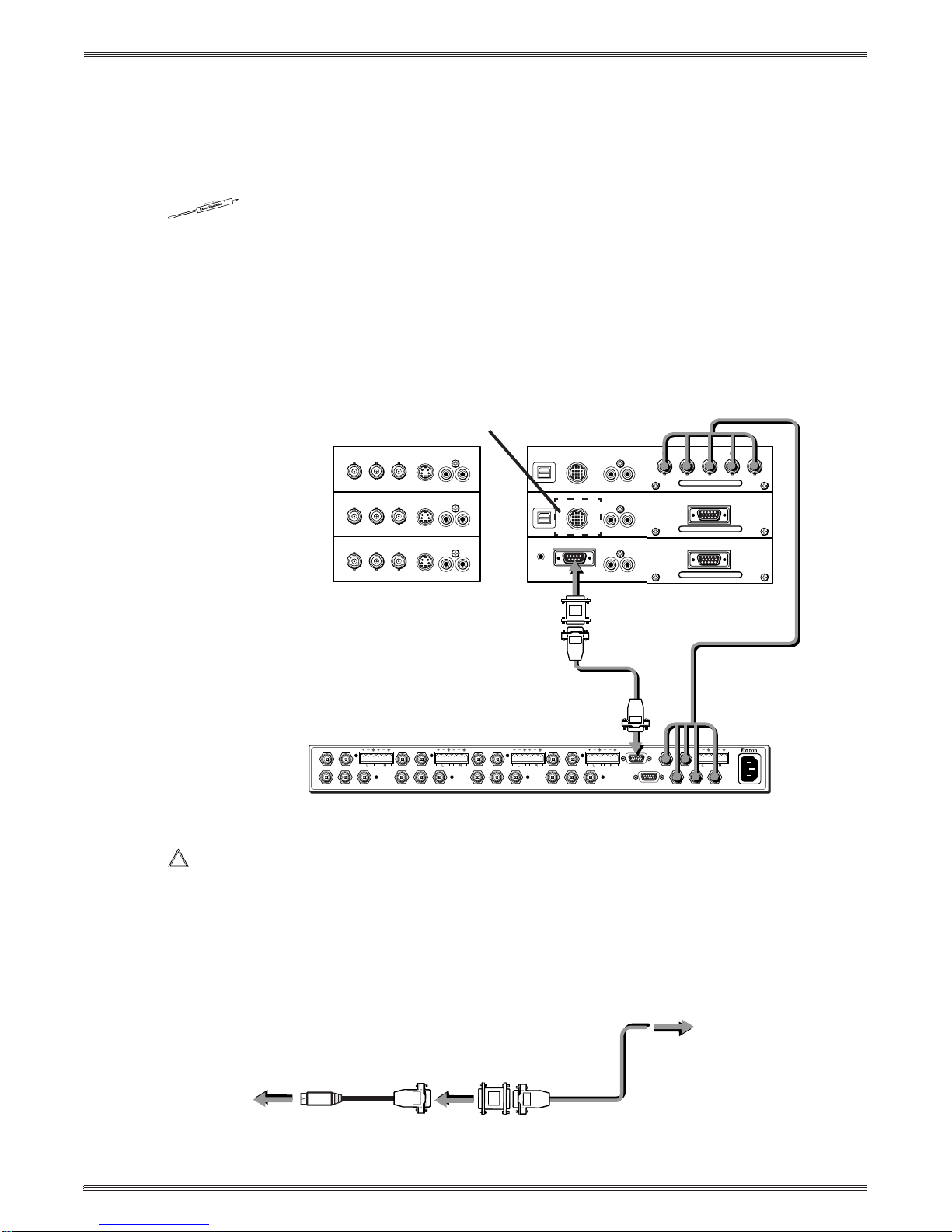

System 4xi Series – Sanyo PLC Projector Connections
Use the illustration below as a guide when connecting the System 4xi to a Sanyo
PLC Projector. Refer to Sanyo documentation to continue the installation.
____________ In a rack mount, do NOT allow the weight of the cables to be supported by the
System 4
xi
. See page 2-5 for cabling guidelines.
Special Note: _____ Certain PLC projectors may not come equipped with a 9-pin serial port
connector. In those situations, the Com adapter must be connected to Control
Port 2 using the projector’s special DIN to 9-pin serial adapter, as illustrated
below.
9-Pin Female
To projector's Control Port 2
Sanyo DIN to 9-pin adapter
To switcher's Projector Control port
9-Pin Female
9-Pin Male
9-Pin Male
Extron Com Adapter
26-467-01 "A"
or 26-489-01 "J"
A
R
AUDIO 1
ANALOG RGB
ANALOG RGB
CONTROL PORT 1USB 1
GBHV
RL
AUDIO 1VIDEO/Y C/Cb(B-Y) Cr(R-Y) S-VIDEO
S-VIDEO
S-VIDEO
RL
AUDIO 2
CONTROL PORT 2
SERIAL PORTAC JACK
USB 2
RL
AUDIO OUT
RL
AUDIO 1VIDEO/Y C/Cb(B-Y) Cr(R-Y)
RL
AUDIO 1VIDEO/Y C/Cb(B-Y) Cr(R-Y)
RL
RGBHV 5 BNC
15-Pin
Male
9-Pin Female
9-Pin Male
9-Pin Male
ComAdapter
26-467-01 "A"
or 26-489-01 "J" A
OUTPUT
PJ COMM
RS 232
AUDIO AUDIO AUDIO AUDIO AUDIO
H/HV
R/C G/Y BR/C G/Y B
V
INPUT 4
H/HV V
R/C G/Y B
INPUT 3
H/HV V
R/C G/Y B
INPUT 2
H/HV V
R/C G/Y B
INPUT 1
H/HV V
See Special Note below
