Sanyo PLC-XU55 Projector Quick Start Guide

How to connect a computer to the projector

DVI is frequently found on Macintosh

computers and some PCs:

VGA is usually found on PCs and some

Macintosh computers:

Step One: Determine connector type

First determine the type of output connector on the computer, DVI or VGA (also know as D-sub,

from its D shape). The projector comes with a cable to connect to your computer, one end has a

DVI connector, the other a VGA connector.

Step Two: Connect cable to the appropriate connectors on the computer and projector

Connect one end of the cable to the matching connector on your computer. Connect the other

end of the cable to the connector on the projector, see figure below. Note: The DVI connector is

labeled COMPUTER IN 1, the VGA connector is labeled COMPUTER IN 2. You must set the

projector to use the correct input when you turn in on. See Step Four below.

DVI connector

(COMPUTER IN 1)

VGA connector

(COMPUTER IN 2)

Composite Video input

Step Four: Set the Input source

Using the input button and arrow keys on top of the projector (see diagram below) to navigate

the on-screen menu, set the input source to match the port on the projector you connected to

in Step One.

Step Three: Turn on projector and computer

Turn on both units and set the computer to output through its VGA/DVI port. If you do not

successfully complete this step, most likely you will not get an image from the projector.

Most PCs have a key combination that allows you to toggle through the various settings of the

built-in display and the port. Usually this is a combination of the Function key (Fn) and and another

key (such as F8). The key combinations vary from manufacturer to manufacturer and sometimes

model to model.

On the Macintosh, you have to go to the System Preferences: Display panel to adjust the settings.

You may have to go to the computer manufacturer’s support web site to determine the correct

method for your computer.

Input button

On/Off button

Arrow keys and select button

Menu button

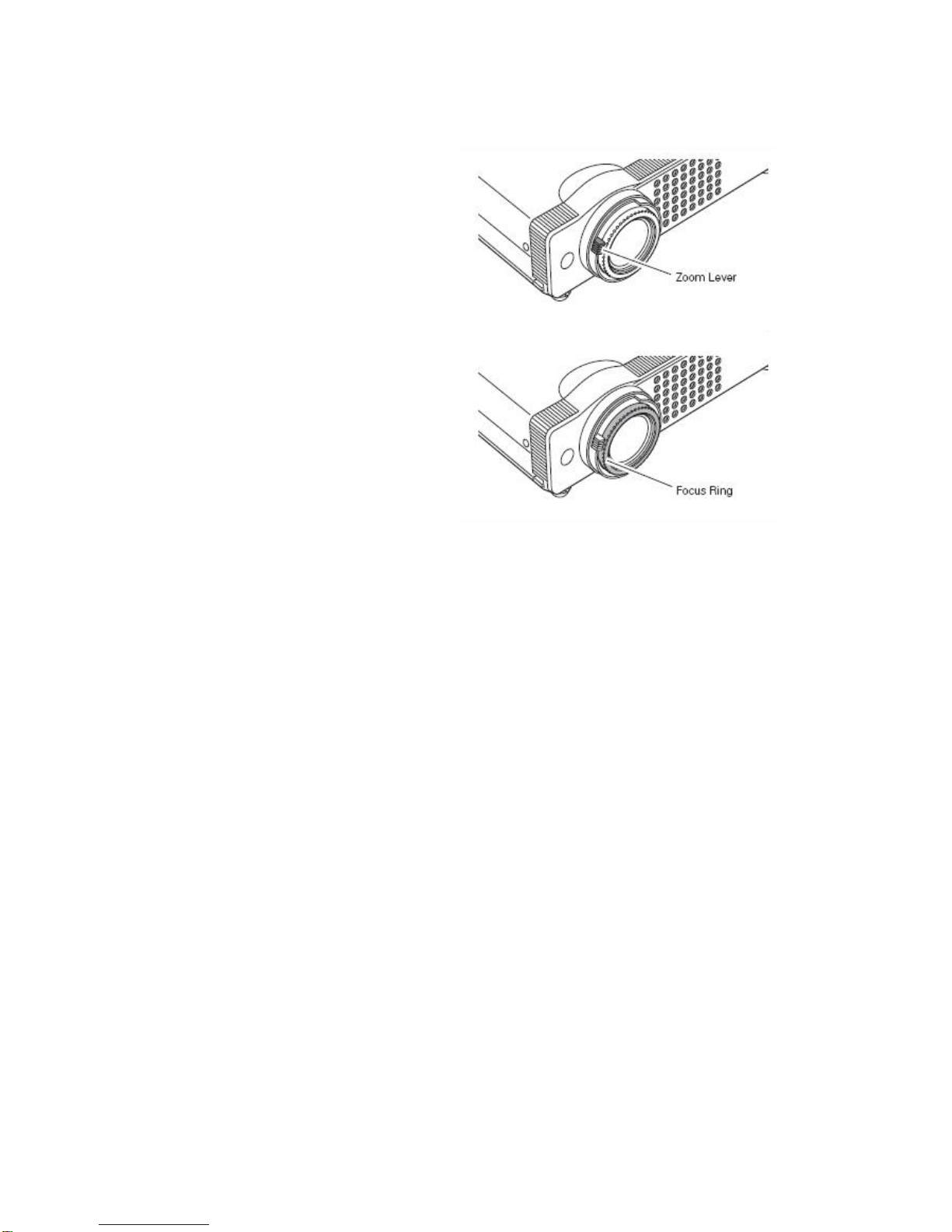

Step Five: Zoom and focus

First set the zoom using the zoom

lever as indicated in the drawing, then

focus the image using the focus ring.

How to connect a video source to the projector

Step One: Determine connector type and connect

The projector easily accepts S-Video and Composite Video inputs (a composite video cable is

included with the projector). See the figure on the first page of this guide for connections.

Step Two: Set the Input source

Turn on both units. Use the input button and arrow keys on top of the projector (see previous

diagram) to toggle to the appropriate video input.

Step Three: Zoom and focus

First set the zoom using the zoom lever as indicated in the drawing, then focus the image

using the focus ring (see figure above).
