Contents

Name and Function of Each Component .................................................................2

Basic Connections.................................................................................................... 6

Network Settings ...................................................................................................... 9

Specifications ......................................................................................................... 11

Copyright Notice ..................................................................................................... 13

Check your operating environment.

To operate the camera via network operation, you must meet the following operating

requirements.

•: IBM PC/AT compatible

Operating system

•: Windows XP Professional/Windows Vista

CPU

•: Core2Duo E6700 2.66 GHz or higher

Memory

•: Windows XP: 1GB or more

Windows Vista: 2GB or more

Network interface

•: 10Base-T/100Base-TX (RJ-45 connector)

Display card

•: 1920×1200 pixels or higher

Graphics chip

•: ATI RADEON HD2600 series or higher

nVIDIA GeForce 8600 series or higher

nVIDIA Quadro FX550 series or higher

Web browser

•: Internet Explorer Ver. 6.0 SP2 or higher,

or Internet Explorer Ver. 7.0

■

You can automatically set up the IP address of the camera.

This software application is useful when two or more cameras are connected to the

network.

Download “Auto IP Setup” software application from the supplied CD-ROM.

■

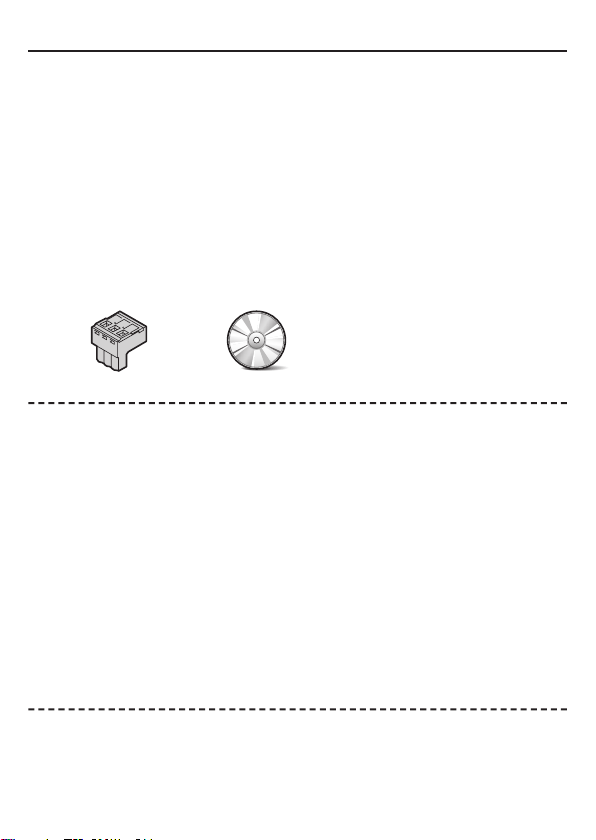

Accessories

①Power supply connector ②CD-ROM

■

L5DH2VCC-HD4600PSMGB.inddSec1:1L5DH2VCC-HD4600PSMGB.inddSec1:1 2009/10/2018:42:152009/10/2018:42:15

Name and Function of Each Component

Rear Face

❷

❶

❿

❺

❽

❾

❼

❻

❸

❹

❶Power Indicator (POWER)

This indicator lights up when the camera is powered on.

When the camera is on, this indicator blinks to indicate the following

camera statuses:

Firmware update in progress

Deactivation of media recording is in progress.

Error occurring on SD memory card or external hard disk drive (faster

blink)

•

❷24 VAC/ 12 VDC Power Connector Terminal

Connect a 24 VAC or 12 VDC power supply to this terminal using the supplied

Power supply connector.

For details, refer to the “Basic Connections” ( Page 6) section.

❸Control Terminals (7 push-lock pins)

For details, refer to the “󱤬Control Terminal Connections” ( Page 7) section.

❹External hard disk terminal (EX-HDD)

To record live video on a hard disk, put the hard disk in a dedicated hard disk case

(VA-HDC4000), sold separately) and then connect the case to the camera.

For details, refer to “Installing and formatting recording media” section on the

electronic manual.

❺Audio Output Jack (AUDIO OUT, 3.5-mm mini jack)

Connect this jack via an audio cable to the audio input jack of an amplified speaker

system or the monitor.

❻Audio Input Jack (AUDIO IN, 3.5-mm mini jack)

Use this jack to connect an external microphone to listen to the sound while

monitoring the live video, or simultaneously record the video and sound.

This jack supports 3.5-mm diameter monaural microphone plugs, or

monaural line-level input plugs (the left channel only for stereo plugs).

■

L5DH2VCC-HD4600PSMGB.inddSec1:2L5DH2VCC-HD4600PSMGB.inddSec1:2 2009/10/2018:42:152009/10/2018:42:15

Name and Function of Each Component

❼SD (SDHC) Card Slot

When recording live video onto an SD memory card, insert the card into the slot.

For details, refer to “Installing and formatting recording media” section on the

electronic manual.

❽LAN Connector (RJ-45)

Use this socket to connect the camera to your PC to enable network operation.

For details, refer to the “Basic Connections” ( Page 6) section.

Link access indicator (Green):

This indicator lights up approx. 3 seconds after power on, if a

connection has been established between the camera and the network.

After that, it will blink when data are being transmitted via the network.

Speed indicator (Orange):

The camera automatically detects the local network transmission

speed (10BASE-T or 100BASE-TX).

This indicator lights up when 100BASE-TX data transmission is in

progress; it goes out when 10BASE-T data transmission is in progress.

•

❾Monitor output terminal for video adjustment

Connect this terminal to a monitor, etc. A live video will be displayed on the monitor

once the camera is turned on. For details, refer to the “Basic Connections”

(Page 6) section.

While displaying live video, the current zoom magnification is displayed on the

screen.

Optical zoom area: ×1.0 to ×10.0

Electronic zoom area: ×11 to ×160

Zoom magnification settings (ex. enabling/disabling

the magnification display, displaying position) can be

configured via network operation on the VIDEO &

AUDIO SETTINGS (TV OUT) screen.

❿HD video output terminal (HDMI)

The terminal outputs super-fine HD (High Definition) video signal. Use the terminal

to connect a high-definition monitor with HDMI interface.

For details, refer to the “Basic Connections” ( Page 6) section.

•

x 10.0

L5DH2VCC-HD4600PSMGB.inddSec1:3L5DH2VCC-HD4600PSMGB.inddSec1:3 2009/10/2018:42:162009/10/2018:42:16

Name and Function of Each Component

Side Face

❸❷

❶

❶Operation Buttons

When using operation buttons on the camera, slide and open the side cover to

access the buttons.

Some operations can be performed via network operation.

󱤨Basic operations (focus adjustment, zoom, etc.)

Adjusting focus: Press the button to set the focus to a near target; press

the button to set the focus to a far target.

Live screen control panel

Zoom: Press the button to zoom out of the image; press the button to

zoom into the image.

Live screen control panel

󱤩Menu screen operations

Press the SET button for 2 seconds or more to display the menu screen.

For details, refer to the “Using the Menu screen” on the electronic manual.

Moving the cursor up or down: Press button to move the cursor upward, or

press button to move the cursor downward.

Selecting the setting value: Press or button to change the setting value.

Set the selected value: Press the SET button.

󱤪Miscellaneous operations (ex. restarting the camera)

Never press the RESET button while recording is in progress.The

video may not be recorded properly.

Restarting camera: Press the RESET button.

OPTION SETTINGS (CAMERA REBOOT)

Restoring factory default settings: Press the and buttons

simultaneously.

OPTION SETTINGS (FACTORY DEFAULT)

Stopping recording/Removing the recording medium: Press the and

SET buttons simultaneously.

⇨The power indicator starts blinking and then stay lit when the camera is

ready for you to remove the recording media.

SD/HDD SETTINGS

■

•

L5DH2VCC-HD4600PSMGB.inddSec1:4L5DH2VCC-HD4600PSMGB.inddSec1:4 2009/10/2018:42:162009/10/2018:42:16

Resuming recording/Recognizing the recording medium: Press the

and SET buttons simultaneously.

⇨The power indicator starts blinking and then stay lit after the camera

recognizes the recording medium and is ready for recording.

SD/HDD SETTINGS

Resetting the login password (for default users only): Press the and

buttons simultaneously.

Not supported via network operation

❷Power indicator

The indicator also works as an error indicator.

Power indicator: The indicator lights up when the camera is powered on.

Error indicator: The indicator blinks when an error occurs.

To activate the power or error indicator, via network operation on the

OPTION SETTINGS screen, change the setting for [POWER LED (FRONT)]

or [ERROR LED (FRONT)] respectively.

❸Bracket

This bracket may be attached to either the top or bottom face of the camera

depending on the installation environment.

For bracket installation, be sure to use the longer screws supplied.

Install the camera securely to a durable location, taking into account

the total weight of the camera mount (commercially available) and the

camera.

•

Name and Function of Each Component

L5DH2VCC-HD4600PSMGB.inddSec1:5L5DH2VCC-HD4600PSMGB.inddSec1:5 2009/10/2018:42:172009/10/2018:42:17

Basic Connections

24 VAC

12 VDC

Monitor

High-definition monitor

Target

󱤩󱤪

󱤫

󱤨

󱤬

12 VDC

24 VAC

GND

󱤨Power Connection

Attach the supplied power connecter into the power terminal.

Loosen the screws on the side face of the connecter, connect

the power cables to it, and tighten the screws.

Connection method depends on the power supply (24 VAC or

12 VDC).

Connection to 24 VAC power supply:

Although the power terminals have no polarity, the earth grounding wire must be

connected to the COM (GND) terminal.

Connection to 12 VDC power supply:

Note the polarity (+/–) of the power terminals when connecting the camera to a 12

VDC power supply.

Incorrect polarity may cause damage to the camera.

To prevent a fire hazard use any UL listed wire rated VW-1. Be sure to

use an 18AWG or thicker wire power cable.

If you must use a long power cable, determine the cable type by

ensuring that the voltage at the 24 VAC/12 VDC terminal is within the

operating range of the camera.

•

When the camera is powered on, the POWER indicator lights up and the live video

is displayed on the connected monitor.

L5DH2VCC-HD4600PSMGB.inddSec1:6L5DH2VCC-HD4600PSMGB.inddSec1:6 2009/10/2018:42:172009/10/2018:42:17

󱤩High-Definition Monitor Connection

Connect the HDMI cable to the HD video output terminal (HDMI).

You cannot output the video simultaneously from HD video output

terminal (HDMI) and from monitor output terminal (MONITOR OUT). When

both terminals are used, the HD video output terminal takes precedence.

󱤪Monitor connection for video adjustment

Connect the coaxial cable to the SD video output terminal (MONITOR OUT).

󱤫Network Connection

This camera is designed so that you can use all of its functions via network

operation.

By connecting the network (LAN) socket of the camera to your PC using a LAN

cable, you can configure and operate it from the Web browser installed on your PC.

Use a LAN cable no longer than 100 m (109.4 yards) with the shield type

CAT5 or higher.

The supported Web browser is Internet Explorer Ver.6.0 SP2 or higher, or

Internet Explorer Ver.7.0.

Configure the network information using the camera's menu item

[NETWORK SET].

For details, refer to “Configuring the network settings of the camera”

section on the electronic manual.

The same settings can be performed via network operation on the

NETWORK SETTINGS screen.

•

󱤬Control Terminal Connections

󱤨Alarm output terminals (ALARM OUT1/2)

Connect a buzzer, lamp, or other alarm device to one of the alarm output

terminals.

After connecting an alarm device, configure the output conditions

for the corresponding alarm output terminal (ALARM OUT1 or 2) via

network operation on the ALARM SETTINGS screen.

Alarm output terminal configuration is also possible via remote

operation.

•

󱤩Alarm input or Day/Night switching terminals (ALARM IN1/2)

These input terminals can be used for either of the following purposes:

Alarm input

Connecting an external switch, infrared sensor, or other device to these

terminals enables the camera to detect alarm conditions such as the entry of

an intruder.

After connecting an alarm device, configure the input conditions for

the corresponding alarm input terminal (ALARM IN1 or 2) via network

operation on the ALARM SETTINGS screen.

•

Basic Connections

L5DH2VCC-HD4600PSMGB.inddSec1:7L5DH2VCC-HD4600PSMGB.inddSec1:7 2009/10/2018:42:182009/10/2018:42:18

Day/Night switching

Normally, switching the camera between the color and black-and-white video

modes is automatically accomplished by the Day/Night function.

Using one of these alarm input terminals as the Day/Night switching terminal,

however, enables the camera to be switched between the color and black-and-

white video modes when an external control signal is received.

To use the alarm input terminals as Day/Night switching terminals,

follow the steps below.

• Under [DAY/NIGHT], set [DAY/NIGHT] to “COLOR” and select the

terminal you want to use in [EXT ALARM].

• On the ALARM SETTINGS screen, in [POLARITY], select the signal

polarity of the alarm input terminal.

•

󱤪Zoom/Focus adjustment terminal (ZOOM/FOCUS)

Zoom and focus adjustment operations can be performed remotely by external

voltage control.

Connection Diagram (Thicker than 24 AWG, 600 m / 656 yds. max.)

(COM)

External

peripheral

device

Alarm input signal

(COM)

󱤨

󱤩

(COM)

+6/12 V (focuses on

subjects close to the lens)

–6/12 V (focuses on

subjects far from the lens)

+6/12 V (wide angle)

–6/12 V (telephoto)

(ZOOM)

(FOCUS)

󱤪

(ALARM OUT1)

(ALARM OUT2)

(ALARM IN 2)

(ALARM IN 1)

•

■

Basic Connections

L5DH2VCC-HD4600PSMGB.inddSec1:8L5DH2VCC-HD4600PSMGB.inddSec1:8 2009/10/2018:42:182009/10/2018:42:18

Network Settings

Preparing Your Computer for Network Operation

󱳛Check your operating environment. ( Page 1)

󱳝Connect the camera to the network to which your PC is also connected.

󱳟Configue the network information on your PC.

Configure information such as the IP address of your PC.

󱳡Install the “H.264 Plug-in” from the supplied CD-ROM onto your PC.

You are now ready to monitor the surveillance video in the H.264 format.

󱳣Start Internet Explorer.

The supported Web browser is Internet Explorer Ver.6.0 SP2 or higher, or Internet

Explorer Ver.7.0.

󱳥Access the camera from your Web browser.

From your Web browser (Internet Explorer), access the camera and log into the

system as an “admin” user (administrator).

󱳧In the address bar, type the IP address of the camera and press [Enter] key.

When you access the camera, the login screen appears.

If this is the first access to the camera, in the Address bar, enter the default IP

address as follows.

If you set [SSL] to “ON”, before the IP address, type “https://” (instead

of “http://”).

Attempts to access the camera using the default IP address will fail if

that address is already being used by another device in the network.

If so, change the IP address of the existing device before accessing

the camera.

L5DH2VCC-HD4600PSMGB.inddSec1:9L5DH2VCC-HD4600PSMGB.inddSec1:9 2009/10/2018:42:192009/10/2018:42:19

Altri manuali per VCC-HD4600P

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Sanyo Telecamera di sicurezza

Sanyo

Sanyo VCC-6594P Manuale utente

Sanyo

Sanyo VCC-3972P Manuale utente

Sanyo

Sanyo VCC-6585P Manuale utente

Sanyo

Sanyo VDC-C1575VP Manuale utente

Sanyo

Sanyo VCC-6570P Manuale utente

Sanyo

Sanyo Colour CCD Camera VCC-5775P Manuale utente

Sanyo

Sanyo VCC-6594E - 1/3" CCD DSP High Sensitivity Color... Manuale utente

Sanyo

Sanyo VDC-C1574VA - CCTV Camera Manuale utente

Sanyo

Sanyo VCC-HD2100 - Full HD 1080p Network Camera Manuale utente

Sanyo

Sanyo VCC-9300 Manuale utente

Sanyo

Sanyo VDC-HD3100 - Full HD 1080p Vandal Dome... Manuale utente

Sanyo

Sanyo VCB-3574IR Manuale utente

Sanyo

Sanyo VCC-P7574N - 1/4" Color CCD Indoor Mini Dome... Manuale utente

Sanyo

Sanyo VDC-HD3100P/HD3100 Guida utente

Sanyo

Sanyo VCC-WB4000 Manuale utente

Sanyo

Sanyo VCC-P7574 - 1/4" Color CCD Indoor Mini Dome... Manuale utente

Sanyo

Sanyo VCB-3372 Manuale utente

Sanyo

Sanyo VCC-4374 Manuale utente

Sanyo

Sanyo VCC-XZ600N - Network Camera - Weatherproof Manuale utente

Sanyo

Sanyo VCC-XZ200 - 1/4" CCD Weatherproof Day/Night Zoom... Manuale utente

Sanyo

Sanyo VCC-HD4000 - Network Camera Manuale utente

Sanyo

Sanyo VCC-HD4600 - Full HD 1080p Day/Night Network... Manuale utente

Sanyo

Sanyo VCC-3944 - 1/4" Color CCD DSP Camera Manuale utente

Sanyo

Sanyo VCC-P7575P Pan-Focus Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
