Before installing and using the camera, please read

this manual carefully.

Be sure to keep it handy for later reference.

In addition, be sure to read carefully the electronic

manual (INSTRUCTION MANUAL) contained in the

supplied CD-ROM to ensure correct operation of

the camera.

Important

Be careful when opening holes for installing

the unit. Work with the power and video cables

pulled out for easy installation.

Make sure to properly perform waterprooﬁng for

the ceiling where you are installing the unit.

Make sure that the surface in the installation

location has no unevenness and is strong

enough to bear the total weight of the unit.

Install this unit in an environment where the

temperature range stays between –10°C and

+50°C/14°F and 122°F (no condensation

allowed).

As a precaution against static electricity

damage, touch a nearby metal object (door

knob, etc.) to dissipate static electricity in your

body before touching this unit.

•

L5DD2VA-94SMCH5600PGB.indd1L5DD2VA-94SMCH5600PGB.indd1 2009/10/2312:06:212009/10/2312:06:21

Name and Function of Each Component..................................................................... 2

Installation.................................................................................................................... 3

Connections ................................................................................................................. 5

Control/Address Settings ............................................................................................. 9

Address Settings Table............................................................................................... 10

Network Settings........................................................................................................ 11

Specifications............................................................................................................. 12

Copyright Notice ........................................................................................................ 14

Check your operating environment.

To operate the camera via network operation, you must meet the following operating requirements.

•: IBM PC/AT compatible

Operating system

•: Windows XP Professional/Windows Vista

CPU•: Core2Duo E6700 2.66 GHz or higher

Memory

•: Windows XP: 1GB or more

Windows Vista: 2GB or more

Network interface

•: 10Base-T/100Base-TX (RJ-45 connector)

Display card•: 1920×1200 pixels or higher

Graphics chip

•: ATI RADEON HD2600 series or higher

nVIDIA GeForce 8600 series or higher

nVIDIA Quadro FX550 series or higher

Web browser•: Internet Explorer Ver. 6.0 SP2 or higher,

or Internet Explorer Ver. 7.0

■

You can automatically set up the IP address of the camera.

This software application is useful when two or more cameras are connected to the network.

Download “Auto IP Setup” software application from the supplied CD-ROM.

■

Contents

Accessories

Camera Unit

①Surface cover ②Drop-prevention cable ③Clamping core

(VCC-MCH5600)

× 4

(VCC-MCH5600P)

× 5

Power unit

①Pattern sheet ②Dust sheet ③Interface board ④CD-ROM

■

•

L5DD2VA-94SMCH5600PGB.inddSec1:1L5DD2VA-94SMCH5600PGB.inddSec1:1 2009/10/2312:06:222009/10/2312:06:22

Name and Function of Each Component

This device is composed of a camera unit and power unit (VA-94S).

①②

③

④

⑤

⑧

⑥

⑦

Ⓐ

Ⓑ

①Connection Point

This is the connection point between the camera unit and the power unit.

②Interface Board (accessories)

󱤨

󱤩

󱤪

󱤨Control switch (transmission rate and protocol setting, etc.)

󱤩Address switch (control camera address setting)

󱤪Control terminal (connection of controller and alarm input/output cable)

③LAN/EX-HDD Terminal

ⒶLAN terminal (RJ-45 type):

Use this socket to connect the camera to your PC to enable network operation.

ⒷEX-HDD terminal (USB type):

When recording live video onto an external hard disk, put the hard disk in a dedicated hard disk

case (VA-HDC4000; sold separately) and then connect the case to the camera.

④SD Card Slot

When recording live video onto an SD memory card, insert the card into the slot.

⑤Power terminal

Use this cable to connect a 24 VAC power supply.

There is no power indicator on the camera.

⑥Audio output terminal (black: 3.5-mm mini jack)

Connect this jack via an audio cable to the audio input jack of an amplified speaker system or the

monitor.

⑦Audio input terminal (white: 3.5-mm mini jack)

Use this jack to connect an external microphone to listen to the sound while monitoring the live

video, or simultaneously record the video and sound.

⑧Monitor output terminal (BNC type)

This terminal is used for video output. Connect this terminal to a monitor, etc.

By installing an HDMI option board (VA-HDB90; sold separately), the camera can be connected to a

high vision monitor.

L5DD2VA-94SMCH5600PGB.inddSec1:2L5DD2VA-94SMCH5600PGB.inddSec1:2 2009/10/2312:06:242009/10/2312:06:24

Installation

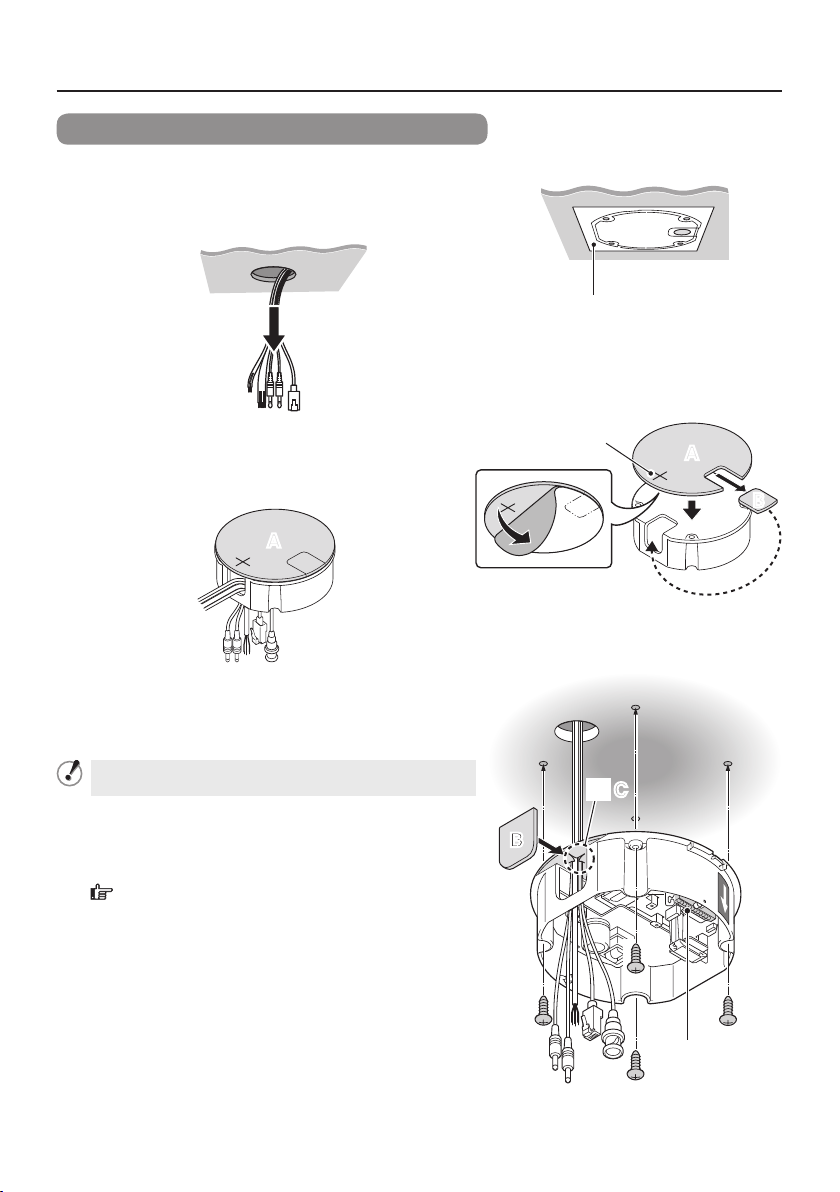

1. Installing the power board unit

󱳛Place the supplied pattern sheet on the ceiling,

mark the locations and drill the holes for the cables

and screws.

Pull out the cables from the ceiling.

•

Ceiling

Pattern sheet (Accessory)

󱳝Attach the supplied dust sheet (A) to the base of

the power board unit and the detachable piece of

the sheet (B) to the side.

CAA

When routing cables through side face of power

board unit

■

󱳟Pass the cables through the slit (C) in the dust

sheet.

󱳣

󱳡

󱳟

󱳡Fix the power board unit to the ceiling using

commercially available screws (4 places).

Make sure to tighten the screws properly. Using screws

of sizes other than specified may cause the unit to fall.

Screw size (equivalent to M4/No.8)

Nominal length: 40 mm (1.6 in) or more

Head diameter: ø8.3 mm (0.3 in)

•

󱳣Connect the cables and set the switches (D).

“Connections” (Page 5), “Control/Address Settings

(Page 9)”

L5DD2VA-94SMCH5600PGB.inddSec1:3L5DD2VA-94SMCH5600PGB.inddSec1:3 2009/10/2312:06:252009/10/2312:06:25

Installation

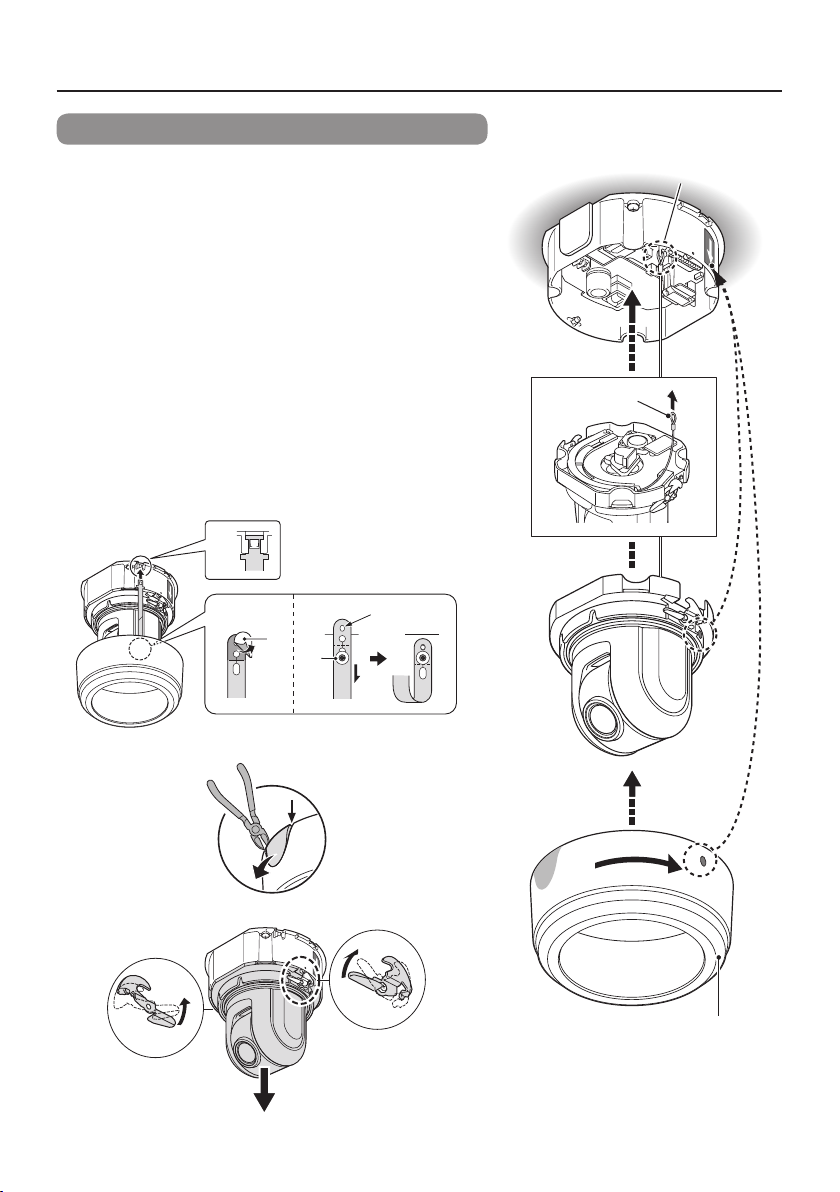

2. Mounting the camera unit

󱳥Fasten the camera unit safety wire (E) to the hook

(F) on the inner side of the power board unit.

Surface cover

(Accessory)

󱳧

󱳩

󱳥E

󱳧Align the colored dot (blue) on the camera unit with

the arrow on the power board unit, and push the

camera unit until they click.

󱳩Align the colored dot (blue) on the inside of the

surface cover with the arrow on the power board

unit, and turn the surface cover in the direction of

the arrow to secure it in place.

How to attach the drop-prevention cable (accessory)

❶Peel off the two-sided tape (J) at the end of the cable,

attach the cable end to the hook (K) on the inside of the

surface cover as shown in the figure, and then pull the

cable downward until the small protrusion (L) and the

hook (K) fit in the cable’s first and second holes from the

top, respectively.

❷Fasten the cable to the hook on the side of the power

board unit.

❶

❷

■

When routing cables through side face of power

board unit

■

To remove the camera unit

Push

■

L5DD2VA-94SMCH5600PGB.inddSec1:4L5DD2VA-94SMCH5600PGB.inddSec1:4 2009/10/2312:06:262009/10/2312:06:26

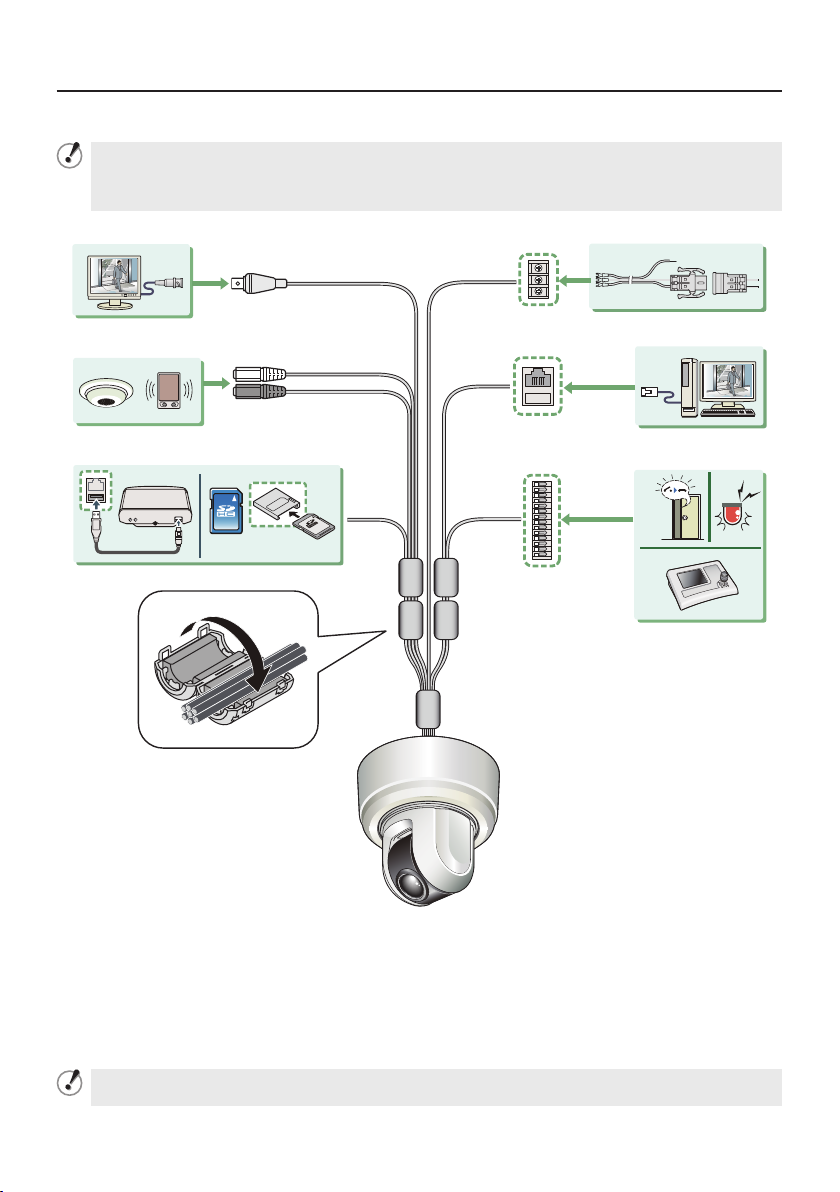

Connections

VCC-MCH5600

Before attempting the following connections, be sure to turn off all components of your system.

Improper connection may cause smoke or failures. Before attempting to connect each system

component, carefully read the instruction manual that comes with it to familiarize yourself with the

correct connection procedure.

•

󱤨

󱤪

󱤫

󱤩

󱤬

󱤨Power Connection

This unit is 24 VAC type. Connect the power cable to the power terminal.

Although the power terminals have no polarity, the earth grounding wire must be connected to the

G (earth terminal) terminal.

To prevent a fire hazard use any UL listed wire rated VW-1.

Be sure to use an 18AWG or thicker wire power cable.

AC-ING

■

L5DD2VA-94SMCH5600PGB.inddSec1:5L5DD2VA-94SMCH5600PGB.inddSec1:5 2009/10/2312:06:282009/10/2312:06:28

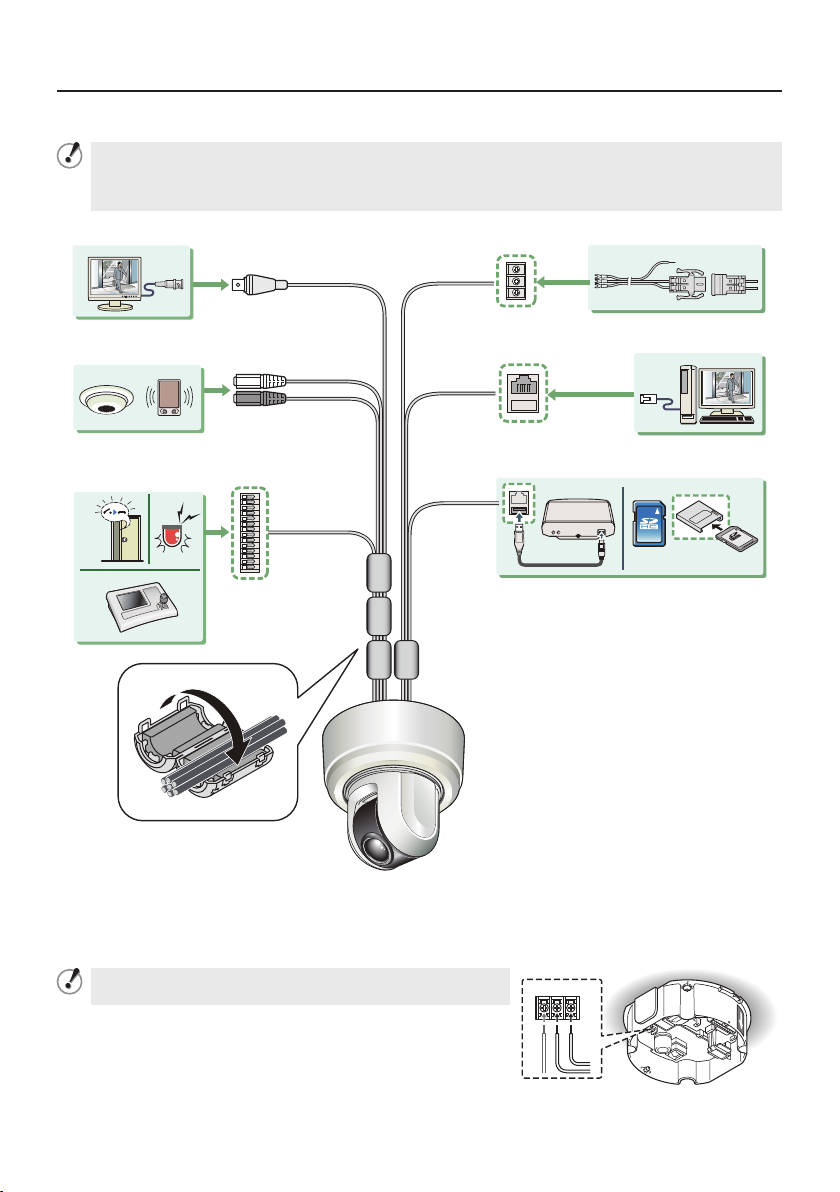

VCC-MCH5600P

Before attempting the following connections, be sure to turn off all components of your system.

Improper connection may cause smoke or failures. Before attempting to connect each system

component, carefully read the instruction manual that comes with it to familiarize yourself with the

correct connection procedure.

•

󱤨

󱤪

󱤬

󱤩

󱤫

󱤩Audio Jack Connection

AUDIO OUT Jack (Black)

Connect this jack via an audio cable to the audio input jack of an amplified speaker system or the

monitor.

AUDIO IN Jack (White)

Use this jack to connect an external microphone to listen to the sound while monitoring the live

video, or simultaneously record the video and sound.

This terminal is compatible with a 3.5-mm diameter mono microphone or line mono signals (only the

left channel in cases of stereo signals).

■

Connections

L5DD2VA-94SMCH5600PGB.inddSec1:6L5DD2VA-94SMCH5600PGB.inddSec1:6 2009/10/2312:06:292009/10/2312:06:29

Connections

󱤪Network Connection

This camera is designed so that you can use all of its functions via network operation.

By connecting the network (LAN) socket of the camera to your PC using a LAN cable, you can

configure and operate it from the Web browser installed on your PC.

Switching hub

Internet connection

LAN connection

PC PC

Internet

Modem

Router

Use a LAN cable no longer than 100 m (109.4 yards) with the shield type CAT5 or higher.

Use a straight-type cable if connecting to LAN, and use a cross-type cable if directly connecting the

camera to a PC.

The supported Web browser is Internet Explorer Ver.6.0 SP2 or higher, or Internet Explorer Ver.7.0.

•

󱤫Installing Recording Media

When recording live video on the camera, install an SD memory card or external hard disk on the

camera.

Always turn the power off when installing a recording medium.

❶Connecting an External Hard Disk

Put the hard disk in a dedicated hard disk case (VA-HDC4000; sold separately) and then

connect the case to the camera.

❷Inserting an SD Memory Card

Insert the SD card into the slot until it is locked with a clicking sound.

Push the SD card a bit further into the slot to eject it.

When you insert a new recording medium, format it on the SD/HDD screen.

When you remove the recording medium, first set [SD MEMORY CARD]/[HDD] on the SD/HDD

screen to “NO USE”.

•

󱤬Control Terminal Connections

Connect the alarm input/output cable and controller to the control terminal of the interface board.

Use a thicker cable than 24AWG for connection. (Maximum length 600 m/656 yards)

Installing and removing the interface board

To place the board back, align the hole (A) at the right corner of the board

to the protruding portion (B) and securely fix the board by depressing it.

To connect alarm or other cables to the interface board, take out the board

by pulling the portion (C).

(B)

L5DD2VA-94SMCH5600PGB.inddSec1:7L5DD2VA-94SMCH5600PGB.inddSec1:7 2009/10/2312:06:292009/10/2312:06:29

OUT2

OUT1

IN8

IN7

IN6

IN5

IN4

IN3

IN2

IN1

COM

485B

485A

OUT1/2

IN 1-8

COM

Alarm output signal

Alarm input signal

Controller connection

White Yellow

❶

❷

❸

❶Outputting Alarm Signals (OUT 1-2)

Connect a buzzer, lamp, or other alarm device to the alarm output cable.

Alarm can be output via two channels.

After connecting an alarm device, configure the output conditions for the corresponding alarm

output terminal (ALARM OUT1 or 2) via network operation on the ALARM SETTINGS screen.

Configuration of alarm output terminal is also possible via remote operation. For that, set

[ALARM OUT] to “REMOTE” on the ALARM SETTINGS screen.

•

❷Inputting Alarm Signals (IN 1-8)

Connect an alarm switch, infrared sensor, or other device to detect alarm conditions to the

alarm input cable.

Alarm can be input via eight channels.

After connecting an alarm device, configure the input conditions for the corresponding alarm

input terminal (ALARM IN1 or 2) via network operation on the ALARM SETTINGS screen.

When using the alarm input terminal for day/night switching, configure the following settings.

•Under [DAY/NIGHT], set [DAY/NIGHT] to “COLOR” and select the terminal you want to use in

[EXT ALARM].

•On the ALARM SETTINGS screen, in [POLARITY], select the signal polarity of the alarm input

terminal.

Connecting an external switch to ALARM IN1 allows you to set the system clock by operating

the switch.To set the system clock, configure the [CLOCK IN] setting on the CLOCK SETTINGS

screen.

•

❸Connecting the Controller (485A/485B)

By connecting a system controller (sold separately), the camera can be controlled remotely.

Configure the protocol, baud rate and address. (Refer to “Control/Address Settings” Page 9.)

Connections

L5DD2VA-94SMCH5600PGB.inddSec1:8L5DD2VA-94SMCH5600PGB.inddSec1:8 2009/10/2312:06:302009/10/2312:06:30

Control/Address Settings

When you connect the camera to a controller, it is necessary to configure the interface board control

switch and address switch.

Control switch

This is used to configure transmission rate and protocol, etc.

Switches 4 and 5 are not used.

Settings in bold typeface in the table below show the factory default

configurations.

•

❶Baud Rate

Configure the transmission rate of connected devices to the transmission

rate of the camera.

Transmission Rate Switch 1 Switch 2

2400 OFF OFF

4800 ON OFF

9600 OFF ON

19200 ON ON

When protocol is set to “PELCO”, set to 2400.

❷Protocol

Select the protocol for controlling the camera.

Protocol Switch 3 Corresponding Protocol

SSP (SANYO) OFF Automatic switching between Sanyo SSP and high speed SSP

PELCO ON Automatic switching between PELCO-D and PELCO-P

❸Terminator

When you connect multiple cameras, set the terminator setting (Switch 6) of the final device to “ON”

and all other devices to “OFF”.

Address switch

When you connect multiple cameras, allocate a unique RS485 protocol address (camera number) to

each camera.

12345678

Configure the address by setting the dip switches to “ON” and “OFF”.

For further information, refer to the “Address Settings Table” on

the next page.

■

123456

❶❷ ❸

123456

❶❷ ❸

L5DD2VA-94SMCH5600PGB.inddSec1:9L5DD2VA-94SMCH5600PGB.inddSec1:9 2009/10/2312:06:302009/10/2312:06:30

Altri manuali per VCC-HD5600P Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Sanyo Telecamera di sicurezza

Sanyo

Sanyo VDC-HD3500P Manuale utente

Sanyo

Sanyo VCB-3444 Manuale utente

Sanyo

Sanyo VCC-4374P Manuale utente

Sanyo

Sanyo VCC-HD5600 - Full HD 1080p Day/Night Pan-Tilt-Zoom... Manuale utente

Sanyo

Sanyo VCC-HD5600 - Full HD 1080p Day/Night Pan-Tilt-Zoom... Manuale utente

Sanyo

Sanyo VDC-D1184VA Manuale utente

Sanyo

Sanyo VCC-4324P Manuale utente

Sanyo

Sanyo VCC-ZM300P Manuale utente

Sanyo

Sanyo VCC-4372P Manuale utente

Sanyo

Sanyo VCC-6584 Manuale utente

Sanyo

Sanyo VCB-3384 - 1/3" B/W CCD Camera Manuale utente

Sanyo

Sanyo VCB-3384 Manuale utente

Sanyo

Sanyo VCC-ZM300PA Manuale utente

Sanyo

Sanyo Vcc-4344 Manuale utente

Sanyo

Sanyo VCB-7312P Manuale utente

Sanyo

Sanyo VCC-HD4000 - Network Camera Manuale utente

Sanyo

Sanyo VCC-6594E - 1/3" CCD DSP High Sensitivity Color... Manuale utente

Sanyo

Sanyo VCC-HD2100 - Full HD 1080p Network Camera Manuale utente

Sanyo

Sanyo VCC-ZM300A Manuale utente

Sanyo

Sanyo VCC-P7574S Manuale utente

Sanyo

Sanyo VCC-P7574N - 1/4" Color CCD Indoor Mini Dome... Manuale utente

Sanyo

Sanyo VCB-3512T Manuale utente

Sanyo

Sanyo VCC-ZM400 Manuale utente

Sanyo

Sanyo VCC-6574PC Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
