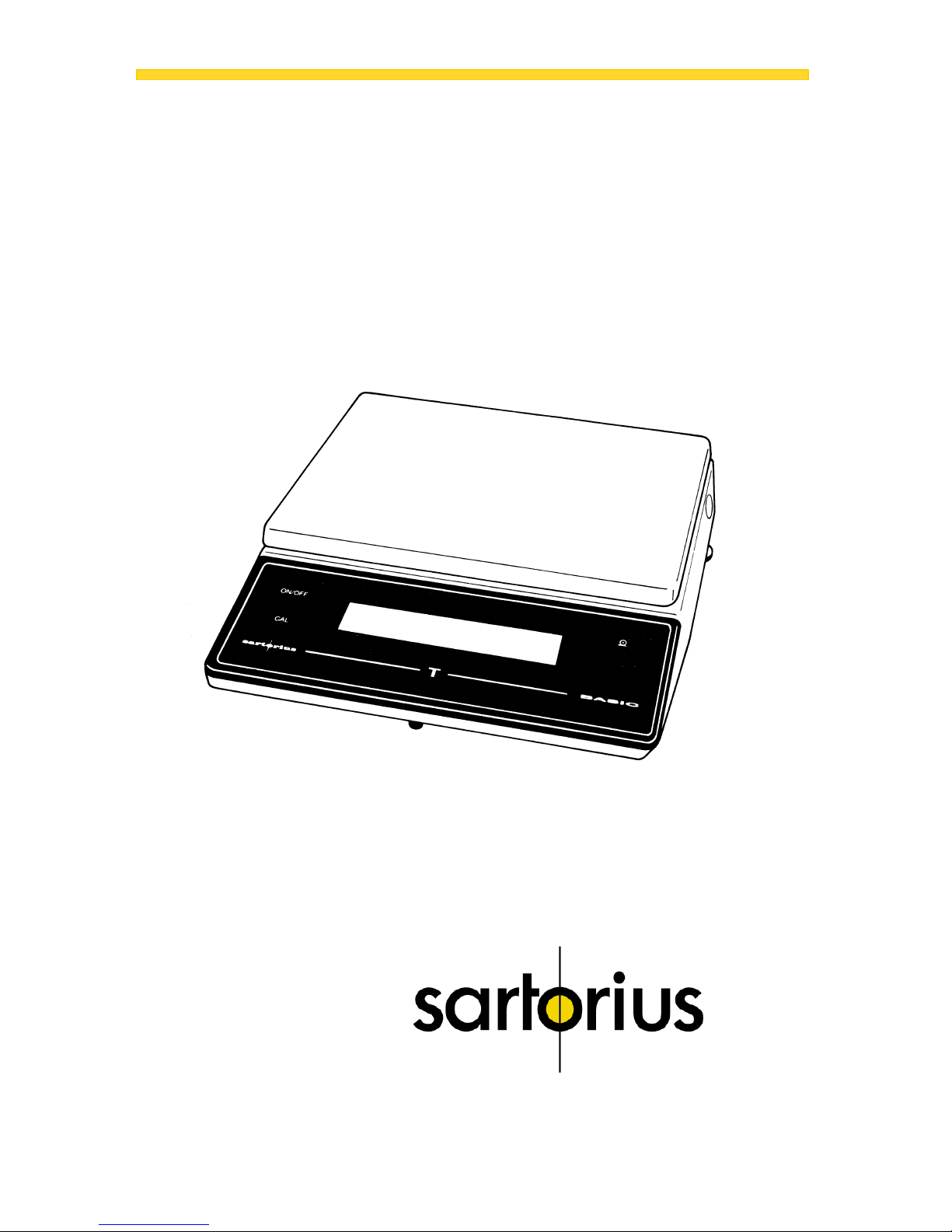

Sartorius Master series Manuale utente

Sartorius

Basic Series

Electronic Analytical and Precision Balances

Installation and Operating Instructions

B 120S

B 310P, B 310S

B 410, B 610, B 3100P,

B 3100S, B 4100, B 6100

1 Weighing pan

Protective ring (only for B 120S)

Shield plate (only for B 120S)

Round draft shield lid (only B 310P and B 310S)

Glass draft shield cylinder (only B 310P and B 310S)

Base plate shield cylinder (only B 310P and B 310S)

Pan adapter (only B 310P and B 310S)

Power receptacle

Level indicator (only B 120S, B 310P, B 310S, B 3100P and B 3100S)

10 Leveling foot (only B 120S, B 310P, B 310S, B 3100P and B 3100S)

11 PRINT key (functions only if the balance has a built-in interface)

12 Menu access switch

13 Tare control

14 CAL key for calibration

15 ON/OFF key

16 Weight display

17 Manufacturer’s label

Sartorius

Basic Series

With this Sartorius Balance, you have acquired a high-quality elec-

tronic precision weighing instrument that will help ease your daily

workload.

Please read these installation and operating instructions carefully be-

fore operating your new balance.

Pursuant to the German Directive for the Implementation of

Regulations for Prevention of Accidents "Elektrische Anlagen

und Betriebsmittel (VBG4)" [Electrical Installations and Equip-

ment] of April, 1986, it is hereby certified that the equipment

delivered, "Electronic Analytical or Precision Balance of the

Basic Series," is manufactured and tested in compliance with

the following DIN/VDE regulations

DIN IEC 348/VDE0411

Safety requirements for electronic measuring apparatus

DIN IEC 380/VDE 0806

Safety of electrically energized Office machines

DIN IEC 601/VDE 0750

Safety of medical electrical equipment

and with Article 10 of the Low-Voltage Directive 73/23/EEC

issued on February 19, 1973, by the European Community.

When you use electrical equipment in installations and under

ambient conditions requiring higher safety Standards, you must

comply with the provisions as specified in the applicable regu-

lations for installation in your country.

Contents

Page

Equipment Supplied 8

Installation Instructions 9

How to Start Up the B 120 S 10

How to Start Up the B 310P and B 310S 11

How to Start Up the B 410, B 610, 12

B 3100P, B 3100S, B 4100, and B 6100

Operation 13

Calibration 15

Balance Operating Program 16

Troubleshooting Guide 19

Accessories 20

Specifications 22

Equipment Supplied

B 120S

B 310P, B 310S

B 410, B 610, B 3100P,

B 3100S, B 4100, B 6100

- Balance

- AC adapter

- Dust cover

- Weighing pan

- Protective ring

- Shield plate

- Balance

- AC adapter

- Dust cover

- Pan adapter

- Base plate of the

round draft shield

- Weighing pan

- Glass draft shield cylinder

- Round draft shield lid

- Balance

- AC adapter

- Dust cover

- Weighing pan

Do not miss out on the benefits of our warranty. Please complete the warranty registration card, indicating

the date of installation, and return the card to your Sartorius dealer.

Installation Instructions

Please choose a suitable place to set up your balance. lt should

not be exposed to the following:

— heat radiation

— aggressive/corrosive environments

— vibrations

— drafts.

Despite unfavorable operating conditions, your Sartorius Bal-

ance will deliver accurate results because you can adapt it to

your particular requirements and to the specific ambient condi-

tions simply by changing the menu code settings in the balance

operating program.

For this purpose, please read pages 16 to 18.

After you have plugged your balance into an electrical outlet us-

ing the AC adapter, allow for at least 30 minutes' warmup.

Important Note

Make sure to unplug the AC adapter from the electrical outlet

before you connect or disconnect additional devices (printer or

PC) to the balance interface connector (Option).

How to Start up the B 120S

Install the components (3-1) in the weighing chamber one at a

time in the order indicated.

Your balance is powered by an AC adapter.

Make sure that the voltage rating printed on this unit is identical

to your local line voltage rating.

Plug the cord of the AC adapter into the power receptacle. Se-

cure the connection by tightening the knurled collar. Now plug

the AC adapter into an electrical or wall outlet.

At the point of use, level the balance using the leveling feet (10)

so that the air bubble is centered within the circle of the level in-

dicator (9).
