CL612

Parts List

Please note that this list is divided into two sections. Use the second section

(pages 42-75) if your printer S/N is between 50100000 and 81199999.

For all other serial numbers please use the first section (pages 3-41)

P/N9001030REV. D

CL612

Parts List

(Use this section for all serial numbers other then 50100000 to 81199999)

Sato America, Inc.

10350-A Nations Ford Rd.

Charlotte, NC 28273

Phone (704) 644-1650

Fax (704) 644-1661

P/N9001030REV. D

CL612

3

Table of Content

Base Cover Assembly 4-11

Frame Assembly 12-18

Thermal Head Assembly 19-22

Ribbon Assembly 23-26

Feed Roller Assembly 27-29

Main PCB Assembly 30-30

Memory Card PCB Assembly 31-31

(Option)

Dispenser Unit 32-37

Cutter Unit 38-41

CL612

4

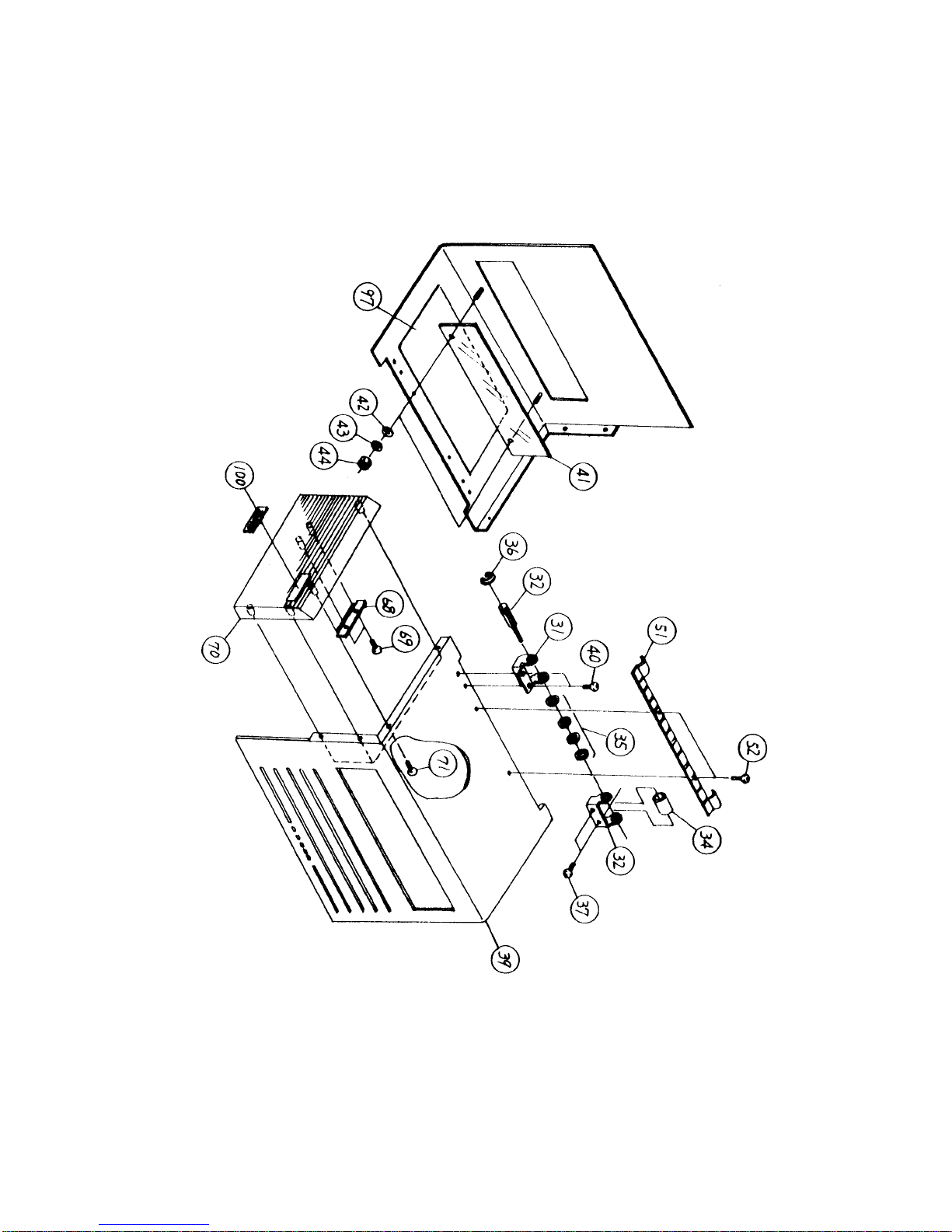

Base Cover Assembly

CL612

5

Base Cover Assembly

CL612

6

Base Cover Assembly

CL612

7

Base Cover Assembly

CL612

8

Base Cover Assembly

CL612

9

Base Cover Assembly

Item # Part Number Description QTY

1 PH1720101 Base frame 1

2 MH4300621 S-tight screw 1

3 PE6721100 Foot 4

4 PV2720100 Rubber foot 4

5 MD4301021 Pan head screw 4

6 PH1720200 Center frame 1

7 MD4400821 Pan head screw 5

8 PV9720200 Bush 1

9 PZ0720200 Rear cover 1

10 MD4300821 Pan head screw 6

12 PH1720400 Front frame 1

13 MD3401021 Pan head screw 2

14 MD4400821 Pan head screw 3

15 PV9720600 Bush 1

16 PR7720200 Power supply 115V 1

18 HD100301A Fuse (UL CSA) 1

20 MD4300621 Pan head screw 4

21 RH1721600 Power cable 1

22 PR3720700 PCB bracket 1

23 PT4720100 Guide 2

24 MD4300821 Pan head screw 4

25 PA1729000 Cover (memory) 1

26 MD4300821 Pan head screw 1

27 PH1720700 Lid 1

28 MD4300821 Pan head screw 4

31 PA1722300 Hinge bracket (A) 2

32 PA1722400 Hinge bracket (B) 2

33 PB5720100 Screw (M) 2

34 PB5720200 Screw (F) 2

35 NB5100030 Spring (latch handle) 8

36 ND3120024 C-snap ring 2

37 MD4300821 Pan head screw 4

39 PV9720800 Cover RH 1

40 MD4300821 Pan head screw 4

41 PH2720100 Window 1

42 NA1030022 Plain washer 2

43 NB0030022 Spring washer 2

44 MT1300522 Hex nut 2

45 PH1720601 Cover (LH) 1

CL612

10

Base Cover Assembly

Item # Part Number Description QTY

46 MD4300821 Pan head screw 5

47 PH1720900 Cover (LH) 1

48 MD4300821 Pan head screw 7

50 PE6720900 Hinge cover (LH) 1

51 PE6721000 Hinge cover (RH) 1

52 MA7300625 Truss screw 4

53 PR4720800 Key board cover 1

54 PE6720800 Switch 1

55 PA1728600 FG plate 1

57 PR4720300 Dip switch cover 1

58 MH0300821 P-tight screw 1

59 MD4301021 Pan head screw 3

60 MD3300521 Pan head screw 1

61 PH0720200 Front cover 1

62 PA1722500 Front cover bracket (A) 1

63 PA1722600 Front cover bracket (B) 1

64 MH0300821 P-tight screw 6

65 PA1724000 Tear off blade 1

66 MH0300821 P-tight screw 2

67 MD4300821 Pan head screw 2

68 PR1340500 Antistatic brush 1

69 MH0300821 P-tight screw 2

70 PH0720300 Cover RH sub 1

71 MH0300821 P-tight screw 4

74 PA1729100 Paper holder 1

75 PE1720300 Label stopper 1

76 PA4520300 Stopper spring 1

77 MH0300821 P-tight screw 1

78 NA1030022 Plain washer 1

80 PA1729200 Roller bracket 2

81 PB0723600 Shaft (unwind) 2

82 PE3720200 Roller 12

83 PE3720500 Roller 12

84 ND0040030 E-snap ring 4

85 MD4300821 Pan head screw 6

86 PA1723700 Unwind bracket (A) 1

87 MD4300821 Pan head screw 2

88 MD4300821 Pan head screw 2

89 MD4400821 Pan head screw 1

91 PR3720100 Unwind bracket (B) 1
