SATO M-8490Se Series Manuale utente

Page 1-1

M-8490Se Printer

Standard Unit

Parts List

P/N 9001083

Rev.B

Rev. B

Page 2

SATO M-8490Se Printer (Standard Unit) Parts List

SATO Industrial Bar Code Printers

Table of Contents

M-8490Se Page

Parts List

Frame Assembly........................................................................................................3

Print Head Assembly ................................................................................................9

Ribbon Assembly ....................................................................................................13

Feed Roller Assembly.............................................................................................16

Pressure Roller Assembly......................................................................................19

Cover Assembly ......................................................................................................20

CONT PCB Assembly..............................................................................................23

Check PCB Assembly .............................................................................................24

Memory Option........................................................................................................25

Interface Option.......................................................................................................26

Rev. B Page 3

SATO Industrial Bar Code Printers

SATO M-8490Se Printer (Standard Unit) Parts List

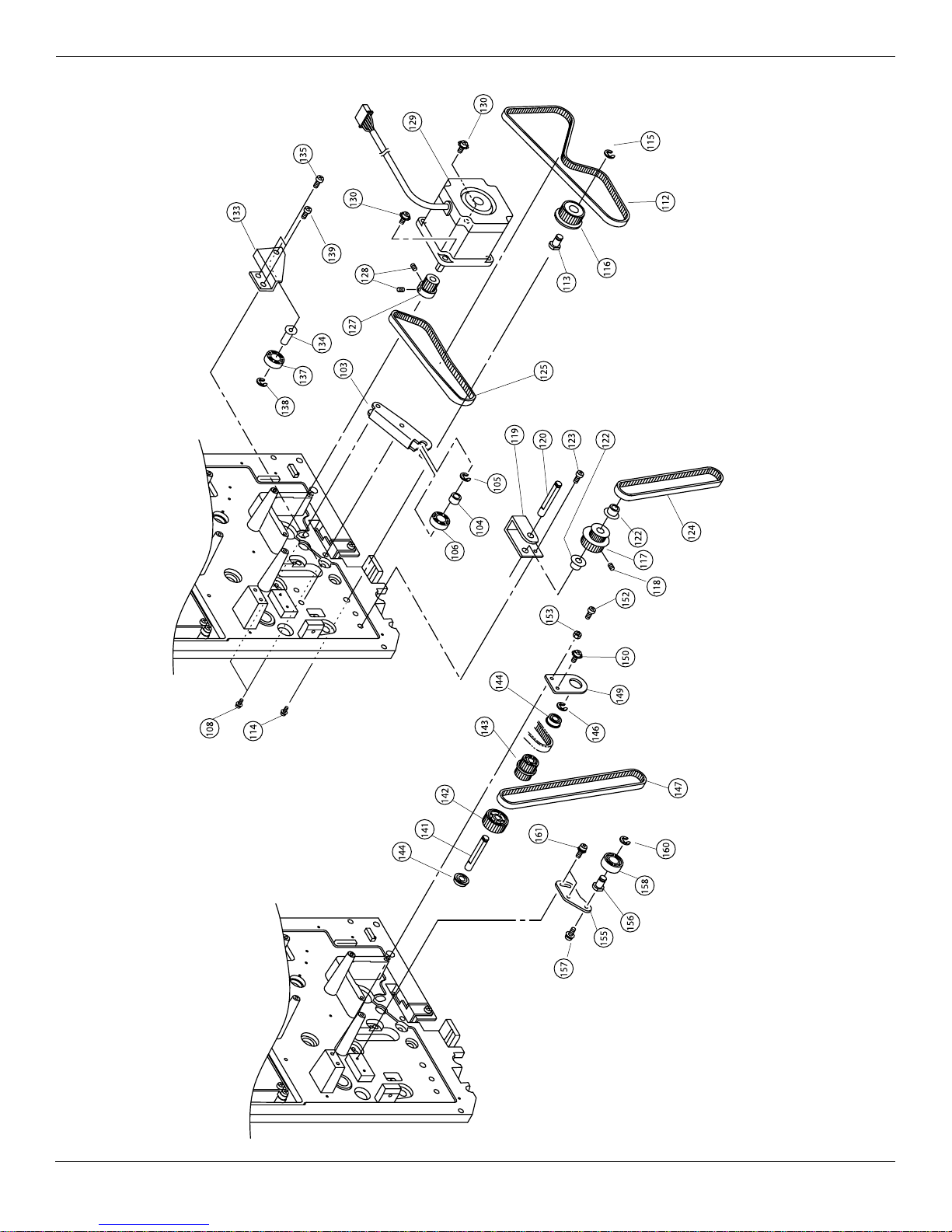

Frame Assembly

Rev. B

Page 4

SATO M-8490Se Printer (Standard Unit) Parts List

SATO Industrial Bar Code Printers

Frame Assembly

Rev. B Page 5

SATO Industrial Bar Code Printers

SATO M-8490Se Printer (Standard Unit) Parts List

Frame Assembly

Rev. B

Page 6

SATO M-8490Se Printer (Standard Unit) Parts List

SATO Industrial Bar Code Printers

Frame Assembly

4 PL1731000 ENGINE FRAME 1

10 PT2108006 DRY METAL 1

12 PB0540101 GUIDE POST 1

14 MC0401022 PAN HEAD SCREW 1

16 PR1730500 STAY 1

21 MC0401222 PAN HEAD SCREW 2

25 PA3732500 SPRING BRACKET 1

28 MC0300622 PAN HEAD SCREW 1

32 PB0731500 SHAFT(SUPPORT) 1

34 MC0401022 PAN HEAD SCREW 2

36 PB0732800 SHAFT (RIBBON ADJUST) 1

39 PR1730300 ROLLER 1

42 PA3736200 DISPENSE BAR BRACKET 1

44 MN0300824 HEX SOCKET BOLT 1

45 PD1731300 DISPENSE BAR 1

46 MN0300624 HEX SOCKET BOLT 2

55 PB0733500 SHAFT(HOLDER) 1

56 NB0040022 SPRING WASHER 1

57 PA4730500 PLATE SPRING 1

59 PL1730800 PLATEN FRAME 1

62 PR0730100 PLATEN 2

63 PB2730100 COLLAR 2

65 MJ1300424 HEX SOCKET SET SCREW 2

66 PT1112060 BALL SUPPORTER 2

67 PT1109050 BALL SUPPORTER 2

68 PA3736301 SUPPORTER CLAMP (A) 1

71 MN0400824 HEX SOCKET BOLT 2

80 PB0730500 POST (LATCH) 1

81 PB2740100 COLLAR 1

82 PE3720301 ROLLER 1

83 MD4301222 PAN HEAD SCREW 1

84 PA3736400 LATCH HANDLE(HOLDER) 1

85 PB0733400 SHAFT(LATCH HANDLE) 1

87 PC3730101 SPRING(LATCH HANDLE) 1

88 PE1730700 HANDLE(C) 1

NO. CODE DESCRIPTION QTY

Rev. B Page 7

SATO Industrial Bar Code Printers

SATO M-8490Se Printer (Standard Unit) Parts List

Frame Assembly

NO. CODE DESCRIPTION QTY

89 NG2201030 PARALLEL PIN 1

90 ND0030030 E-SNAP RING 2

92 MN0402524 HEX SOCKET BOLT 2

93 MN0401624 HEX SOCKET BOLT 1

94 MN0401024 HEX SOCKET BOLT 1

96 PE8730200 PULLEY 1

98 PE8730500 PULLEY 1

99 ND0040030 E-SNAP RING 2

103 PA3735800 PULLEY BRACKET(A) 1

104 PB0731600 SHAFT(ROLLER) 1

105 ND0040030 E SNAP RING 1

106 PR1730600 TENSION ROLLER 1

108 MD4401622 PAN HEAD SCREW 2

112 PT8165064 TIMING BELT 1

113 PB0733200 SHAFT(IDLE)C 1

114 MN0401024 HEX SOCKET BOLT 1

115 ND0040030 E-SNAP RING 1

116 PR1733200 PULLEY 1

117 PR1733300 PULLEY 1

118 MJ1400524 HEX SOCKET SET SCREW 1

119 PA3738600 PULLEY BRACKET(B) 1

120 PB0733900 SHAFT(IDLE)B 1

122 PT1112060 BALL SUPPORTER 2

123 MD4400822 PAN HEAD SCREW 1

124 PT8074064 TIMING BELT 1

125 PT8150064 TIMING BELT 2

127 PL1720100 MOTOR PULLEY(20) 1

128 MJ1400524 HEX SOCKET SET SCREW 2

129 RH1733500 STEPPER MOTOR ASSY 1

130 MC0401222 PAN HEAD SCREW 2

133 PA3735700 PULLEY BRACKET(C) 1

134 PB0730600 POST(TENSION) 1

135 MD4400822 PAN HEAD SCREW 1

137 PR1730600 TENSION ROLLER 1

138 ND0040030 E SNAP RING 1

139 MD4300822 PAN HEAD SCREW 2

141 PB0731701 SHAFT (IDLE) 1

Rev. B

Page 8

SATO M-8490Se Printer (Standard Unit) Parts List

SATO Industrial Bar Code Printers

Frame Assembly

142 PE8730100 GEAR 1

143 PE8730300 PULLEY 1

144 PT1112060 BALL SUPPORTER 2

146 ND0040030 E SNAP RING 1

147 PT8150064 TIMING BELT 1

149 PA1730500 SHAFT BRACKET 1

150 MC0401022 PAN HEAD SCREW 2

152 MA0401622 PAN HEAD SCREW 1

153 MT1400722 HEX NUT 1

155 PA1730700 TENSION BRACKET 1

156 PB0730600 POST (TENSION) 1

157 MD4400822 PAN HEAD SCREW 1

158 PR1730600 TENSION ROLLER 1

160 ND0040030 E-SNAP RING 1

161 MD4300822 PAN HEAD SCREW 2

164 PR4730501 KEYBOARD COVER 1

165 MD4301222 PAN HEAD SCREW 4

166 RJ2730203 KEY PCB SET(EX1) 1

168 MH0300821 PAN HEAD P TITE SCREW 4

170 RH1731304 PSW CABLE 1

171 PA3739900 CONNECTOR LOCK 1

172 RJ2730100 DSW PCB SET 1

173 MD3300822 PAN HEAD SCREW 2

174 PH0730200 DIP SWITCH COVER 1

175 RH1731600 DSW CABLE SET 1

NO. CODE DESCRIPTION QTY

Rev. B Page 9

SATO Industrial Bar Code Printers

SATO M-8490Se Printer (Standard Unit) Parts List

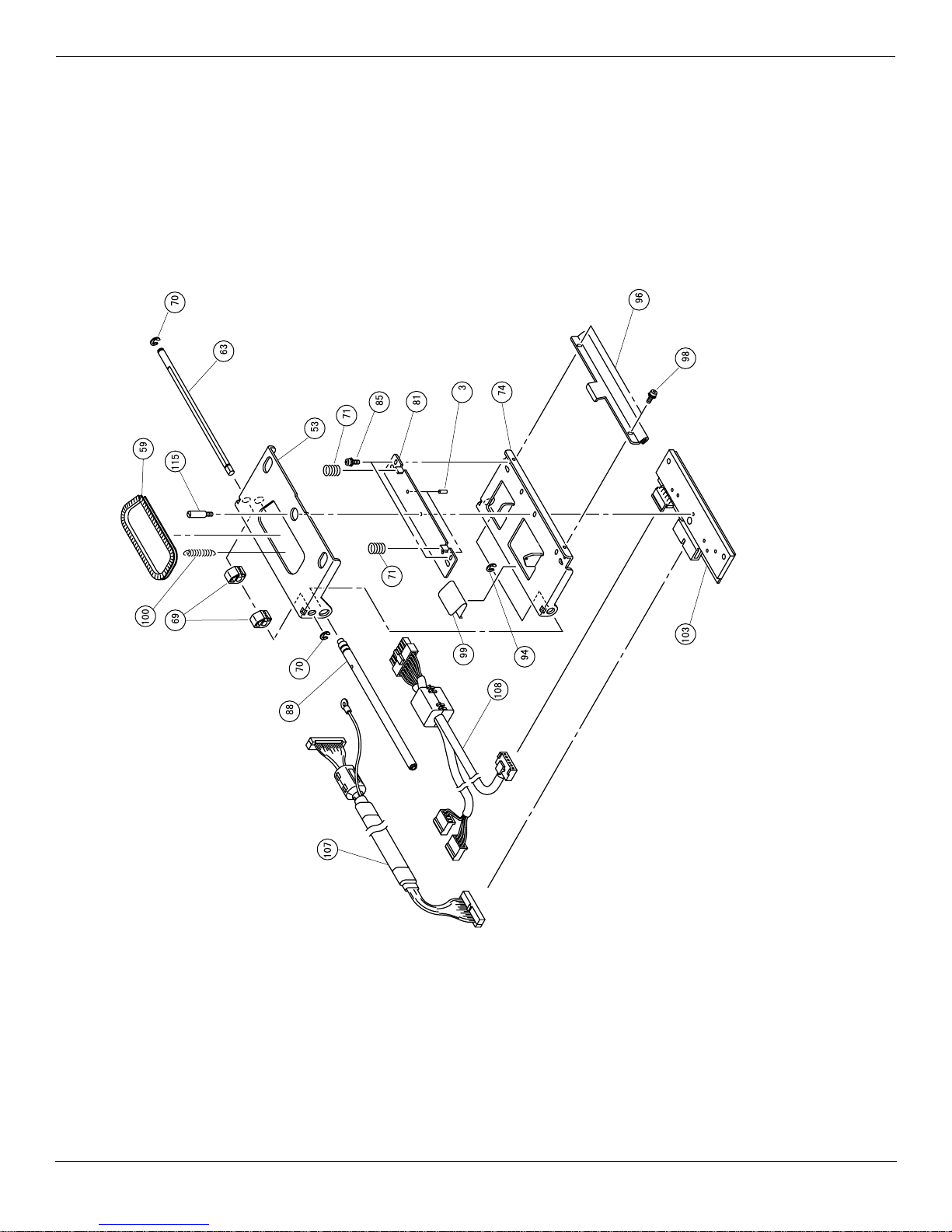

Print Head Assembly

Rev. B

Page 10

SATO M-8490Se Printer (Standard Unit) Parts List

SATO Industrial Bar Code Printers

Print Head Assembly
