HT200e PRINTER

PARTS LIST

SATO America, Inc.

10350A Nations Ford Road

Charlotte, NC 28273

Main Phone: 704.644.1650

Technical Support Hotline: 704.644.1660

Technical Support Fax: 704.644.1661

E-Mail: satosale[email protected]

www.satoamerica.com

ATTENTION

SOME COMPONENTS IDENTIFIED WITHIN THIS DOCUMENT HAVE DUAL PART NAMES. THE

FIRST (ON THE LEFT) IS THE PART NAME AS ASSIGNED BY CORPORATE AND IS THE ONE THAT

SHOULD BE USED WHEN PLACING AN ORDER FOR REPLACMENT PARTS.

THE SECOND (IN PARENTHESIS) IS THE PART NAME THAT IS USED IN THE OPERATOR AND SER-

VICE MANUALS. THESE INCORPORATE TERMINOLOGY MORE COMMONLY APPLIED IN THE

UNITED STATES.

THE ABOVE MENTIONED NAMES MAY BE FOUND IN THE “PART DESCRIPTION” COLUMN OF THE

TABLES WITHIN THIS DOCUMENT.

THIS DOCUMENT IS PROVIDED FOR GENERAL INFORMATION AND IS SUBJECT TO CHANGE

WITHOUT NOTICE. SATO AMERICA, INC. MAY NOT BE HELD RESPONSIBLE FOR ERRORS THAT

MAY APPEAR.

WARNING

THE EQUIPMENT REFERENCED IN THIS DOCUMENT COMPLIES WITH THE REQUIREMENTS IN

PART 15 OF FCC RULES FOR A CLASS B COMPUTING DEVICE. OPERATION OF THIS

EQUIPMENT IN A RESIDENTIAL AREA MAY CAUSE UNACCEPTABLE INTERFERENCE TO RADIO

AND TV RECEPTION REQUIRING THE OPERATOR TO TAKE WHATEVER STEPS ARE NECESSARY

TO CORRECT THE INTERFERENCE.

SATO HT200e Parts List PN: 9001120A Page 1

FRAME ASSEMBLY

Figure PL1a, Frame Assembly

Figure PL1b, Frame Assembly

SATO HT200e Parts List PN: 9001120A Page 2

Figure PL1c, Frame Assembly

Figure PL1d, Frame Assembly

SATO HT200e Parts List PN 9001120A Page 3

FRAME ASSEMBLY WITH DRIVE TRAIN

ITEM PART NUMBER PART DESCRIPTION QTY

1 KA200391A FERRITE CORE W/ PLASTIC CASING 1

2 PA1501002 HEAD HOLDER SUB (PRINT HEAD MOUNTING PLATE) 1

3 P00052000 HEAD HOLDER (PRINT ASSEMBLY BRACKET) 1

4 G00011000 THERMAL HEAD (THERMAL PRINT HEAD) 1

5 MD3300622 PAN HEAD SCREW W/ SPRING & NARROW FLAT WASHERS 4

6 RH1500200 HEAD CORD SET (PRINT HEAD WIRING HARNESS) 1

7 P00051000 TOP FRAME 1

8 PR7500501 PAPER GUIDE SPRING (PAPER GUIDE ROLLER ASSEMBLY) 1

9 MA0300522 PAN HEAD SCREW 2

11 PB0500100 LATCH SHAFT 1

12 ND0020030 SNAP RING, TYPE E 2

13 PC1500101 HEAD SPRING (PRINT HEAD BALANCE SPRING) 2

14 PB0500200 HEAD SHAFT (PRINT ASSEMBLY SHAFT) 1

15 ND0020030 SNAP RING, TYPE E 2

16 PA1501300 SENSOR BRACKET 1

17 MA0300522 PAN HEAD SCREW 1

18 PE1570300 SENSOR HOLDER 1

19 MH0250622 P-TIGHT SCREW, PAN HEAD 1

20 RH1500400 DEM. SEN. TR CORD SET (GAP SENSOR TRANSMITTER) 1

21 PA1500301 LEFT SIDE PLATE 1

22 MA0300522 PAN HEAD SCREW 3

23 PR7500202 STEPPER MOTOR 1

24 MD4300622 PAN HEAD SCREW 2

25 PR7500600 IDLE PULLEY W/POST 1

26 MD4300622 PAN HEAD SCREW W/ SPRING WASHER & WIDE FLAT WASHER 1

29 PB0500501 IDLE GEAR POST 1

30 MD4300622 PAN HEAD SCREW 1

31 PE8500600 GEAR, 0.5*20 1

32 PT8065048 TIMING BELT 2

33 RH1500501 HEAD OPEN CORD SET (HEAD OPEN SENSOR ASSEMBLY) 1

34 MA0300522 PAN HEAD SCREW 1

35 PR4500201 BASE PLATE 1

36 MH0300822 P-TIGHT SCREW, PAN HEAD 4

37 PA1500401 RIGHT SIDE PLATE 1

38 MA0300522 PAN HEAD SCREW 2

39 PA1500700 HINGE STAY (LEFT LID HINGE) 1

40 MA0300522 PAN HEAD SCREW 2

41 PA1500500 RIGHT ROLL PLATE (RIGHT LID HINGE) 1

42 MA0300522 PAN HEAD SCREW 2

SATO HT200e Parts List PN: 9001120A Page 4

43 PT9500200 NYLON RIVET 2

44 PB0500600 LATCH HANDLE SHAFT (LATCH SHAFT) 1

45 PA1500800 LEFT LATCH HANDLE (LEFT LATCH LEVER) 1

46 PA1500900 RIGHT LATCH HANDLE (RIGHT LATCH LEVER) 1

47 PC2500101 LEFT LATCH SPRING 1

48 PC2500201 RIGHT LATCH SPRING 1

49 ND0030030 SNAP RING, TYPE E 2

50 PE1500104 LATCH COVER (LATCH BUTTON) 1

51 PR0500200 DISPENSER ROLLER, 12*20 1

52 PT2500100 BEAR FIGHT (BUSHING) 2

53 PC2500302 SPRING 1

54 PE8500700 GEAR, 0.5*25 1

55 ND0040030 SNAP RING, TYPE E 2

56 PR7500100 PLATEN ROLLER SET (PLATEN ROLLER ASSEMBLY0 1

57 PB0500701 PIN ROUTE CHANGING (DISPENSER BAR) 1

58 ND0020030 SNAP RING, TYPE E 2

62 PR9500100 RACK (LABEL GUIDE RATCHET) 1

63 PE1500600 SIDE PAPER GUIDE (LEFT & RIGHT LABEL GUIDE) 2

64 PE1500701 LABEL GUIDE (LABEL RAMP) 1

67 PB0500800 MAIN SHAFT (LID HINGE SHAFT) 1

68 ND0040030 SNAP RING, TYPE E 2

69 PC2500401 TORSION BAR 2

FRAME ASSEMBLY WITH DRIVE TRAIN

ITEM PART NUMBER PART DESCRIPTION QTY

SATO HT200e Parts List PN 9001120A Page 5

TOP HOUSING COVER ASSEMBLY

Figure PL2, Top Housing Cover Assembly

TOP HOUSING COVER ASSEMBLY

ITEM PART NUMBER PART DESCRIPTION QTY

2 MH0300822 P-TIGHT SCREW, PAN HEAD 4

4 RJ1A45201 KEY PCB SET (KEYPAD CIRCUIT BOARD) 1

5 MH0300822 P-TIGHT SCREW, PAN HEAD 7

6 P00300000 KEYPAD 1

10 P00297000 TOP COVER (TOP HOUSING COVER) 1

14 PE6501800 PROTECTION SHEET (WINDSHIELD, CLEAR PLASTIC) 1

15 RH1A40001 LCD CABLE ASSEMBLY (LCD WIRING HARNESS) 1

16 MH0300822 P-TIGHT SCREW, PAN HEAD 4

17 FA302701A CUSTOM LCD (LCD BOARD) 1

18 RH1A40900 KEY CABLE ASSEMBLY (KEYBOARD WIRING HARNESS) 1

19 JG100441A CKN CLAMP (CABLE CLAMP, CKN) 1

SATO HT200e Parts List PN: 9001120A Page 6

BASE ASSEMBLY

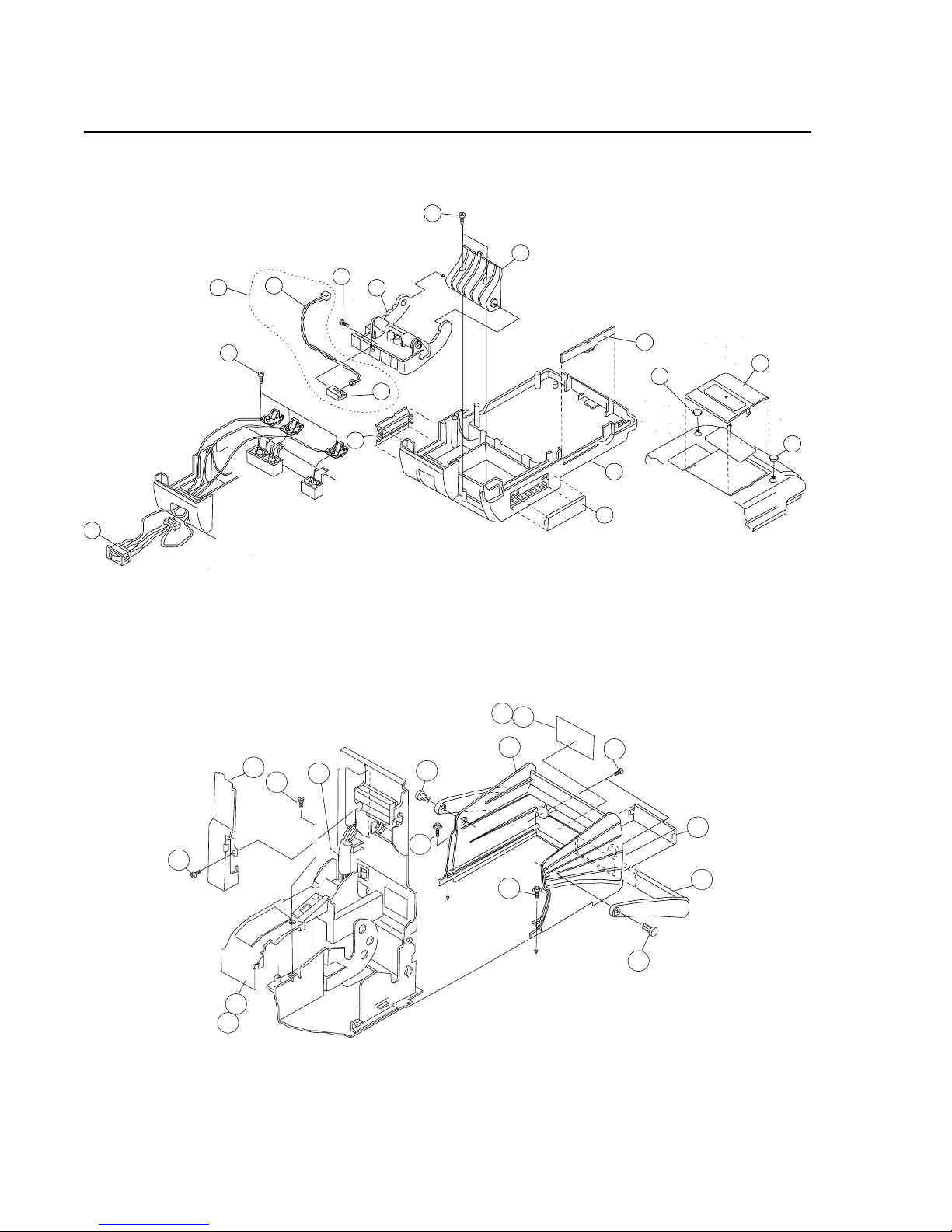

Figure PL3a, Base Assembly

Figure PL3b, Base Assembly

11

2

19

22 26 33

38 40

SATO HT200e Parts List PN 9001120A Page 7

BASE ASSEMBLY

ITEM PART NUMBER PART DESCRIPTION QTY

2 PZ0500602 BOTTOM COVER (PRINTER CHASSIS) 1

3 PE0A20000 BOOT, RUBBER 2

5 PE6500202 CONNECTOR COVER 1

6 PR7501400 POWER CORD SA (POWER SWITCH ASSEMBLY) 1

8 MH0300822 P-TIGHT SCREW, PAN HEAD 3

9 PE1570300 SENSOR HOLDER (DISPENSER SENSOR HOLDER) 1

10 PR7500905 SENSOR FRAME (DISPENSER BRACKET) 1

11 PR7501000 DISPENSER SENSOR (DISPENSER SENSOR W/ HOLDER) 1

12 MH0250622 PAN HEAD SCREW 1

13 PE6500502 IC COVER (BATTERY COVER) 1

16 RH1500300 DEM. SEN. (d) CORD SET (DISPENSER SENSOR ASSEMBLY) 1

18 PE1500201 PAPER GUIDE (B) 1

19 MH0300822 P-TIGHT SCREW, PAN HEAD 2

20 PR4500501 MOTOR COVER 1

22 MA0300522 PAN HEAD SCREW 2

24 PA1501201 CABLE COVER 1

25 MA0300522 PAN HEAD SCREW 1

26 JC300421A HEAT RESISTANT PVC TUBE a/r

28 PE6500302 M/C COVER (MEMORY CARD COVER) 1

32 PE1500502 HANDLE 1

33 PE6500603 HANDLE PIN, RED PLASTIC 2

35 PE6500102 LID (EXTERNAL LABEL SUPPLY COVER) 1

36 PE6501402 MAINTENANCE COVER 1

38 PH0500405 REAER COVER (REAR HOUSING COVER) 1

40 MA0300522 PAN HEAD SCREW 2

41 MH9300822 P-TIGHT SCREW, PAN HEAD 1

42 MD4300622 PAN HEAD SCREW 1

SATO HT200e Parts List PN: 9001120A Page 8

MAIN BOARD ASSEMBLY

Figure PL4, Main Board Assembly

MAIN BOARD ASSEMBLY

ITEM PART NUMBER PART DESCRIPTION QTY

1 RJ1A45102 CONT PCB SET (MAIN CIRCUIT BOARD) 1

3 MH0300822 P-TIGHT SCREW, PAN HEAD 4

4 KA800261A BATTERY 1

5 RH1A40800 LCD FG CORD SET (LCD WIRING HARNESS) 1

CUSTUM LCD
