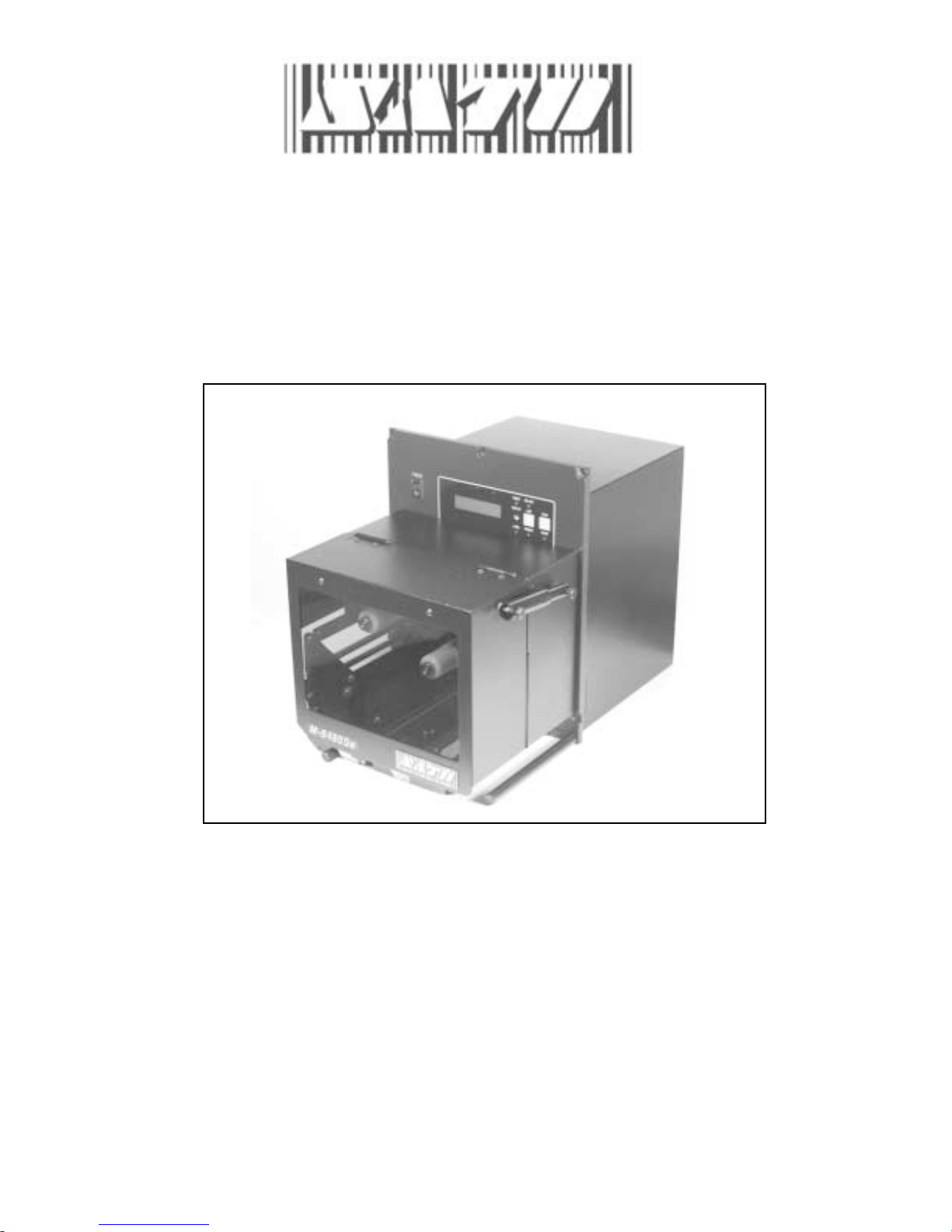

M-8485Se Printer

Opposite Unit

Parts List

P/N 9001087

Rev. B

Page 2

SATO M-8485Se Printer (Opposite Unit) Parts List

SATO Industrial Bar Code Printers

Table of Contents

M-8485Se Page

Parts List

Frame Assembly........................................................................................................3

Print Head Assembly ................................................................................................8

Ribbon Assembly .................................................................................................... 11

Feed Roller Assembly.............................................................................................13

Pressure Roller Assembly......................................................................................16

Cover Assembly ......................................................................................................17

Cont PCB Assembly................................................................................................20

Check PCB Assembly .............................................................................................21

Interface (Option) ....................................................................................................22

Memory (Option)......................................................................................................23

Rev. B Page 3

SATO Industrial Bar Code Printers

SATO M-8485Se Printer (Opposite Unit) Parts List

Frame Assembly

Rev. B

Page 4

SATO M-8485Se Printer (Opposite Unit) Parts List

SATO Industrial Bar Code Printers

Frame Assembly

Rev. B Page 5

SATO Industrial Bar Code Printers

SATO M-8485Se Printer (Opposite Unit) Parts List

Frame Assembly

Rev. B

Page 6

SATO M-8485Se Printer (Opposite Unit) Parts List

SATO Industrial Bar Code Printers

Frame Assembly

3 PR1734100 Engine frame 1

12 PB0540101 Guide post 1

14 MC0401022 Pan head screw 1

17 PR1731701 Stay 1

21 MC0401222 Pan head screw 2

25 PA3732500 Spring bracket 1

28 MC0300622 Pan head screw 1

32 PB0731500 Shaft (support ) 1

34 MC0401022 Pan head screw 2

36 PB0732800 Shaft ( Ribbon adjust) 1

39 PR1730300 Roller 1

43 PA3738400 Dispenser Bar 1

44 MN0300824 Hex bolt 1

45 PD1731300 Dispense Bar 1

46 MN0300624 Hex bolt 2

55 PB0733500 Shaft (holder) 1

56 NB0040022 Spring washer 1

58 PA4730700 Plate spring 1

60 PD1732000 Platen frame 1

62 PR0730100 Platen roller 2

63 PB2730100 Collar 2

65 MJ1300424 W-point screw 2

66 PT1112060 Ball supporter 2

67 PT1109050 Ball supporter 2

70 PA1732100 Supporter clamp (A) 1

71 MN0400824 Hex bolt 2

80 PB0730500 Post (latch ) 1

81 PB2740100 Collar 1

82 PE3720300 Roller 1

83 MD4301222 Pan head screw 1

84 PA3736400 Latch handle (holder) 1

86 PB0735400 Shaft (latch handle) 1

87 PC3730101 Spring (latch handle) 1

88 PE1730700 Handle (C) 1

89 NG2201030 Pin 1

90 ND0030030 E-Ring 2

92 MN0402524 Hex bolt 2

93 MN0401624 Hex Bolt 1

94 MN0401024 Hex bolt 1

95 PE8730200 Pulley 2

99 ND0040030 E-Ring 2

101 PA3734800 Pulley bracket 1

102 PA2730700 Plate nut 1

104 PB0731600 Shaft (roller) 1

105 ND0040030 E-Ring 1

106 PR1730600 Tension roller 1

109 MD4402022 Pan head screw 2

NO. CODE DESCRIPTION QTY

Rev. B Page 7

SATO Industrial Bar Code Printers

SATO M-8485Se Printer (Opposite Unit) Parts List

Frame Assembly

111 PT8190064 Timing belt 1

127 PL1720100 Motor pulley 1

128 MJ1400524 W-point screw 2

129 RH1733600 Stepper Motor 1

130 MC0401222 Pan head screw 2

141 PB0731701 Shaft (idle) 1

142 PE8730100 Gear 1

143 PE8730300 Pulley 1

144 PT1112060 Ball supporter 2

146 ND0040030 E-Ring 1

147 PT8150064 Timing belt 1

149 PA1730500 Shaft bracket 1

150 MC0401022 Pan head screw 2

155 PA1730700 Tension bracket 1

156 PB0730600 Post (tension) 1

157 MD4400822 Pan head screw 1

158 PR1730600 Tension roller 1

160 ND0040030 E-Ring 1

161 MD4300822 Pan head screw 2

164 PR4730501 Key board cover 1

165 MD4301222 Pan head screw 4

166 RJ2730203 KB PCB set EX1,3 1

168 MH0300821 P-tight screw 4

170 RH1731300 PSW cable 1

171 PA3739900 Connector lock 1

172 RJ2730100 DSW PCB set 1

173 MD3300822 Pan head screw 2

174 PH0730200 DSW cover 1

175 RH1731600 DSW cable 1

NO. CODE DESCRIPTION QTY

Rev. B

Page 8

SATO M-8485Se Printer (Opposite Unit) Parts List

SATO Industrial Bar Code Printers

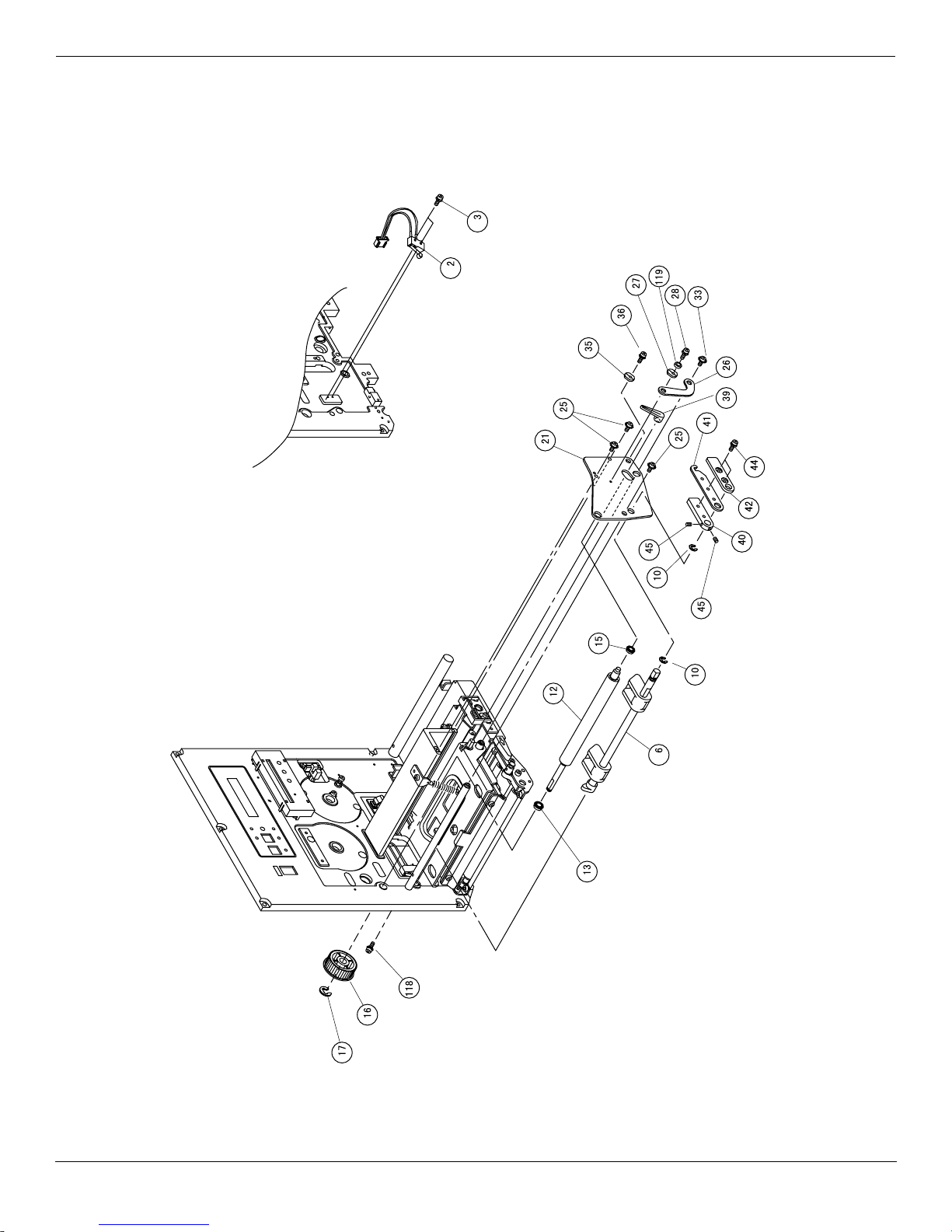

Print Head Assembly

Rev. B Page 9

SATO Industrial Bar Code Printers

SATO M-8485Se Printer (Opposite Unit) Parts List

Print Head Assembly

Rev. B

Page 10

SATO M-8485Se Printer (Opposite Unit) Parts List

SATO Industrial Bar Code Printers

Print Head Assembly

2 RH1731100 SEN5 cable 1

3 MD3201221 Pan head screw 2

6 PR1734201 Pressure cam 1

10 ND0060030 E-Ring 2

12 PR0730200 Feed roller 1

13 PT1112060 Ball supporter 1

15 PT1109050 Ball supporter 1

16 PE8730100 Gear 1

17 ND0040030 E-Ring 1

21 PA2730500 Head frame 1

25 MC0401022 Pan head screw 3

26 PA1730300 Plate (adjust) 1

27 PL2720100 Adjust collar 1

28 MD4300822 Pan head screw 1

33 MC0401022 Pan head screw 1

35 PL2730100 Adjust collar 1

36 MD4401022 Pan head screw 1

39 PE1730400 Handle (B) 1

40 PD1730600 Handle (A) 1

41 PA2730600 Latch handle (C) 1

42 PD1731200 Handle (B) 1

44 MD4301022 Pan head screw 2

45 MJ1300424 W-point screw 2

51 PA3732300 Head bracket (up) 1

59 PV9730200 Bush 1

64 PB0732700 Shaft (adjust cam) 1

69 PE1730300 Adjust cam 2

70 ND0050030 E-Ring 2

71 PC1730200 Spring (head) 2

72 PR4731100 Head bracket (low) 1

80 PR1730200 Adjust plate 1

85 MD4300622 Pan head screw 2

89 PB0732601 Shaft (head bracket) 1

94 ND0070030 E-Ring 2

96 PA3732100 Ribbon plate 1

98 MD3250522 Pan head screw 2

99 PA4730401 Plate spring (head cam) 1

100 PC0730200 Spring (head open) 1

102 GH000781A Print head Assy 1

107 RH1731200 HDS cable 1

108 RH1727100 HDP cable 1

114 PB5730300 Screw (head) 1

118 MC0401022 Pan head screw 1

119 NA1030022 Plain washer 1

NO. CODE DESCRIPTION QTY
