Schartec SWS Manuale utente
Schartec
eine Marke der bau-shop-24 GmbH
Fritz-Müller-Strasse 115
73730 Esslingen
Technische Daten:
433 MHz
Rolling-Code
≦ 8 dBm
Batterie: CR2032 3V
Vereinfachte EU-Konformitätserklärung (CE)
Hiermit erklärt Schartec, dass der Funkanlagentyp SRS der Richtlinie 2014/53/EU entspricht. Der vollständige Text der
EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: www.schartec.de
Informationen zu Batterieverordnung
Als Händler für den Vertrieb von elektronischen, batteriebetriebenen Geräten sind wir gesetzlich verpflichtet unsere Kunden
auf folgendes hinzuweisen:
Elektro- und Elektronik- Geräte, sowie Batterien dürfen nicht als Haus- oder Restmüll entsorgt werden, sondern müssen in
den dafür eingerichteten Annahme- und Sammelstellen abgegeben werden.
Die vollständige Fassung des Batterisgesetzes finden Sie hier:
http://www.gesetze-im-internet.de/bundesrecht/battg/gesamt.pdf
Push Button SWS / Wireless Push Button SRS
1. This push button is suitable for interior installation, presumably at a height of about 100 cm, so that it could be used by most people.
2. Remove the round cover (A) by gently prying it out with a screwdriver. See Figure 1.
3. Unscrew the two screws beside the button.
4. Separate the upper cover from the bottom. See Figure 2.
5. Find the three holes in the bottom piece and mark the points by the holes as reference.
6. Drill the holes in the wall and fix the bottom piece to the wall with the three screws. See Figure 3.
7. Connect the electric wires to the terminals as shown in Figure 4, it’s not required to distinguish any polarity. The terminals can be removed
for connecting the wires easily.
8. Attach the upper piece to the bottom and secure the top piece again with the two screws.Replace the round cover by gently pressing it into
place.

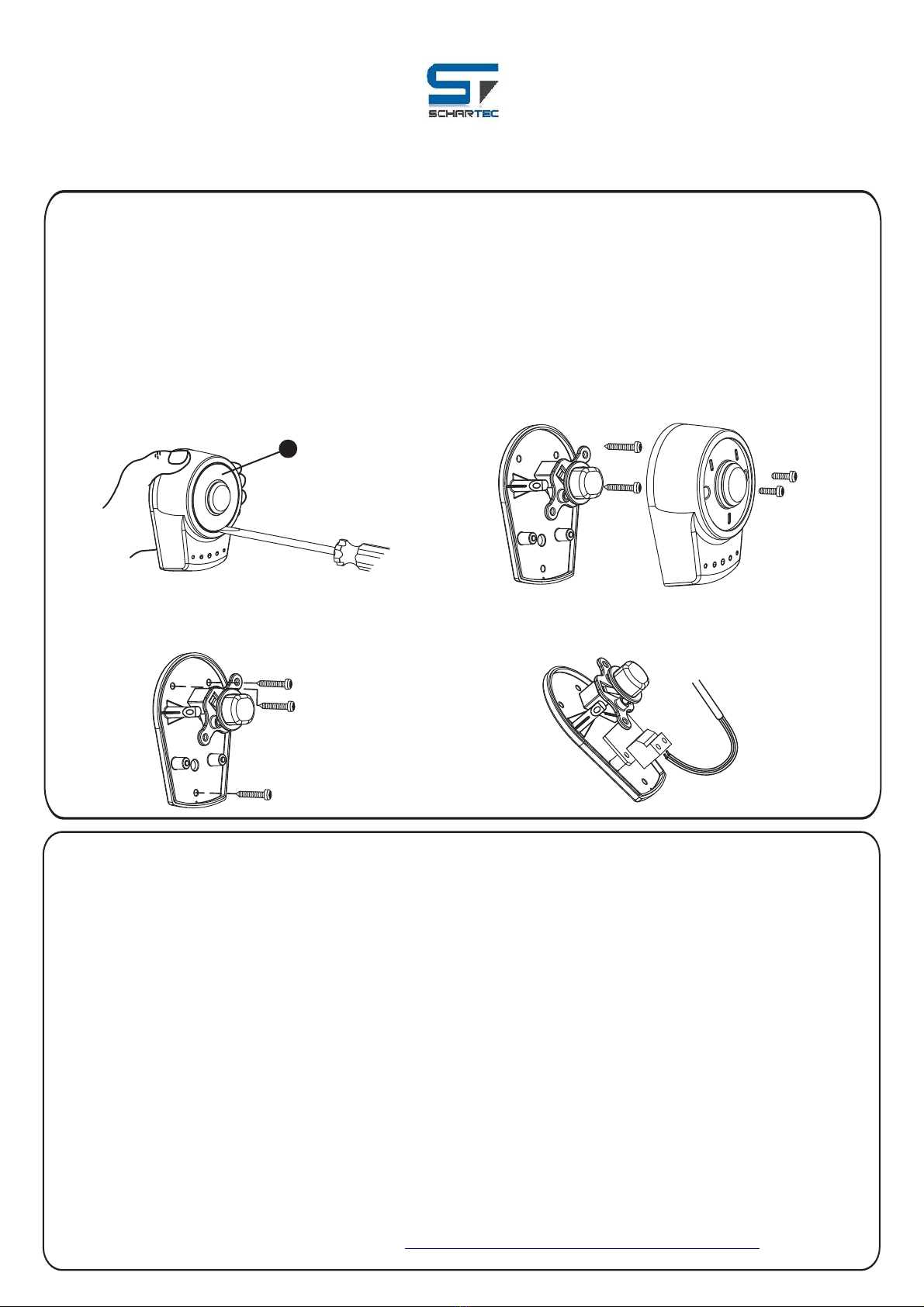

Figure 1 Figure 2
Figure 3
A
Figure 4
Programming for SRS Wireless Push Button
1. On your operator or control box, press and hold the “RF” or “RF-Learn” button for 3 seconds.
2. Now press the button on the wireless push button once. The LED/display flashes 3 times. Wait until the LED or display (depending on
operator) starts again. The push button is now programmed.
ATTENTION! The wireless interior push button must be located in close proximity to the operator or control box for programming.
Frequency: 433 MHz Rolling Code
≦ 8 dBm
Battery: CR2032 3V
Simplified Declaration of Conformity (CE)
Schartec hereby declares that the radio installation type SRS complies with Directive 2014/53 / EU. The full text of the EU-
Declaration of conformity is available at the following Internet address: www.schartec.de
Information about battery regulation
As a dealer for the distribution of electronic, battery-operated devices, we are obliged by law to inform our customers about the
following:
Electrical and electronic devices, as well as batteries, must not be disposed of as household or residual waste, but must be
delivered in the appropriate acceptance and collection points will.
The complete version of the battery law can be found here: http://www.gesetze-im-internet.de/bundesrecht/battg/gesamt.pdf
