Z7835 PRO SERIES
12VDC LOCKED OUTSIDE / INSIDE
MORTISE LOCKSET
P:\INST INSTRUCTIONS\ELECTRIFIED LOCKSETS\INST-Z7835-E REV G 09-22 Page 1
SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: [email protected] ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011
INSTALLATION INSTRUCTIONS
A. Door Preparation:
1. Measure desired height from finished floor, mark a horizontal line on door and door edge.
2. Align template on edge of door with applicable horizontal at height line. Check the chart for drilling trim
holes on template and mark only holes for lock function being installed.
3. Mortise door edge according to measurements on
installation template and drill proper holes for trim.
4. Recess for face plate, the dimension is:
L 8-1/32" x W 1-5/16" x D 7/32".
Wire Raceway suggested for wood doors.
Optional:
SDC Door Core Drill Guide Kit
P/N: 7000-DGK
7/32"
Height
line
C
L
of lever
of cylinder
of lockcase
of lever
Vertical centerline
Installation Template
C
L
C
L
C
L
of door edge
C
L
Note:
Rose door prep shown as example.
Escutcheon door prep would differ.
P:\INST INSTRUCTIONS\ELECTRIFIED LOCKSETS\INST-Z7835-E REV G 09-22 Page 2
SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: [email protected] ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011

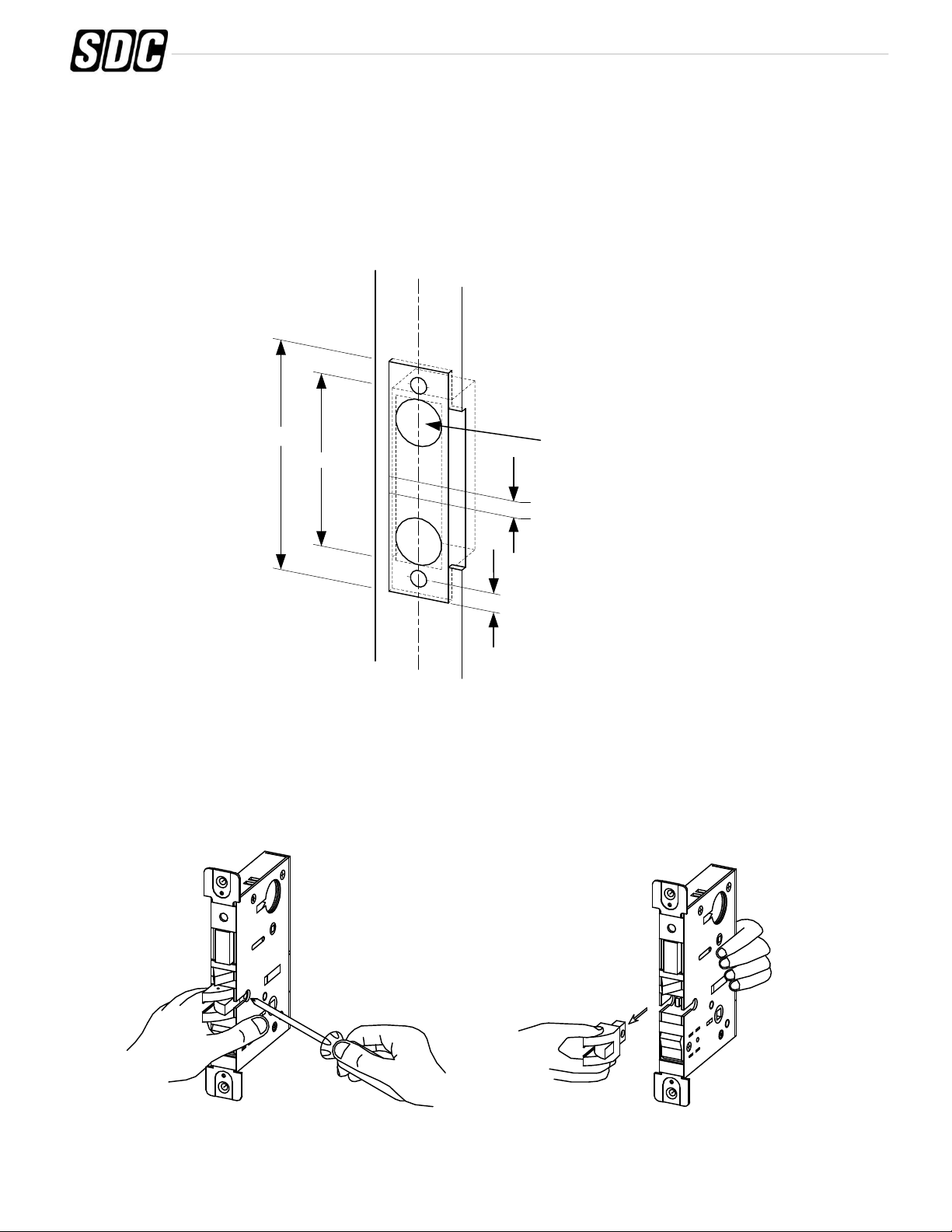

B. Strike Installation:
1. Align strike template on jamb. Be sure to keep 3/8" distance between lock centerline and strike
centerline. Recess 5/32" for flush fit of strike and dust box.
2. Mortise jamb according to measurement of strike template. Then fit strike and dust box into frame
and secure into place with supplied screws.
4-7/8"
3-17/32"
C
L
Strike
Lock C
L
3/8"
3/8"
1" Holes
1-1/8" Deep
C
L
Jamb
Pull out and
turn
1. Change latchbolt handing.
If the hand of the latchbolt doesn’t match the door hand, remove the fixing screw and pull the latchbolt out from
lock case. Turn the latchbolt 180 ° to change the handling. Position latchbolt back, into case and fasten it.
Instructions for changing latchbolt handing (From LH to LHR or RH to RHR):
C. Install Lockcase
Remove
screw
P:\INST INSTRUCTIONS\ELECTRIFIED LOCKSETS\INST-Z7835-E REV G 09-22 Page 3
SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: [email protected] ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011
C. Install Lockcase (Continued)
2. Connect wires as shown on the lock cover diagram (or refer to page 6 of instructions).
3. Insert lockcase into mortise cut-out and fasten to door using screws.
D. Install for Rose Lever Trim
1. Install Outside Lever Assembly first.
2. Guide the Spindle Spring over Spindle, then insert Spindle into the outside side of mortise lockset.
3. Insert Collar into Outside Lever Assembly. Guide the Reversible Spring Cage over Mounting Posts with arrows
pointing in direction of lever rotation.
4. Insert the Outside Lever Mounting Post through holes in door.
5. Install Inside Lever Assembly by guiding Reversible Spring Cage over the inside Spindle and Spindle Spring with
arrows pointing in direction of lever rotation.
6. Place Mounting Plate over Reversible Spring Cage and secure by threading Mounting Screws into Mounting Posts.
7. Place Rose Cover over Mounting Plate.
8. Thread Inside Lever onto Mounting Plate and tighten using supplied Spanner Wrench.
Spanner
Wrench
Outside Lever
Assembly
Collar
Reversible
Spring Cage
Spindle Spring
Spindle Spindle
Spindle Spring
Reversible
Spring Cage
Mounting
Plate
Mounting
Screws
Rose
Cover
Inside
Lever
Mounting
Posts
P:\INST INSTRUCTIONS\ELECTRIFIED LOCKSETS\INST-Z7835-E REV G 09-22 Page 4
SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: [email protected] ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011
D. Install for 07 Lever Trim
1. Install the Outside Lever Assembly first.
2. Insert Spindle into the outside side of mortise lockset.
3. Place the Spring, Collar and then Reversible Spring Cage onto the Outside Lever Assembly with the Spring Cage
arrows pointing in direction of lever rotation.
3. Insert the Outside Lever Mounting Post through holes in door.
4. Install Inside Lever by placing Reversible Spring Cage over inside Spindle with Spring Cage arrows pointing in
direction of lever rotation.
5. Place Mounting Plate over Reversible Spring Cage and secure by threading Mounting Screws into Mounting Posts.
6. Insert Spring into Mounting Plate.
7. Place Rose Cover plate over Mounting Plate.
8. Thread Inside Lever onto Mounting Plate and tighten with supplied Spanner Wrench.
Spanner wrench
Face Plate
Use standard straight
cam ILCO (863G) or
ILCO (863M) Schlage
“L” cam.
Install Key Cylinder and Armor Face Plate (Rose & 07 Trim)
1. Screw key cylinder into threaded hole of the lock case (Key cylinder not provided).
2. Tighten the set screw against cylinder by turning clockwise as shown.
3. Install face plate onto the lock case and fasten with supplied screws.
Key cylinder collar suggested
for Rose & 07 Trim installation
(not provided).
Outside Lever
Assembly
Collar
Reversible
Spring Cage
Spring Spindle
Spindle
Spring
Reversible
Spring Cage
Mounting
Plate
Mounting
Screws
Rose
Cover
Inside
Lever
Mounting
Posts
863M
863G
Install Key Cylinder and Armor Face Plate (Escutcheon Trim)
1. Screw key cylinder into threaded hole of the lock case (Key cylinder not provided).
2. Tighten the set screw against cylinder by turning clockwise as shown.
3. Install face plate onto the lock case and fasten with supplied screws.
Spanner
Wrench
Face Plate
Use standard straight
cam ILCO (863G) or
ILCO (863M) Schlage
“L” cam.
D. Install for Escutcheon Lever Trim
1. Install the Outside Lever first.
2. Place Spindle Spring over outside Spindle, then insert Spindle into the outside sides of lockset.
3. Insert Collar into Outside Lever Assembly. Place Reversible Spring Cage over Ferrules with Spring Cage arrows
pointing in direction of lever rotation.
4. Install Outside Lever Assembly by inserting Mounting Posts through holes in door.
5. Install Inside Lever by placing Reversible Spring Cage over inside Spindle and Spindle Spring with the spring cage
arrows pointing in direction of lever rotation.
6. Place mounting plate over Reversible Spring Cage and secure by threading Mounting Screws into Mounting Posts.
7. Install escutcheon Cover Plate over Mounting Plate.
8. Thread Inside Lever onto Mounting Plate and tighten with Spanner Wrench.
Ferrule
Outside Reversible
Spring Cage
Collar
Spindle
Spring
Spindle
Mounting
Posts
Spindle
Spindle
Spring
Inside Reversible
Spring Cage
Mounting Plate
Mounting Screws
Inside Lever
Outside Lever
Assembly
863G
863M
SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: [email protected] ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011
P:\INST INSTRUCTIONS\ELECTRIFIED LOCKSETS\INST-Z7835-E REV G 09-22 Page 5
P:\INST INSTRUCTIONS\ELECTRIFIED LOCKSETS\INST-Z7835-E REV G 09-22 Page 5
SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: [email protected] ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011
INSTALLATION WIRE DIAGRAM
Model Z7835 Series 12VDC ONLY
TYPICAL WIRING
(NO OPTIONS)
12VDC 4 PIN
CONNECTOR
WIRING WITH OPTIONS
ORANGE COM
REX BROWN N/C
YELLOW N/O
*Install MOV across each coil to
protect ACS electronics. Install as
close as possible to the lock
*MOV
*Install MOV across each coil to
protect ACS electronics. Install as
close as possible to the lock
OUTSIDE SOLENOID
OUTSIDE SOLENOID
INSIDE SOLENOID
INSIDE SOLENOID
(+)
(+)
(-)
(-)
RED
GREEN
BLACK
WHITE
*MOV
OUTSIDE SOLENOID
INSIDE SOLENOID
INSIDE SOLENOID
(+)
(+)
(-)
(-)PINK
RED
GREY
VIOLET
Fail-Secure
Fail-Safe
Fail-Secure
Fail-Safe
RED / YELLOW N/O
RED / BLACK LATCHED EXTENDED
WHITE N/O
BLACK N/C
GREEN N/C
DPS
LS
RED / GREEN UNLATCHED RETRACTED 4 PIN
CONNECTOR
10 PIN
CONNECTOR
OUTSIDE SOLENOID
