SDC S6100 Series Manuale utente
P:\INSTALLATION INST\Delayed Egress\INST-S6000DE_KDE.vsd Rev B 02-17 Page 9
801 Avenida Acaso, Camarillo, Ca. 93012
• (805) 494-0622 • www.sdcsecurity.com
E-mail: [email protected]
These instructions are presented a in step by step sequence.
Please read it through before installation.
Note: The dimensions of the Template are shown in inches. See
attached page for the Metric Conversion Table for millimeters.
P:\INSTALLATION INST\Delayed Egress\INST-S6000DE_KDE.vsd Rev B 02-17 Page 10

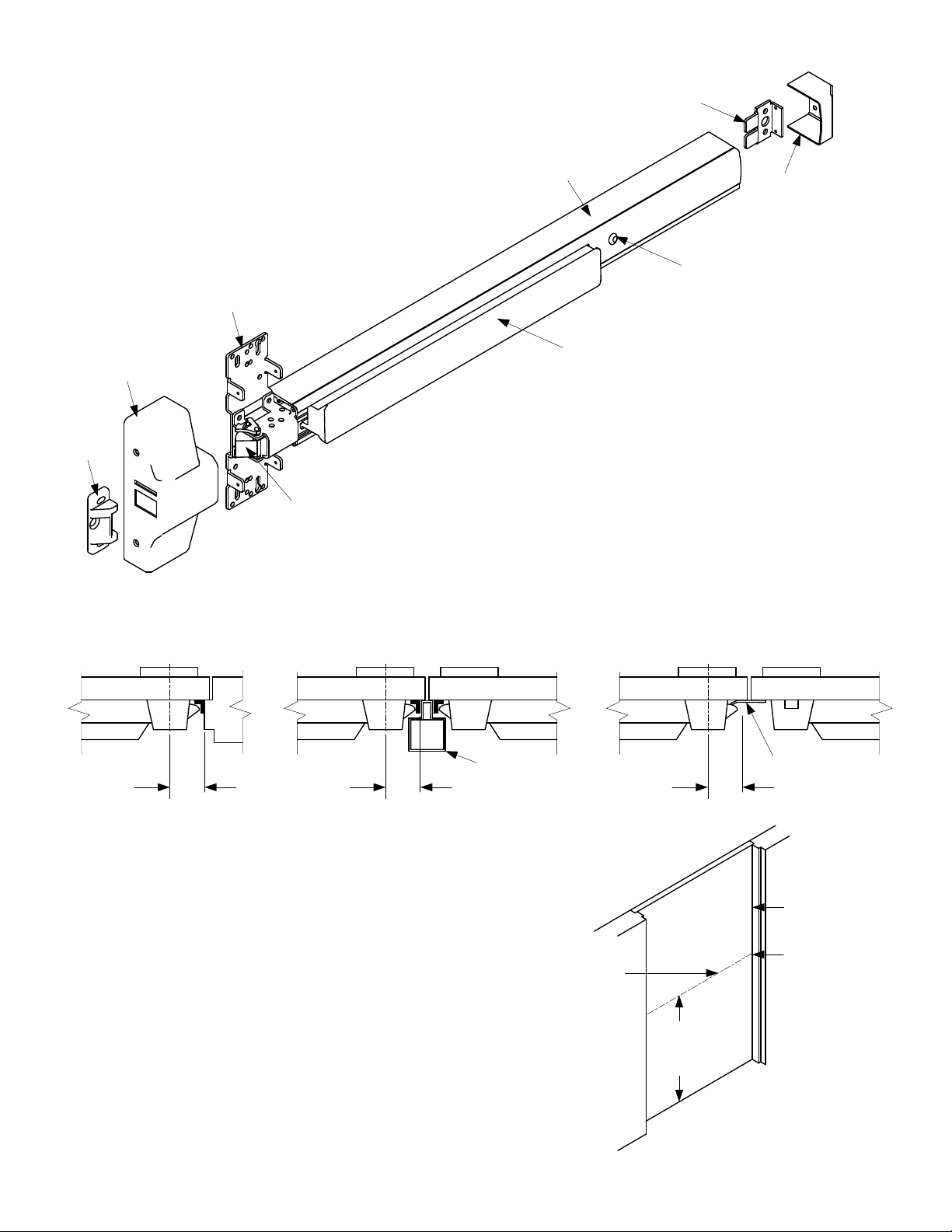

A. DESIGNATION OF PARTS
B. TYPE OF INSTALLATION
A. Single Door B. Double Door with Mullion C. Double Door without Mullion
2-7/16”
C
L
TRIM TRIM
DOOR DOOR
MULLION
2-7/16”
C
L
TRIM
DOOR
C. MARK POSITION FOR INSTALLING
1. Mark the center line of device by drawing a line
across the door and stop 40" above the finished floor
as shown at right.
2. Prepare door for you specific device per supplied template.
3. Drill holes as marked on door and jamb or mullion.
INSIDE
FACE
OF DOOR
JAMB
C
LOF
STRIKE
40" to
Finished
Floor
C
LOF
DEVICE
2-7/16”
C
L
TRIM TRIM
DOOR DOOR
DOUBLE DOOR
STRIKE
Strike
Chassis Cover
Chassis
Chassis
Latch Assembly
Push Bar
End Cap
End Cap Bracket
Dogging Device
(Fire Exit Hardware is not
Equipped with this device)
P:\INSTALLATION INST\Delayed Egress\INST-S6000DE_KDE.vsd Rev B 02-17 Page 11
STOP LINE
Jamb
of Device
Strike
L
C
Strike
Site
Door

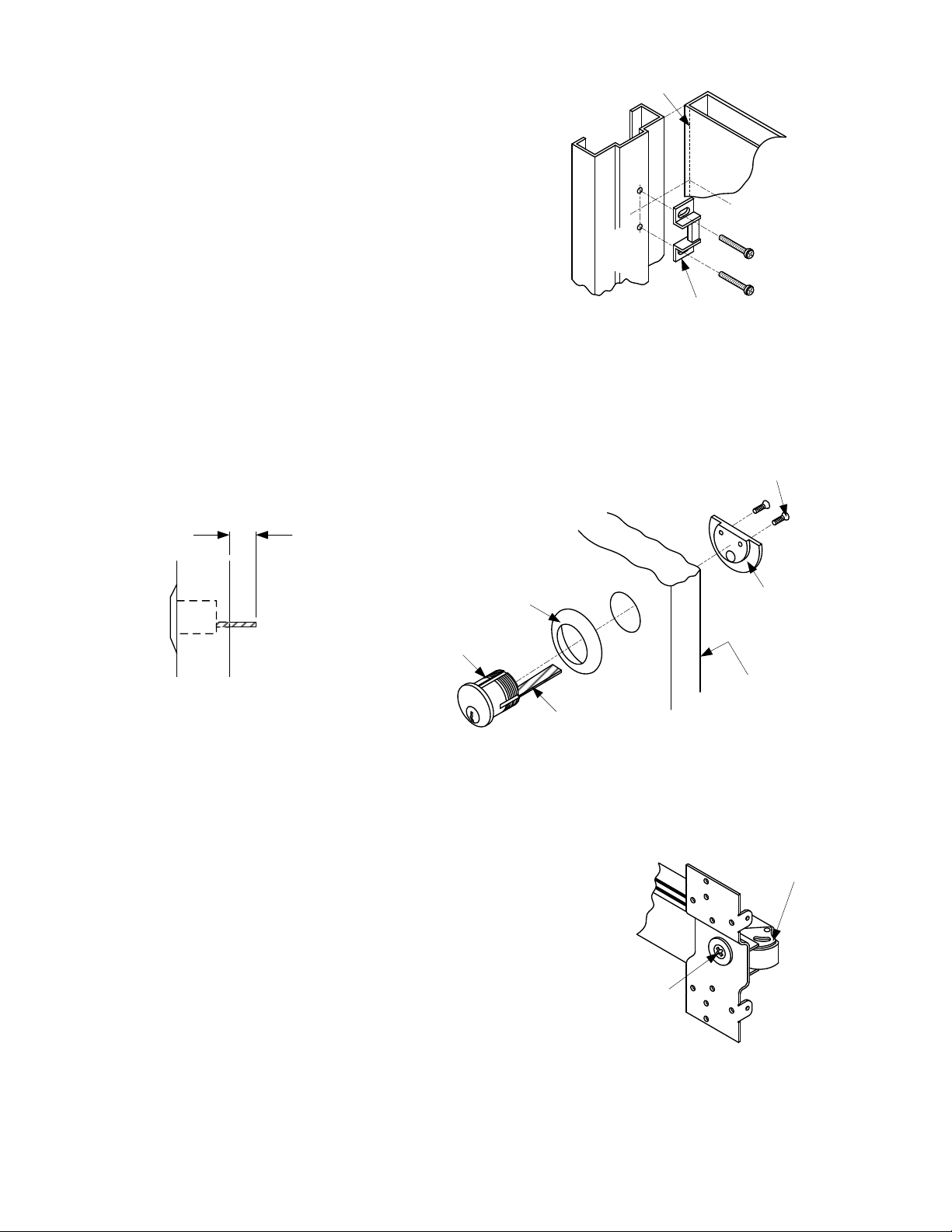

D. INSTALL STRIKE TO FRAME
1. Place strike over the drilled holes, and attach it to
the jamb or mullion with the supplied screws.
2. If installing with a vertical rod device for double
doors, and additional Double Door Strike must be
used in place of the regular strike provided.
E. IF CYLINDER IS INCLUDED WITH THE DEVICE
1. Drill one 1-3/16" diameter thru hole for the cylinder/bracket plate.
2. Insert cylinder and cylinder collar from outside of door.
3. Place bracket plate on inside of face of the door.
4. Put two cylinder mounting screws through the bracket plate and
into the cylinder.
5. Cut the cylinder mounting screws and tailpiece to the required door
thickness at break-off points, then fasten screws.
F. INSTALL OUTSIDE TRIM
Mark and drill holes for the outside trim (see trim instructions).
E. INSTALL DEVICE BODY
1. Remove chassis cover from latch assembly
and end cap from end cap bracket.
2. Place the device horizontally over the drilled holes and
attach with the supplied mounting screws. Bolt
device chassis to trim with sexbolts (if required).
3. Make sure cylinder or trim actuator shaft (tailpiece) can
insert into device cam concentrically (see device cam
at right).
4. Install end cap bracket on device, then screw to door.
5. Tighten all screws or bolts.
Device Cam
Insert Trim Actuator Shaft
Into device cam “+”.
Latch
Assembly
Outside face of door
Cylinder Collar
Rim Cylinder
Cylinder
Actuator shaft
(Tailpiece)
Inside face of door
Cylinder
bracket plate
Cylinder mounting
screws
Tailpiece projection
1/4”
P:\INSTALLATION INST\Delayed Egress\INST-S6000DE_KDE.vsd Rev B 02-17 Page 12

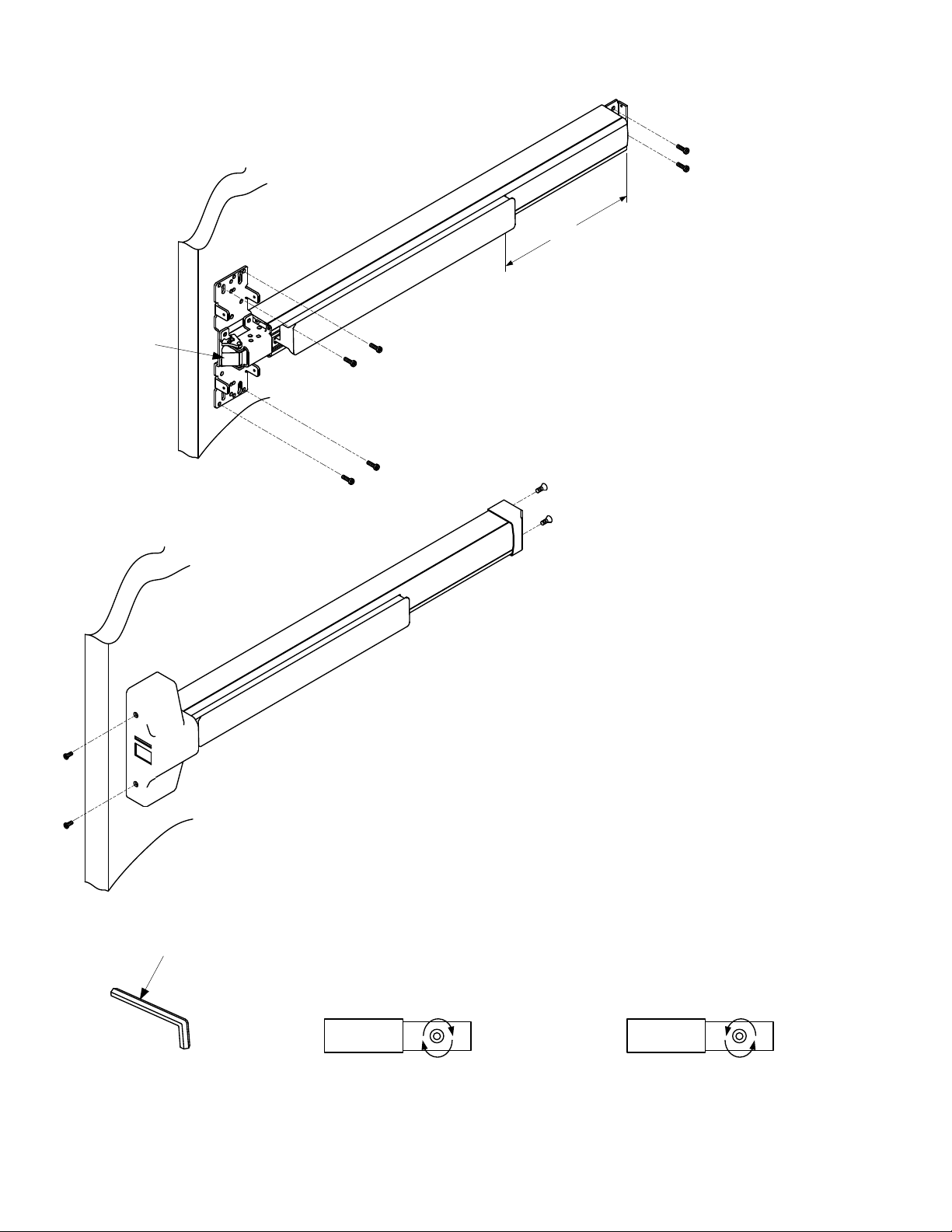

H. INSTALL COVERS
NOTE: The Device bar has 3 different lengths;
Standard 3' Door Device = Approx 33"
Standard 3.5' Door Device = Approx 40"
Standard 4' Door Device = Approx 44"
The bar lengths of devices are pre-cut for 36", 42" and
48" wide door, no additional cutting is necessary.
If narrower door installation is needed, cut device at the
“A” location, to door width minus 4" to fit properly.
1. Test push bar operation before installing covers:
a. No Trim: Latch bolt is retracted by push bar
inside.
b. With Trim: Latch bolt is retracted by push bar
inside, key or lever/knob outside.
c. Dogging: See dogging description and chart
below.
2. Make sure and secure latch bolt engagement. Adjust
strike if required.
3. Install chassis cover on chassis.
4. Install end cap.
Note: For increasing the life of this device,
dogging device during high traffic
period of the day (Panic device only).
Dogging Wrench
(Allen Key) Dogging:
Depress push bar,
Insert dogging wrench
and turn clockwise 35 degrees.
Depress
push bar
The push bar will remain
depressed and the latch will
remain retracted
Release Dogging:
Depress push bar,
Insert dogging wrench and
turn counter-clockwise 35 degrees.
Depress
push bar
The push bar will return to up
position and the latch will project
to lock the door.
Latch
Assembly
Mark mounting holes
through End Cap
Bracket
after device is level
A
