Securitytronix ST-IP2IRPTZ Manuale utente

ST-IP2IRPTZ

QUICK START GUIDE

www.nacebrands.com www.securitytronix.com

ST-IP2IRPTZ QUICK START GUIDE

Thank you for purchasing our product. If there are any questions, or requests, please do

not hesitate to contact the dealer.

This manual applies to the ST-IP2IRPTZ network speed dome camera.

This manual may contain several technical incorrect places or printing errors, and the

content is subject to change without notice. The updates will be added to the new

version of this manual. We will readily improve or update the products or procedures

described in the manual.

DISCLAIMER STATEMENT

“Underwriters Laboratories Inc. (“UL”) has not tested the performance or reliability of

the security or signaling aspects of this product. UL has only tested for fire, shock or

casualty hazards as outlined in UL’s Standard(s) for Safety, UL60950-1. UL Certification

does not cover the performance or reliability of the security or signaling aspects of this

product. UL MAKES NO REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS

WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR

SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.”

ST-IP2IRPTZ QUICK START GUIDE

Regulatory Information

FCC Information

FCC compliance: This equipment has been tested and found to comply with the limits

for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the

user will be required to correct the interference at their own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may

cause undesired operation

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked

with "CE" and comply therefore with the applicable harmonized European

standards listed under the Low Voltage Directive 2006/95/EC, the EMC

Directive 2004/108/EC, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be

disposed of as unsorted municipal waste in the European Union. For proper

recycling, return this product to your local supplier upon the purchase of

equivalent new equipment, or dispose of it at designated collection points.

For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains a battery that cannot

be disposed of as unsorted municipal waste in the European Union. See the

product documentation for specific battery information. The battery is

marked with this symbol, which may include lettering to indicate cadmium

(Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to

your supplier or to a designated collection point. For more information see:

www.recyclethis.info.

ST-IP2IRPTZ QUICK START GUIDE

Safety Instruction

These instructions are intended to ensure that user can use the product correctly to

avoid danger or property loss.

The precaution measure is divided into Warnings and Cautions:

Warnings: Neglecting any of the warnings may cause serious injury or death.

Cautions: Neglecting any of the cautions may cause injury or equipment damage.

Warnings

All the electronic operations should be in strict compliance with the electrical safety

regulations, fire prevention regulations and other related regulations in your local

region.

Please use the power adapter that is originally included. The power adapter standard

is 24VAC10%, 12VDC10% or 48VDC (PoE) (depending on models). The power

consumption cannot be less than the required value.

Do not connect several devices to one power adapter as adapter overload may cause

over-heating or a fire hazard.

Please make sure that the power has been disconnected before you wire, install or

dismantle the speed dome.

When the product is installed on a wall or ceiling, the device shall be firmly fixed.

If smoke, odors or noise rise from the device, turn off the power at once and unplug

the power cable, and then please contact technical support.

If the product does not work properly, please contact your dealer or technical support.

Never attempt to disassemble the speed dome yourself. (Securitytronix shall not

assume any responsibility for problems caused by unauthorized repair or

maintenance.)

Cautions

Do not drop the dome or subject it to physical shock, and do not expose it to high

electromagnetic radiation. Avoid equipment installation on vibrating surface or places

subject to shock (ignoring this can cause equipment damage).

Do not place the dome in extremely hot, cold, dusty or damp locations, otherwise fire

or electrical shock may occur. The operating temperature should be -22°F ~ 149°F.

The dome cover for indoor use shall be kept from rain and moisture.

Warnings Follow these safeguards

to prevent serious injury or death.

Cautions Follow these precautions

to prevent potential injury or

material damage.

ST-IP2IRPTZ QUICK START GUIDE

Exposing the equipment to direct sun light, low ventilation or heat sources such as

heaters or radiators is not advisable (ignoring this may cause a fire hazard).

Do not aim the speed dome at the sun or extra bright places. A blooming or smear

may occur otherwise (which is not a malfunction), and affecting the longevity of the

sensor at the same time.

Please use the provided glove when opening up the dome cover, avoid direct contact

with the dome cover with bare hands, due to the the acidic sweat of the fingers

eroding the surface of the dome cover.

Please use a soft and dry cloth when cleaning inside and outside surfaces of the dome

cover, do not use alkaline detergents.

Please keep all wrappers after unpacking them for future use. In case any failure

occurs, you need to return the speed dome to the factory with the original wrapper.

Transportation without the original wrapper may result in damage on the speed dome

and may lead to additional costs.

Do not stare directly at the infrared LED to avoid possible damage to the eyes.

ST-IP2IRPTZ QUICK START GUIDE

Table of Contents

1 Overview ...................................................................................................... 6

2 Installation ................................................................................................... 7

3 Setting the Network Dome over the LAN...................................................... 9

4 Accessing via Web Browser ........................................................................ 12

ST-IP2IRPTZ QUICK START GUIDE

1Overview

Please make sure the power to the speed dome has been disconnected before

connecting the cables.

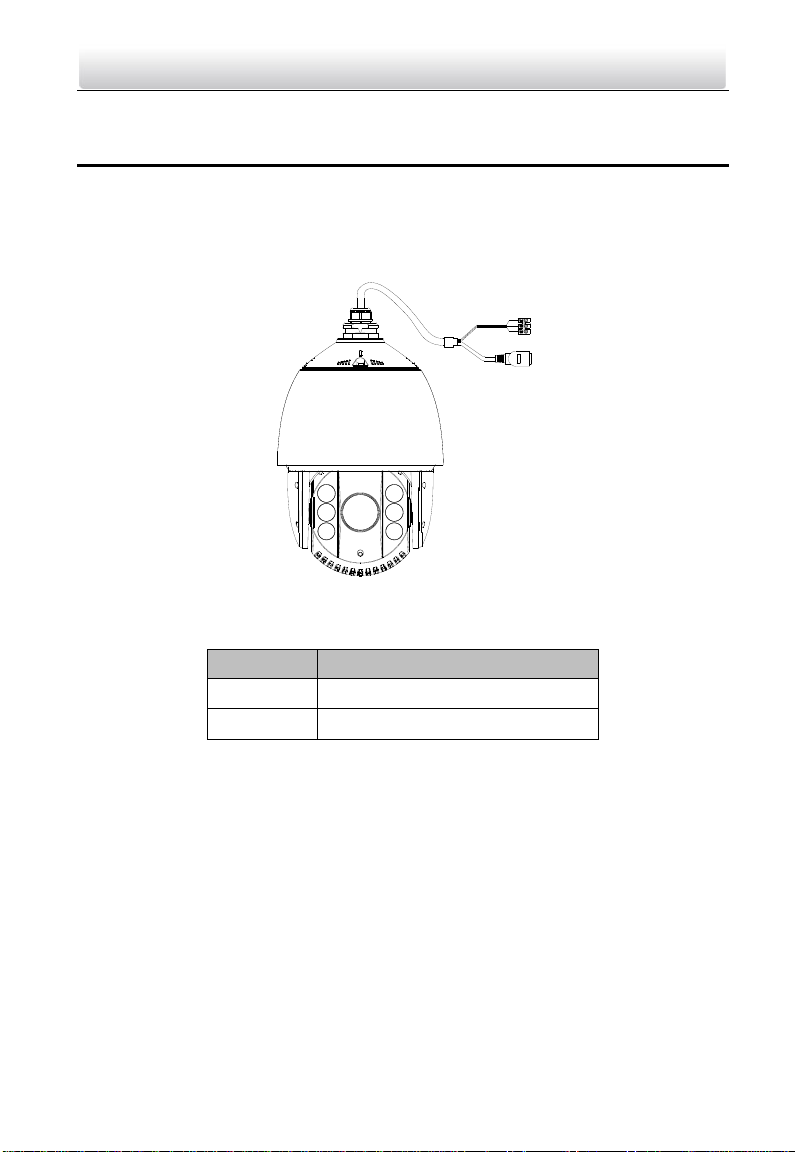

The cable interfaces of the network speed dome are shown in the following figure. The

cables are distinguished by different colors. The labels attached on the cables are for

identification.

Figure 1-1 Overview

Table 1-1 Overview

No.

Description

Power Cable

Network Cable

ST-IP2IRPTZ QUICK START GUIDE

2Installation

Before you start:

Check the package contents and make sure that the device in the package is in good

condition and all the assembly parts are included.

Please make sure the wall is strong enough to withstand more than 8 times the

weight of the dome and the mount.

For a cement wall, you need to use the expansion screws to fix the mount.

Note: Do not drag the speed dome with its waterproof cables as shown in Figure 1-1,

otherwise the waterproof performance will be affected.

Figure 1-1 Do Not Drag the Cables

Steps:

1. Remove the protective sticker from the dome drive.

Figure 2-1 Protective Sticker

2. Drill 4 screw holes in the wall according to the holes of the mount.

3. Secure the wall mount to the wall with the M8 expansion screws.

Protective

Sticker

ST-IP2IRPTZ QUICK START GUIDE

Figure 2-2 Secure the Mount

4. Install the speed dome to the mount.

1). Hang the safety rope to the speed dome and then hook to the mount as shown in

Figure 2-3.

2). Route the cables of the speed dome through the wall mount.

3). Loosen the two lock screws on the wall mount.

4). Install the speed dome to the mount, and secure the speed dome by rotating the

speed dome clockwise.

5). Secure the two lock screws with the Allen wrench.

Figure 2-3 Secure the Speed Dome

Safety Rope

Lock

Screw

ST-IP2IRPTZ QUICK START GUIDE

3Setting the Network Dome over the LAN

To view and configure the speed dome via LAN (Local Area Network), you need to

connect the network speed dome in the same subnet as your PC. Then install the SADP

or the client software to search and change the IP of the network speed dome.

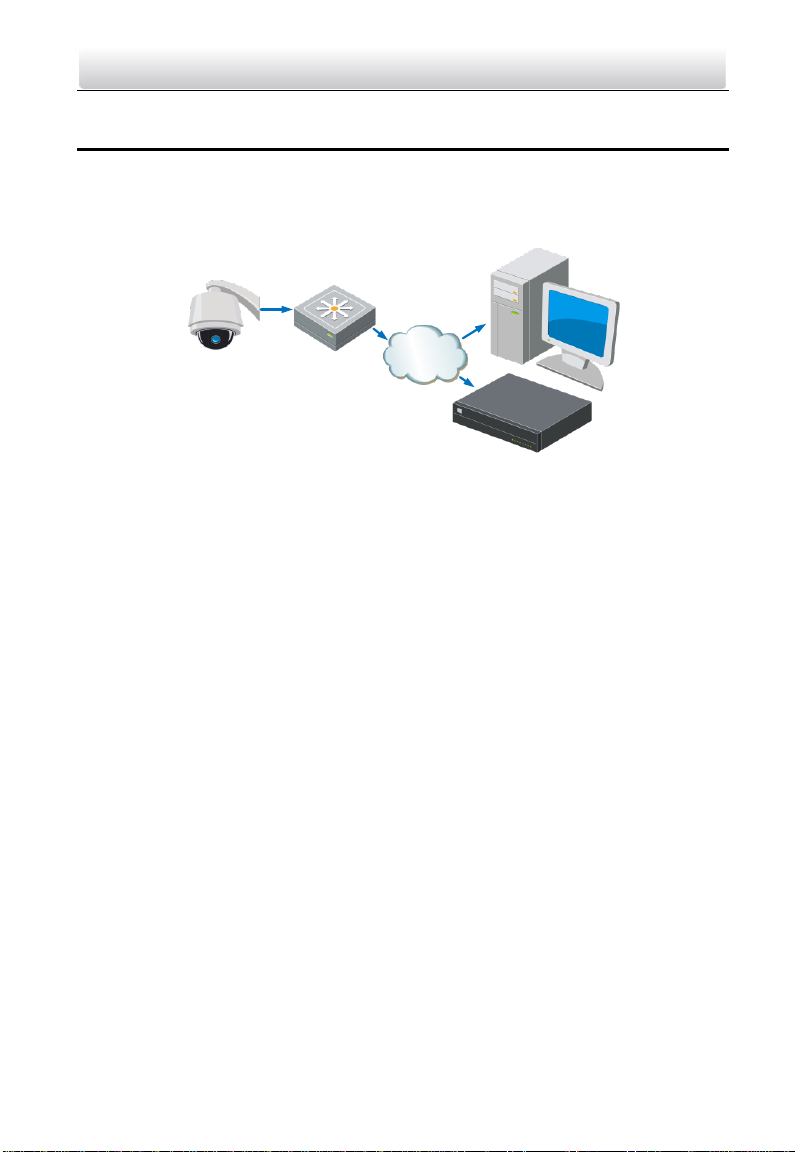

The following figure shows the cable connection of network speed dome to PC.

Figure 3-1 Wiring over LAN

Set the IP address of the speed dome for accessing via LAN.

Steps:

1. To get the IP address, you can choose either of the following methods:

Use SADP, a software tool which can automatically detect the network speed

dome in the LAN and list the device information like IP address, subnet mask, port

number, device serial number, device version, etc., shown in Figure 3-2.

Use client software to list the online devices. Please refer to the user manual of

client software for detailed information.

2. Change the IP address and subnet mask to the same subnet as your PC.

Refer to the following introductions to set the IP address with SADP software:

Search active devices online

Search online devices automatically:

After launching the SADP software, it automatically searches the online devices

every 15 seconds from the subnet where your computer is located. It displays the

total number and information of the searched devices in the Online Devices

interface. Device information including the device type, IP address, port number,

gateway, etc. will be displayed.

Speed Dome

Switch

Network

NVR
