Securitytronix ST-LCDHD-18.5 Manuale utente

INSTALLATION MANUAL©

ST-LCDHD-18.5

Intelligent Mini Dome PTZ Color Camera

V1.0 6/19/13

1 PREFACE

Thank you for purchasing this LED monitor! This manual will help you use all the extensive features of

your new monitor. Make sure the monitor was not damaged in transit. Should the monitor be damaged, do

not install it and contact your dealer. Check that you have all the accessories according to the manual.

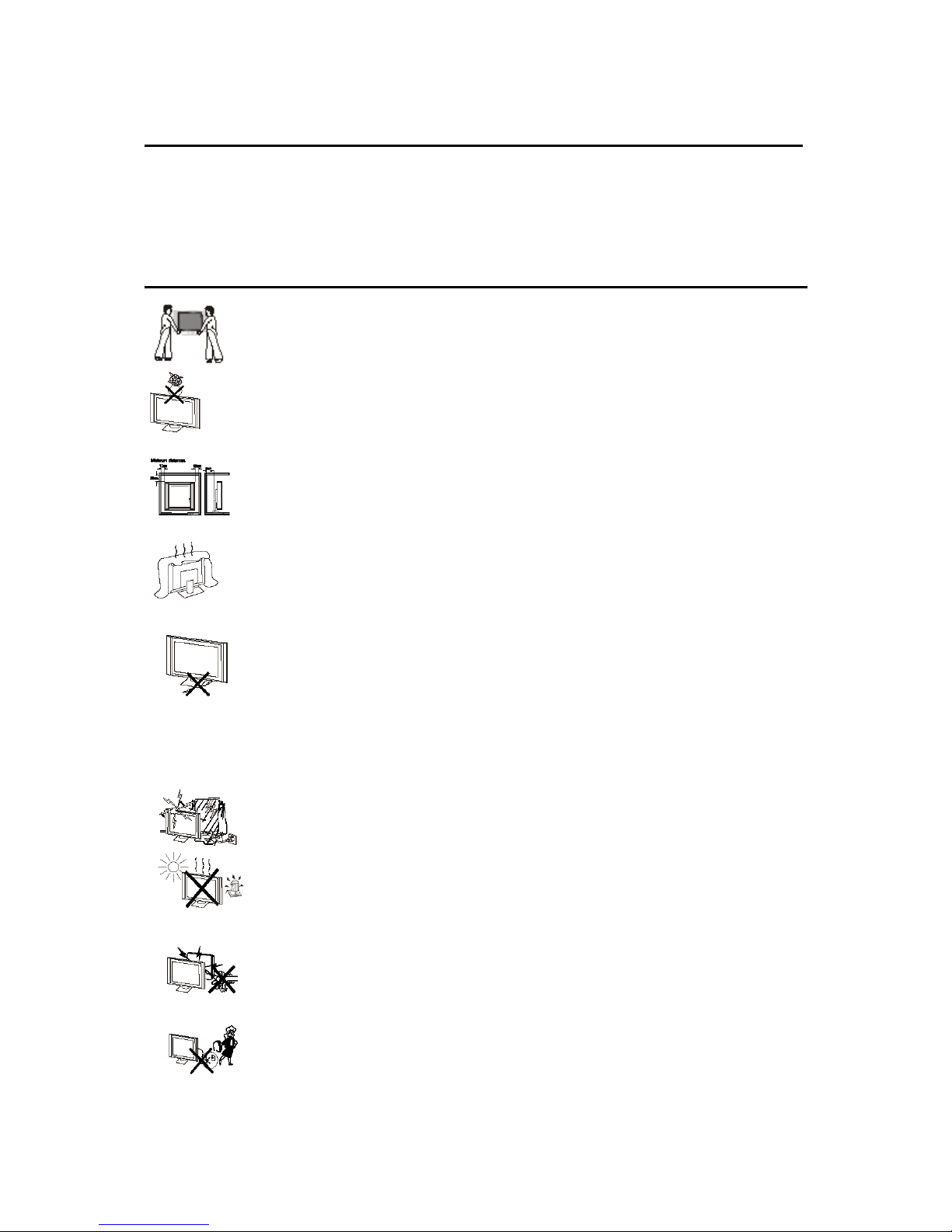

2 SAFETY PRECAUTIONS

Put the monitor on a stable surface.

Do not use the monitor with others fixtures than those provided or suggested by the

manufacturer.

Do not place anything on top of the monitor.

If you have a wall mount, check that it is steady.

Do not block or cover the ventilation openings on the monitor

Power source

The monitor must be plugged to an 110-120V outlet.

Connection cables

Power cord and cables must be properly routed and protected to prevent people from stepping

on them and/or causing the monitor to fall.

Heating sources and humidity

Keep the monitor dry and away from sources of humidity.

Keep the monitor away from heat sources.

Cleaning

Unplug the monitor before cleaning it. Do not use solvents or liquids to clean the monitor.

Only clean the monitor with a soft and dry cloth.

Caution

Unplug the monitor during electrical storms.

V1.0 6/19/13

3 FRONT & BACK VIEW, REAR CONNECTIONS_______

Front View

Back View

（The backview is only for your reference）

Rear Connection

HDMI: HDMI input

PC: VGA PC video input

VIDEO1/2：BNC composite video input

VIDEO OUT：BNC composite video output

AUDIO: Composite audio input（audio：PC/VIDEO1/2）

EARPHONE: Headphone audio output

1. TV/AV select

2. Menu key

3. Channel up/down

4. Volume up/down

5. Standby

6. Remote control sensor

V1.0 6/19/13

4CONFIGURATION

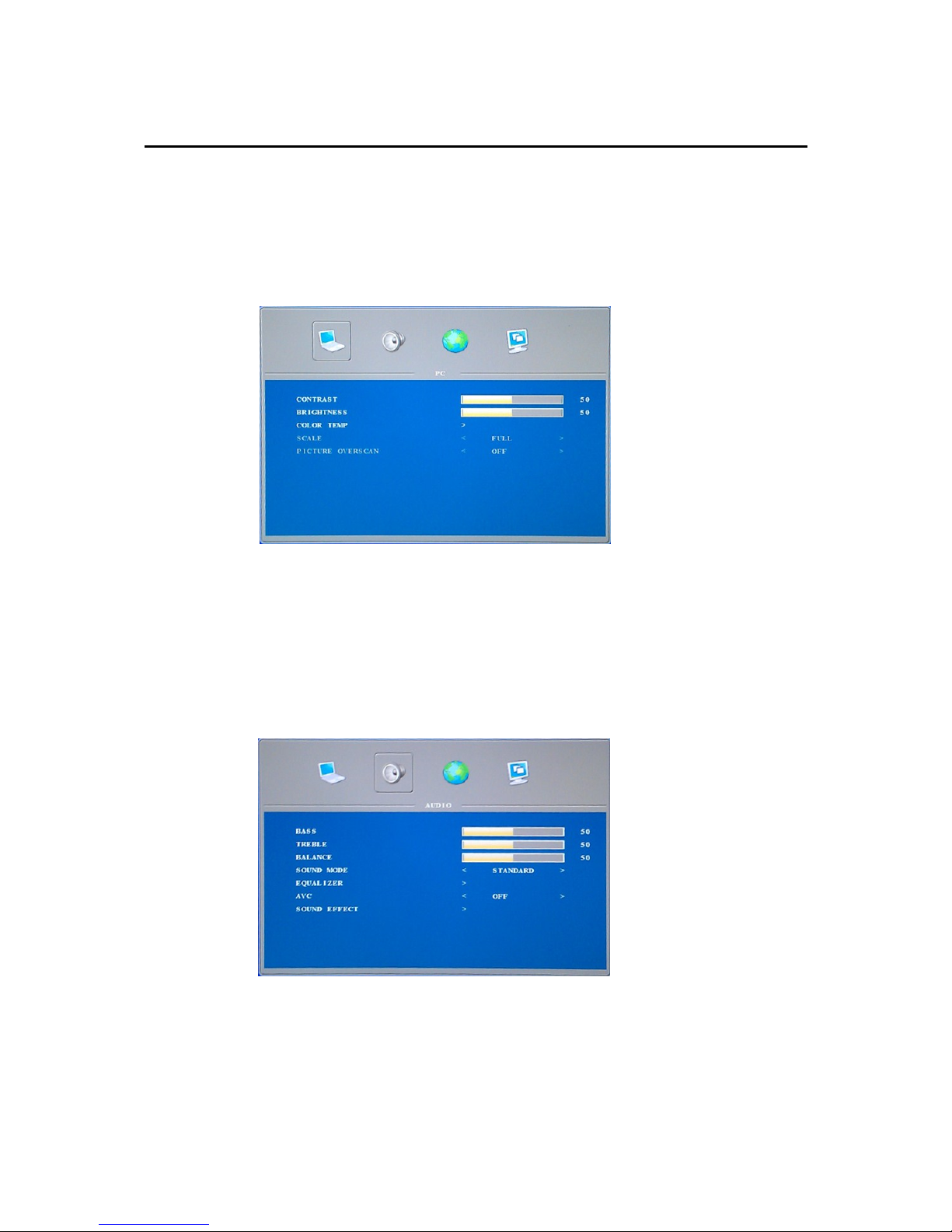

4.1 PC SETTINGS

Press <MENU> key.

a) Press ▼and enter PC SETTINGS menu. Press ▲or ▼key and select CONTRAST, BRIGHTNESS,

COLOR TEMP, SCALE, PICTURE OVERSCAN.

b) Press ◄or ►key to access and adjust CONTRAST, BRIGHTNESS, COLOR TEMP, SCALE,

PICTURE OVERSCAN.

4.2 AUDIO SETTING

Press < MENU >, then press ►key

a) Press ▼, then enter AUDIO SETTINGS menu. Press ▲ or ▼ key to select BASS, TREBLE,

BALANCE, SOUND MODE, EQUALIZER, AVC, SOUND EFFECT.

b) Press ◄or ►key to access and adjust BASS, TREBLE, BALANCE, SOUND MODE,

EQUALIZER, AVC, SOUND EFFECT.

V1.0 6/19/13

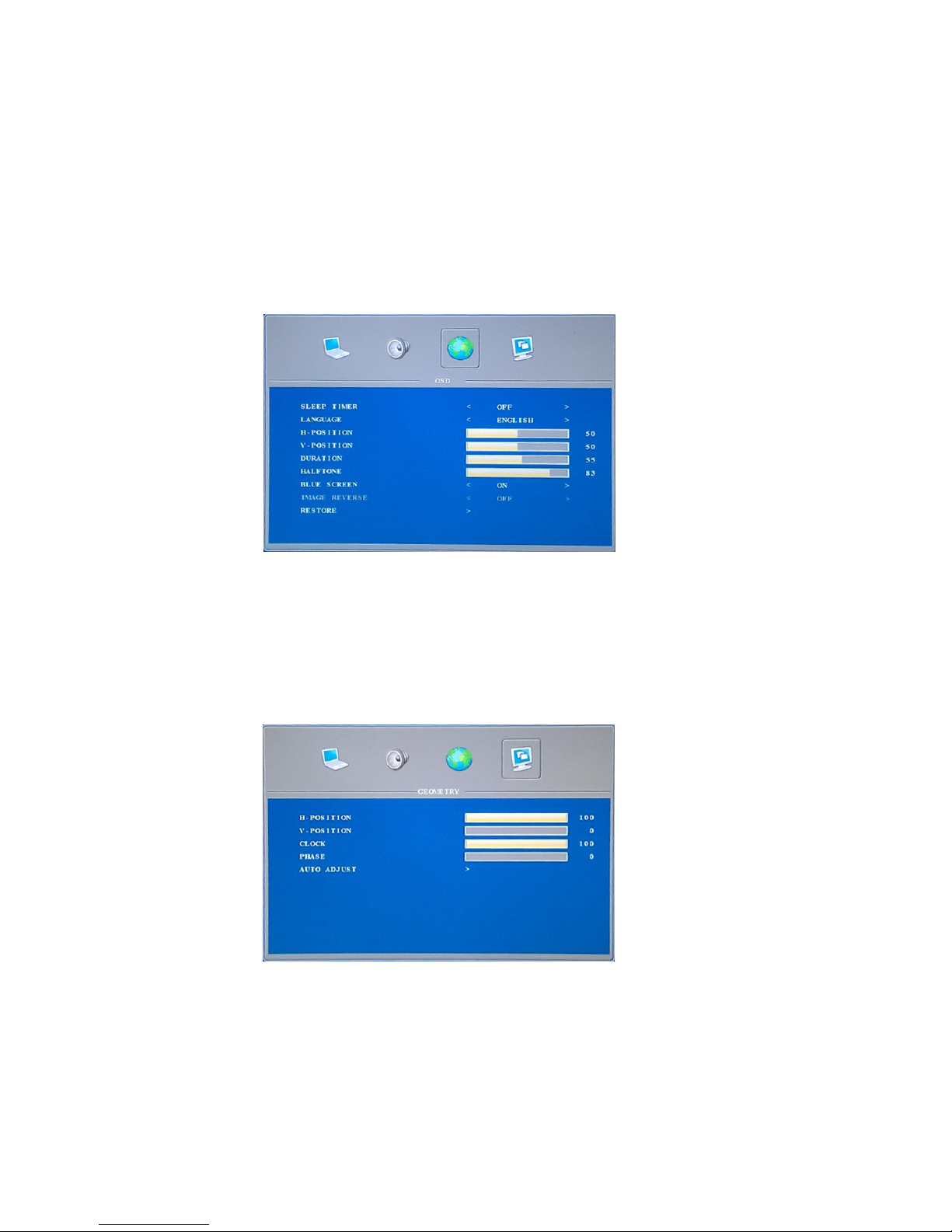

4.3 OSD SETTING

Press <MENU> key, then press ►key

a) Press ▼, then enter OSD SETTINGS menu. Press ▲or ▼key to select SLEEP TIMER,

LANGUAGE, H-POSITION, V-POSITION, DURATION, HALFTONE, BLUE SCREEN, IMAGE

REVERSE, RESTORE.

b) Press ◄ or ► key to access and adjust SLEEP TIMER, LANGUAGE, H-POSITION,

V-POSITION, DURATION, HALFTONE, BLUE SCREEN, IMAGE REVERSE, RESTORE.

4.4 GEOMETRY SETTING

Press <MENU> key, then press ►key

a) Press ▼, then enter GEOMETRY Setting Menu. Press ▲or ▼key to select H-POSITION,

V-POSITION, CLOCK, PHASE, AUTO ADJUST.

b) Press ◄ or ► key to access and adjust H-POSITION, V-POSITION, CLOCK, PHASE, AUTO

ADJUST.

V1.0 6/19/13

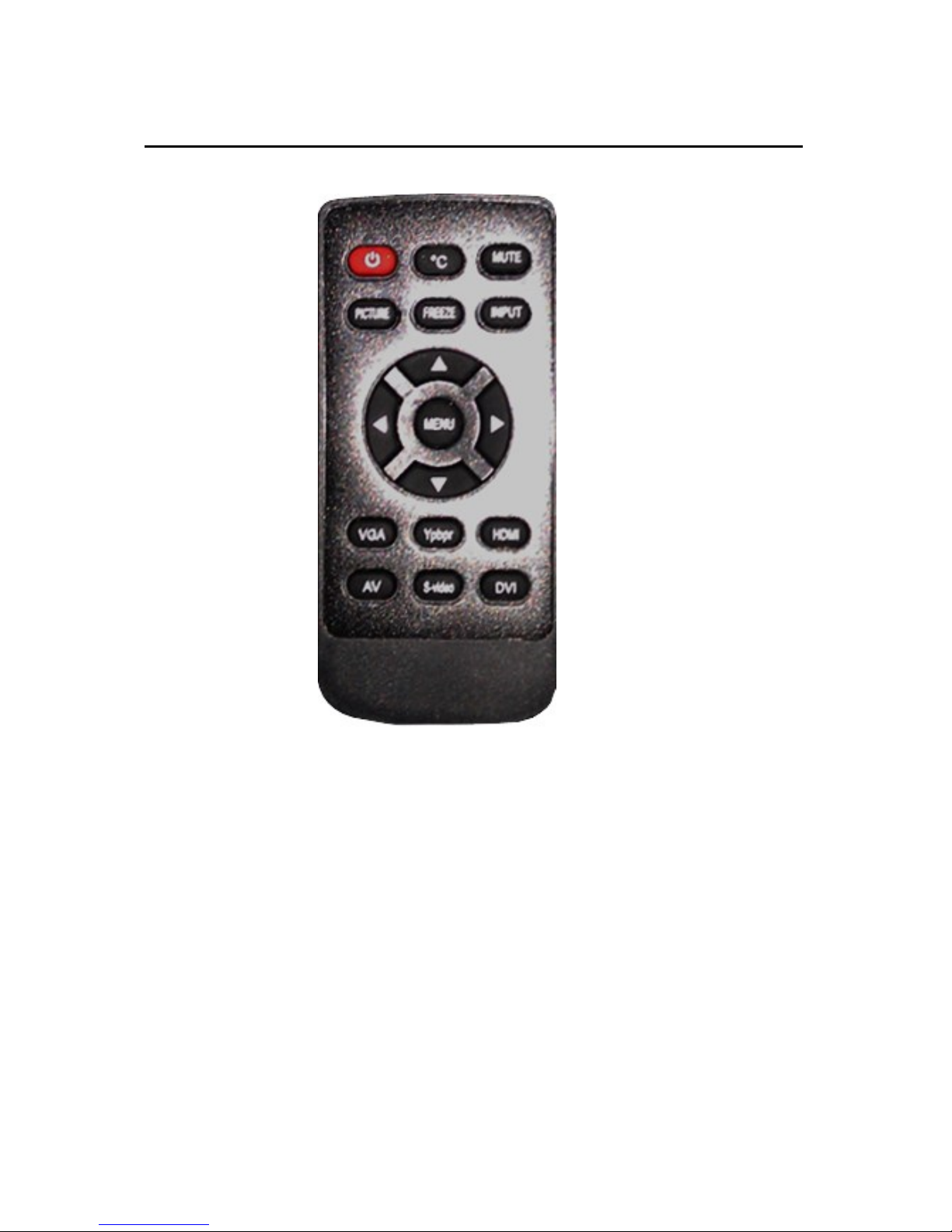

5 REMOTE CONTROL INSTRUCTIONS

Remote control instructions

1.STANDBY: Press to turn on/standby the TV set

2.℃: Temperature monitoring chip

3. MUTE: Mutes the audio

4. PICTURE: Set picture mode.

5. FREEZE: Freezes picture.

6. INPUT: Press to display the input source menu.

7. ◄►▲▼, MENU: Control the cursor in the menu

8. MENU: Displays the OSD menu.

9. VGA: Switches to VGA mode

10. YPBPR: no function

11. HDMI: Press it to turn to HDMI mode

12. AV: Switches to BNC VIDEO MODE

13. S-VIDEO: no function

14. DVI: no function

V1.0 6/19/13

6REMOTE CONTROLS SETUP

a: Open the cover

b: Insert batteries. When inserting the batteries, make sure batteries are facing the right direction as per

“+”and “-”marks on the batteries and within the battery compartment

c: Replace the battery cover

6.1 BATTERY USAGE CAUTION:

To prevent battery leakage which may result in bodily injury or damage to the remote, please do as follows:

1. Install all batteries correctly, and as marked on the remote control.

2. Do not mix batteries :(OLD and NEW or CARBON and ALKALINE, etc.).

3. Remove batteries when the remote is not used for a long time

7 ACCESSORIES

1. One Remote Control

2 .Two Batteries 1.5V

3. One User Manual

8TROUBLESHOOTING _______________

Issue

Troubleshooting

No signal

Please check that all cables and are correctly plugged in.

No color shades

Adjust the contrast, the color and the brightness

Double or multiple

display image

May be the result of an electrical wave disturb from other

TV, Computer and Game machine or Radio

Snow/static on the

screen

Please check that all cables are correctly plugged in all the

way.

The remote control

does not work

Please check the batteries order and alignment.

Check that the IR of the remote control is not hidden or

covered.

No sound

Make sure that the “Mute” button has not been pressed on

monitor or controller. Make sure all cables are correctly

plugged in.

V1.0 6/19/13

9 SPECIFICATIONS

Screen Size

18.5”

Display Type

TFT LED

Aspect Ratio

16:9

Power Source

110-120V

≤25W

TV System

PAL / SECAM

Video Input Format

PAL / NTSC/SECAM

Antenna Input

Standard antenna socket 75 Ω

Audio Output

L / R 3W*2

VGA Input Format

Standard VESA mode

Input

Video:1.0Vp-p, 75Ω; Audio20kΩ; RCA

Standard VESA mode

HDMI

MAX 1080P/60Hz

Output

VIDEO

CVBS: 1.0 Vp- p 75 Ω; RCA

Net Weight

3±1kg

Net Dimensions with stand

18.25” wide, 13” tall, 6” deep

Net Dimensions without stand

18.25” wide, 11.8” tall, 1.8” deep
