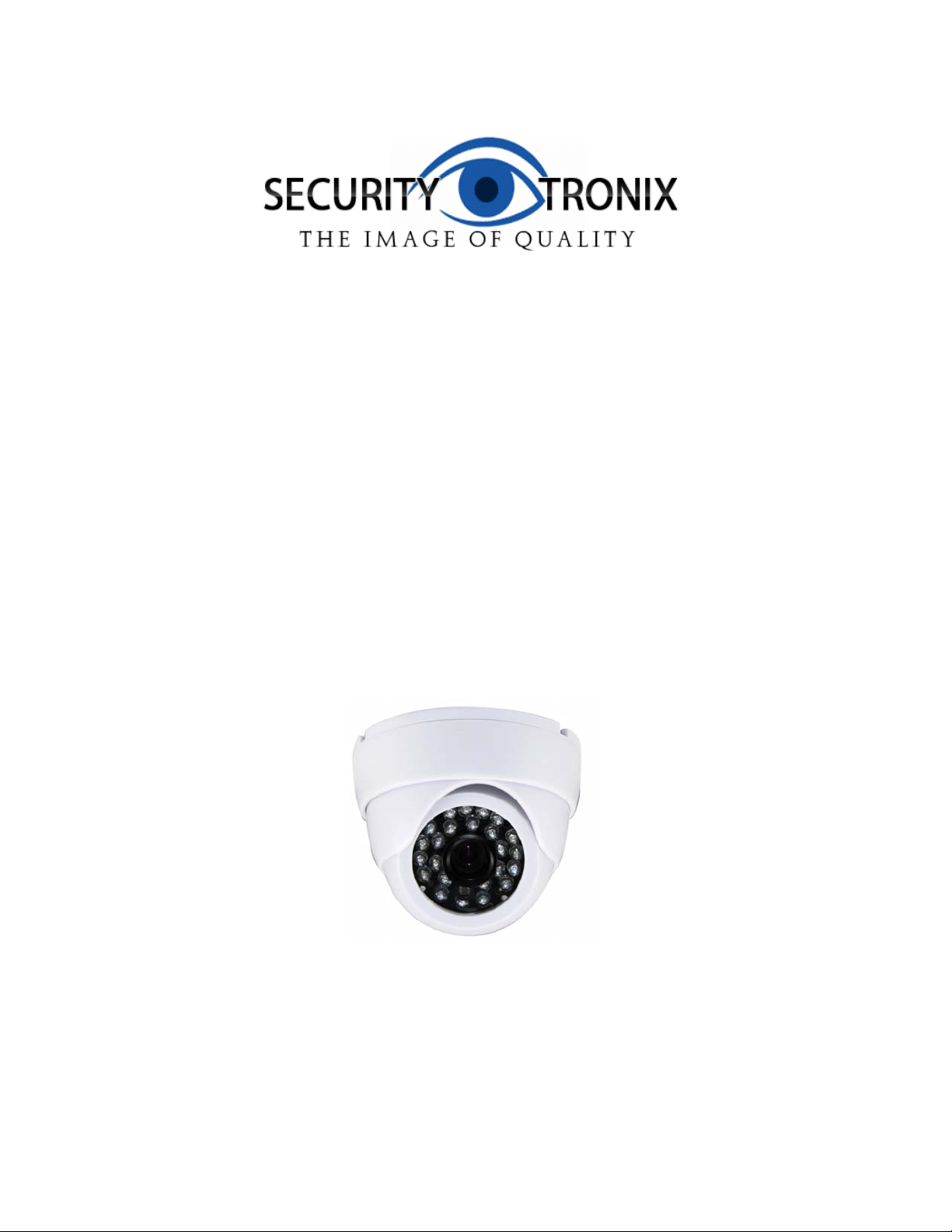

Securitytronix ST-DLI420IR6-B Manuale utente

v1.0 8/1/11

INSTALLATION MANUAL

ST-DLI420IR6-B or -W

Dome Infra Red CCD Camera

v1.0 8/1/11

PACKAGE CONTENTS

This package contains:

One ST-DLI420IR6 Dome Infrared CCD camera

One installation manual

Note: The ST-DLI420IR6 requires a 12VDC 500mA-1,000mA power supply such as the

ST-PS12VDC1A or ST-PS12VDC2A.

PRODUCT DESCRIPTION

The ST-DLI420IR6 is an indoor infrared camera designed around a 1/3” Color SONY Super HAD

CCD with 420TVL of resolution, 24 infrared LEDs providing infrared capability up to 80 feet. The

ball style dome camera provides the installer with the ability to easily adjust the camera’s viewing

area. The ST-DLI420IR6 is cost effective indoor surveillance solution for any budget.

SPECIFICATIONS

ST-DLI420IR6

Specifications (Typical)

1. Image Sensor

1/3” SONY Super HAD CCD

2. Pixels (HxV)

500x582

3. Scanning System

NTSC

4. Horizontal Resolution

420TV Lines

5. Synchronization

Internal

6. Minimum Illumination

0.001Lux/F1.2 Color (IR LED on), 0.0 Lux/F1.2 B&W (IR LED on)

7. Backlight Compensation

ON/OFF Switchable

8. Electronic Shutter

1/50~100,000 Seconds

9. White Balance

Automatic

10. Lens

6mm

11. S/N Ratio

≥48dB

12. IR LED

φ5x24PCS

13. IR Viewing Distance

49 –65 feet

14. Gamma Correction

0.45

15. Video Output

1.0Vp-p/75Ω

16. Operation Temperature

14°- 122°F

17. Power Supply

DC12V 500mA –1,000mA

18. Dimensions

3.7”x3.3”x3.3”

19. Weight

1.8 oz

20. Protection Grade

v1.0 8/1/11

INSTALLATION AND OPERATION

1. UNPACKING and HANDLING

Each unit is shipped assembled and factory tested.

Ensure that all accessories are removed from the container before discarding packing material

2. MECHANICAL INSPECTION

Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is

clean, and no connectors are broken, damaged, or loose. If equipment appears to be

damaged or defective please contact your distributor or Securitytronix at 1-610-429-1511 for

assistance.

3. SPECIAL ATTENTION

a. The installer must comply with electrical safety standards. There must be sufficient

space between the camera’s power supply and video line and any high voltage

equipment and/or cables.

b. To help ensure the camera’s life and proper operation do not point the camera

towards the sun or strong light.

c. Do not install the camera in an environment where the temperature is above 122°F.

The camera should be installed in a cool and spacious environment.

d. Do not install the camera near a magnetic field or a high-power motor.

e. Only use a dry cloth to clean the camera. If there is dirt that is difficult to remove wipe

gently with a mild detergent. Never use strong or abrasive detergents.

f. A 12VDC 500mA –1,000mA power supply must be used. AC power cannot be

applied. Using a power supply other than 12VDC 500mA –1,000mA will damage the

camera.

g. Only qualified installers are allowed to install, test and disassemble the camera.

h. The IR LED angle and lens viewing range are adjusted at the factory. Any change to

the camera’s lens will affect image quality.

i. The camera is a low voltage product. If installed outdoors proper safety and lightening

grounding are required.

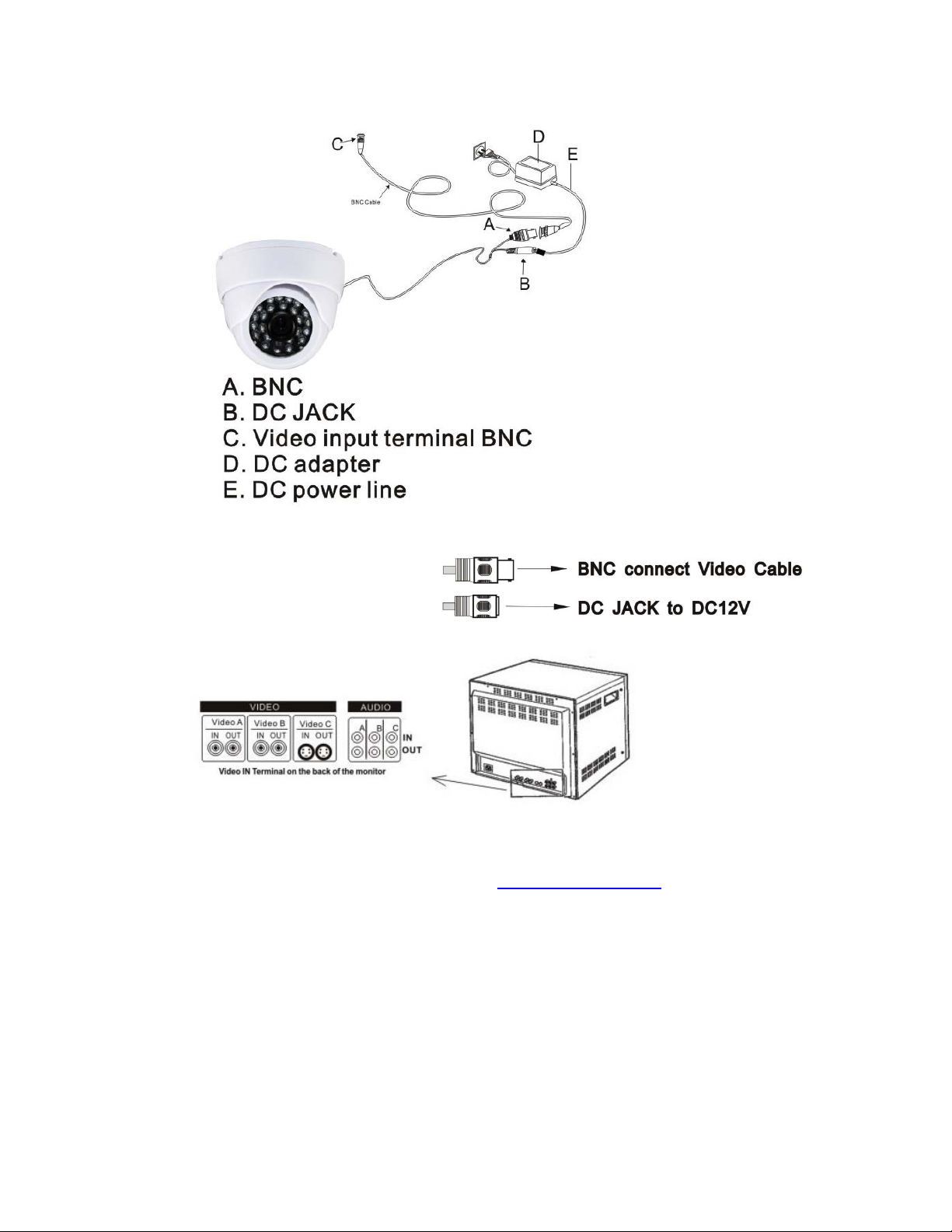

4. WIRING CONNECTIONS

a. Connect the power supply’s DC plug to the camera’s power outlet.

b. Connect the camera to the monitor with a 75Ωcoaxial video cable.

c. Connect power supply’s AC plug to a suitable AC power outlet.

d. Adjust the lens direction according to the required surveillance area and environment.

v1.0 8/1/11

Troubleshooting assistance can be found on-line at www.securitytronix.com in addition to support

from SecurityTronix sales engineers at 1-610-429-1511.
