HME 46-3S
Instruction manual
Air Traffic Control
HME 46
HMD 46
1
Safety instructions
yPlease read these instructions carefully and
completely before using the headset.
yMake these instructions easily accessible to all users
at all times.
yAlways include these instructions when passing the
headset on to third parties.
yThe headset is capable of producing sound pressure
levels exceeding 85 dB(A). In many countries 85 dB(A)
is the maximum legally permissible level for
continuous noise exposure during the working day.
Exposure to sounds of higher volume levels or for
longer durations can permanently damage your
hearing!
yNever repair or attempt to repair a defective headset
yourself. Contact your Sennheiser agent or the
Sennheiser Service Department.
yOnly replace those parts of the headset whose
replacement is described in this manual. All other
parts of the headset must be replaced by your
Sennheiser agent.
yProtect the headset from humidity. Use only a slightly
damp cloth to clean the headset. For information on
how to clean the headset, contact your Sennheiser
agent.
2
Intended use of the headset
Intended use includes:
• having read this instruction manual especially the
chapter “Safety instructions”.
• using the headset within the operating conditions as
described in this instruction manual.
Improper use
Improper use means using the headset other than as
described in this instruction manual, or under operating
conditions which differ from those described herein.
3
HMD 46 / HME 46 / HME 46-3S
The HMD 46 / HME 46 / HME 46-3S headset features
dynamic, open headphones. The noise-compensating
microphone ensures excellent speech transmission even
in noisy environments. Designed for air traffic control,
intercom systems and other communication purposes.
Features
yExtremely lightweight
yExtremely comfortable to wear due to the patented
two-piece automatic headband and soft ear pads
yActiveGard™ safeguards you from the effects of an
acoustic burst (except HMD 46-31 and HME 46-31)
y“Flip-away” headphone allows single-sided listening
yFlexible microphone boom, can be worn on either left
or right-hand side
yNoise-compensating microphone ensures excellent
speech transmission
ySingle-sided cable, easy to exchange
yPTT button integrated in the cable (see “Product
variants” on page 11)
4
Delivery includes
y1 HMD 46 / HME 46 / HME 46-3S headset
y1 cable clip
y1 wind and pop screen
y1 instruction manual
Operation

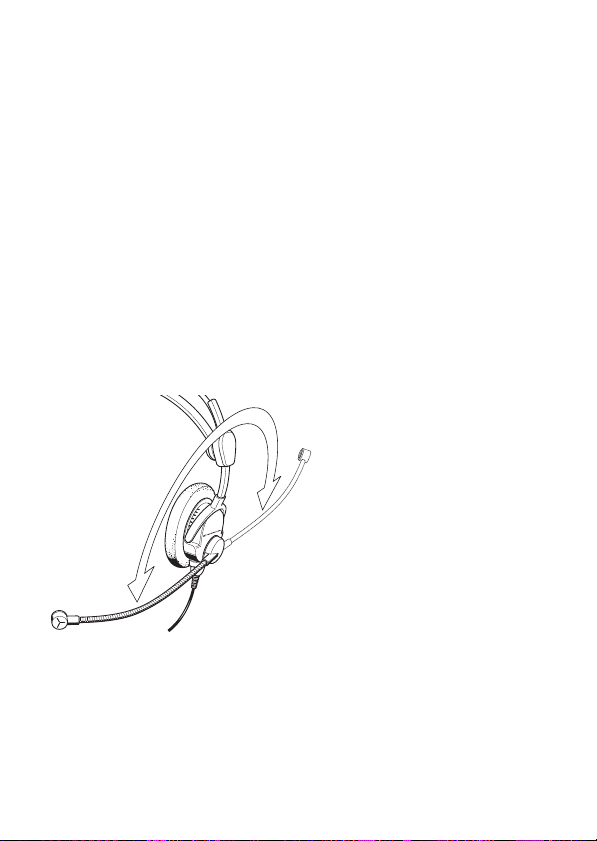

Turning the microphone boom
The microphone boom can be rotated. This allows the
headset to be worn with the microphone boom positioned
on either the left or right-hand side of the head.
5

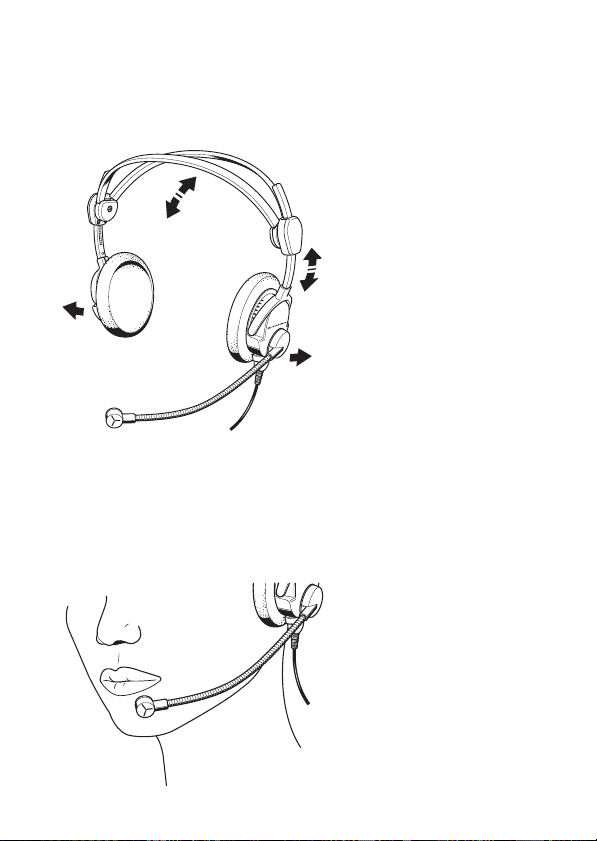

Putting on the headset
When putting on the headset, the patented two-piece
headband adjusts automatically.
Positioning the microphone
Bend the flexible microphone boom so that the micro-
phone is placed at the corner of the mouth. Maintain a
distance of approx. 2 cm between microphone and mouth.
6

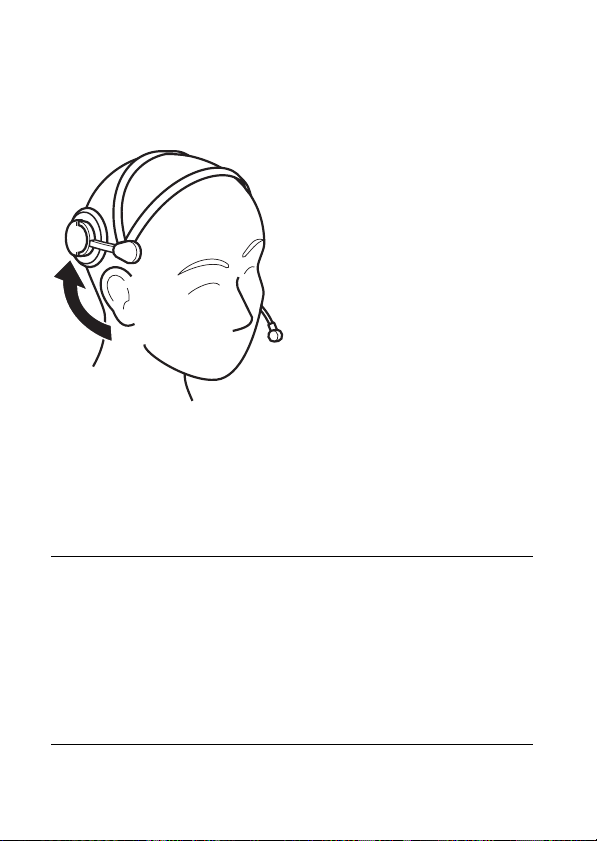

Flipping away one earcup
The headset features a “flip-away” earcup for single-
sided listening.
Adjusting the volume directly on the audio system
Connect the headset to the corresponding sockets of your
audio system. Adjust the volume directly on the audio
system.
Hearing damage due to high volumes!
This headset is capable of producing high
sound pressure levels. Higher volumes or
longer durations can damage your hearing!
Set the volume to a medium level. Make sure
that you can hear critical sounds such as
warning alarms.
CAUTION!
7

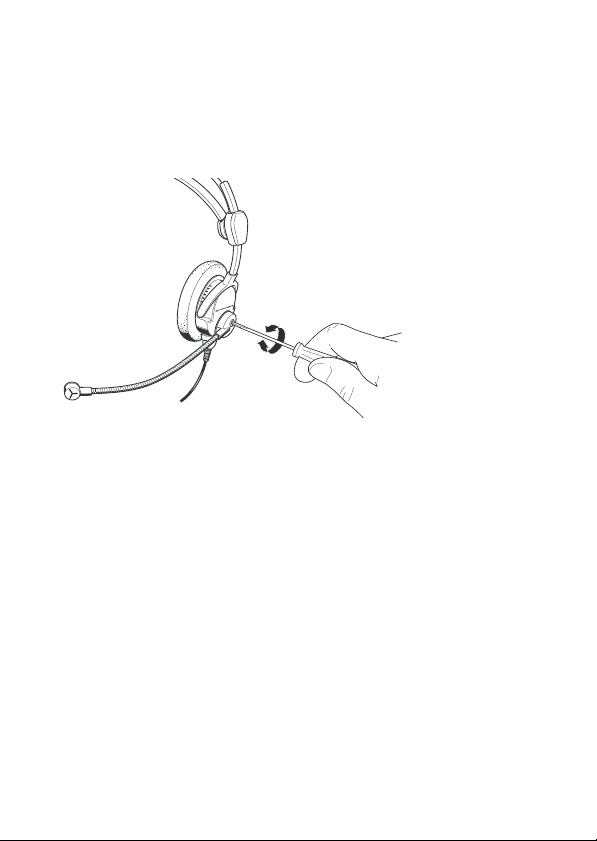

Adjusting the microphone sensitivity
The microphone sensitivity has been factory pre-set to
80 mV/Pa. You can change the microphone sensitivity by
turning a small screwdriver in the direction of the arrow.
+
–
8
Care and maintenance
Cleaning the headset
Use a soft, slightly damp cloth to clean the headset from
time to time. If the headset is very dirty, use a cloth
dampened with mild, soapy water. Do not use any
solvents or cleansing agents.

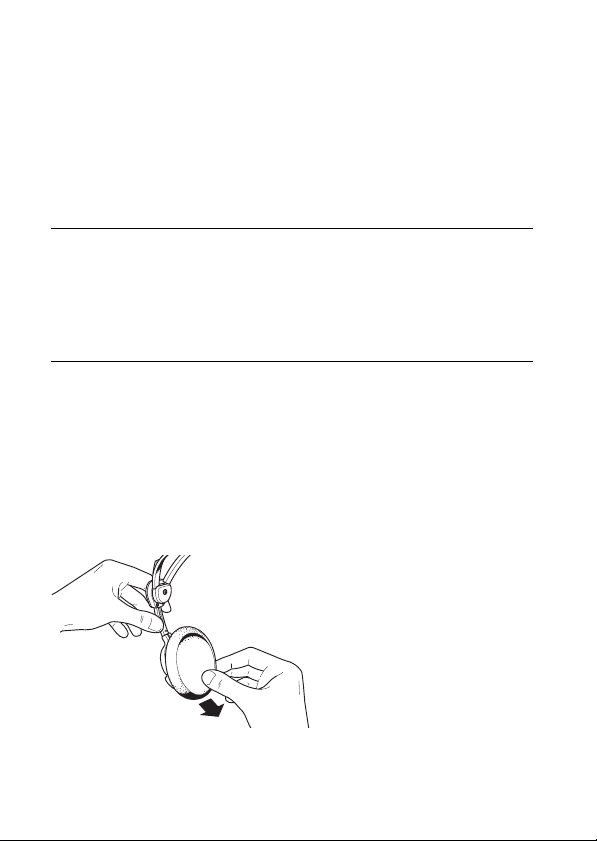

Replacing the earpads
For reasons of hygiene, the black earpads should be
replaced from time to time. Grasp the edge of the foam
earpad behind the earcup as shown and peel it up and
away from the earcup. Slide the new earpad onto the
earcup. Repeat for the other earcup.
Danger of short-circuit due to the ingress of
water!
Water entering the housing of the headset
can cause a short-circuit and damage the
electronics.
CAUTION!
9
Accessories and spare parts
By changing the cable, you can simply retrofit your
headset (see “Product variants” on page 11).
yCable -6 Cat. No. 500836
yCable -7 Cat. No. 502360
yCable -H-6 Cat. No. 502533
yCable -L Cat. No. 502365
yCable -PTT-6 Cat. No. 500844
yCable -PTT-6-1 Cat. No. 502418
yCable -PTT-L Cat. No. 500845
yCable -PTT-LA Cat. No. 502187
yCable D-3PTT-M Cat. No. 500930
yCable E-3PTT-M Cat. No. 500931
yHeadband padding, 1 pair Cat. No. 515629
yEarpads, 1 pair Cat. No. 515295
yEarpads, 100 pairs Cat. No. 515296
yHygiene pads HZH 46, 200 pairs Cat. No. 502194
yWind and pop screen for BKE 46, Cat. No. 515297
1 item
yWind and pop screen for BKE 46, Cat. No. 514127
any number of items
yWind and pop screen for BMD 46, Cat. No. 034177
any number of items
