Sennheiser EM 203 Manuale di istruzioni

5000SeriesReceiverSystems

109

TechnicalData(OverallSystem)

Channelspermainframe max.8

Frequencyrange 450-960 MHz(UHF)

138-260 MHz(VHF)

Switchingbandwidth 24MHz(UHFband)

7MHz(VHFband)

Settingof

receivingfrequencies

in5kHzsteps

Frequencyresponse 40-20,000Hz

THD typ. 0.5%

Signal-to-noiseratio 117dB(A)

Noisereductionsystem “HiDynplus”

Headphoneoutput 1/4”(6.3mm)jacksocket

RFinput 2xN-typesocket

AFoutput 8xXLR-3M

1x25-pinsub-D

Housing 19”,4U

Weight(fullyequipped) approx.25kg

5000SeriesReceiverSystems

• Modularmulti-channelreceiversystemfordemandingmusicalandbroadcastapplications

• Largemainframehousesupto8truediversityreceivermodules

• Smallmainframehousesupto3truediversityreceivermodules

• Severalmainframescanbedaisy-chained

• Indicationoftransmitterbatterystatus(SK50/250and SKM 5000 only)

• “HiDynplus”noisereductionsystem

• Mikroportcomputerdisplayforremotecontrollinglargesystems

Tips

for Use

5000SeriesReceiverSystems

110

POWER

REMOTE

LEVEL

+5V

+12V

-12V

DC- A

DC- B

OL- A

OL- B

+20

+12 dBu

AS 212

EM 1046 DI

DISPLAY - COMPUTER

SUPPLY

DATA IN

DATA

6242/1

HAUFE

6242/1

HAUFE

6242/1

HAUFE

6242/1

HAUFE

6242/1

HAUFE

6242/1

HAUFE

6242/1

HAUFE

6242/1

HAUFE

6242/1

HAUFE

48846

48845

B1 MB 1

EM1046SAPowersupply

module,230VAC/120VAC

EM1046MFMainframe,

forupto8receivermodules

EM20-NTPlug-inmainsunit

forEM203Mainframe

EM203MFMainframe,

forupto3receivermodules,

fittedwithI/Omoduleattherear

EM1046AO-XAFoutputmodule,

2AFoutputsperchannel(XLR,sub-D)

EM1046RX-UHF

Receivermodule

450-960MHz

EM1046RX-VHF

Receivermodule

138-260MHz

EM1046CC10Blankingplate,

10TE,forclosingoffunused

spacesatthefront

EM1046LILineinterface

forMikroportcomputerdisplay

EM1046DIDisplayinterface

forMikroportcomputerdisplay

(suppliedwithsoftware)

NT20-1Plug-inmainsunit

forEM1046DIDisplayinterface

EM1046CI

Chassis

interfacefor

Mikroport

computer

display

EM1046AO-Z

Balancingcard,

Transformerforthesub-D

AFoutputofthe

outputmodule

EM1046RI

RFinputmodule EM1046ASPAntennasplitter

module(3versions) EM1046CC12Blankingplate

12TE,forclosingoff unused

spacesattherear

EM1046FAFanassembly

(notpictured)

5000SeriesReceiverSystems

111

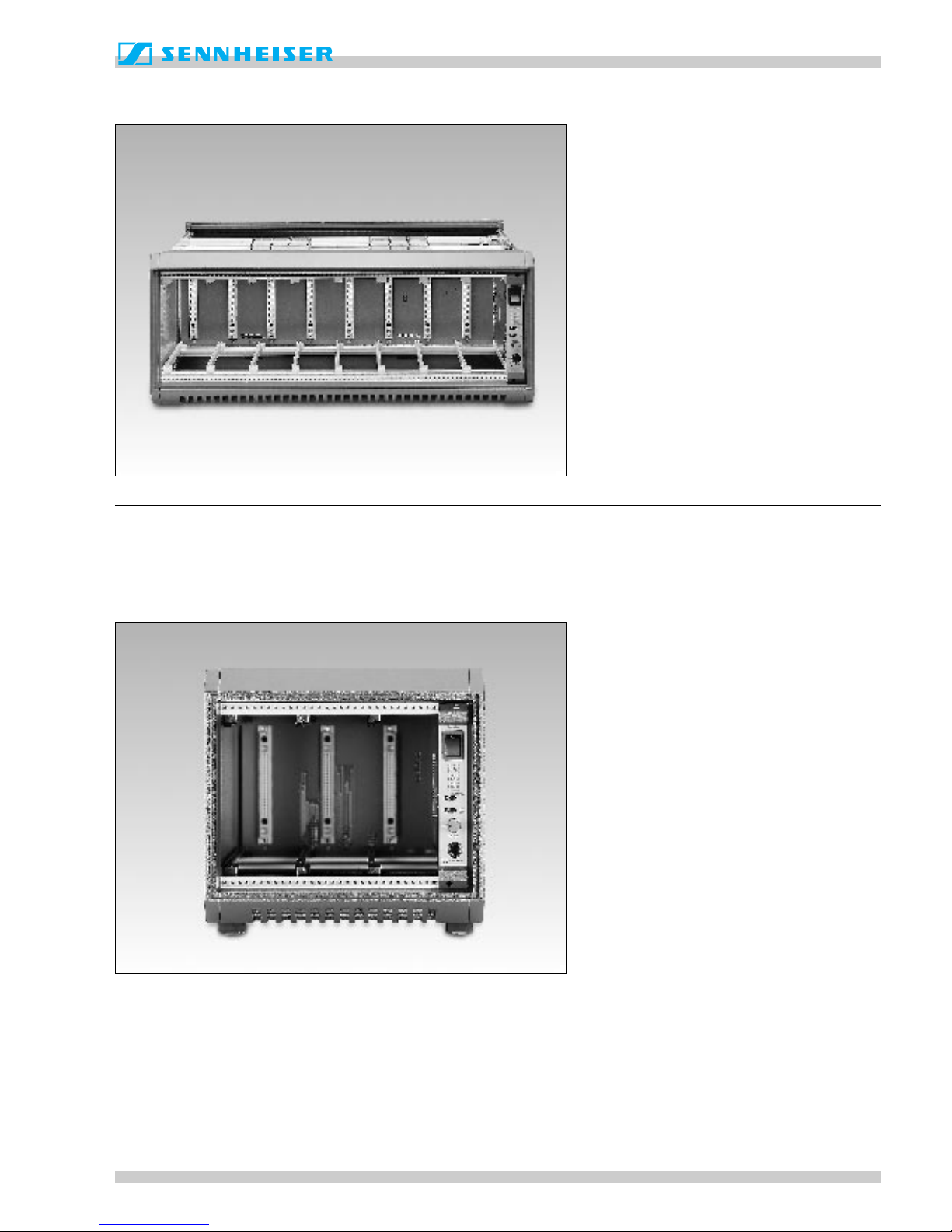

The EM 1046 MF is a large mainframe for housing up

to 8 receiver modules. The mainframe features two

integralactive1-to-8antennasplitters.

The back panel houses the power supply module,

RF input module and AF output module. The

Mikroport computer display can be connected via an

interface module. Additional antenna splitter modules

are available for multiple mainframe systems

. 19” rack-

mount“ears”supplied.

The EM 203 MF mainframe is used for smaller 5000

seriesreceiversystems.

At the front, up to three receiver modules can be

housed.Thebackpanelisequipped withan I/Omodule.

The EM 203 MF features two integral passive 1-to-3

antenna splitters. The EM 20-NT plug-in mains unit is

not included in the supply schedule, please order

separately!

ProductVariants

EM 1046MF Mainframeforupto8receivermodules Cat.no.03220

ProductVariants

EM 203MF Mainframeforupto3receivermodules Cat. no.03692

EM1046MF

EM203MF

TechnicalData

Monitoroutput 1/4”(6.3mm)jacksocket

Gain +20dBadjustable,

+20dBswitchable

Outputlevel max.18dBm /600Ω,

shortcircuit-proof,load≥50Ω

Housing 19”, 4U

Dimensions approx.490 x190x450mm

Weight approx.9kg(empty)

TechnicalData

Monitoroutput 1/4”(6.3mm)jacksocket

Gain +20dBadjustable,

+20dBswitchable

Outputlevel max.18dBm /600Ω,

shortcircuit-proof,load≥50Ω

Plug-inmainsunit EM20-NT(notincludedin

thesupplyschedule)

Dimensions approx.200x190x360mm

Weight approx.2.5 kg(empty)
