SERAPHIM DG AND BG PHOTOVOLTAIC MODULE

JIANGSU SERAPHIM PHOTOVOLTAIC SYSTEM CO. LTD.

ADDRESS: No.10, TongshunRD,Henglin Town,Wujin District,

Changzhou, China

TELEPHONE: +86-519-69699879

MAILBOX: info@seraphim-energy.com

21V1.0

Thanks for choosing Seraphim Photovoltaic Modules (hereafter referred to as

“PV Module”), This Guide is to give information onhow to apply Seraphim PV

modules properly.

Installers must read and understand this Guide prior to installation. For any

questions, please contact our technical department (technic@seraphim-ener-

gy.com) for further information. Installers should follow all safety precautions

described in this Guide as well as local codes when installing a module.

Keep this Guide in a safe place for future reference (care and maintenance)and

in case of sale or disposal of the PV modules.

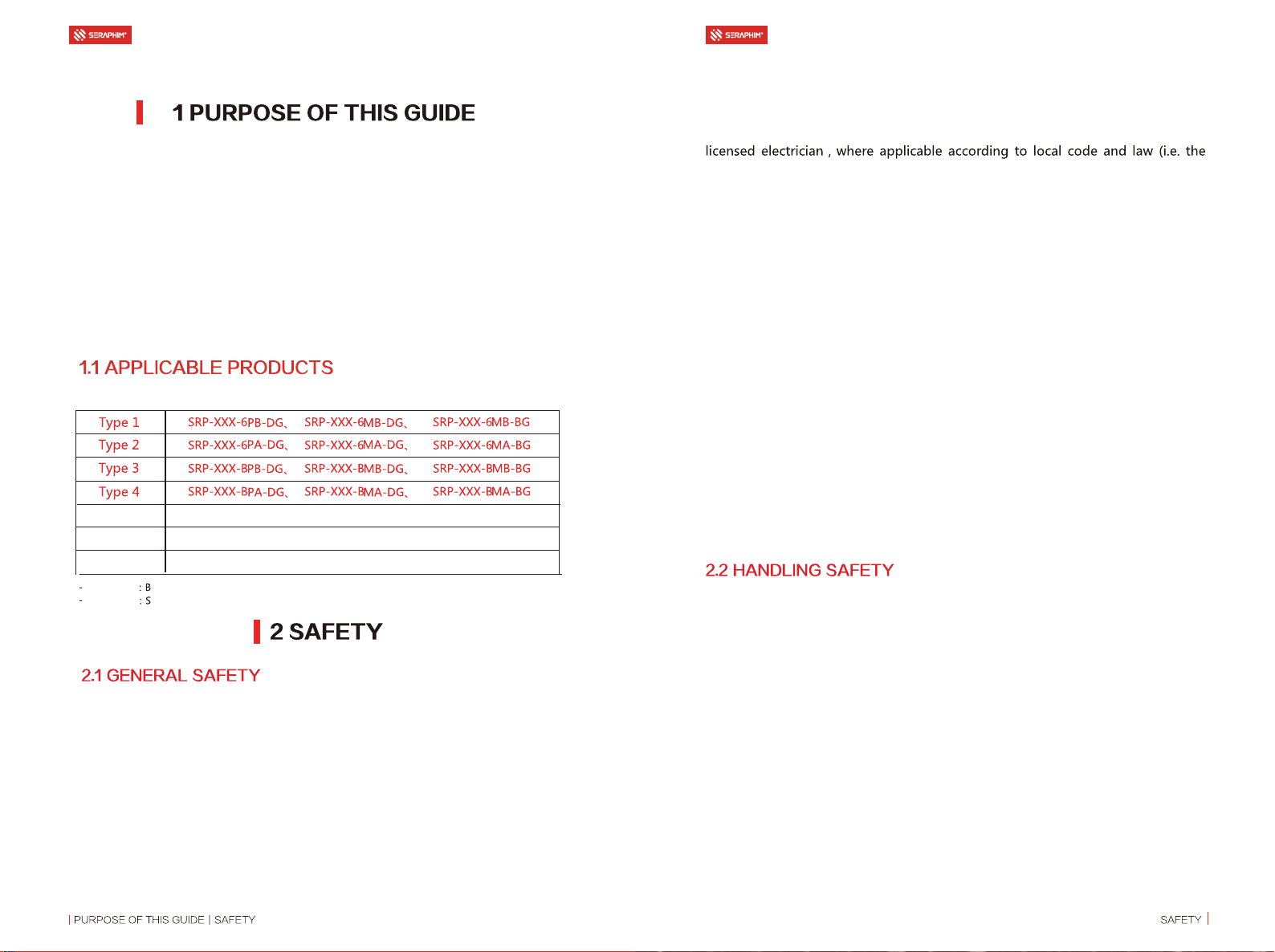

This document is applicable to the series of PV modules as listed below:

•The PV modules are qualified for application class A, which may be used in

systems operating at greater than50 VDC or 240 W, where generalcontact

access is anticipated. PV modules qualified for safetythrough this part of IEC

61730and IEC 61730-2 and within this application class are considered to meet

the requirements for safety class II.

•The PV modules shall be properly grounded in accordance with the instruc-

tions in this Guide or the requirements of the National Electrical Code.

•Installing PV modules requires specialized skills and knowledge. Installation

should only be performed by qualified personnel, electrical connections requires a

NEC for the USA and CEC for Canada).

•Installers should assume all risks of injury that might occur during installation,

including, but not limited to, the risk of electric shock.

•One single PV module may generate more than 30V DC when exposed to direct

sunlight. Access to a DC voltage of 30V or more is potentially hazardous.

• PV modules convert light energy to DC electrical energy, which are designed for

outdoor use. PV modules can be mounted onto ground, rooftop, vehicles or boats

etc. The proper design of support structures lies within responsibility of the system

designers and installers.

•Do not use mirrors or other magnifiers to concentrate sunlight onto the PV

modules.

•When installing the PV modules, abide to all local, regional and national statuto-

ry regulations. Obtain a building permit if necessary.

•Only use equipment, connectors, wiring and support frames compatible with the

PV modules.

• Do not lift the PV module by grasping the module’s junction box or electrical

leads.

• Do not stand or step on the PV modules or place heavy objects onto it.

• Do not drop the PV module or allow objects to fall on the PV module.

• Do handle with care when move, transport and install the PV modules.

• Do not lean modules on other objects.

•Do apply soft protector to separate the modules when stacking modules and

ensure the safety

• Do not attempt to disassemble thePV modules, and do not remove any

attached nameplates or components from the PV modules.

INSTALLATION GUIDE FOR SERAPHIM

DUAL GLASS PHOTOVOLTAIC MODULE

INSTALLATION GUIDE FOR SERAPHIM

DUAL GLASS PHOTOVOLTAIC MODULE

DG Module ingle side dual-glass module

BG Module ifacial dual-glass module

XXX：Module power

:_VK5986>>>(3Z(-

986>>>(3C(-

:_VK6

986>>>(3D(-

:_VK7

*/45"--"5*0/4"'&5:

'*3&4"'&5:

.&$)"/*$"-*/45"--"5*0/

130%6$5*%&/5*'*$"5*0/嗡54嗡4"'&5:

130%6$5*%&/5*'*$"5*0/

• Do not apply paint or adhesive to the PV module top surface.

• Do not use PV modules with broken glass which has danger of electrical shock.

• Do not handle panels in wet condition unless has appropriate protection.

• Do not expose PV module to sunlight until installation to avoid unnecessary deg-

radation.

• Installation shall be in conformity with IEC standard, Safety Standard for Electrical

Installations.

• Do not disconnect under load.

• Do not touch conductive parts of PV modules, such as terminals which can result

in burns, sparks and lethal shock whether or not the PV module is connected.

• Do not touch the PV module unnecessarily during installation.

• Do not work in the rain, snow or windy conditions.

• Do not expose the artificially sunlight to PV modules. Completely cover the PV

module with an opaque material during installation to prevent electricity from

being generated.

• Do not drill holes on the modules of broke the encapsulation on the module

side.

• Do not wear metallic rings, watchbands, ear, nose, lip rings or other metallic

objects while installing or troubleshooting.

• Only use insulated tools that are qualified for working on electrical installations.

• Follow the safety regulations for all other system components, including wires

and cables, connectors, charging regulators, inverters, storage batteries, recharge-

able batteries, etc.

• Under normal outdoor conditions the current and voltage generated will differ

from those listed on the datasheet. When design systems, current and short-circuit

current should be multiplied by a factor of 1.25 to determine components ratings.

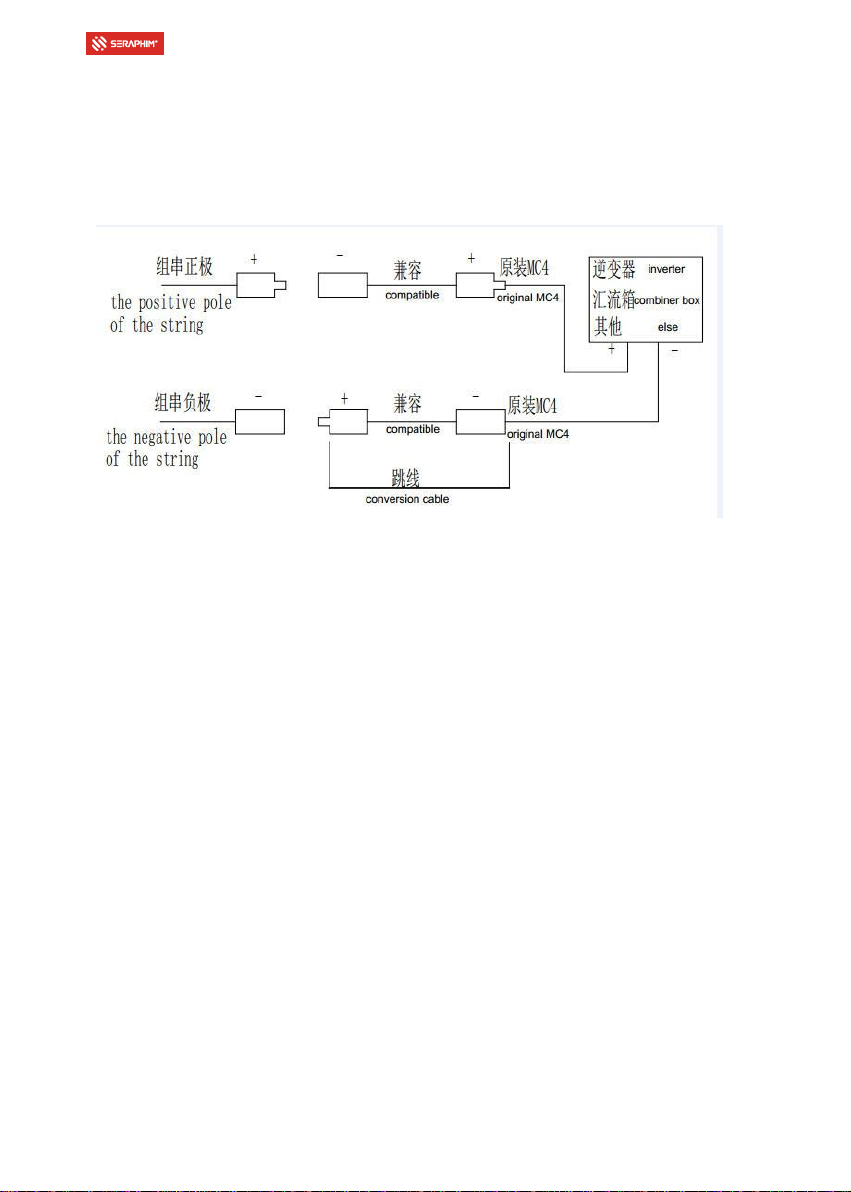

• Only use connectors compatible with the PV module connectors. Removing the

connectors without prior authorization will invalidate the warranty.

• Do not dismantle installed modules to another project, which may invalidate the

warranty.

Each module has two Barcode stickers which have the same unique serial No. of

each module and one label sticker:

Barcode 1: Laminated into PV modules.

Barcode 2: Stick on the backside of PV modules.

Label: Stick on the backside of PV modules, contains characteristics parameters of

the PV modules.

Check the serial No. in the barcode with the packing list when unpacking. Provide

PV module serial No. when you need support from SERAPHIM on particular PV

modules.

• The fire rating of this module is valid only this Guide is followed.

• Consult your local authority for Guidelines and requirements for building or

structural fire safety.

• Do not use PV modules near equipment or in places where flammable gases

may be generated.

• Follow local codes and laws when install the modules

INSTALLATION GUIDE FOR SERAPHIM

DUAL GLASS PHOTOVOLTAIC MODULE

INSTALLATION GUIDE FOR SERAPHIM

DUAL GLASS PHOTOVOLTAIC MODULE

$-".1*/45"--"5*0/

6嗡.&$)"/*$"-*/45"--"5*0/ .&$)"/*$"-*/45"--"5*0/嗡7

The frameless dual glass module is designed for clamp installation. It need the

clamps

with rubber strips to fix on the bracket. Figure 1 and figure 2 show the structure

of two kind of clamps.

Figure 1 Double-side clamp

Table 1 Components of the clamp

NO. Name Remark

Aluminium alloy 6063-T5

Spring

Bolt M8 stainless steel bolt

Rubber strip Ethylene Propylene

*OKTK3UTUSKX+6*3

Figure 2 Single-side clamp

INSTALLATION GUIDE FOR SERAPHIM

DUAL GLASS PHOTOVOLTAIC MODULE

INSTALLATION GUIDE FOR SERAPHIM

DUAL GLASS PHOTOVOLTAIC MODULE

-0$"5*0/"/%"/(-&4&-&$5*0/

(&/&3"-*/45"--"5*0/13*/$*1-&

• Module can be installed in both landscape and portrait modes【1】

• The clamp shall not shade the front side of the cells.

• The PV modules shall be installed high enough to keep it away from potential

shading, flying sands, snow and water.

• It is recommended to install the PV modules 30cm away from the ground to make

sure ventilation.

• Appropriate installation structures shall be chosen to meet required mechanical

load.

• It is recommended to install the PV modules with minimum angle of 10 degree to

make the dust easily to be washed off.

• It is recommended to keep minimum 2cm gap between PV modules for thermal

expansion of materials.

• Install PV modules appropriately according to corresponding mechanical load

need.

It is recommended to install PV modules where has excellent sunlight resources. In

the Northern Hemisphere, the module should typically face south, and in the

Southern Hemisphere, the modules should typically face north. The most optimistic

installation angle varies according to different latitudes and longitudes; please con

sult experts with appropriate knowledge background when determining the instal

lation locations and angles.

When choosing a site, avoid trees, buildings or obstructions, which could cast

shadows on the solar photovoltaic modules. Shading causes hotspot and loss of

output, even though the factory fitted bypass diodes of the PV module will mini

mize such effect.

Do not install the PV module near naked flame or flammable materials.

Do not install the PV module in a location where it would be immersed in water or

constantly exposed to water from a sprinkler or fountain etc.

• It is recommended to install the bifacial modules 1m away from the ground or roof

to maintain the energy yield of module rear side.

In order to ensure that the modules can withstand a downward force of up to

2400 Pa (244 kg/m2), the modules shall be fixed on the bracket with the long

side of the module, using a minimum of four clamps. Please make sure to use at

least of two purlins behind the modules to support the modules.

The selection and installation of the clamps shall obey the requirement accord

ing to table 2. Otherwise the module may not satisfy the mechanical load and

have the risk of broken.

The applied torque should be big enough to fix it steadily.The reference torque

for screw



2 2



is 16~20N*m.

INSTALLA R SERAPHIMTION GUIDE FO

DUAL GLASS PHOTOVOLTAIC MODULE

INSTALLATION GUIDE FOR SERAPHIM

DUAL GLASS PHOTOVOLTAIC MODULE

ble 2

ype Loads Clamp Length Installation Drawing

≥

SERIAL NU

BER

250

350

250

350

L/2

SERIALNUMBER

350

450

350

450

SERIALNUMBERSERIALNUMBER

250

350

250

350

L/2

SERIAL NU

BER

350

450

350

450

≥

Figure 3 Double-side clamp Figure 4 Single-side clamp

Figure 5 Double-side clamp installation Figure 6 Single-side clamp installation

In order to ensure that the modules can withstand a downward force of up to

5400 Pa (550 kg/m2), the modules shall be fixed on the bracket with the long

side of the module, using a minimum of four clamps. Please make sure to use at

least of two purlins behind the modules to support the modules.

The selection and installation of the clamps shall obey the requirement accord

ing to table 3. Otherwise the module may not satisfy the mechanical load and

have the risk of broken.

The dual glass module with frame is designed for clamp installation. It needs

the clamps, bolts, nuts and washers to fix on the bracket(as shown in figure5and

figure 6). Sufficient torque should be applied to the bolts to ensure stable reinfo-

N02~61siwercs8MrofeulaveuqrotecnereferehT.tn-rceme

INSTALLATION GUIDE FOR SERAPHIM

DUAL GLASS PHOTOVOLTAIC MODULE

ble 3

Type 1 + 5400

- 2400

+ 5400

- 2400

+ 5400

- 2400

+ 5400

- 2400

Type 2

Type 4

SERIAL NUMBER

L/8

L/4

L/8

L/4

L/8

L/4

L/8

L/4

SERIAL NUMBER

L/8

L/4

L/8

L/4

SERIAL NUMBER

L/8

L/4

L/8

L/4

ype Loads Clamp Length Installation Drawing

10 11

+ 5400

- 2400

Type 5

SERIAL NUMBE R

1/8L

1/4L

1/8L

1/4L

5



5



:_VK6

:_VK7

≥

SS

≥

5SS

INSTALLATION GUIDE FOR SERAPHIM

DUAL GLASS PHOTOVOLTAIC MODULE

The dual glass module with frame is also designed for screw installation. It

needs the screws, bolts, nuts and washers to fix on the bracket(as shown in fig7).

Sufficient torque should be applied to the bolts to ensure stable reinforcement.

N02~61siwercs8MrofeulaveuqrotecnereferehT

MECHNICAL INSTALLATION

Figure 7 M8 Screw installation

In order to ensure that the modules can withstandadownward force of up to

2400 Pa (244 kg/m2), the modules shall be fixed on the bracket with the long

side of the module, using a minimum of four screws. Please make sure to use at

least of two purlins behind the modules to support the modules.

The selection and installation of the screws shall obey the requirement accord

ing to table 4. Otherwise the module may not satisfy the mechanical load and

have the risk of broken.

INSTALLATION GUIDE FOR SERAPHIM

DUAL GLASS PHOTOVOLTAIC MODULE

INSTALLATION GUIDE FOR SERAPHIM

DUAL GLASS PHOTOVOLTAIC MODULE



.&$)"/*$"-*/45"--"5*0/ &-&$53*$"-*/45"--"5*0/

12 13

Loads(Pa) Screw Number Installation Drawing

Installation Site

Outer four holes

Inner four holes

+ 2400

- 2400

+ 2400

- 2400

Table 4

Outer four holes

Inner four holes + 5400

- 2400

+ 2400

- 2400

Nextracker holes

Loads(Pa) Screw Number Installation Drawing

Installation Site



&-&$53*$"-*/45"--"5*0/

WARNING Electrical Hazard

This module produces electricity when exposed to light. Follow all appli-

cable electrical safety precautions.

• ONLY qualified personnel can install or perform maintenance work on these PV

modules.

• BE AWARE of dangerous high DC voltage when connecting module.

• DO NOT damage or scratch the rear surface of the module.

• DO NOT handle or install module when they are wet.

The wiring components shall be compatible with the PV modules.

Dual-glassmodule

Frame

Hexbolt

Flatwasher

Springwasher

Hexnut

Bracket



INSTALLATION GUIDE FOR SERAPHIM

DUAL GLASS PHOTOVOLTAIC MODULE

INSTALLATION GUIDE FOR SERAPHIM

DUAL GLASS PHOTOVOLTAIC MODULE

The PV modules connected in serial shall have similar current. The Voc of one PV

string shall no higher than the maximum system voltage, the Voc temperature

coefficient feature and the extreme low temperature of installation location must

be taken into consideration when calculate the Voc of the PV string .

The PV modules connected in parallel shall have similar Voltage. The Isc tempera-

ture coefficient feature and the extreme high temperature of installation location

must be taken into consideration when calculate the Isc of the PV array.

Please refer to local regulations to determine the system wires size, type and tem-

perature.

The cross-sectional area and cable connector capacity must satisfy the maximum

short-circuit of PV system (For a single component, we recommended the

cross-sectional area of cables is 4mm2 and the rated current of connectors is

more than 15A), otherwise cables and connectors will become overheating for

large current. Please pay attention: the temperature limit of cables is 85° C and the

temperature limit of connector is 105°C

A qualified system designer or integrator should always be consulted.

Building permits, inspections and approvals by the local utility are generally

required.

14.&$)"/*$"-*/45"--"5*0/ &-&$53*$"-*/45"--"5*0/ 15

If the connector is damaged or deformed,

Before installation, make sure that the connector is well protected and there

should be no foreign matter such as soil, sand and gravel in the connector. If any,

it must be cleaned before installation.

the connector must be replaced before use; if there is no spare connector, please

contact seraphim in time

Remark ：

If conversion cable is needed, see attachment1 for details.

Clean the glass surface of the module regularly with clean water and a soft

sponge or cloth. A mild, non-abrasive cleaning agent may be used to remove

stubborn dirt.

Check the electrical, grounding and mechanical connections every six months to

verify that they are clean, secure, undamaged and free of corrosion.

If any problem arises, consult a professional for suggestions.

Caution: observe the maintenance instructions for all components used in the

system, such as support frames, charging regulators, inverters, batteries etc.

The parameters may be updated time to time, accurate parameters please

check on our website: http://www.seraphim-energy.com or email to our techni

cal support team: technic@seraphim-energy.com.

REMARK

installation

Module

Type

Landscape Portrait

installation

16K17

INSTALLATION GUIDE FOR SERAPHIM

DUAL GLASS PHOTOVOLTAIC MODULE

INSTALLATION GUIDE FOR SERAPHIM

DUAL GLASS PHOTOVOLTAIC MODULE

SERIAL NUMBERSERIAL NUMBER Junction Box

Junction BoxJunction Box

﹢

Junction Box

﹢

SERIAL NUMBER

SERIAL NUMBER Junction Box

Junction BoxJunction Box

﹢

Junction Box

﹢

SERIAL NUMBER

SERIAL NUMBERJunction Box

Junction BoxJunction Box

﹢

Junction Box

﹢

SERIAL NUMBER

SERIAL NUMBERJunction Box

Junction BoxJunction Box

﹢

Junction Box

﹢

:_VK5

Type6

Type7

SERI

NUMBERSERI

NUMBER

SERI

NUMBER

SERIAL

NUMBER

Conversion cables are required to meet any of the following conditions:

1. When the DC side input terminal of the inverter or combiner box is original MC4.

2. When the manufacturer of inverter or combiner box requires series DC input bus

terminal must be MC4.

Inspection before use:

1. Conﬁrm the original MC4 connector of the conversion cable and compatible MC4

connector.

2. Make sure that the connector on the conversion cable is not detached or loose,

and the metal core is not skewed or water stained, etc.

3. Conﬁrm that the cable insulation layer of the conversion cable is not damaged,

and the cable is not severely bent or twisted.

Installation of conversion cable:

1. The conversion cable installation position: the positive pole of the string is the

positive pole of the ﬁrst component junction box cable in the string, and the nega

tive pole is the negative pole of the last component junction box cable in the string.

2. Insert the positive pole of the string into the negative pole of the conversion

cable (compatible), and connect the other positive pole of the conversion cable

(original MC4) to the DC positive input terminal of the inverter or combiner box.

3. Insert the negative pole of the string into the positive pole of the conversion

cable (compatible), and connect the negative pole of the conversion cable (original

MC4) to the DC negative input of the inverter or combiner box.

ATTACHMENT 1

INSTRUCTIONS FOR USE OF CONVERSION CABLES

18嗡.&$)"/*$"-*/45"--"5*0/* 1"3".&5&34

INSTALLATION GUIDE FOR SERAPHIM

DUAL GLASS PHOTOVOLTAIC MODULE

Precautions:

1. Make sure that the polarity of the string after connection matches the polarity

between the inverter or combiner box.

2. When using, install and connect strictly according to the schematic diagram, and

do not reverse operation.

3. Each string on the DC side is limited to one pair of conversion cable wires, and

cannot be abused, such as connecting multiple times as an extension wire.

The schematic diagram is as follows:

Altri manuali per SRP 6PB-DG

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Seraphim Unità di controllo

Seraphim

Seraphim SRP-XXX-6PA-BB Manuale utente

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
