SEW 185 LCT Manuale utente
56
185 LCT
(185 LCT) RJ45/RJ11
10/100 base-T Token Ring
LED
EN61326-1
105 5F
TEL (02)2268-1528
FAX (02)2268-1529
E-mail [email protected]
Http //www.sew.com.tw
LAN CABLE TESTER
LED
80%
80%
0 C ~ 40 C
-5 C ~ 50 C
9V (6F22.006P)x1
132( ) x 55( ) x 39( )
74( ) x 30( ) x 25( )
148
33
x 1( )
x 1( )
x 1( )
1 2 8
7
6
5
4
3GND
128
7
6
5
4
3GND
128
7
6
5
4
3GND
128
7
6
5
4
3GND
(IN) (OUT)
http://www.51082245.com/sew.htm
Test & Measuring Instruments

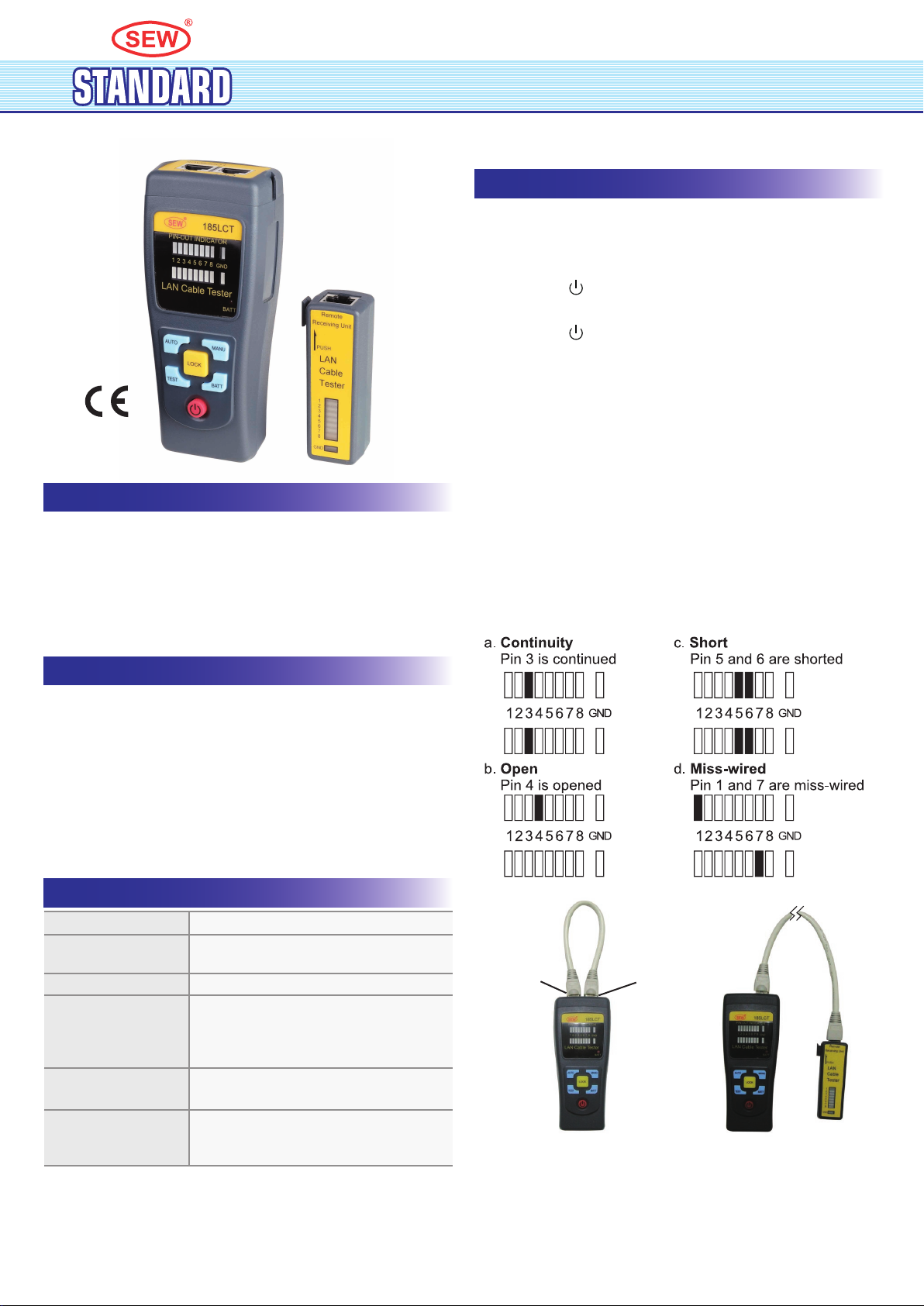

INTRODUCTION
FEATURES
● The 185 LCT Lan cable tester is a newly designed tool that
can easily test the correct pin configuration of the
RJ45/RJ11 modular cables, 10/100 base-T cable and
Token Ring cable etc.
● By comparing one transmitting end and the corresponding
receiving end, the 185 LCT Lan cable tester also can test
installed cable far away by using the remote receiving unit.
● The 185 LCT provides the variety for wiring check, such as
cable continuity, open status, short status and miss-wired.
● Designed for RJ45/RJ11 modular cables, 10/100 base-T
cable and Token Ring cable etc.
● The Lan cable tester can verify cable continuity, open, short
circuit and miss-wired.
● The remote receiving unit is available for installed cables far
away either on the wall plates or on the patch panels.
● Auto and manual scan function.
● Ground wire test.
● Lock status function.
● Buzzer sound warning for wire status.
● Display: LED indication for wire status.
● EN61326-1
OPERATION
Loopback test
● Plug one end of the testing cable into the Rj45 jack of
sourcing end on the master unit and another end of the
testing cable into the RJ-45 jack of receiving end on the
master unit.
● Press the " " button, the master unit will start a
sequential scanning process if the master unit is in "auto-
scanning" mode.
● Press the " " button, the pin1 LED lamps of the LED
indicators will be alight if the master unit is in "manual-
scanning" mode.
Note: When the battery power is low, the testing results may
not be correct. Please replace with a new battery.
● You can choose a auto-scanning mode or a manual-
scanning mode by pressing the "AUTO" button or the
"MANU" button.
● The Lock function is available in "auto-scanning" mode.
● When the loop is "OPEN", you will hear the sound of the
buzzer.
Remote test
● Plug one end of the testing cable into the Rj45 jack of
sourcing end on the master unit and another end of the
testing cable into the RJ-45 jack of the remote receiving
unit, then make tests.
● Read the testing results from the LED indicator on the
remote receiving unit.
Test result
Remote Test
Loopback Test
Receiving
end (IN)
Sourcing
end (OUT)
LAN CABLE TESTER
SPECIFICATIONS
Display
Operating
Temperature
Power Source
Dimensions
Weight
Accessories
LED
0℃~40℃
9V (6F22,006P) battery x1
Master unit
132(L)x 55(W)x 39(D)mm
Remote receiving unit
74(L)x 30(W)x 25(D)mm
Master unit: 148 g
Remote receiving unit: 33 g
Instruction manual
Pouch
Battery
STANDARD ELECTRIC WORKS CO., LTD
5F., NO.105, JHONGCHENG RD., TUCHENG DIST., NEW TAIPEI CITY 23674, TAIWAN (R.O.C.)
TEL: 886-2-22681528 FAX: 886-2-22681529
http://www.sew.com.tw e-mail: sales@sew.com.tw
http://www.51082245.com/sew.htm
