Shad SH26 Manuale utente

OWNERS MANUAL

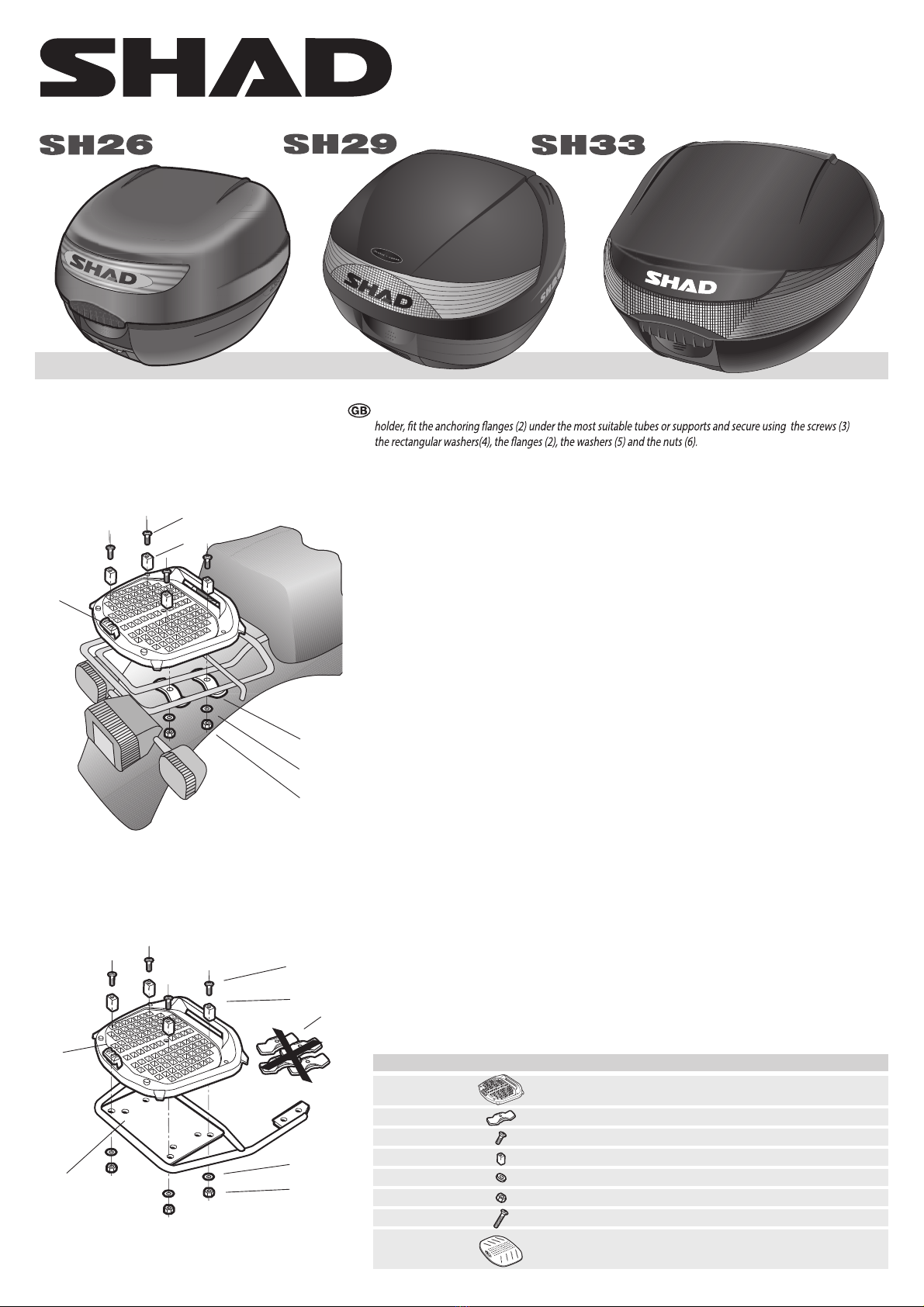

Fig. B

SHAD Anchoring

Fig. A: (*) Place the TOP CASE bottom rack (1) in the assembly position(*) on the motorcycle original packet-

Fig. B on the SHAD anchoring:

Situate the bottom rack of the TOP CASE (1) in the assembly position, remove the fastening clips (2), fasten

with screws (7),the rectangular washers (4), the washers (5) and the nuts (6). Tighten all the screws and nuts.

Fig. A

Q.feR.soP

14211021

49401022

4)569NID04x6M(4414033

42/3170024

4)6Ø(0003035

4)6M(1202036

4)569NID03x6M(8504037

15211028

1. RACK D1B29PA

TOP CASE SH26/SH29/SH33

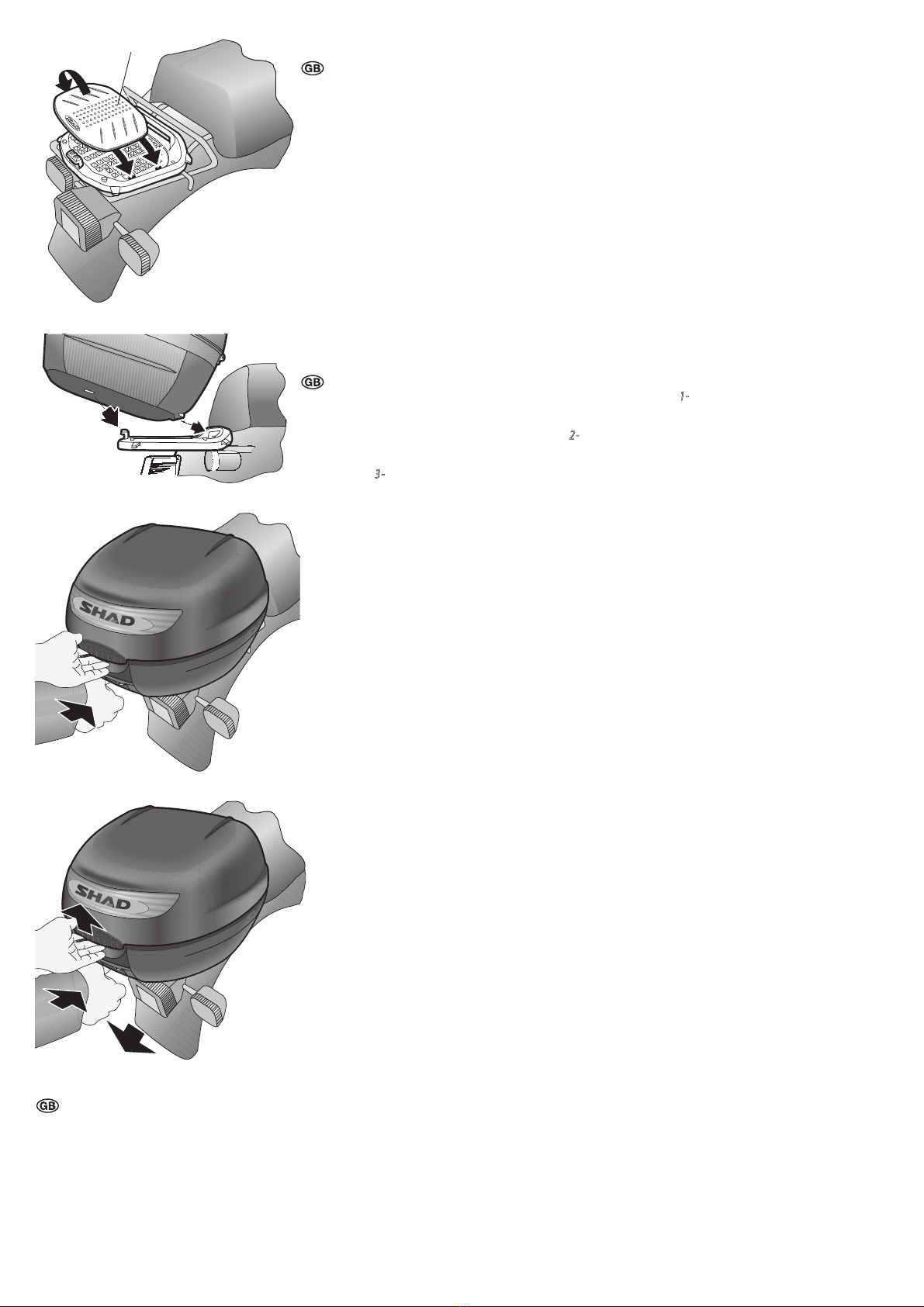

ASSEMBLY INSTRUCCIONS

Once the adaptor has been assembled you are then ready to t the TOP CASE.

1- Put the key in and leave in the vertical

position. Slot the rear tongue into the adaptor groove. Fit the front anchorage

into its housing. WARNING. It is important to

ensure that the case is properly xed to the adaptor. Make sure you hear the click of the pin as it goes in and that the

front opening lever is correctly positioned (Fig. 3). 2- To open the TOP CASE, insert the key in the vertical position.

Operate the locking mechanism as shown in Fig. 4. Turning the key in a clockwise direction will lock the TOP CASE so

that it can neither be opened nor detached from the adaptor. The key can be removed in either the locked or unlocked

position. 3- To remove the TOP CASE, insert the key in the vertical position, hold the case by the handle, operate the

lower part of the opening mechanism and lift up gently until the anchorage comes out of the case. Then pull to remove

the upper tongue from the adaptor groove (Fig.5).

The maximum load of the case is of 3 kg.

Then t the cover (8) by bending it slightly to insert the tongues (Fig. 2)

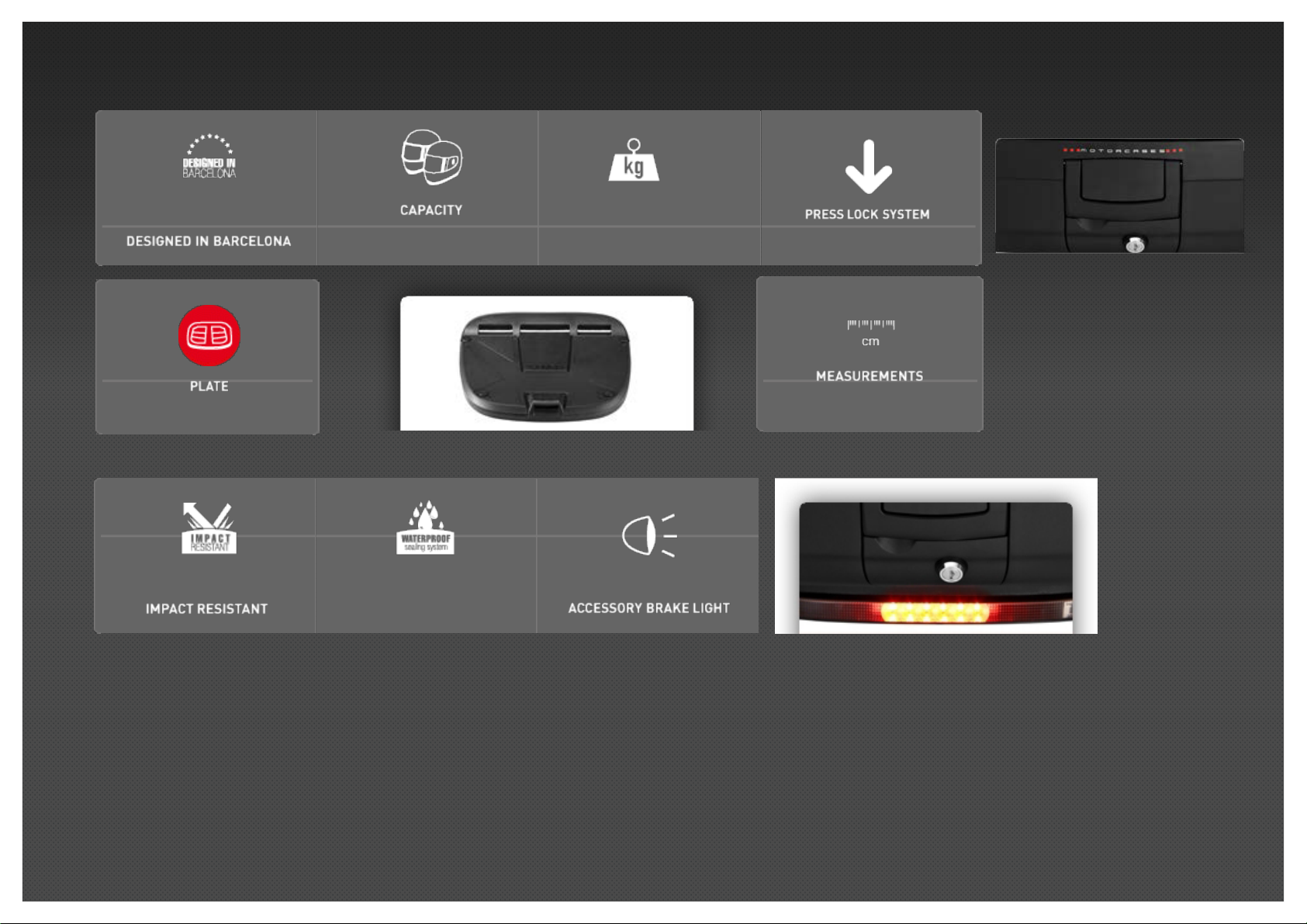

1 full face helmets

Waterproof Sealing System

Width: 40 / Height: 28.2 / Depth: 40.5

FEATURES

D1B29PAR plate included

Maximum Load: 3

Find out more about luggage systems & saddlebags we have.
