Shure E500 Manuale utente

english

E500

Sound Isolating Earphones

Shure E500 Triple

Hi-Definition Drivers

with In-Ear Crossover

and Tuned-Port

Technology deliver the

most accurate acoustic

reproduction for the

ultimate in precision

highs and rich low-

end bass.

27EN3221 (Rev. 1)

Printed in U.S.A.

WEARING THE EARPHONES

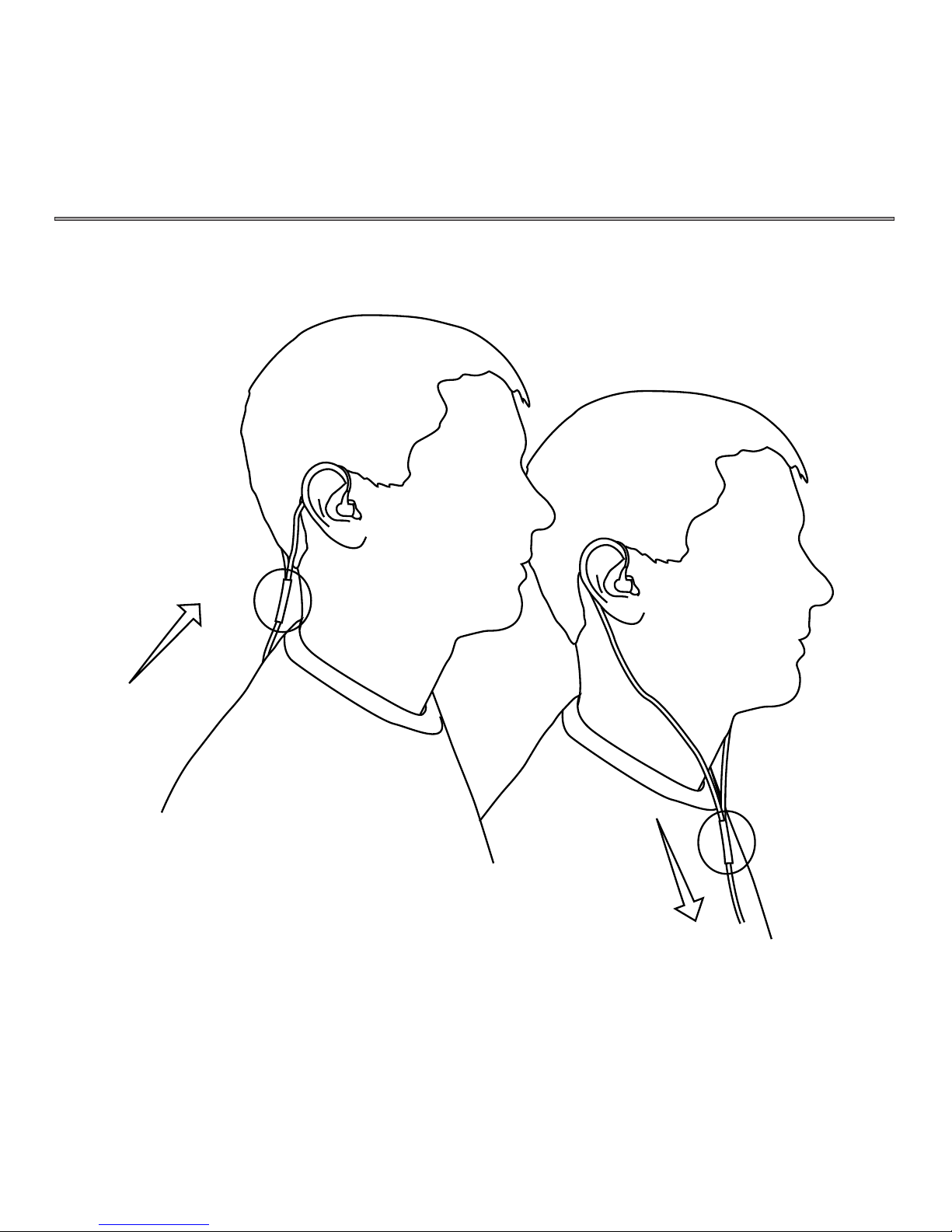

Two suggested methods for wearing the earphones are illustrated below.

Tighten the cable and take up slack by raising the cable sleeve.

Over the ear

in back

Over the ear

in front

english

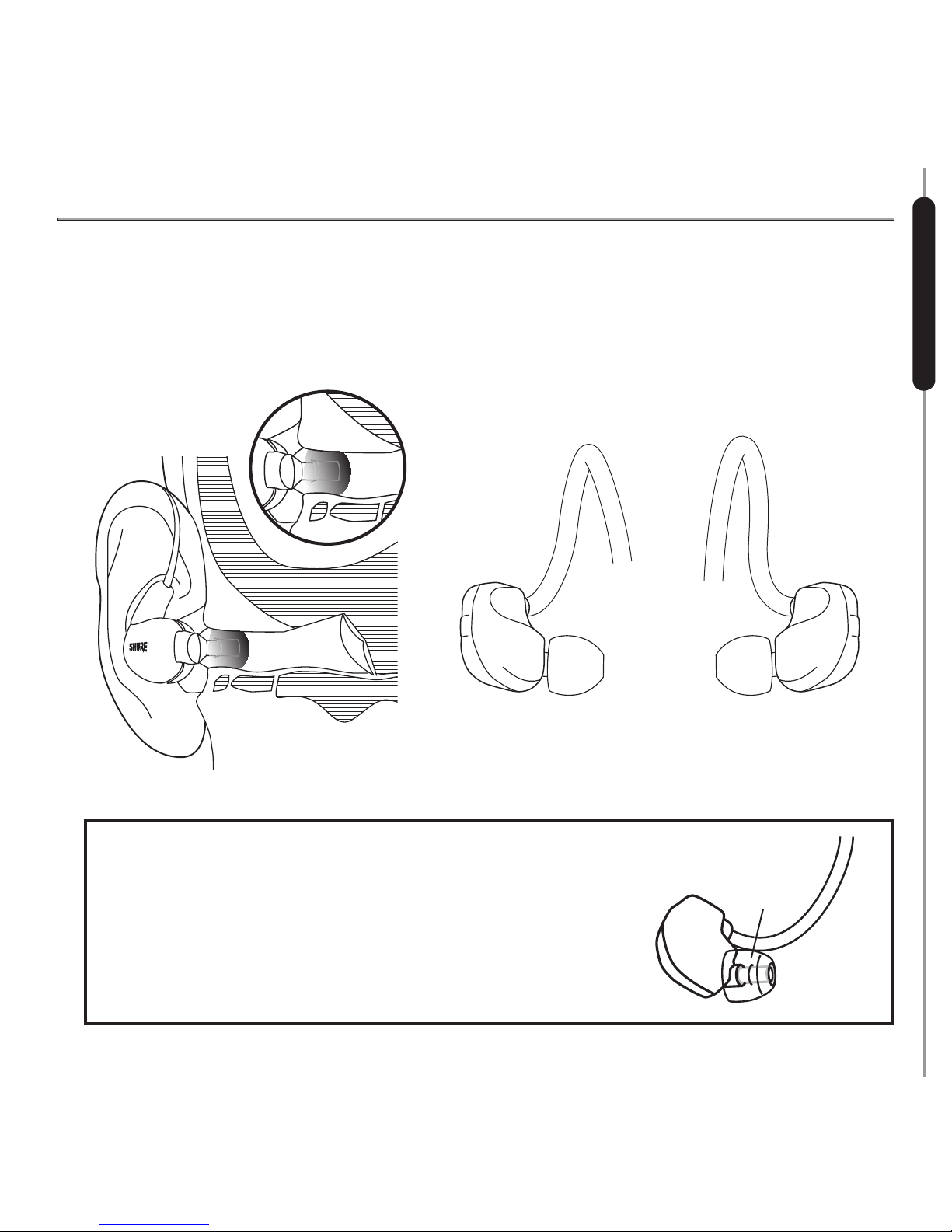

INSERTING THE EARPHONES

If the earphone seems to be lacking in low frequency response (bass), check the

tightness of the seal between the earphone and your ear, or try one of the other

sleeve options.

Warning: Do not push the earphone sleeve beyond the ear canal opening.

Make sure that the sleeve completely

covers the earphone nozzle and is pushed

over the earphone nozzle barb. If any part

of the nozzle is exposed, the sleeve is not

properly installed. Replace the sleeves if

they do not grip the nozzle tightly.

left ear right ear

nozzle

barb

REMOVING THE EARPHONES

Do not pull on cable to remove earphone. Grasp the body of earphone and

gently twist to remove.

english

CHOOSING AN EARPHONE SLEEVE

Your earphones come with a selection of sleeves. Make sure the sleeve you

choose is easy to insert into your ear, fits comfortably, and is easy to remove

from your ear.

Foam Sleeves

When using the foam sleeves, compress the sleeve between

your fingers before inserting it into the ear canal. Hold the

earphone in place for about ten seconds while the foam

expands and creates a tight seal.

Soft Flex Sleeves

In small, medium, and large sizes. Made from pliable rubber.

Triple-Flange Sleeves

If desired, the sleeve nozzle may be shortened. Use sharp

scissors to carefully trim the nozzle to the desired length.

Flex Sleeves

In small, medium, and large sizes. Made from translucent

PVC.

Note: carefully slide the sleeve over the earphone nozzle barb for a secure grip.

CLEANING THE EARPHONE NOZZLE

If the nozzle of your earphone is blocked, clean the nozzle using the supplied

wax removal loop.

Nozzle

Wax Removal Loop

When cleaning, do not force any object through the earphone nozzle!

This will damage the earphone sound filter.

english

FURNISHED ACCESSORIES

Levelattenuator.............................EA650

Oval Carrying Pouch . . . . . . . . . . . . . . . . . . . . . . . . . 95B2441

Fit Kit w/ Cleaning Tool . . . . . . . . . . . . . . . . . . . . . . . 90XJ1371

Triple Flange Sleeves . . . . . . . . . . . . . . . . . . . . . . . . 90WX1371

ExtensionCable-9”.........................95A9167

Extension Cable - 3’. . . . . . . . . . . . . . . . . . . . . . . . . . 95B9167

Stereo Adapter Plug - 3.5mm (1/8”) to 1/4” . . . . . . . EA655

REPLACEMENT PARTS

Bagof20foamsleeves.......................EA120

Bag of 500 foam sleeves . . . . . . . . . . . . . . . . . . . . . . PA754

Bag of 10 clear flex sleeves:

small ................EA710S

medium . . . . . . . . . . . . . . EA710M

large.................EA710L

Bag of 10 soft flex sleeves:

small ................EA410S

medium . . . . . . . . . . . . . . EA410M

large.................EA410L

TECHNICAL SPECIFICATIONS

Transducer type Triple balanced-armature drivers

Sensitivity (at 1kHz) 119 dB SPL/mW

Impedance (at 1kHz) 36 W

Frequency Range 18 Hz - 19 kHz

Input connector 3.5 mm (1/8 in.) gold-plated stereo plug

Net weight 30 g (1 oz.)

Operational temperature -18° C to 57° C (0° F to 135° F)

Storage temperature -29° C to 74° C (-20° F to 165° F)

english

CUSTOM EARPHONE SLEEVES

Those who use earphones regularly for extended periods of time often find

custom-fit molded sleeves offer the best comfort and sound isolation.

Ask a Hearing Health Care Professional about creating custom molded sleeves

for your earphones. For more information, contact:

Sensaphonics Hearing Conservation Toll Free: (877) 848-1714

660 N. Milwaukee Avenue In Chicago: (312) 432-1714

Chicago, IL 60622

e-mail: [email protected]

www.sensaphonics.com

MAINTENANCE

Careful maintenance ensures a tight seal between the sleeve and nozzle,

improving sound quality and product safety.

Keep the earphones and sleeves as clean and dry as possible.

Do not expose earphones to extreme temperatures.

Wipe the earphones and sleeves with mild antiseptic to avoid

infections. Do not use alcohol-based disinfectants.

Replace the sleeves if they do not fit properly.

CERTIFICATION

Eligible to bear CE marking.

Conforms to European EMC Directive 89/336/EEC.

Meets applicable tests and performance criteria in European Standard

EN 55103 (1996) Parts 1 and 2, for residential (E1) and light industrial (E2)

environments.

SHURE Incorporated Web Address: http://www.shure.com

5800 W. Touhy Avenue, Niles, IL 60714-4608, U.S.A.

In U.S.A., Phone: 1-847-600-2000 Fax: 1-847-600-1212

In Europe, Phone: 49-7131-72140 Fax: 49-7131-721414

In Asia, Phone: 1-852-2893-4290 Fax: 1-852-2893-4055

International Fax: 1-847-600-6446
