Shure Microflex MX400 Series Manuale utente

MX412, MX418, MX424

Schwanenhalsmikrofone

Online user guide for Shure Microflex MX400 Series miniature gooseneck-mounted electret condenser microphones.

Version: 5.1 (2021-C)

Shure Incorporated

2/12

Table of Contents

MX412, MX418, MX424 Schwanenhalsmikrofone 3

General Description 3

Interchangeable Cartridges 3

Einrastender Windschutz 5

Vorverstärker-Gain 5

Microphone Placement 5

Dauerhafte Anbringung 5

Flansch 5

Shock Mount 6

Technische Daten 7

Zulassungen 12

Shure Incorporated

3/12

•

MX412, MX418, MX424 

Schwanenhalsmikrofone

General Description

The Shure Microflex MX412,MX418,andMX424microphonesareminiaturegooseneck-mountedelectretcondensermicro-

phones designed primarily for speech and vocal pickup. They can be mounted on lecterns, pulpits, or conference tables. All

models include a preamplifier and are available with interchangeable cartridges.

Wide dynamic range and frequency response for accurate sound reproduction

Interchangeable cartridges that provide an optimal polar pattern choice for each application

Shock mount provides over 20 dB of isolation from surface vibration noise

Snap-fit foam windscreen reduces breath noise or plosives

CommShield RF filtering reduces interference from nearby mobile devices

These microphones are available with 12 inch, 18 inch, or 24 inch goosenecks. Some models are also available with a built-in

mute switch.

"S" models include a mute button and LED.

"D" models include a desktop base with programmable mute button and LED and logic input and output.

"SE" models feature a surface mount flange with side-exit cable.

The polar pattern of the included cartridge is indicated by a model number suffix:

/C Cardioid

/S Supercardioid

/MS Mini-shotgun

/O Omnidirectional

/N Cartridge not included

Interchangeable Cartridges

Microflex microphones use interchangeable cartridges that allow you to choose the polar pattern for different installations.

Shure Incorporated

4/12

Shure Incorporated

5/12

•

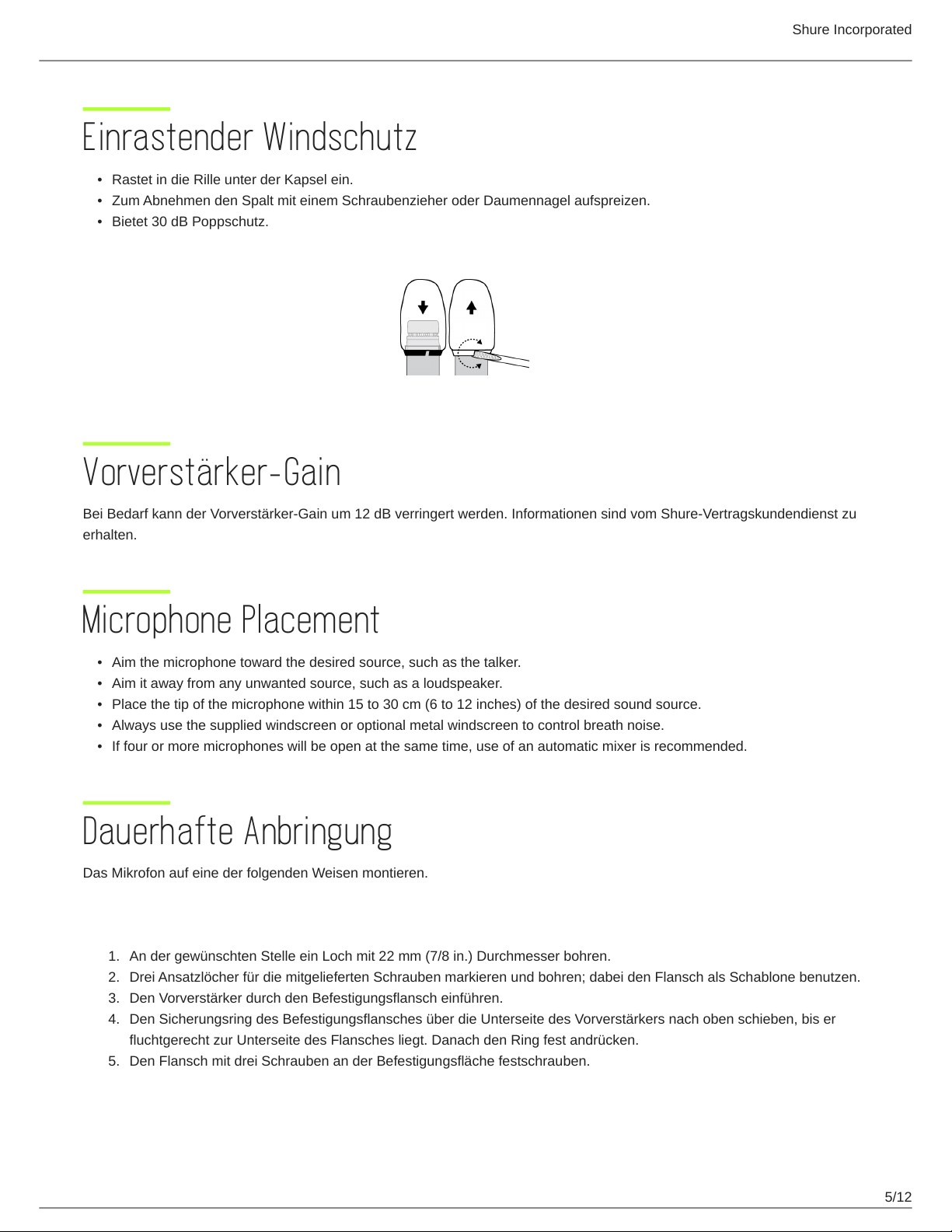

Einrastender Windschutz

Rastet in die Rille unter der Kapsel ein.

Zum Abnehmen den Spalt mit einem Schraubenzieher oder Daumennagel aufspreizen.

Bietet 30 dB Poppschutz.

Vorverstärker-Gain

Bei Bedarf kann der Vorverstärker-Gain um 12 dB verringert werden. Informationen sind vom Shure-Vertragskundendienst zu

erhalten.

Microphone Placement

Aim the microphone toward the desired source, such as the talker.

Aim it away from any unwanted source, such as a loudspeaker.

Place the tip of the microphone within 15 to 30 cm (6 to 12 inches) of the desired sound source.

Always use the supplied windscreen or optional metal windscreen to control breath noise.

If four or more microphones will be open at the same time, use of an automatic mixer is recommended.

Dauerhafte Anbringung

Das Mikrofon auf eine der folgenden Weisen montieren.

Flansch

AndergewünschtenStelleeinLochmit22mm(7/8in.)Durchmesserbohren.

Drei Ansatzlöcher für die mitgelieferten Schrauben markieren und bohren; dabei den Flansch als Schablone benutzen.

Den Vorverstärker durch den Befestigungsflansch einführen.

Den Sicherungsring des Befestigungsflansches über die Unterseite des Vorverstärkers nach oben schieben, bis er

fluchtgerecht zur Unterseite des Flansches liegt. Danach den Ring fest andrücken.

Den Flansch mit drei Schrauben an der Befestigungsfläche festschrauben.

Shure Incorporated

6/12

Shock Mount

Drill a 44 mm (1-3/4 in.) diameter hole in desired mounting surface.

Mark and drill starter holes for screws, using shock mount as a template.

Secure shock mount to mounting surface with screws.

Thread the supplied adapter onto the microphone before inserting it into the shock mount.

Shure Incorporated

7/12

Technische Daten

Typ

Elektret-Kondensator

Frequenzgang

50–17000Hz

Richtcharakteristik

MX412/C, MX418/C, MX424/C Niere

MX412/S, MX418/S, MX424/S Superniere

Ausgangsimpedanz

180Ω

Ausgangskonfiguration

Aktiv symmetrisch

Shure Incorporated

8/12

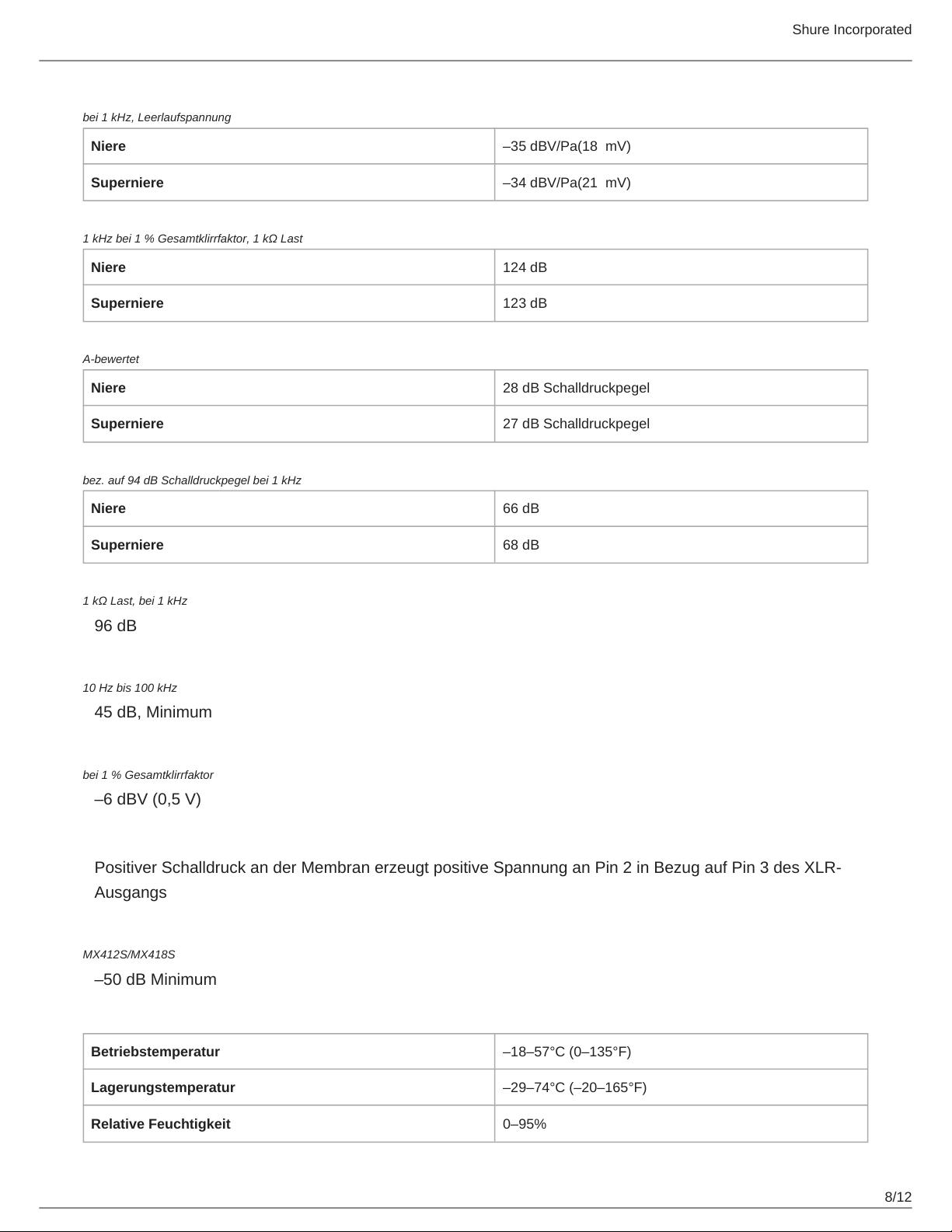

Empfindlichkeit

bei 1 kHz, Leerlaufspannung

Niere –35dBV/Pa(18 mV)

Superniere –34dBV/Pa(21 mV)

Maximaler Schalldruckpegel

1 kHz bei 1 % Gesamtklirrfaktor, 1 kΩ Last

Niere 124dB

Superniere 123dB

Eigenrauschen

A-bewertet

Niere 28dBSchalldruckpegel

Superniere 27dBSchalldruckpegel

Signalrauschabstand

bez. auf 94 dB Schalldruckpegel bei 1 kHz

Niere 66dB

Superniere 68dB

Dynamikbereich

1 kΩ Last, bei 1 kHz

96dB

Gleichtaktunterdrückung

10 Hz bis 100 kHz

45dB, Minimum

Begrenzungspegel

bei 1 % Gesamtklirrfaktor

–6dBV (0,5V)

Polarität

Positiver Schalldruck an der Membran erzeugt positive Spannung an Pin 2 in Bezug auf Pin 3 des XLR-

Ausgangs

Stummschalter

MX412S/MX418S

–50dB Minimum

Temperaturbereich

Betriebstemperatur –18–57°C (0–135°F)

Lagerungstemperatur –29–74°C(–20–165°F)

Relative Feuchtigkeit 0–95%

Shure Incorporated

9/12

Versorgungsspannungen

11–52 VDC, 2,0mA

Shure Incorporated

10/12
