SICK ICR803 Manuale utente

ICR 803

Bar Code Scanner

BAR CODE MANUAL

ICR803 Bar Code Manual – Rev A – 04/2007 - 2 -

Using This Manual

This manual contains bar codes used to program the ICR803.

For initial setup, product identification, and general product information, please refer to

the following manuals:

ICR803 Quick Start Manual

ICR803 Command & Communication Guide

Plug and Play Bar Codes

Plug and Play bar codes provide instant engine set up for commonly used interfaces. Please note

that the ICR803 interfaces are configured by the factory at time of order. These bar codes are

therefore used to default the scanner to get back to the factory setup.

RS-232

The RS-232 Interface bar code is used when connecting to the serial port of a PC or terminal. The

following RS-232 Interface bar code also programs a carriage return (CR) and a line feed (LF)

suffix, baud rate, and data format as indicated below:

Option Setting

Baud Rate 115200 bps

Data Format 8 data bits, no parity bit, 1 stop bit

RS-232 Interface

USB HID

Scan the following code to default the USB version of the ICR803 for USB HID bar code

imagers. Scanning this code changes the terminal ID to 131.

USB HID Bar Code Imager

ICR803 Bar Code Manual – Rev A – 04/2007 - 3 -

USB COM Port Emulation

Scan the following code to program the USB version of the ICR803 to emulate a regular RS-232 based

COM port. If you are using Microsoft Windows, you will need to install the USB Driver for the scanner.

ICR803 Bar Code Manual – Rev A – 04/2007 - 4 -

ICR803 Bar Code Manual – Rev A – 04/2007 - 5 -

ICR803 Bar Code Manual – Rev A – 04/2007 - 6 -

ICR803 Bar Code Manual – Rev A – 04/2007 - 7 -

Good Read Indicators

ICR803 Bar Code Manual – Rev A – 04/2007 - 8 -

.

ICR803 Bar Code Manual – Rev A – 04/2007 - 9 -

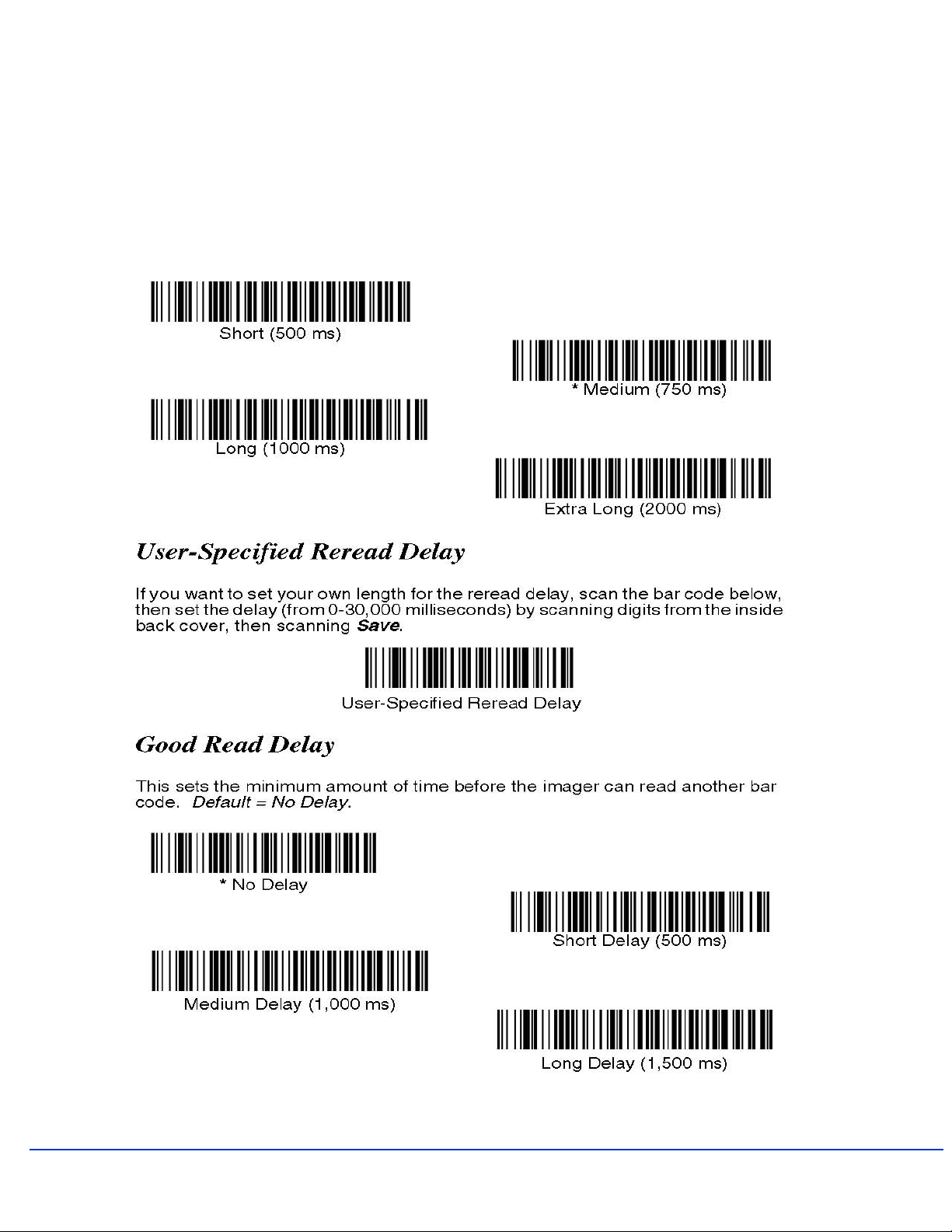

Reread Delay

This sets the minimum amount of time before the imager can read the same bar code a second time.

Setting a reread delay protects against accidental rereads of the same bar code. Longer delays are

effective in minimizing rereads in POS (Point Of Sale) applications. Use shorter delays for applications

where repetitive scanning is required. (Default = Medium)

ICR803 Bar Code Manual – Rev A – 04/2007 - 10 -

User-Specified Good Read Delay

If you want to set your own length for the good read delay, scan the bar code below, then set the delay (from

0-30,000 milliseconds) by scanning digits from Appendix D, then scanning Save.

Trigger Modes

Manual/Serial Trigger

You can activate the imager either by providing an external hardware trigger, or using a serial

trigger command. When in manual trigger mode, the imager scans until a bar code is read, or until

the hardware trigger is released.

When in serial mode, the imager scans until a bar code has been read or until the deactivate

command is sent. In serial mode, the imager can also be set to turn itself off after a specified time

has elapsed (see Read Time Out, which follows).

Read Time Out

Use this selection to set a time out (in milliseconds) of the imager’s trigger when using serial

commands to trigger the imager, or if the imager is in manual trigger mode. Once the imager has

timed out, you can activate the imager either by pressing the trigger or using a serial trigger

command. After scanning the Read Time Out bar code, set the time out duration (from 0-300,000

milliseconds) by scanning digits from Appendix D, then scanning Save. Default = 0 (infinite, or no

time out).
