SignaMax 065-7408 Manuale utente
Signamax Connectivity Systems 065-7408x Serie
www.signamax-us.com www.signamax-eu.com
SignamaxConnectivity Systems
Hardened Compact Ethernet Switch
User Guide
Model: 065-7408
065-74081
065-74082
065-74084
Signamax Connectivity Systems 065-
7408x Series
www.signamax-us.com www.signamax-eu.com
1
Preface
A member of the growing family of rugged switches, this
switch addresses a need for a smaller switch. This switch
provides an affordable solution for rugged and outdoor
environment, transportation road-side cabinet, industrial
floor shop, multitenant dwellings or Fiber To The Home
(FTTH) applications. Capable of operating at temperature
extremes of -34°C to +74°C, this is the switch of choice for
harsh environments constrained by space.
Plug-and-Play Solution:
The switch is a plug-and-play Fast Ethernet Switch in
compact size. It doesn't have any complicated software to
set up.
This manual describes how to install and use the hardened
compact Ethernet Switch. This switch integrates full wire
speed switching technology. This switch brings the answer
to complicated hardened networking environments.
To get the most out of this manual, you should have an
understanding of Ethernet networking concepts.
In this manual, you will find:
•Features on the switch
•Illustrative LED functions
•Installation instructions
•Specifications
Signamax Connectivity Systems 065-
7408x Series
www.signamax-us.com www.signamax-eu.com
2
Table of Contents
P
REFACE
1
T
ABLE OF
C
ONTENTS
2
P
RODUCT
O
VERVIEW
3
P
RODUCT
H
IGHLIGHTS
3
Basic Features 3
F
RONT
P
ANEL
D
ISPLAY
4
P
HYSICAL
P
ORTS
5
I
NSTALLATION
6
S
ELECTING A
S
ITE FOR THE
S
WITCH
6
DIN
R
AIL
M
OUNTING
7
C
ONNECTING TO
P
OWER
8
12V 3A DC Jack 8
Redundant 24VDC Power Inputs 8
Alarms for Power Failure 9
C
ONNECTING TO
Y
OUR
N
ETWORK
10
Cable Type & Length 10
Cabling 11
S
PECIFICATIONS
12
A
PPENDIX
A
–
C
ONNECTOR
P
INOUTS
14
Signamax Connectivity Systems 065-
7408x Series
www.signamax-us.com www.signamax-eu.com
3
Product Overview
Product Highlights
Basic Features
•Meets NEMA TS2 Environmental requirements such as
temperature, shock, and vibration for traffic control
equipment.
•Meets IEC61000-6-2 EMC Generic Standard Immunity
for industrial environment.
•Support 802.3/802.3u/802.3X.
•Auto-negotiation: 10/100Mbps, Full/half-duplex; Auto
MDI/MDIX.
•Support 2K MAC addresses.
•Provides 96K bytes memory buffer.
•Alarms for power failure by relay output.
•Operating voltage and Max. current consumption:
12VDC @ 0.99A, 24VDC @ 0.55A.
•Power consumption: 13.2W Max.
•Power Supply: Redundant DC Terminal Block power
inputs or 12VDC DC JACK with 124-240VAC external
power supply.
•Supports Din-rail mounting installation.
Signamax Connectivity Systems 065-
7408x Series
www.signamax-us.com www.signamax-eu.com
4
Front Panel Display
Power Status (PWR1, PWR2)
These LEDs come on when the switch is properly connected to power and
turned on.
Port Status LEDs
The LEDs display status for each respective port.
LED
State Indication
10/100TX or 100FX
Steady A valid network connection established.
LNK stands for LINK.
LNK/ACT
(Green) Flashing
Transmitting or receiving data.
ACT stands for ACTIVITY.
Steady Light solid yellow for a port transferring
at 100Mbps.
100
(Yellow) Off The port is transferring at 10Mbps If this
LED is dark.
Signamax Connectivity Systems 065-
7408x Series
www.signamax-us.com www.signamax-eu.com
5
Physical Ports
This switch provides:
•Eight 10/100BaseTX ports
•Eight 10/100BaseTX ports + one 100BaseFX port
•Six 10/100BaseTX ports + two 100BaseFX ports
•Four 10/100BaseTX ports + four 100BaseFX ports
Connectivity
•RJ-45 connectors
•SC, ST, VF-45 or MT-RJ connector on 100BaseFX fiber
port.
Signamax Connectivity Systems 065-
7408x Series
www.signamax-us.com www.signamax-eu.com
6
Installation
This chapter gives step-by-step instructions about how to
install the switch:
Selecting a Site for the Switch
As with any electric device, you should place the switch
where it will not be subjected to extreme temperatures,
humidity, or electromagnetic interference. Specifically, the
site you select should meet the following requirements:
- The ambient temperature should be between -34 to 74
degrees Celsius.
- The relative humidity should be less than 95 percent,
non-condensing.
- Surrounding electrical devices should not exceed the
electromagnetic field (RFC) standards.
- Make sure that the switch receives adequate ventilation.
Do not block the ventilation holes on each side of the
switch
- The power outlet should be within 1.8 meters of the
switch.
Signamax Connectivity Systems 065-
7408x Series
www.signamax-us.com www.signamax-eu.com
7

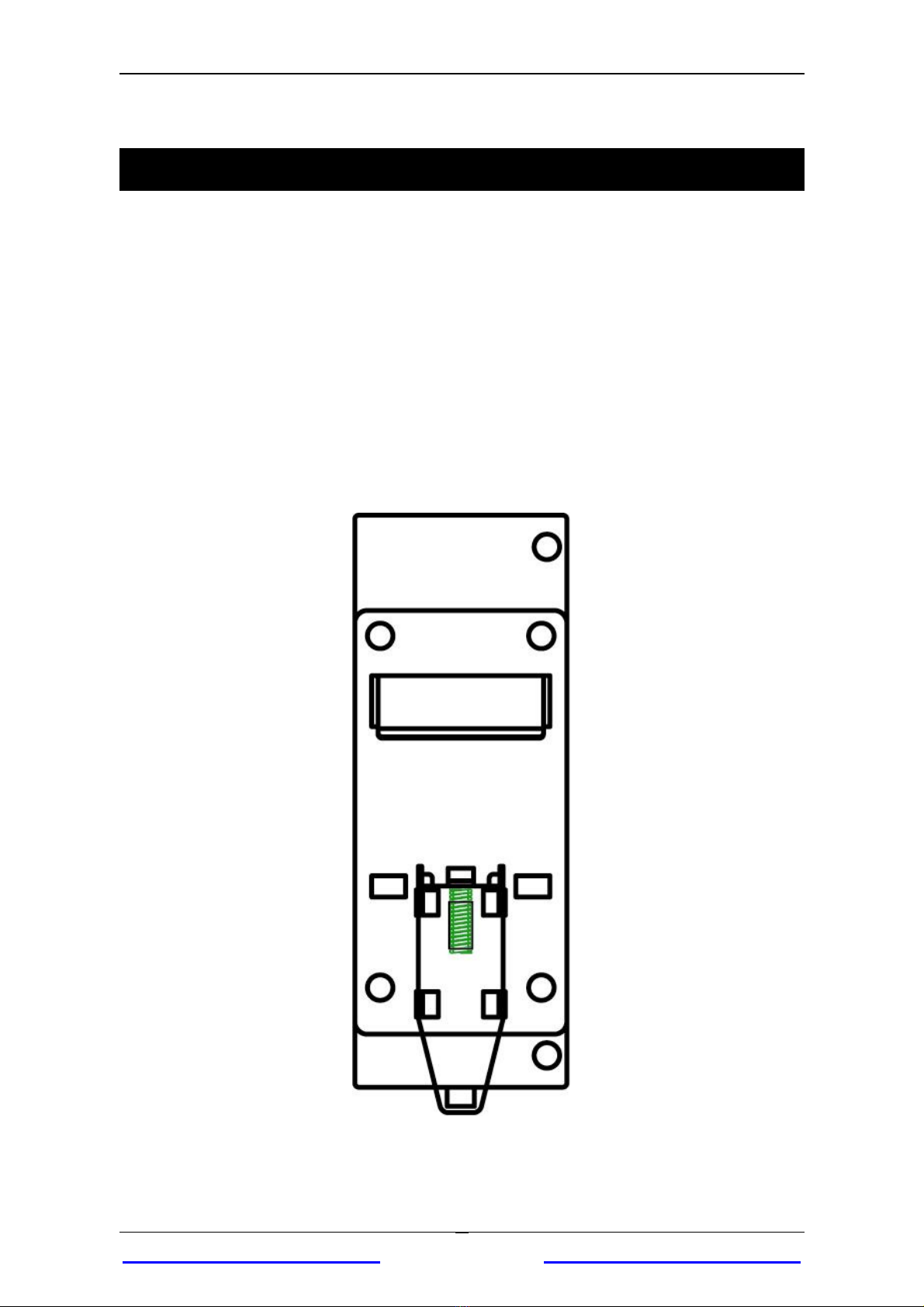

DIN Rail Mounting
Fix the DIN rail attachment plate to the back panel of the
switch.
Installation: Place the switch on the DIN rail from above using
the slot. Push the front of the switch toward the mounting
surface until it audibly snaps into place.
Removal: Pull out the lower edge and then remove the switch
from the DIN rail.
Signamax Connectivity Systems 065-
7408x Series
www.signamax-us.com www.signamax-eu.com
8

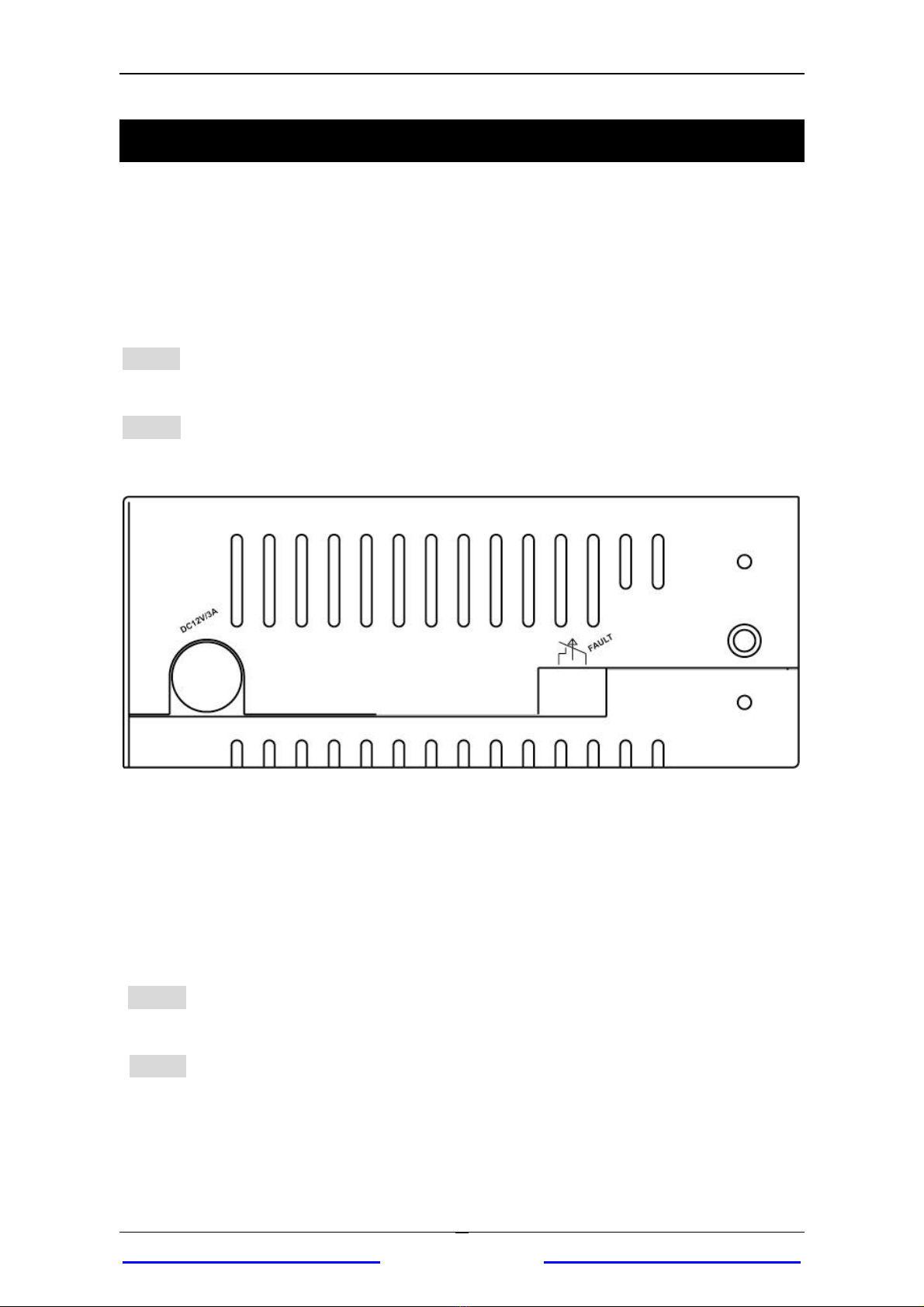

Connecting to Power
Redundant DC Terminal Block Power Inputs or 12VDC DC
Jack:
12VDC DC Jack
Step 1:
Connect the supplied AC to DC power adapter to the receptacle on
the topside of the switch.
Step 2:
Connect the power cord to the AC to DC power adapter and attach
the plug into a standard AC outlet with the appropriate AC voltage.
Redundant DC Terminal Block Power Inputs
There are two pairs of power inputs can be used to power
up this device. You only need to have one power input
connected to run the switch.
Step 1: Connect the DC power cord to the plug-able terminal block on the
switch, and then plug it into a standard DC outlet.
Step 2: Disconnect the power cord if you want to shut down the switch.
Signamax Connectivity Systems 065-
7408x Series
www.signamax-us.com www.signamax-eu.com
9
Alarms for Power Failure
Step 1: There are two pins on the terminal block are used for power failure
detection. It provides the normally closed output when the power
source is active. Use this as a dry contact application to send a
signal for power failure detection.
The Terminal Block
PWR1 Power Input 1 (+24VDC)
GND Power Ground
PWR2 Power Input 2 (+24VDC)
GND Power Ground
Earth Ground
The relay opens if PWR1 or
PWR2 fails (1A)
Special note:
The relay output is normal open position when there is no power to the
switch. Please do not connect any power source to this terminal to
prevent the shortage to your power supply.
