SignaMax FO-065-7732AF Manuale utente

Manageable Gigabit Switch

User’s Manual 1

SignamaxConnectivity Systems

Manageable Gigabit Switch

Model FO-065-7732AF

SER

’

UIDE

SignamaxConnectivity Systems

Manageable Gigabit Switch

Model FO-065-7732AF

User’s Guide

Signamax



FO-065-7732AF Manageable Gigabit Switch

User’s Manual 1

Preface

This manual describes how to install and use the Signamax

FO-065-7732AF Manageable Gigabit Switch. This switch

introduced here is designed to deliver full scalability with

SNMP/RMON web-based management functions by providing:

l24 x 100BaseFX fixed ports

lWith fixed 2 x 1000BaseSX/LX ports

For the fiber ports, it allows options of fiber type and wavelength at

user’s discretion. This switch brings a simple answer to today’s

complicated networking environments.

To get the most out of this manual, you should have an

understanding of Ethernet networking concepts.

In this manual, you will find:

Features on the Manageable Gigabit Switch

lIllustrative LED functions

lInstallation instructions

lManagement Configuration

lSNMP, DHCP, IGMP…

lSpecifications

Signamax



FO-065-7732AF Manageable Gigabit Switch

2User’s Manual

Table of Contents

PREFACE 1

TABLE OF CONTENTS 2

PRODUCT OVERVIEW 4

SIGNAMAXFO-065-7732AF MANAGEABLE GIGABIT SWITCH4

PACKAGE CONTENTS 4

PRODUCT HIGHLIGHTS 5

Basic Features 5

Management Support 5

FRONT PANEL DISPLAY 7

PHYSICAL PORTS8

SWITCH MANAGEMENT 9

Administration console via RS-232 serial port 9

Web-based browser interface 9

External SNMP-based network management application 9

INSTALLATION 10

SELECTING A SITE FOR THE SWITCH 10

CONNECTING TO POWER 10

CONNECTING TO YOUR NETWORK 11

Cable Type & Length 11

Cabling 12

SWITCH MANAGEMENT 13

MANAGEMENT ACCESS OVERVIEW 13

ADMINISTRATION CONSOLE 14

Direct Access 14

Modem Access 15

WEB MANAGEMENT 15

SNMP-BASED NETWORK MANAGEMENT 15

PROTOCOLS 16

MANAGEMENT ARCHITECTURE 16

MENU-DRIVEN CONSOLE MANAGEMENT 17

LOGGING ON TO THE SWITCH 18

At the screen prompt 18

SWITCH MANAGEMENT SCREEN 19

Navigating Through the Console Interface 19

PERFORMING BASIC MANAGEMENT ACTIVITIES 20

Start with Selection Menu 20

General Management Configurations 21

LAN Port Configurations 22

Console Port Configurations 25

PERFORMING ADVANCED MANAGEMENT ACTIVITIES 27

Start with Selection Menu 27

L2 Switching DataBase 28

IP Networking 36

Bridging 38

Signamax



FO-065-7732AF Manageable Gigabit Switch

User’s Manual 3

Static Filtering 40

MAC Address In-Filters 41

Spanning Tree Functions 42

SNMP Functions 46

Other Protocols 48

Port Trunking 49

Port Mirroring 50

QoS Setup 51

Sending and Receiving Files 58

LOGOUT 59

SAVE SETTINGS 59

RESTORE DEFAULT SETTINGS 60

REBOOT 60

WEB-BASED BROWSER MANAGEMENT 61

LOGGING ON TO THE SWITCH 61

UNDERSTANDING THE BROWSER INTERFACE 62

PERFORMING FILE ACTIVITIES 64

Start with Selection Menu 64

PERFORMING BASIC SETUP ACTIVITIES 65

Start with Selection Menu 65

LAN Port Configuration 67

Console Port Configuration 70

PERFORMING ADVANCED SETUP ACTIVITIES 72

Start with Selection Menu 72

MAC Address Management 72

Per Port Statistics 76

Bridging 77

Static MAC Filter 78

IP Multicast Group 81

Spanning Tree Perspective 82

SNMP 84

Other Protocols 86

Port Trunking 89

Port Mirroring 90

QoS 91

SNMP & RMON MANAGEMENT 97

OVERVIEW 97

SNMP AGENT AND MIB-2 (RFC 1213) 97

RMON MIB (RFC 1757) AND BRIDGE MIB (RFC 1493) 98

RMON Groups Supported 98

Bridge Groups Supported 99

SPECIFICATIONS 100

CONTACT INFORMATION 102

Signamax



FO-065-7732AF Manageable Gigabit Switch

4User’s Manual

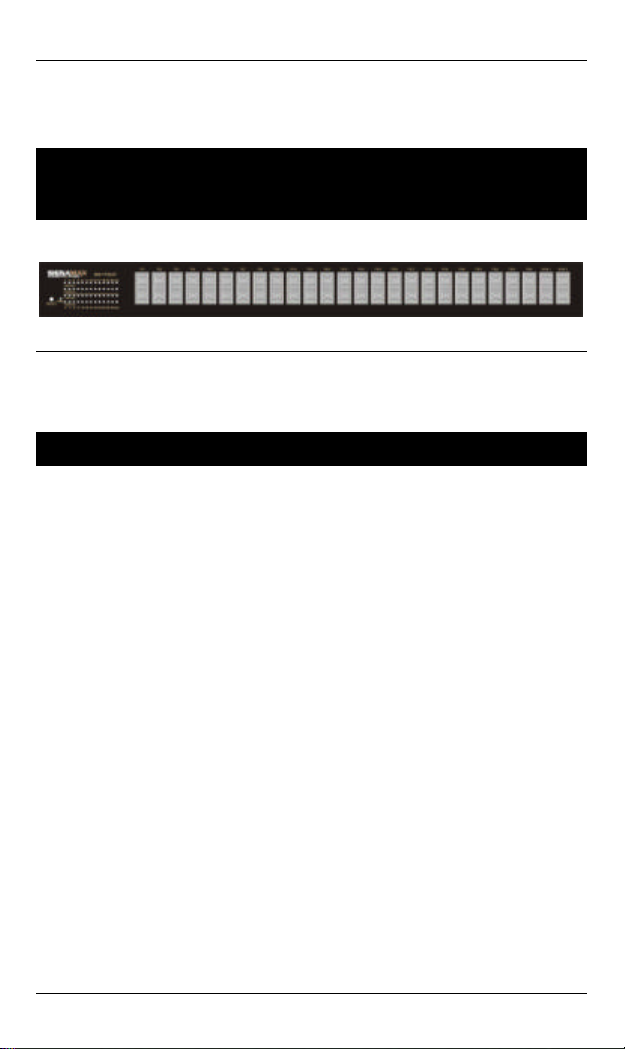

Product Overview

Signamax



FO-065-7732AF Manageable

Gigabit Switch

Front View

Package Contents

When you unpack the product package, you shall find the items

listed below. Please inspect the contents, and report any apparent

damage or missing items immediately to your authorized reseller.

PThe SignamaxFO-065-7732AF Manageable Gigabit Switch

PUser’s Manual

PAC power cord

PRS232 cable

PRackmount brackets with screws

Signamax



FO-065-7732AF Manageable Gigabit Switch

User’s Manual 5

Product Highlights

Basic Features

lFixed 24 x 100BaseFX ports

lWith fixed 2 x 1000BaseSX/LX ports

lFull wire-speed forwarding rate

lStore-and-forward mechanism

lBack-pressure and IEEE 802.3x compliant flow control

lSupports 12K MAC addresses

lProvides 2MBytes memory buffer

lFront panel reset button

lFront panel port status LEDs

lStandard 19” rackmount size, one-unit-height

Management Support

VLAN

lPort-based VLAN

l802.1Q tagged VLAN

TRUNKING

lMAC-based Trunking, up to three groups, two groups with a maximum

of four 10/100TX/100FX ports each group, one group with a maximum of

two 1000T/SX/LX ports

lLoad sharing based on source and destination MAC addresses

PORT-SECURITY

lLimit number of MAC addresses learned per port

lStatic MAC addresses stay in the filtering table

PORT-MIRRORING

lPort-mirroring provided through dedicated ports

COS (IEEE802.1p Classification of Service)

l4-level transmission priorities: 4 queues per output port

lPacket transmission scheduled using Weighted Round Robin (WRR)

lUser-defined weights

lClassification of packet priority can be based on either a VLAN tag on

packet or a user-definable port priority

INTERNETWORKING PROTOCOLS

lBridging:

802.1D Spanning Tree

802.1p/Q –GARP/GVRP

Signamax



FO-065-7732AF Manageable Gigabit Switch

6User’s Manual

lIP Multicast:

IGMP Snooping

Maximum of 128 VLANs and IP multicast sessions

lRate Control

NETWORK MANAGEMENT METHODS

lConsole port access via RS-232 cable

lTelnet remote access

lSNMP agent:

MIB-2 (RFC1213)

Bridge MIB (RFC1493)

RMON MIB (RFC1757) –statistics, history, alarm and events

VLAN MIB (802.1Q/RFC2674)

Private MIB

lJava applet-based MIB browser

lWeb browser support based on HTTP server and CGI parser

lKermit/TFTP software-upgrade capability

Signamax



FO-065-7732AF Manageable Gigabit Switch

User’s Manual 7

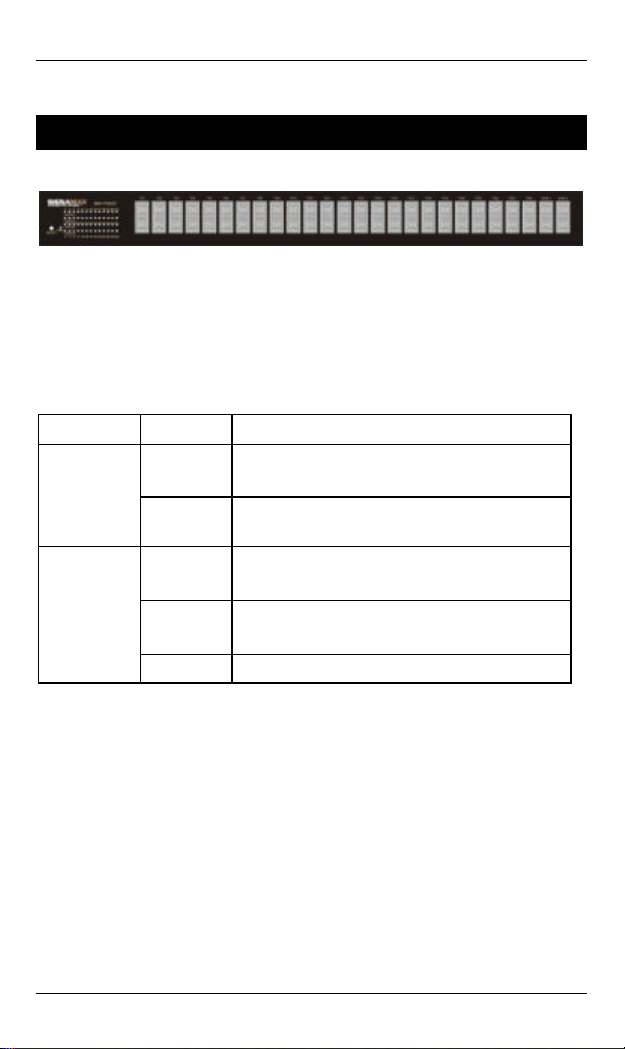

Front Panel Display

•POWER

This LED comes on when the switch is properly connected to power and

turned on.

‚Port Status LEDs

The LEDs are located at the left side of the switch, displaying status for each

respective port. Please refer to the following table for more details.

LED State Indication

On A valid network connection established.

LNK stands for LINK.

LNK/ACT Flashing Transmitting or receiving data.

ACT stands for ACTIVITY.

On Connection in full duplex mode.

FDX stands for FULL-DUPLEX.

Flashing Collision occurred.

COL stands for COLLISION.

FDX/COL

Off Connection in half-duplex mode.

Signamax



FO-065-7732AF Manageable Gigabit Switch

8User’s Manual

Physical Ports

The Manageable Gigabit Switch provides:

lFixed 24 x 100BaseFX ports

lWith fixed 2 x 1000BaseSX/LX ports

CONNECTIVITY

lSC connectors on 1000SX/LX ports

lST or SC connectors on 100FX ports

MODE SELECTION

• 100BaseFX full-duplex mode

• 100BaseFX half-duplex mode

• 1000BaseSX/LX full-duplex mode

• 1000BaseSX/LX half-duplex mode

• Auto-negotiating mode
