SignaMax 065-7905A Manuale utente
Signamax Connectivity System ______________________ 065-7905A
www.signamax-us.com www.signamax-eu.com

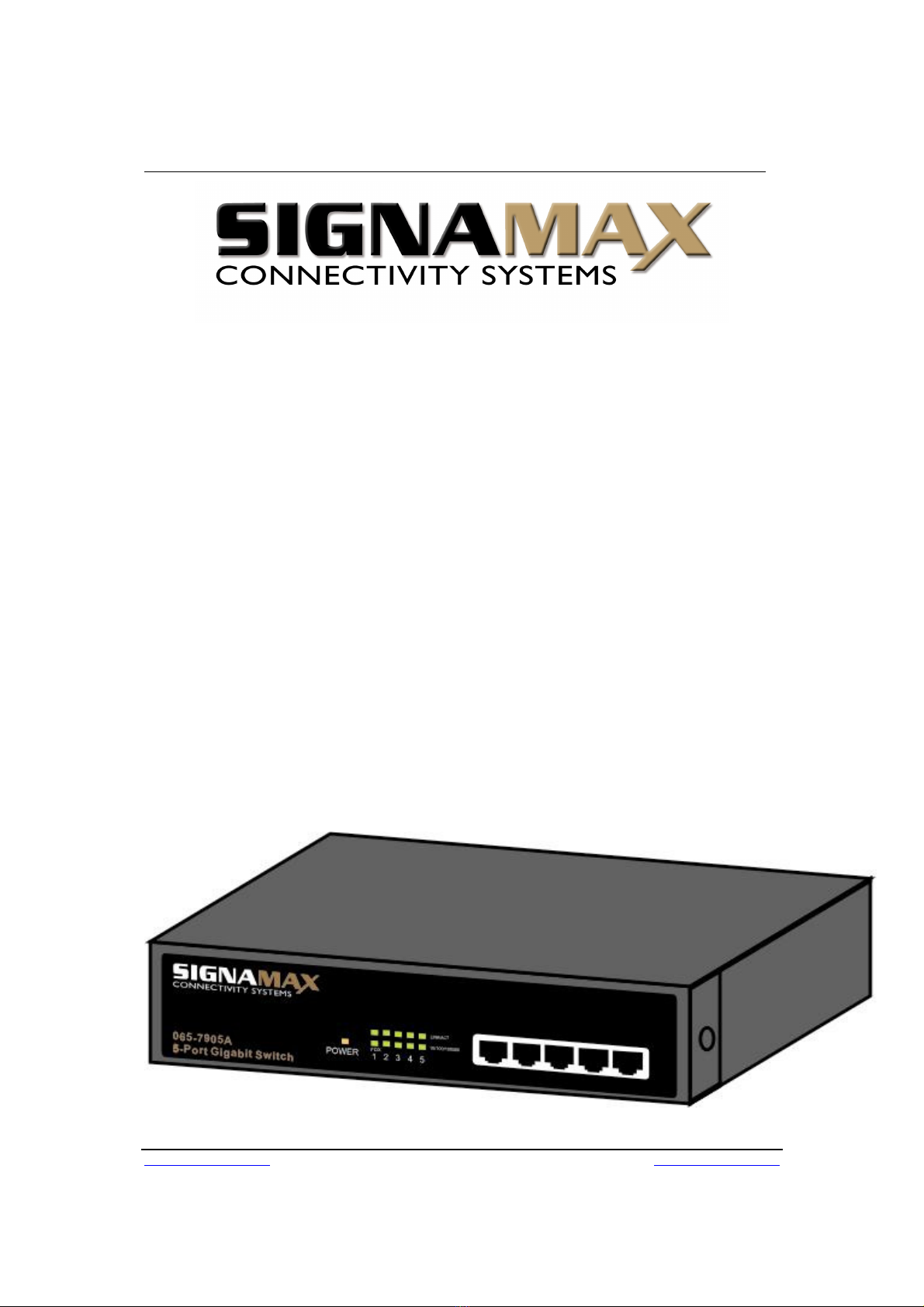

SignamaxConnectivity Systems
5 Ports Gigabit Nway
Ethernet Switch
Model:065-7905A
User’s Manual
Signamax Connectivity System ______________________ 065-7905A
www.signamax-us.com www.signamax-eu.com
FCC Warning
This device has been tested and found to comply with
limits for a Class B digital device, pursuant to Part 2
and 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference when the equipment is operated in a
commercial environment. This equipment generates,
uses and can radiates radio frequency energy and, if
not installed and used in accordance with the user’s
manual, may cause interference in which case user
will be required to correct the interference at his own
expense.
CE Mark Warning
This is a Class B product. In a domestic environment, this
product may cause radio interference in which case the
user many be required to take adequate measures.
Signamax Connectivity System ______________________ 065-7905A
www.signamax-us.com www.signamax-eu.com
Table Of Contents
Chapter 1 .................................................................. 1
Introduction ................................................................... 1
Key Features.................................................................. 2
Chapter 2 .................................................................. 3
Package Contents .......................................................... 3
Chapter 3 .................................................................. 4
Front Panel Layout ........................................................ 4
Ⅰ. 5 RJ-45 Gigabit Switch Ports ............................ 4
Ⅱ. LED Indicators of 8 Port Gigabit Switch............ 4
Ⅲ. LED Definitions………………………………….. 5
Rear Panel Layout ......................................................... 5
Ⅰ. DC input ............................................................. 5
II . Fan……………………………………………..5
Chapter 4 .................................................................. 6
Ⅰ.To connect the Switch to PCs, servers, and other
network devices ……………………………..…..6
Ⅱ. To connect the Switch to a Switch or a Hub….6
Chapter 5…………………………………………...……7
Ⅰ. Technical Specification .................................... 7
Ⅱ.Diagram of extend application by Up-Link…....8
Signamax Connectivity System ______________________ 065-7905A
www.signamax-us.com www.signamax-eu.com
- 1 -

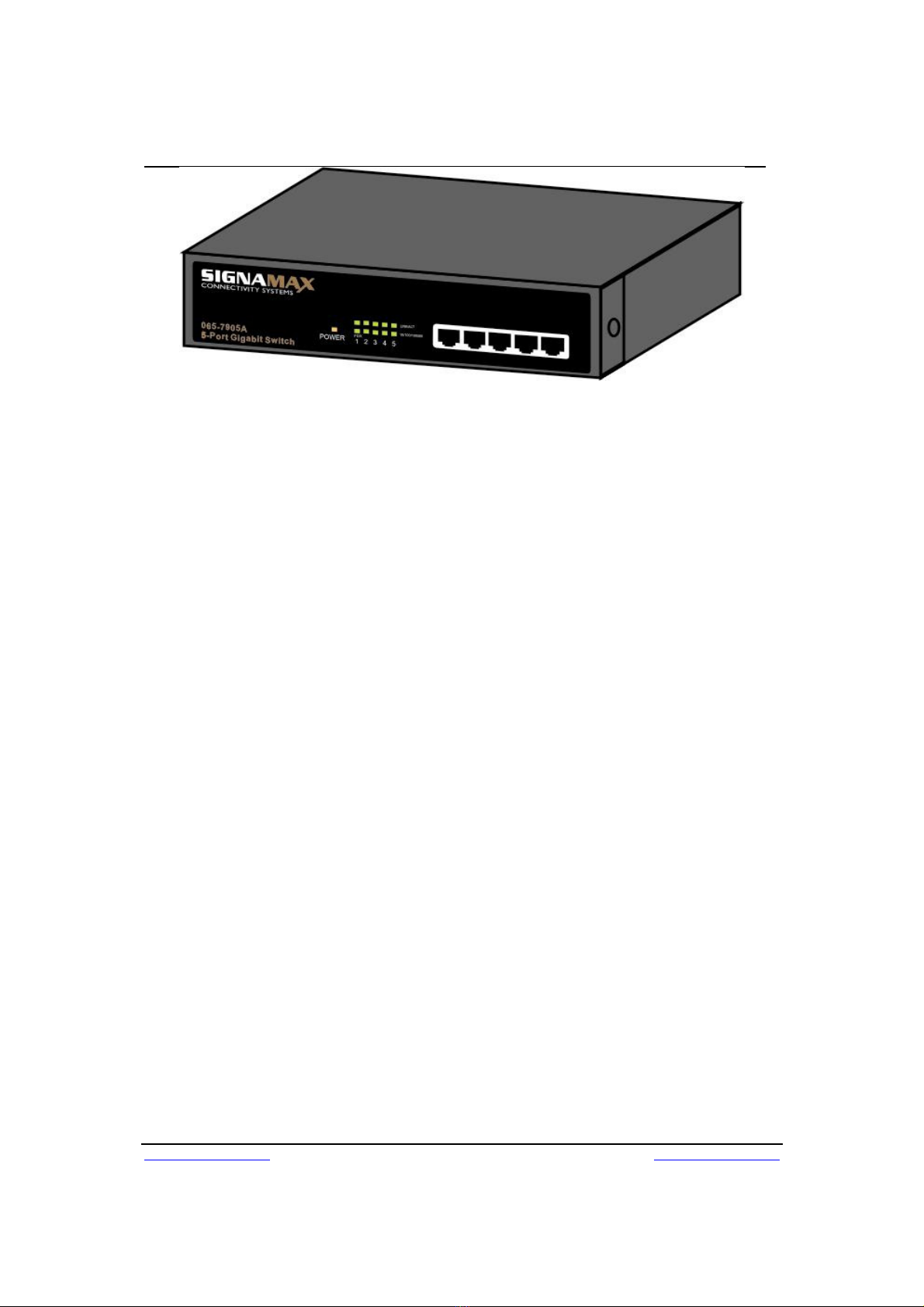

Chapter 1
5 Ports Gigabit Switch
Introduction
065-7905A Switch provides 5 10/100/1000Mbps NWAY
RJ-45 ports. It was designed for easy installation and high
performance in an environment where traffic on the network
and the number of user increase continuously. With newest
Gigabit chip set, 065-7905A 9” Gigabit Ethernet switch can
fully support highest speed without hanging on problem
even when Full-dueplex full loaded.
065-7905A switch also provides automatic crossover
detection functionality on each port. It is simple and friendly
to up-link to another switch without crossover cable.
No fan need design, no noise.
The compact rigid desktop size was specifically designed
for ROBO (Remote Office & Branch Office) and medium to
large workgroups. 065-7905A Switch can be installed
where space is limited; moreover it provides smooth
network migration and easy upgrade to network capacity.
The 9” size can be rack-mount on 10” or 19” cabinet.
Signamax Connectivity System ______________________ 065-7905A
www.signamax-us.com www.signamax-eu.com
- 2 -
Key Features
Complies with the IEEE802.3 Ethernet, IEEE802.3u
Fast Ethernet and IEEE 802.3ab Gigabit Ethernet
Standards
Provides five 10/100/1000Mbps Gigabit switching
ports
Performs full wire-speed switching with Head of Line
(HOL) blocking prevention.
Non-blocking & Non-head-of-line blocking full wire
speed forwarding.
Store-and-forward operation support.
Embedded 3.5Mb SRAM for packet buffer.
Supports 9728Byte JUMBO packet.
Provides 4K MAC address entry
Supports broadcast storm filtering.
All ports provide Auto-Negotiation and Auto -MDI/
MDI-X functions
Supports flow control: Back pressure for Half-duplex
and IEEE 802.3x for Full-duplex mode
Status LED: Power per set and 1000M, Link/Activity
Configurable to 10 full/half duplex, 100 full/half duplex
and 1000 full/half duplex for each port
9” inch compact size, and can be rack-mount to 10”
and 19” with bracket.
Signamax Connectivity System ______________________ 065-7905A
www.signamax-us.com www.signamax-eu.com
- 3 -
Chapter 2

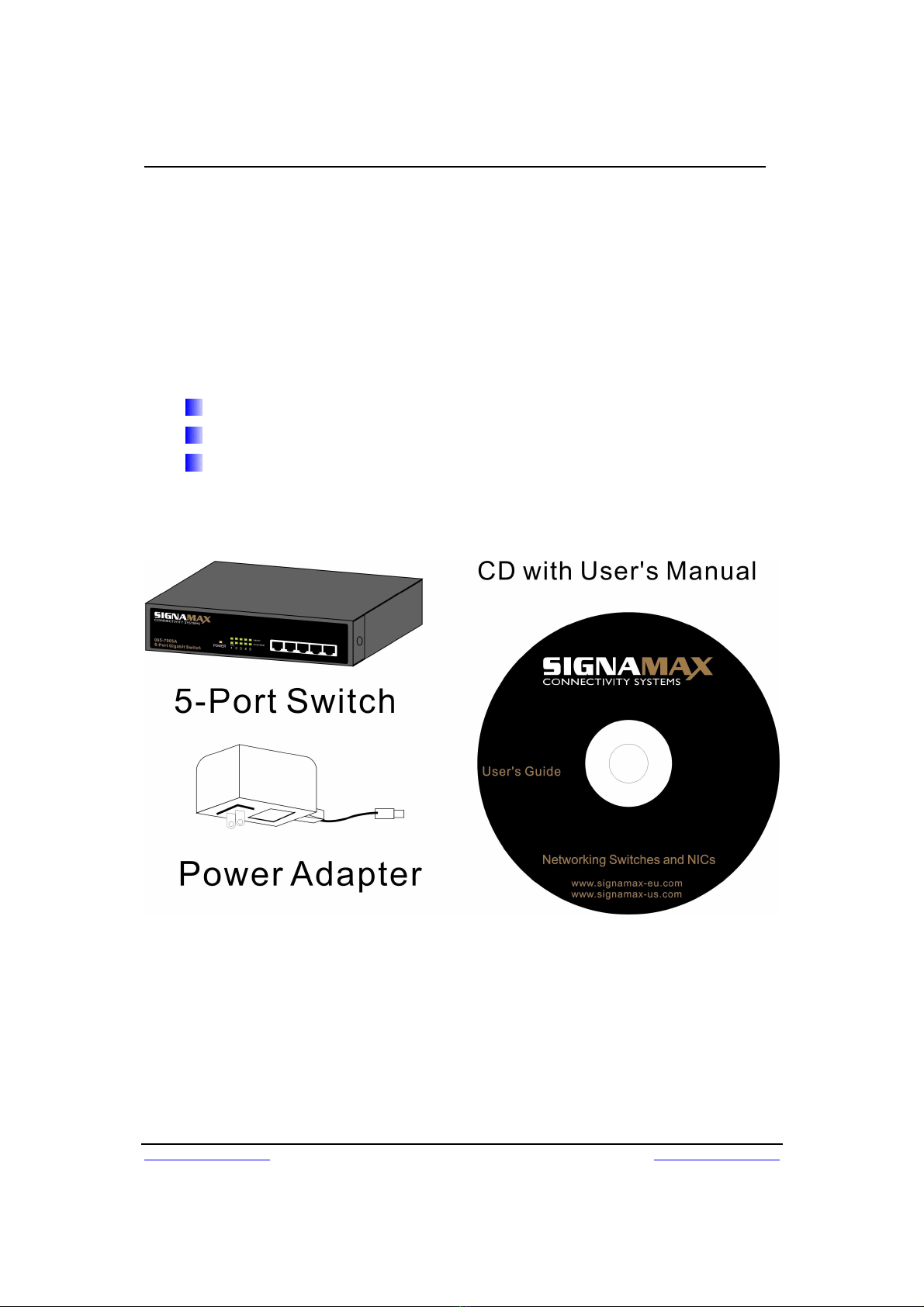

Package Contents
Before you start to install 065-7905A Switch, please verify
your package contain the following items:
One 065-7905A 9” Gigabit Ethernet Switch
One Power Adapter
One User’s Manual
Note: If any of these items is found missing or damaged,
please contact your local supplier for replacement.
Signamax Connectivity System ______________________ 065-7905A
www.signamax-us.com www.signamax-eu.com
- 4 -
Chapter 3

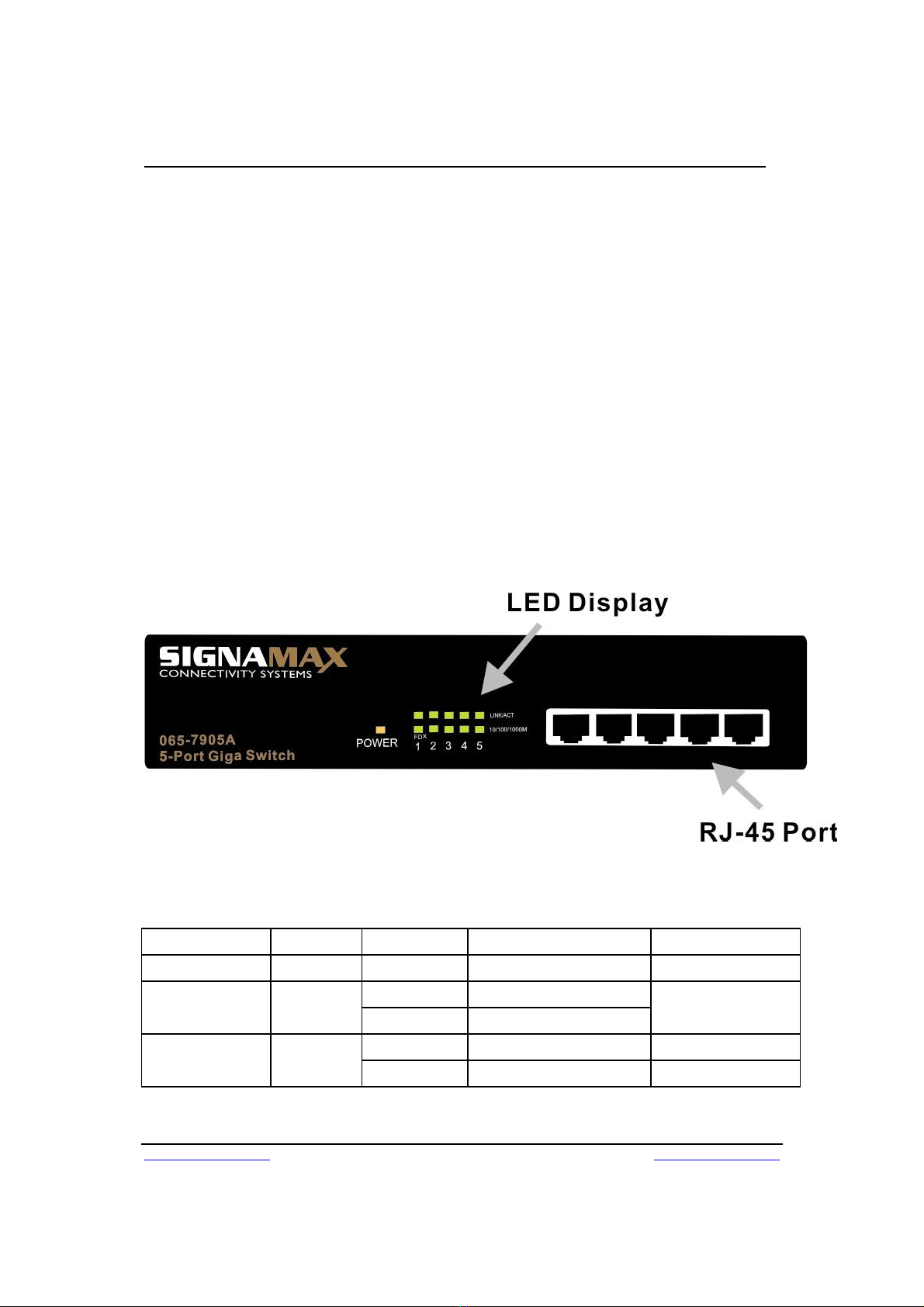

Front Panel Layout
Ⅰ
ⅠⅠ
Ⅰ. 5 RJ-45 Gigabit Switch Ports
There are 5 RJ-45 connectors on the front panel for
connecting to servers, workstation or other devices.
065-7905A Switch provides 5 10/100/1000Mbps switching
ports that could sense the 10/100/1000M speed and
negotiate Full/Half duplex mode automatically. These
switching ports allow users to connect the Switch to
10Base-T, 100Base-TX and 1000Base-T devices.
Ⅱ
ⅡⅡ
Ⅱ. LED Indicators of 065-7905A 5 Port Gigabit Switch
LED Color Status Description No. Of LED
Power Yellow On Power on Power
On Link 1000Mbps1000M Yellow
off Link 10/100Mbps
5 (1~5)
On Link 5 (1~5)Link/ ACT Yellow
Flashing Data activating 5 (1~5)
Signamax Connectivity System ______________________ 065-7905A
www.signamax-us.com www.signamax-eu.com
- 5 -
Ⅲ
ⅢⅢ
Ⅲ. LED Definitions
Power LED
On ：The unit is powered on and ready for use.
Off ：The unit is powered off.
1000M LED
On ：The port is operating at 1000Mbps speed.
Off ：
The port is operating at 10Mbps Half/ Full
Dueplex or 100Mbps Half/ Full Duep
lex
speed
LINK/ACT LED
On ：
The port is ready for 10/100/1000Mbps
connection.
Flashing ：
The data is transmitted or received on the
port.

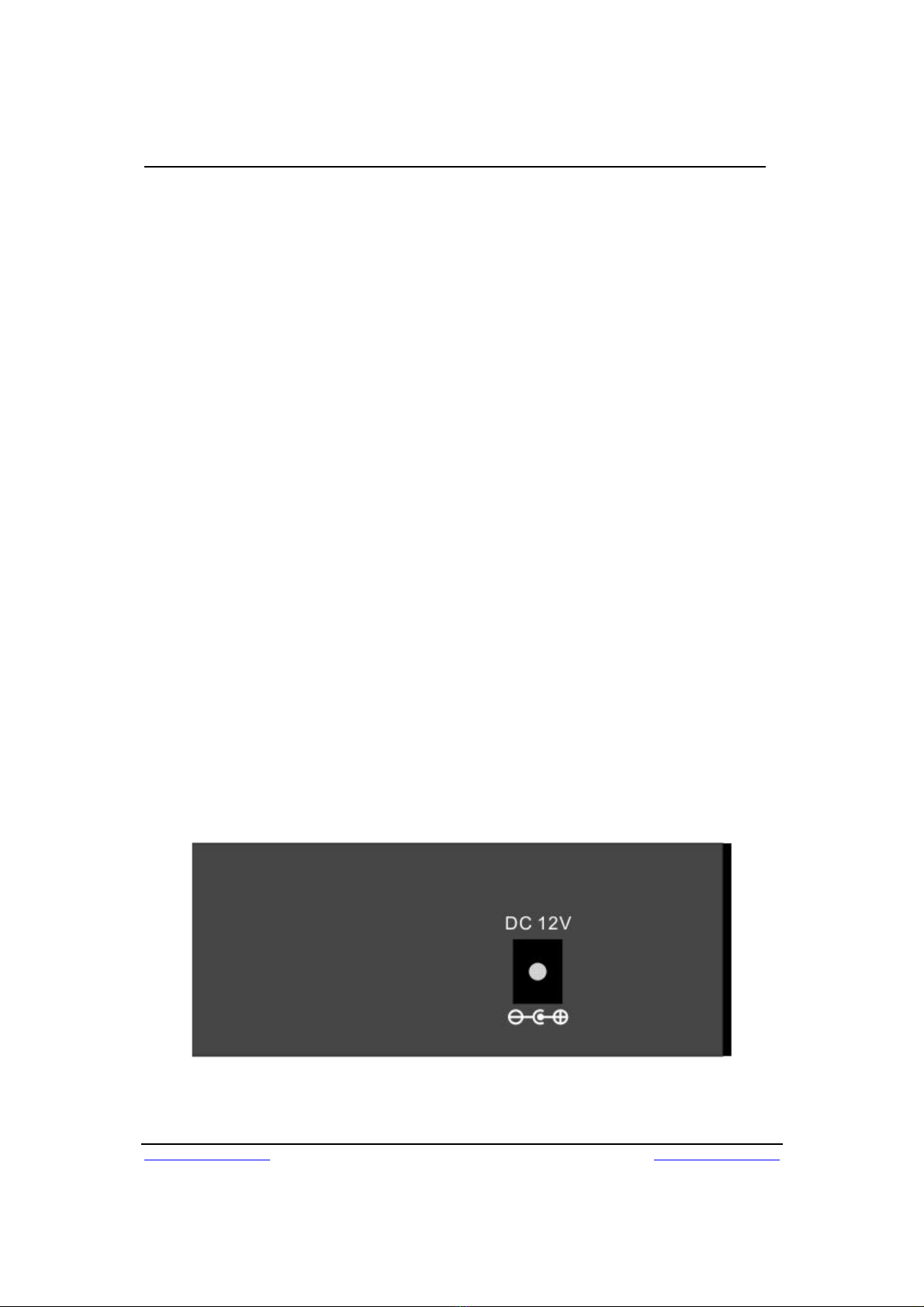

Rear Panel Layout
Ⅰ
ⅠⅠ
Ⅰ. DC input
DC input 12V UL Safety
No fan no noise design
Signamax Connectivity System ______________________ 065-7905A
www.signamax-us.com www.signamax-eu.com
- 6 -
Chapter 4
Ⅰ
ⅠⅠ

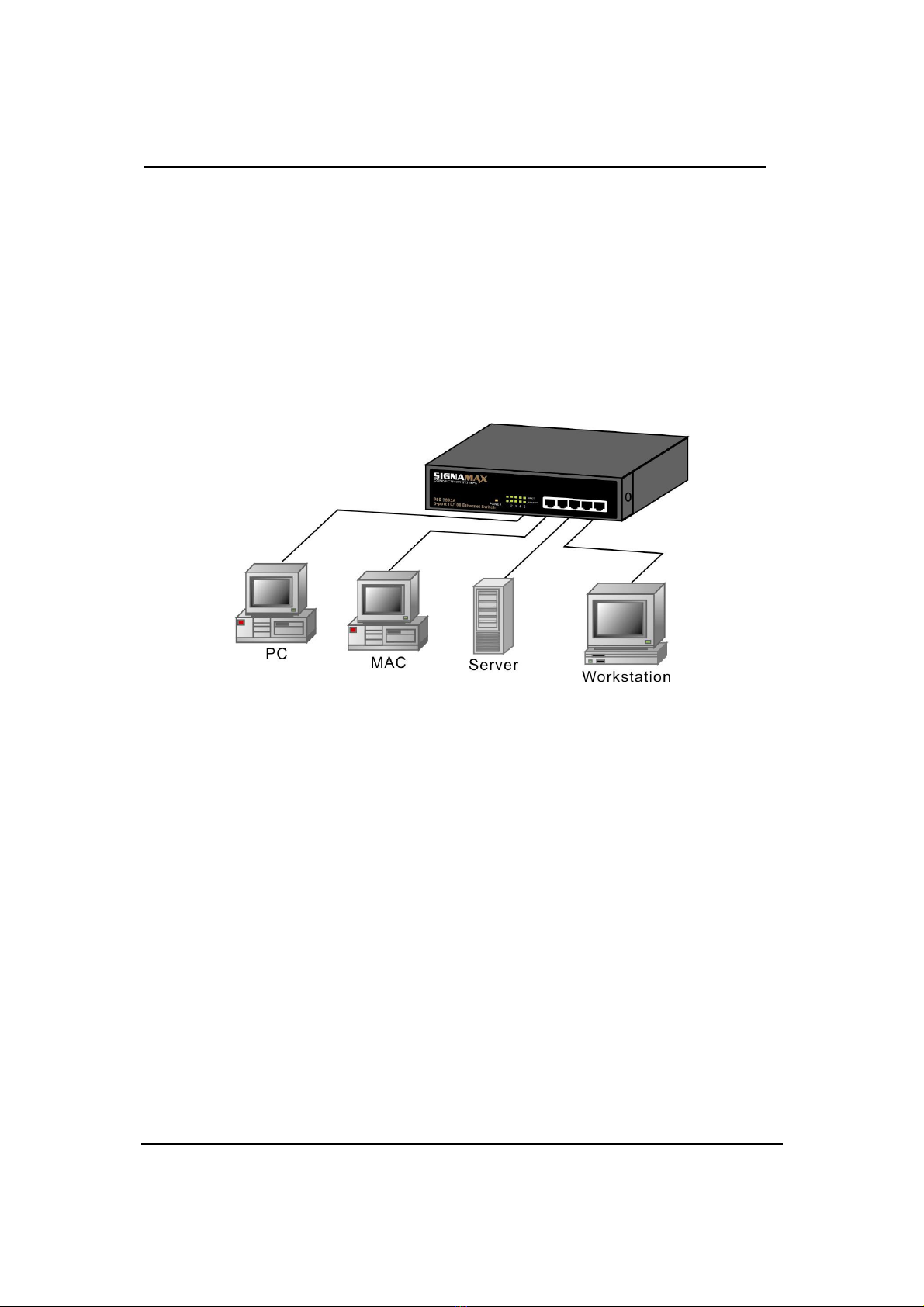

Ⅰ. To connect 065-7905A Switch to PCs, servers, and
other network devices
Use straight-through twisted-pair cable (Cat. 5) to connect
065-7905A Switch to PCs, servers and other network
devices. Networks can be built as figure shown.
Ⅱ
ⅡⅡ
Ⅱ. To connect 065-7905A Switch to a Switch or a Hub
Use straight-through twisted pair cable to connect
065-7905A Switch to another Switch or Hub on uplink port.
If you connect 065-7905A Switches on port 1 to port 5, the
cable should be changed to crossover cable.
Signamax Connectivity System ______________________ 065-7905A
www.signamax-us.com www.signamax-eu.com
- 7 -
Chapter 5
Ⅰ
ⅠⅠ
Ⅰ.Technical Specification
1. Standards Compliance
- IEEE 802.3 10BaseT; IEEE 802.3u 100BaseTX and
IEEE 802.3ab 1000BaseT copper over Ethernet
2. Number Of Ports
- 5 integrated ports (10/100/1000Mbps N-Way port)
3. Fully Flow Control Supported
- Full-duplex mode: IEEE 802.3x
- Half-duplex mode: Backpressure
4. Network Transmission Media
- 10BaseT Cat. 3, 4, 5 UTP/STP
- 100BaseTX Cat. 5 UTP/STP
- 1000BaseT Cat. 5 UTP/STP
5. Network Status Monitoring LEDs
- System: Power
- Per port: 1000M, Link/ACT.
6. Filter/Forward Rate
- 10Mbps ports – 14,880pps
- 100Mbps ports – 148,800pps
- 1000Mbps ports – 1,488,000pps
7. Buffer Memory
- RAM: 3.5Mb per device
8. MAC Address
