SignaMax 65-7542 Manuale utente
Signamax Connectivity Systems ______________________________________________ 065-7542
FCC Warning
This device has been tested and found to comply with
limits for a Class B digital device, pursuant to Part 2 and
15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference when the equipment is operated in a
commercial environment. This equipment generates,
uses and can radiates radio frequency energy and, if not
installed and used in accordance with the user’s manual,
it may cause interference in which case users will be
required to correct the interference at their own
expense.
CE Mark Warning
This is a Class B product. In a domestic environment, this
product may cause radio interference in which case the user
many be required to take adequate measures.
www.signamax-us.com www.signamax-eu.com
Signamax Connectivity Systems ______________________________________________ 065-7542

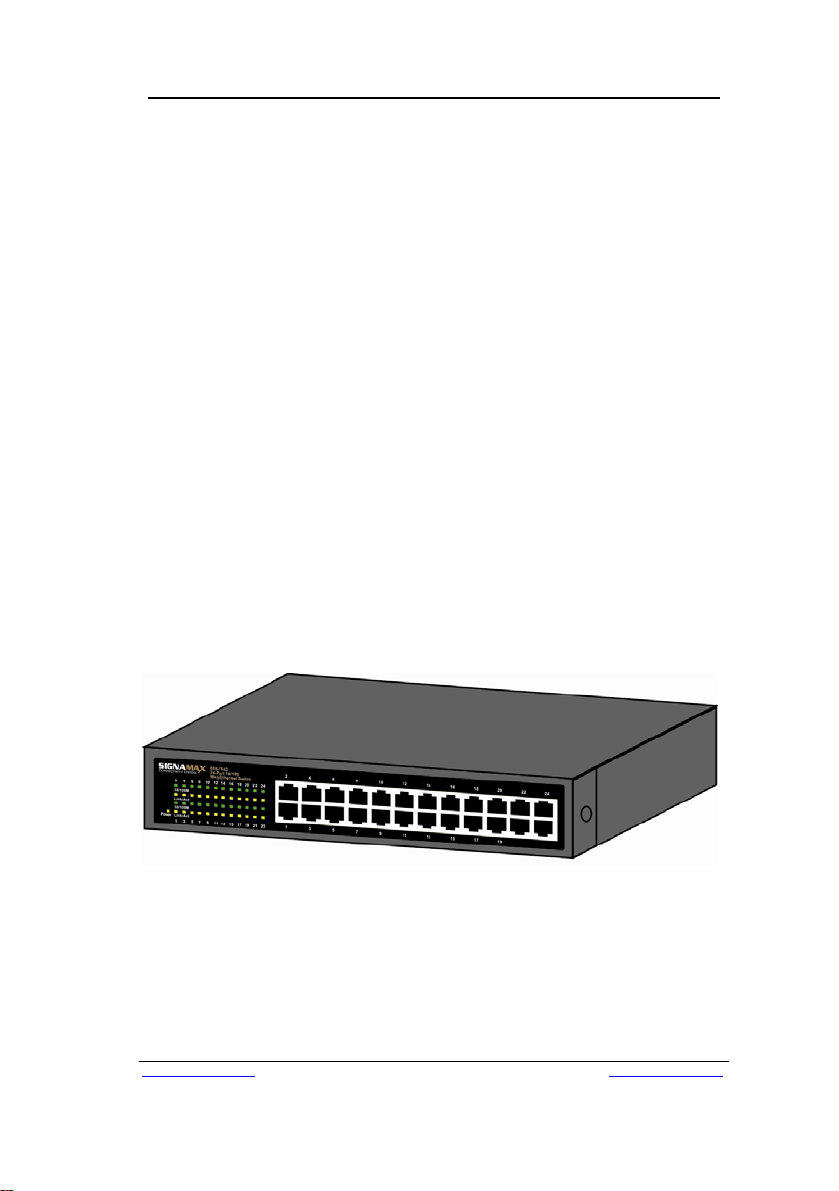

24 Ports Nway Fast Ethernet Web Smart Switch
Introduction
065-7542 Switch provides 24 10/100Mbps ports. 065-7542
Switch was designed for easy installation and high
performance in an environment where traffic on the network
and the number of user increase continuously.
The compact rigid desktop size was specifically designed for
ROBO (Remote Office & Branch Office) and medium to
large workgroups. 065-7542 Switch can be installed where
space is limited; moreover it provides smooth network
migration and easy upgrade to network capacity.
www.signamax-us.com www.signamax-eu.com
Signamax Connectivity Systems ______________________________________________ 065-7542
Key Features
24 Port 10/100Base-T/TX Nway (Auto-negotiation)
Switch with RJ-45 connectors
All Ports Auto-MDI/MDIX
Desktop size with compact rigid design
Auto-detect of Full/Half-duplex modes in all ports
Dedicated Full-duplex 200Mbps bandwidth on each
port
Broadcast storm control
Store & Forward switching methods
IEEE 802.3x flow control for Full-duplex
Zero-Packet Loss Back-pressure flow control for
Half-duplex
Non-blocking & Non-head-of-line blocking full wire
speed forwarding
Auto-learning of networking configurations
Status LEDs: Power, 10/100M, Link/Activity
Smart plug & play
www.signamax-us.com www.signamax-eu.com
Signamax Connectivity Systems ______________________________________________ 065-7542
Package Contents
Before you start to install 065-7542 Switch, please verify
your package that contains the following items:
One 065-7542 Fast Ethernet Switch
One Power Cord
One CD with User’s Manual
Note: If any of these items is found missing or damaged,
please contact your local supplier for replacement.
www.signamax-us.com www.signamax-eu.com
Signamax Connectivity Systems ______________________________________________ 065-7542
Front Panel Layout
Ⅰ. 24 RJ-45 10/100Mbps Switch Ports
There are 1~24 RJ-45 connectors on the front panel for
connecting to servers, workstation or other devices.
065-7542 Switch provides 24 10/100Mbps switching ports
that could sense the 10/100M speed and negotiate
Full/Half-duplex mode automatically. These switching
ports allow users to connect 065-7542 Switch to 10Base-T
and 100Base-TX devices.
www.signamax-us.com www.signamax-eu.com
Signamax Connectivity Systems ______________________________________________ 065-7542
Ⅱ.LED Indicators of 24 Port 10/100Mps Switch
LED Status Description No. Of LED
Power On Power on Power
On Port is on the
100M status 24 (1~24)10/100M
Off Port is on the 10M
status 24 (1~24)
On 10/100Mbps port
for connection 24 (1~24)LINK/ACT.
Flashing 10/100Mbps for
data activating 24 (1~24)
Ⅲ. LED Definitions
Power LED
On ：The unit is powered on and ready for use.
Off ：The unit is powered off.
10/100M LED
On ：The port is on the 100Mbps status.
Off ：The port is on the 10Mbps status.
LINK/ACT LED
On ：The port is ready for 10/100Mbps
connection.
Flashing ：The data is transmitted or received on the
port.
www.signamax-us.com www.signamax-eu.com
Signamax Connectivity Systems ______________________________________________ 065-7542
Rear Panel Layout
AC input
AC input (90-240V/AC, 50-60Hz) UL Safety
Installation
Ⅰ. To connect 065-7542 Switch to PCs, servers, and
other network devices
Use straight-through twisted-pair cable (Cat. 5) to connect
065-7542 Switch to PCs, servers and other network devices.
Networks can be built as figure shown.
www.signamax-us.com www.signamax-eu.com
Signamax Connectivity Systems ______________________________________________ 065-7542
Ⅱ. To connect 065-7542 Switch to a Switch or a Hub
Use straight-through twisted pair cable to connect 065-7542
Switch to another Switch or Hub on uplink port. If you
connect 065-7542 Switches on port 1 to port 24, the cable
should be changed to crossover cable.
Technical Specification
1. Standards Compliance
-IEEE 802.3 10BASE-T
-IEEE 802.3u 100BASE-TX
2. Number of Ports
- 24 integrated ports (10/100Mbps N-Way port)
3. Fully Flow Control Supported
- Half-duplex mode: Backpressure
- Full-duplex mode: IEEE 802.3x
4. Network Transmission Media
- 10Base–T Cat. 3, 4, 5 UTP/STP
- 100Base–TX Cat. 5 UTP/STP
- System: POWER
5. Network Status Monitoring LEDs
- Per port: LINK/ACT, 10/100M
www.signamax-us.com www.signamax-eu.com
Signamax Connectivity Systems ______________________________________________ 065-7542
9. Power
6. Buffer Memory
- RAM: 1.5Mbits per device
-RAM buffer dynamically allocated for each port
7. Filter/Forward Rate
- 100Mbps port - 148,800pps
- 10Mbps port - 14,880pps
8. MAC Address
- Up to 4K per device
-AC input (90-240V/AC, 50-60Hz) UL Safety
10. Power Consumption
- 9.2 Watts (Max)
11. Operating Temperature
-0℃~ 60℃
12. Store Temperature
- -20℃~ 90℃
13. Humidity
- 10% ~90% RH (Non-condensing)
14. Dimension (L × W × H)
- 266mm × 160mm × 44mm
15. Weight
- 1.6Kg
16. Safety & EMI Certificates
-CE & FCC-B
www.signamax-us.com www.signamax-eu.com
