1
SATA II-150 PCI RAID
Quick Installation Guide
Introducing the SATA II-150 PCI RAID
The SATA II-150 PCI RAID is an ultra high-speed two
channel Serial ATA Generation II RAID controller for use
in PCI enabled systems.
Features and Benefits
• Compliant with PCI 2.3
• Compliant with Serial ATA 1.0 specifications and
complement of SATA II optional features
• SupportsRAID0(stripe)forperformanceandRAID
1 (mirror) for data protection
• Supports two SATA channels and data transfer rate
up to 1.5Gb/s (150MB/s)
• Supports Native Command Queuing (NCQ) and
SATA TCQ commands
• Onboard bus master engine relieves the system
processor and enhances system performance
• Features independent 256-byte FIFOs per channel
for host reads and writes
• Breaks the 137GB barrier! Works with various
brands of large capacity Serial ATA hard disks
• Supports SATA hard disk hot-plugging
System Requirements
• Pentium or equivalent PC with an available
PCI slot
• Windows 2000/XP/Server 2003
04-0412B
2
PackageContents
•SATA II-150 PCI RAID and spare low profile bracket
• 2 SATA data cables and one dual-connector SATA
power cable
• Driver CD and this quick installation guide
Layout
Internal
connectors

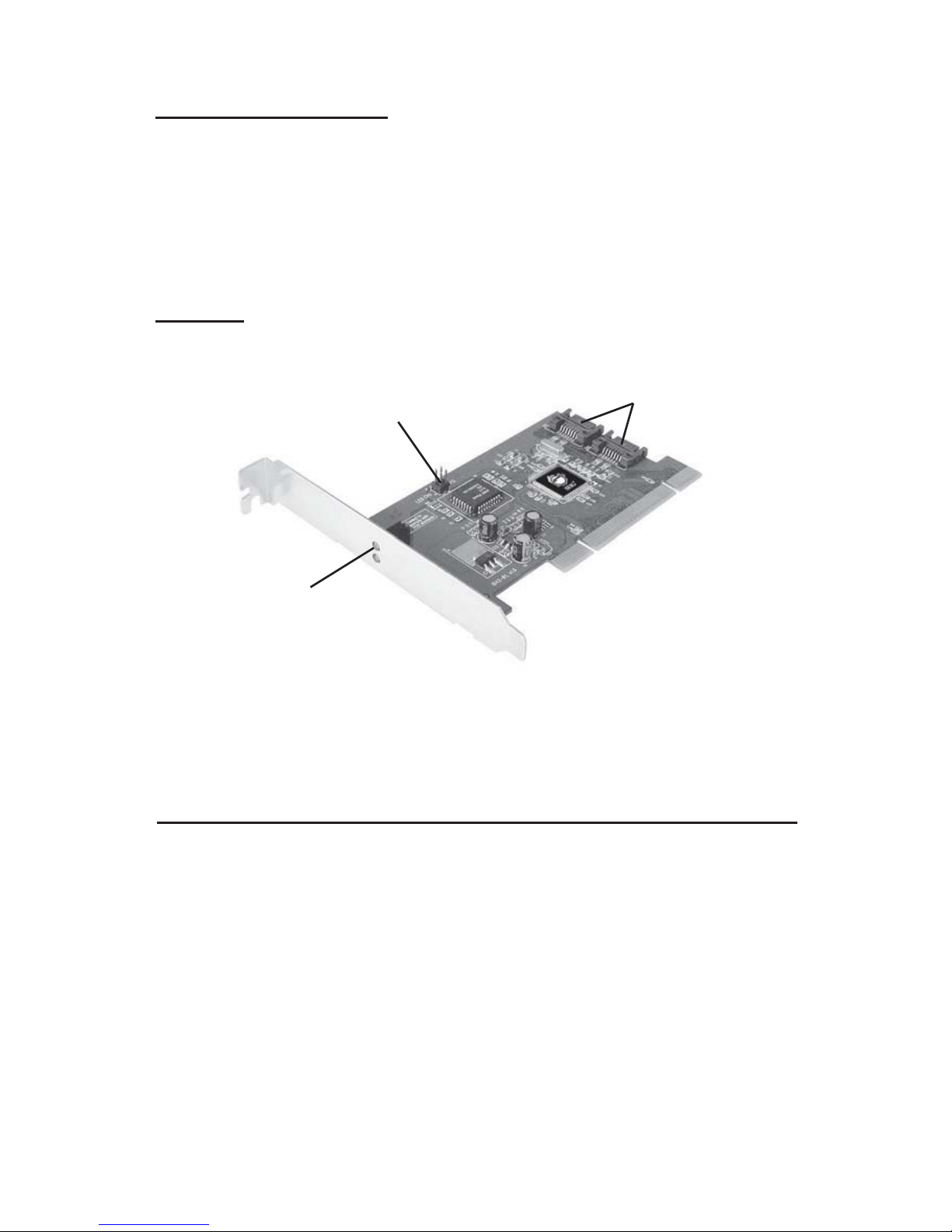

Figure 1. SATA II-150 PCI RAID
Hardware Installation
General instructions for installing the card are provided
below. Since the design of computer cases and
motherboards vary, refer to your computer’s reference
manual for further information, if needed.
Static Electricity Discharge may permanently damage
your system. Discharge any static electricity build up in
your body by touching your computer’s case for a few
seconds. Avoid any contact with internal parts and
handle cards only by their external edges.
HDD
Activity LED
HDD LED pins (Front chassis
LED; connects horizontally)
3
1. Turn OFF the power to your computer and any
other connected peripheral devices.
2. Unplug the power cord from the back of the
computer.
3. Remove your computer’s cover.
4. Remove the slot bracket from an available PCI slot.
5. To install the card, carefully align the card's bus
connector with the selected PCI slot on the
motherboard. Push the board down firmly, but
gently, until it is well seated.
6. Replace the slot bracket's holding screw to secure
the card.
7. Replacethecomputercoverand reconnectthe power
cord.
DeviceConnection
The SATA II-150 PCI RAID is a two channel Serial ATA
controller that supports two Serial ATA hard disk drives.
It is recommended to use identical hard drives for all
RAID configurations, however, it's possible to combine
hard drives of different sizes and makes.
RAID Arrays
RAID Arrays are setup in the SATA II-150 PCI RAID
BIOS.
RAID 0 (Striping)
This RAID array to be used on New/Blank hard drives.
Striping will destroy existing data on the hard drives.
1. As the BIOS boots press Ctrl+R when prompted to
enter the RAID BIOS.
2. At the next screen select RAID , then press Enter.
4
3. Select Create, then press Enter.
4. Select RAID 0, then press spacebar.
5. Select chunk size from 8k, 16k, 32k, 64k , 128k or
256k, then press spacebar.
6. Create name, press Enter.
7. When asked Expand RAID 0 to maximum capacity,
select No, then press Enter.
8. Select Exit, then press Enter.
9. When asked Are You Sure to Exit(Yes/No)?, select
Yes, then press Enter to exit and reboot.
10. Continue with the Fdisk and Format steps as if you
were installing a conventional hard drive.
RAID 1 (Mirror)
For New/Blank Hard Drives
This RAID array to be used on New/Blank hard drives.
Mirroring will destroy existing data on the hard drives.
1. As the BIOS boots press Ctrl+R when prompted to
enter the RAID BIOS.
2. At the next screen select RAID , then press Enter.
3. Select Create, then press Enter.
4. At the next screen choose RAID1, then press
spacebar.
5. Create name, then press Enter.
6. When asked, Activate load balance for RAID 1
(Yes/No)?, select Yes, then press Enter.
7. Select Exit, then press Enter.
8. When asked Are You Sure to Exit(Yes/No)?, select
Yes, then press Enter to exit and reboot.
9. Continue with the Fdisk and Format steps as if you
were installing a conventional hard drive.
5
For Existing Hard Drives with Data
1. During boot press Ctrl+R to enter the RAID BIOS.
2. Select Disk, press Enter.
3. Select Reserved for RAID, then press Enter.
4. Select the single hard drive then press Enter.
5. When asked, All data in selected drive will lost!
Continue (Yes/No)?, select Yes, then press Enter.
6. Select RAID, then select Rebuild.
7. Press Enter.The mirror will begin rebuilding. Do
not interfere with the process.
8. When rebuilding is finished, select Exit, then press
Enter.
9. When asked Are You Sure to Exit(Yes/No)?, select
Yes, then press Enter to exit and reboot.
JBOD
This RAID array to be used on New/Blank hard drives.
JBOD will destroy existing data on the hard drive.
1. As the BIOS boots press Ctrl+R when prompted to
enter the RAID BIOS.
2. At the next screen select RAID, then press Enter.
3. Select Create, then press Enter.
4. Select JBOD, then press spacebar.
5. Create name, press Enter.
6. Select Exit, then press Enter.
7. When asked Are You Sure to Exit(Yes/No)?, select
Yes, then press Enter to exit and reboot.
8. Continue with Fdisk and Format steps as if you
were installing a conventional hard drive.
6
Rebuilding a Failed Mirror Set
When a failure to one member occurs, you will be notified
either by the RAID BIOS during boot or by the Initio
SATA RAID Manager while in Windows. The steps
below will guide you in rebuilding a failed mirror set.
For Offline Mirror Rebuild (SATA RAID BIOS)
1. Replace the failed drive(s) with one of equal or
greater capacity, then start the computer.
2. During boot press Ctrl+R to enter the RAID BIOS.
3. Select Disk, press Enter.
4. Select Reserved for RAID, then press Enter.
5. Select the single hard drive then press Enter.
6. When asked, All data in selected drive will lost!
Continue (Yes/No)?, select Yes, then press Enter.
7. Select RAID, then select Rebuild.
8. Press Enter.The mirror will begin rebuilding. Do
not interfere with the process.
9. When rebuilding is finished, select Exit, then press
Enter
10. When asked Are You Sure to Exit(Yes/No)?, select
Yes, then press Enter to exit and reboot.
For Online Mirror Rebuild (in Windows)
1. Replace the failed drive(s) with one of equal or
greater capacity, then start the computer.
2. When Windows resumes, click Start/Programs or
All Programs/Initio SATA RAID/Initio RAID
Manager.
3. Double click Initio SATA RAID Manager iconfrom
the system tray to bring up the application.
4. Click Mirror Array, then click Tasks.
7
5. Click Rebuild Array, then click OK.
6. The mirror will rebuild. Rebuild time is dependent
on the size of the mirror set.
Deleting RAID Arrays
1. As the BIOS boots press Ctrl+R when prompted to
enter the RAID BIOS.
2. Select RAID, then press Enter.
3. Select the Delete, then press Enter.
4. Select Exit, then press Enter.
5. When asked Are You Sure to Exit(Yes/No)?, select
Yes, then press Enter to exit and reboot.
Low Level Format
Low Level Format is built into the RAID BIOS to make it
more convenient to erase the entire contents of a hard
disk drive, including data, drive and partition
information. The Low Level Format utility works on
singleharddrives only, before the RAID setisconfigured.
BIOS Configuration
SATA II-150 PCI RAID BIOS will appear everytime your
system starts up. If the BIOS doesn't show, please try
your controller in another PCI slot. During this (Post)
process, the BIOS will show up and indicate the devices
attached to it.
8
Driver Installation
This section provides information on how to install the
SATA II-150 PCI RAID drivers.
Windows 2000
For A New Installation
A new installation of Windows 2000 requires a floppy
disk for the driver installation. To make this floppy disk,
copy the contents of the Floppy folder, found on the
driver CD, onto a blank floppy disk then follow the
directions below.
1. Setup the RAID array prior to Windows installation.
2. Follow the Windows 2000 installation procedure.
3. Restart the computer when prompted by the
installation.
4. At the Windows 2000 Setup screen, press F6 to
install the RAID driver.
5. When prompted, press S to specify the location of
the driver.
6. Insert the floppy disk, then press Enter.
7. Select Initio INIC162x S-ATA RAID Controller For
Windows 2000, then press Enter.
8. Press Enter again to finish driver installation, then
follow the on-screen instructions to complete the
Windows installation.
WhenWindows installationcompletes,go toInitio SATA
RAID Manager GUI on page 11 and install the RAID
utility.
9
For An Existing Installation
1. SetuptheRAIDarrayprior to driver installation and
boot up to Windows.
2. At Found New Hardware Wizard, click Next.
3. Select Search for a suitable driver for my device
(recommended), then click Next.
4. InsertthedriverCD,checkCD-ROMdrives,uncheck
the other boxes, click Next, then click Next again.
5. IftheDigital Signature NotFound messageappears,
click Yes. Our driver has been thoroughly tested for
stabilityand compatibility.
6. Click Next, then Finish.
7. Repeat steps 2-6.
8. Click Yes to restart to complete the installation.
When Windows resumes, go to Initio SATA RAID
Manager GUI on page 11 and install the RAID utility.
Windows XP/Server 2003
For A New Installation
A new installation requires a floppy disk for the driver
installation. To make this floppy disk, copy the contents
of the Floppy folder, found on the driver CD, onto a blank
floppy disk then follow the directions below.
1. Setup the RAID array prior to Windows installation.
2. FollowMicrosoft's Windows installationprocedure.
3. Restart the computer when prompted by Windows'
installation.
4. At the Windows Setup screen, press F6 to install the
RAID driver.
5. When prompted, press S to specify the location of
the driver.
10
6. Insert the floppy disk, then press Enter.
7. Select Initio INIC162x S-ATA RAID Controller
For Windows XP/Server 2003, then press Enter.
8. Press Enter to finish driver installation, then follow
theon-screen instructions tocompletethe Windows
installation.
When Windows resumes, go to Initio SATA RAID
Manager GUI on page 11 and install the RAID utility.
For An Existing Installation
1. Setup the RAID array prior to driver installation
and boot up to Windows.
2. At the Found New Hardware Wizard:
XP (w/SP1 or earlier)/Server 2003: continue to step #3
XP (w/SP2 or later)/Server 2003 (w/ SP1 or later):
select No, not at this time, then click Next.
3. Insert the driver CD, select Install the software
automatically (Recommended),and click Next.
4. Accept the default entry, then click Next.
5. Click Continue Anyway, then click Finish.
6. Repeat steps 2-5.
7. Click Yes to restart to complete the installation.
When Windows resumes, go to Initio SATA RAID
Manager GUI on page 11 and install the RAID utility.
Indice
Altri manuali SIIG Scheda PCI
SIIG
SIIG Hi-Speed USB 4-Port PCI Manuale utente
SIIG
SIIG Serial ATA PCI Manuale utente
SIIG
SIIG Serial ATA 4-Channel PCI Manuale utente
SIIG
SIIG UltraATA 133 PCI Manuale utente
SIIG
SIIG Cyber 2S1P PCI Manuale utente
SIIG
SIIG CyberSerial Dual PCIe Manuale utente
SIIG
SIIG US2265 Manuale utente
SIIG
SIIG SC-SAE012-S2 Manuale utente
SIIG
SIIG CyberParallel Dual Manuale utente
SIIG
SIIG SC-SA0012-S1 Manuale utente
SIIG
SIIG SC-SA1012-S1 Manuale utente
SIIG
SIIG Cyber 1S1P PCI Manuale utente
SIIG
SIIG 1394 PCI Adapter Manuale utente
SIIG
SIIG FireWire 800 3-Port PCI Manuale utente
SIIG
SIIG SC-SA2012-S1 Manuale utente
SIIG
SIIG SoundWave 7.1 PCI Manuale utente
SIIG
SIIG NN-83M012-S2 Manuale utente
SIIG
SIIG CyberPro PCI 8S Manuale utente
SIIG
SIIG SC-SAE412-S3 Manuale utente
SIIG
SIIG NN2630 Manuale utente
Manuali Scheda PCI popolari di altre marche
ADLINK Technology
ADLINK Technology cPCI-3548 Manuale utente
Digium
Digium TE200 Series Manuale utente
Allo.com
Allo.com 2nd Gen E1/T1/J1 Manuale utente
Western Digital
Western Digital FireWire PCI Adapter Manuale utente
Pyle
Pyle Gamelink PLINK1 Manuale utente
Alpha Networks
Alpha Networks WMP-A13V Manuale utente
