SIIG SC-SAE212-S2 Manuale utente

SATA II PCIe i/e

Quick Installation Guide

04-0395A

Introducing the SATA II PCIe i/e

The SATA II PCIe i/e is an ultra high-speed dual channel

SerialATA Generation2controllerforuseinPCIExpress-

enabled system.

Features and Benefits

• CompliantwithPCIExpressBaseSpecification1.0a

• CompliantwithSerial1.0aspecificationwithsupport

for full complement of SATA II optional features

• PCIExpress1-lane(x1)SATAIIadapterworkswith

PCI Express slots with different lane width

• InstallsinanyavailablePCIExpressslotandsupport

data transfer rates up to 3.0Gbps (300MBps)

• Spare enchanced low profile bracket is included to

work in low profile chassis

• Supports Native Command Queuing (NCQ), Non-

zero offsets NCQ, and Out-of-order date delivery

NCQ

• Independent command fetch, scatter/gather, and

command execution

• Supports hard disk hot-plugging

System Requirements

•PCI Express-enabled system with an available PCI

Express slot

•Windows 2000/XP/Server 2003

PackageContents

•SATA II PCIe i/e adapter and spare enchanced low

profile bracket

•SATA data cable and SATA 15-pin power cable

•Driver CD and user's manual

BoardLayout

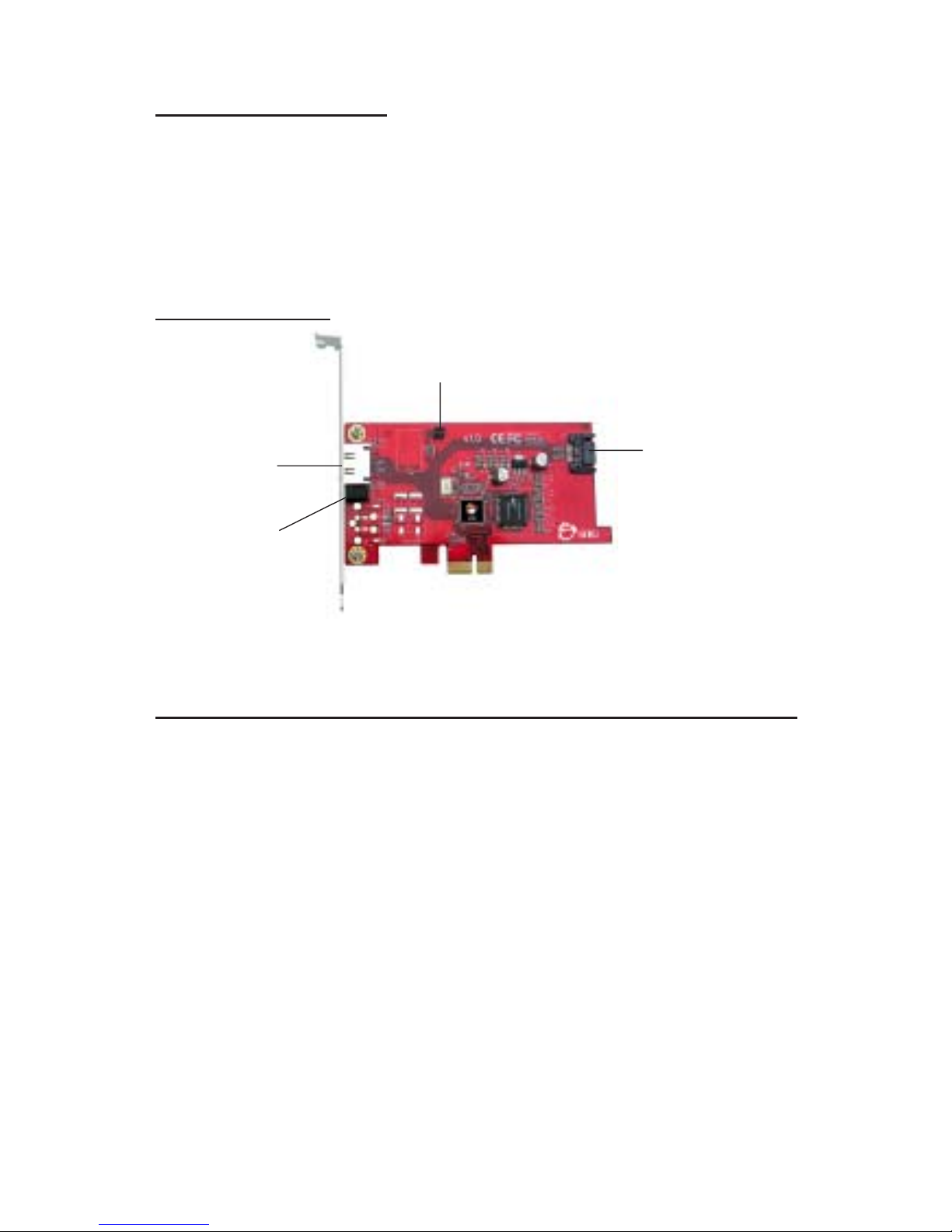

Figure 1. SATA II PCIe i/e Board Layout

Hardware Installation

General instructions for installing the card are provided

below, since the design of computer cases and

motherboards vary. Refer to your computer’s reference

manual for further information, if needed.

Static Electricity Discharge may permanently damage

your system. Discharge any static electricity build up in

your body by touching your computer’s case for a few

seconds. Avoid any contact with internal parts and

handle cards only by their external edges.

1. Turn OFF the power to your computer and any

other connected peripheral devices.

2. Unplug the power cord from the back of the

computer.

External

Connector

Internal

Connector

Hard Disk

LED Pins

(Connect horizontally)

HDD Activity

LED

3. Remove your computer’s cover.

4. RemovetheslotbracketfromanavailablePCIeslot.

5. To install the card, carefully align the card's bus

connector with the selected PCIe slot on the

motherboard. Push the board down firmly, but

gently, until it is well seated.

6. Replace the slot bracket's holding screw to secure

the card.

DeviceConnection

The SATA II PCIe i/e is a dual channel Serial ATA

controller that supports one internal and one external

Serial ATA drives.

Internal Serial ATA port:

1. Install hard disk drive(s) in chassis.

2. ConnecttheSerialATAharddiskdrivetothesystem

power supply using the Serial ATA power cable.

3. Connect one end of the Serial ATA cable to the hard

disk drive.

Note: For hard drives with both SATA power

connectorandlegacy5-pinconnector, useeitherthe

SATA power connector or the legacy 5-pin power

connector. Using both power connectors may

damage the hard drive.

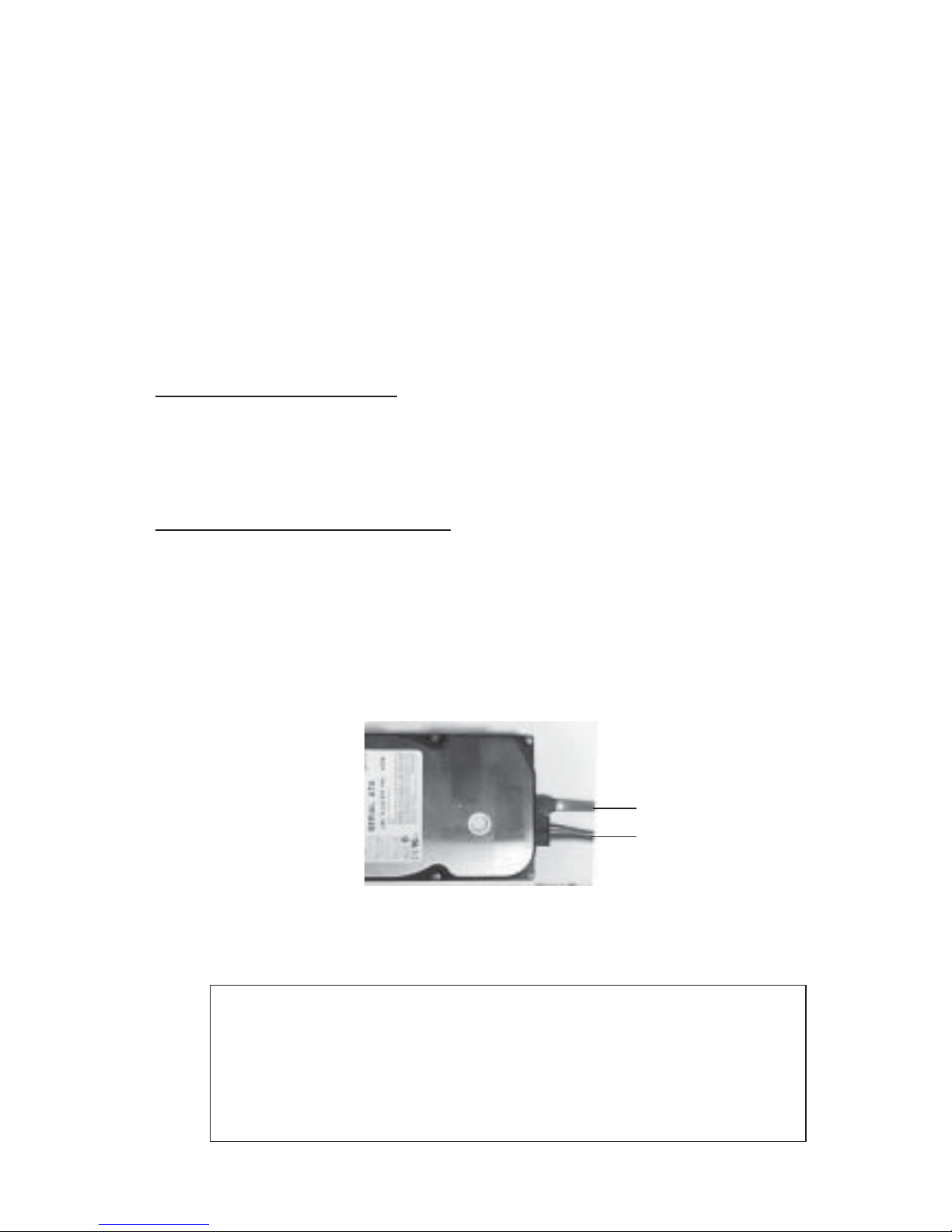

Figure 2. Hard disk drive connections

Serial ATA cable

Power cable adapter

4. Attach the other end of the Serial ATA cable to the

internal Serial ATA port.

5. Replacethecomputercoverandreconnectthepower

cord.

External Serial ATA port: External Serial ATA devices

should come with their own accessories. In most cases,

you just need to power up the external device and

connect it to the external port. For more information,

please refer to the external device's manual.

Driver Installation

This section provides information on how to install the

SATA II PCIe i/e drivers for the following operating

systems:

Windows2000

New Windows 2000 Installation

A new installation of Windows 2000 requires a floppy

disk for the driver installation. To make this floppy disk,

copy the contents of the Floppy folder, found on the

driver CD, onto a blank floppy disk then follow the

directions below.

1. Install the board and follow Microsoft procedures

to install Windows 2000 accordingly.

2. Restart your system when prompted during

Windows' installation.

3. At the Windows 2000 Setup screen, press F6 to

install the driver.

4. Insert the driver diskette. Press S, then press Enter.

5. Select Silicon Image SiI 3132 ... Controller and

press Enter.

6. Press Enter to continue and follow on-screen

instructions to complete the installation.

Existing Windows 2000 Installation

1. Install the board and boot up Windows 2000.

2. At the Found New Hardware Wizard, click Next.

3. Select Search for a suitable driver for my device

(recommended) and click Next.

4. Insert the driver diskette, check CD-ROM drives,

unchecktheotherboxes,andclick Next. ClickNext

again to continue.

5. Click Next

6. RestartWindowstocompletethedriverinstallation.

Windows XP/Server 2003

New Windows XP/Server 2003 Installation

A new installation of Windows XP/Server 2003 requires

a floppy disk for the driver installation. To make this

floppy disk, copy the contents of the Floppy folder,

found on the driver CD, onto a blank floppy disk then

follow the directions below.

1. InstalltheboardandfollowMicrosoftproceduresto

install Windows accordingly.

2. Restart your system when prompted by Windows'

installation.

3. AttheWindowsSetupscreen,pressF6toinstallthe

driver.

4. Insert the driver diskette. Press Sthen press Enter.

5. SelectSiliconImageSil 3132...Controllerandpress

Enter.

6. Press Enter to continue and follow on-screen

instructions to complete Windows XP installation.

Existing Windows XP/Server 2003 Installation

1. Install the board and boot up Windows XP/Server

2003.

2. At the Found New Hardware Wizard, Insert the

driverCD, selectInstallthesoftwareautomatically

(Recommended), then click Next.

3. Click Finish.

4. RestartWindowstocompletethedriverinstallation.

ToVerifyWindows2000/XP/2003Installation

1. Right click My Computer and click Manage.

2. Select Device Manager.

3. Double click SCSI and RAID Controllers, then

double click SiliconImage SiI3132... Controllerto

display driver properties.

Hot-Plugging Hard Disk Drives

To remove a drive from a powered up system, do the

following:

1. Right click My Computer and click Manage.

2. Select Device Manager.

3. Click Disk Drives, right click the target disk and

select Disable/Enable.

4. You can now remove the target disk.

Bios Configuration

The SATA II PCIe i/e BIOS will appear everytime your

systemstartsup. Ifthebiosdoesn'tshow,pleasetryyour

controllerinanotherPCIe slot.Duringthe(Post)process,

the bios will show up and indicate the devices attached

to it.

Technical Support and Warranty

QUESTIONS? SIIG’s Online Support has answers!

Simply visit our website at www.siig.com and click on Support.

Our online support database is updated daily with new drivers

and solutions. Answers to your questions could be just a few clicks

away. Youcanalsosubmitquestionsonlineandoneofourtechnical

support analysts will promptly respond.

A lifetime manufacturer warranty supplied with this product is

offered by SIIG, Inc. Please see SIIG website for more warranty

details. If you should happen to encounter any problems with this

product, please follow the procedures below.

If it is within the store's return policy period, please return the

product to the store where you purchased from.

If your purchase has passed the store's return policy period, please

follow these steps to have the product repaired or replaced.

Step 1: Submit your RMA request.

Go to www.siig.com, click Support, then RMA to submit a

request to SIIG RMA. If the product is determined to be

defective,anRMAnumberwillbeissued. SIIGRMAdepartment

can also be reached at (510)413-5333.

Step 2: After obtaining an RMA number, ship the product.

•Properlypacktheproductforshipping. Allsoftware,cable(s)

andanyotheraccessoriesthatcamewiththeoriginalpackage

must be included.

•Clearly write your RMA number on the top of the returned

package. SIIGwillrefusetoacceptanyshippingpackage,and

will not be responsible for a product returned without an

RMA number posted on the outside of the shipping carton.

•You are responsible for the cost of shipping the product to

SIIG at the following address:

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538

RMA #: _________________

•SIIG will ship the repaired or replaced product via Ground

in the U.S and International Economy outside of the U.S at

no cost to the customer.

SATAIIPCIei/eisatrademarkofSIIG,Inc.

SIIG and SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are

registeredtrademarksofMicrosoftCorporation. Othernamesusedinpublicationareforidentification

only and may be trademarks of their respective companies.

PRODUCT NAME

SATA II PCIe i/e

FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS

B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE

FCCCOMPLIANCESTATEMENT:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE

SIIG, Inc.

6078 Stewart Ave.

Fremont, CA 94538-3152

About SIIG, Inc.

Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturer

ofI/Oconnectivityproducts,includingPCI&ISAserialandparallel

ports,USB,SerialATA&UltraATAcontrollers,FireWire(1394a/b),

Networking,SoundCards,andotheraccessories. SIIGisthepremier

one-stopsourceofupgrades.

SIIGproductsoffercomprehensiveusermanuals,manyuser-friendly

features, and are backed by an extensive manufacturer warranty.

High-quality control standards are evident by the overall ease of

installation and compatibility of our products, as well as one of the

lowest defective return rates in the industry. SIIG products can be

foundincomputerretailstores,mailordercatalogs,ande-commerce

sites in the Americas and the UK, as well as through major

distributors, system integrators, and VARs.
