SIIG CE-000012-S1 Manuale utente

Introducing the HDMI 4-Port Switch

The HDMI 4-Port Switch allows you to connect and switch

up to four high-definition digital audio/video source

devices through one High-Definition Multimedia

Interface (HDMI) on your high-definition television.

Features and Benefits

•Provides an all-digital audio/video connection

between devices such as HDTVs, DVD players/

recorders(Blu-ray®,HD-DVD,up-convertingDVD),

gaming systems, digital cable/satellite boxes and

AV receivers

•Provides four HDMI inputs and one HDMI output

•Supports digital video & audio HDMI standard

1.3b specification

•Signal amplification - extends interconnect copper

cable length up to 15 meters

•Supports 480i, 480p, 720i, 720p, 1080i and 1080p

resolution

•Easy switching between HDMI-enabled sources

using the IR remote control or Input Select button

PackageContents

•HDMI 4-Port Switch

•IR Remote Control and 2 AAA batteries

•Power Adapter

•Quick Installation Guide

HDMI 4-Port Switch

Quick Installation Guide

04-0455B

Layout

Figure 1. Front Panel Layout

Figure 2. Rear Panel Layout

Input Select

Button

HDMI In 1

Power Jack

HDMI Out

IR Receiver

Device LED

Power LED

HDMI In 2

HDMI In 3

HDMI In 4

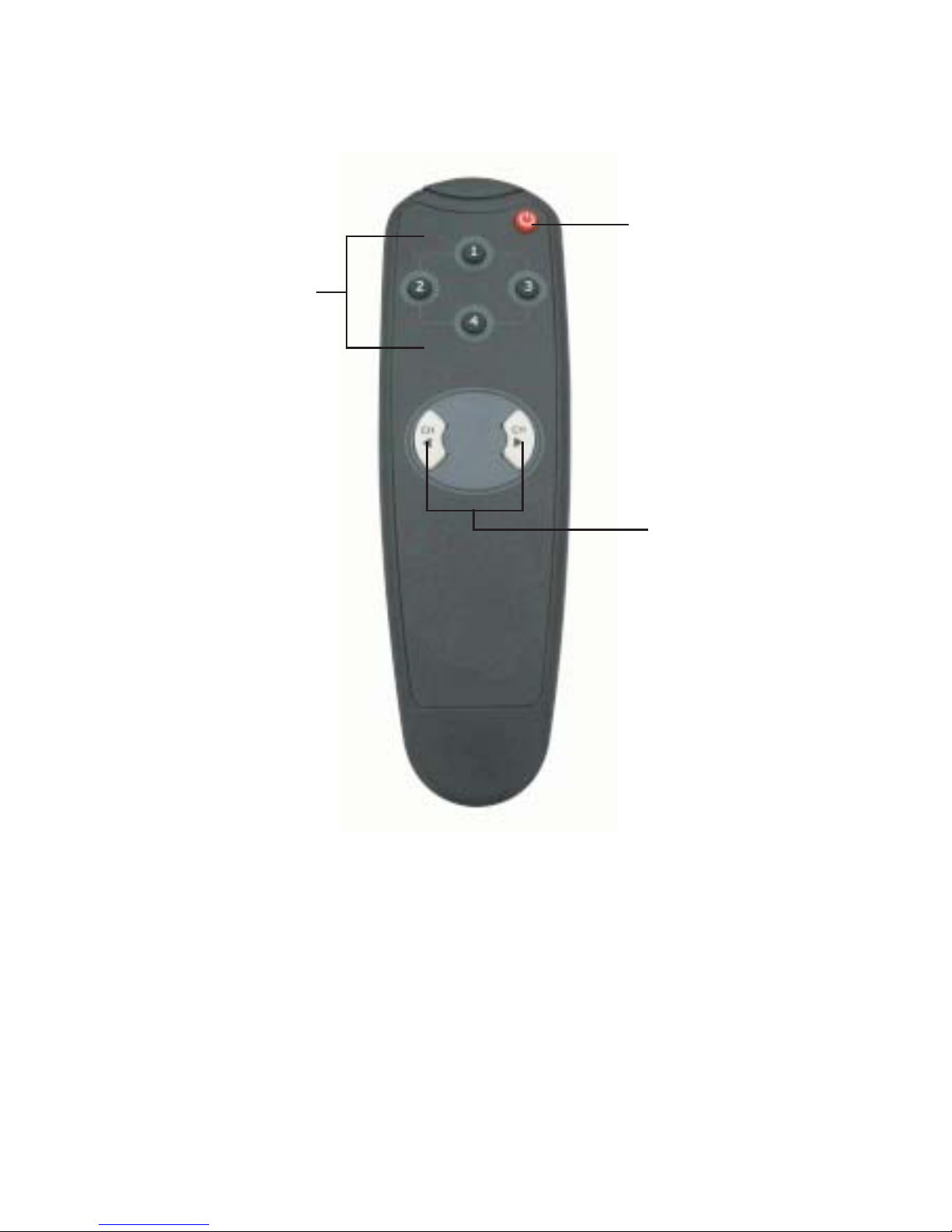

Remote Control

Figure 3. Remote Control

On/Off

Direct Input

Select

Next/Previous

Input Select

Installation

1. Connect the HDMI cable (not included) from the

HDMI source device(s) into the HDMI inputs.

2. Connect the HDMI cable (not included) from your

HDTV, monitor, projector or another HDMI

receiving device into the HDMI Out port.

3. Plug the power adapter into the HDMI switch.

4. Plug the power adapter into a reliable power outlet.

5. Power on the HDMI switch.

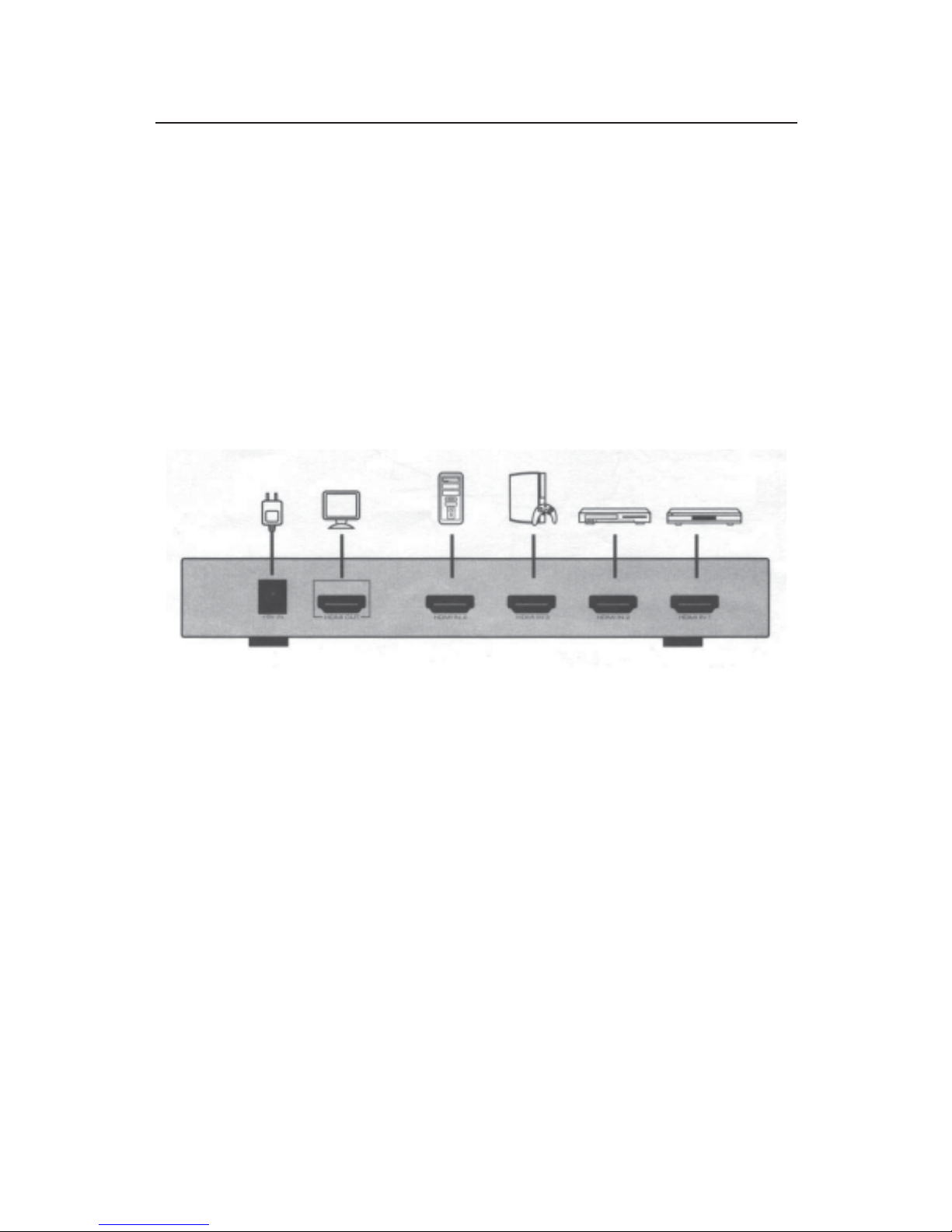

Figure 3. Device Connection

Operation

Turn On/Off

Remote Control

•Press the On/Off button to power on or power off

the switch

Front Panel Input Select Button

•Press to power on the switch. To power off the

switch, press and hold the button for 4 seconds

Device Switching

Remote Control

•Press the desired Direct Input Select button to go

directly to the desired device

•Press the Next/Previous Input Select buttontocycle

through to the desired device

Front Panel Input Select Button

•With the switch powered on, press the button

repeatedly to cycle through to the desired device

Indicator LED

Power LED

The red Power LED will be lit when the switch is powered

on.

Device LED

Thereare four green Device LEDs on the front panel of the

switch. The LED of the selected device will be lit.

Blank Page

Technical Support and Warranty

QUESTIONS? SIIG’sOnline Support hasanswers! Simply visitour

web site at www.siig.com and click Support. Our online support

database is updated daily with new drivers and solutions. Answers

toyour questionscould be just a few clicks away. You can alsosubmit

questions online and a technical support analysts will promptly

respond.

SIIGoffers a 5-yearmanufacturer warranty withthis product. Please

see our web site for more warranty details. If you encounter any

problems with this product, please follow the procedures below.

A) If it is within the store's return policy period, please return the

product to the store where you purchased from.

B) Ifyour purchase has passed thestore's returnpolicy period, please

follow these steps to have the product repaired or replaced.

Step 1: Submit your RMA request.

Go to www.siig.com, click Support, then RMA to submit a

request to SIIG RMA. If the product is determined to be

defective, an RMA number will be issued.

Step 2: After obtaining an RMA number, ship the product.

•Properly pack the product for shipping. All software, cable(s)

and any other accessories that came with the original package

must be included.

•Clearly write your RMA number on the top of the returned

package. SIIG will refuse to accept any shipping package, and

will not be responsible for a product returned without an

RMA number posted on the outside of the shipping carton.

•You are responsible for the cost of shipping. Ship the product

to the following address:

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

RMA #:

•SIIG will ship the repaired or replaced product via Ground

in the U.S. and International Economy outside of the U.S. at

no cost to the customer.

HDMI 4-Port Switch is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of

SIIG,Inc. Othernamesusedinthispublicationareforidentificationonlyandmaybetrademarksoftheir

respectivecompanies.

PRODUCT NAME

HDMI 4-Port Switch

FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS

B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE

FCCCOMPLIANCESTATEMENT:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE

SIIG, Inc.

6078 Stewart Ave.

Fremont, CA 94538-3152, USA

About SIIG, Inc.

Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturer

of I/O connectivity products, including PCIe, PCI & ISA serial and

parallel ports, USB, Serial ATA & UltraATA controllers, FireWire

(1394a/b),networking,sound cards,andother accessories. SIIGisthe

premier one-stop source of upgrades.

SIIGproductsoffer comprehensive usermanuals,many user-friendly

features, and are backed by an extensive manufacturer warranty.

High-quality control standards are evident by the overall ease of

installation and compatibility of our products, as well as one of the

lowest defective return rates in the industry. SIIG products can be

found in computer retail stores, mail order catalogs, through major

distributors, system integrators, and VARs in the Americas and the

UK, and through e-commerce sites.
