Sitecom WL-303 Manuale utente

WL-303/306/312

Wireless Broadband router

(802.11bgn draft 2.0)

User Manual

ABLE OF

ONTENTS

KEY FEATURES.................................................................................. 4

PACKAGE CONTENTS.........................................................................

PRODUCT LAYOUT ............................................................................ 6

NETWORK + SYSTEM REQUIREMENTS .............................................. 8

WL-303/WL-306/WL-312 PLACEMENT ............................................. 8

SETUP LAN, WAN .............................................................................. 9

PC NETWORK ADAPTER SETUP (WINDOWS XP) ............................. 10

BRING UP WL-303/WL-306/WL-312 .............................................. 12

INITIAL SETUP WL-303/WL-306/WL-312 ...................................... 12

CONFIGURATION WIZARD.............................................................. 21

WIRELESS SETTINGS ...................................................................... 23

FIREWALL SETTINGS ...................................................................... 34

ADVANCED SETTINGS ..................................................................... 40

TOOLBOX SETTINGS ....................................................................... 0

Revision:2.5

Introduction

Congratulations on your purchase of WL-303/WL-306/WL-312 Wireless

Net ork Broadband Router. WL-303/WL-306/WL-312 is compliant ith draft

802.11n v 2.0 up to 6 times faster than standard 802.11g based routers hile

still being compatible ith 802.11g & 802.11b gadgets. WL-303/WL-306/WL-

312 is not only a Wireless Access Point, but also doubles as a 4-port full-

duplex S itch that connects your ired-Ethernet devices together at.

At 300 Mbps ireless transmission rate, the Access Point built into the Router

uses advanced MIMO (Multi-Input, Multi-Output) technology to transmit

multiple steams of data in a single ireless channel, giving you seamless

access to multimedia content. Robust RF signal travels farther, eliminates

dead spots and extends net ork range. For data protection and privacy, WL-

303/WL-306/WL-312 encodes all ireless transmissions ith WEP, WPA, and

WPA2 encryption.

With inbuilt DHCP Server & po erful SPI fire all WL-303/WL-306/WL-312

protects your computers against intruders and most kno n Internet attacks

but provides safe VPN pass-through. With incredible speed and QoS function

of 802.11n(draft2.0), WL-303/WL-306/WL-312 is ideal for media-centric

applications like streaming video, gaming, and VoIP telephony to run multiple

media-intense data streams through the net ork at the same time, ith no

degradation in performance.

1 Key Features

Features Advantages

Incredible Data Rate up to

300Mbps**

Heavy data payloads such as MPEG

video streaming

IEEE 802.11n draft 2.0 Compliant

and back ard compatible ith

802.11b/g

Fully Interoperable ith IEEE

802.11b / IEEE802.11g compliant

devices ith legacy protection

Four 10/100 Mbps Fast S itch Ports

(Auto-Crossover)

Scalability, extend your net ork.

Fire all supports Virtual Server

Mapping, DMZ, IP Filter, ICMP

Blocking, SPI

Avoids the attacks of Hackers or

Viruses from Internet

Support 802.1x authenticator,

802.11i (WPA/WPA2, AES), VPN

pass-through

Provide mutual authentication (Client

and dynamic encryption keys to

enhance security

WDS (Wireless Distribution System) Make ireless AP and Bridge mode

simultaneously as a ireless

repeater

** Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g, n chipset used. Actual

throughput ma var . Network conditions and environmental factors lower actual throughput rate.

All specifications are subject to change without notice.

2 Package Contents

Open the package carefully, and make sure that none of the items listed

belo are missing. Do not discard the packing materials, in case of return;

the unit must be shipped back in its original package.

1. WL-303/312 Router

2. 220V~240V Po er Adapter

3. 2dBi 2.4GHz Dipole Antennas x ( l-303 3 pcs, l-

312 2pcs)

4. Quick Install Guide

5. CD (User’s Manual)

6. Warranty card

7. UTP cable

3 Product Layout

Port Descri tion

WAN

Connect the cable from you ADSL/Cable modem to this

port

LAN

Connect the cable from your PC s or network devices

to this port

Power connector

Blinks on traffic for specific LAN PORT

Backlabel

The backlabel describes the corresponding LED indications and port functionality

LED Descri tion

POWER

Lights up when powered ON. Blinks on TEST/RESET

WLAN

Lights up in Blue when WLAN is enabled. Blinks on traffic

LINK/ACTIVY

Blinks on traffic for specific LAN PORT

WPS BUTTON

Press 2 seconds for WPS mode

Press 10 seconds to reset the router

Press 15 Seconds to reset the router to factory defaults.

4 Network + System Requirements

To begin using the WL-303/WL-306/WL-312, make sure you meet the following

as minimum requirements:

• PC/Notebook.

• Operating System – Microsoft Windows XP/2000/VISTA

• 1 Free Ethernet port.

• WiFi card/USB dongle (802.11 b/g/n) – optional.

• External xDSL (ADSL) or Cable modem with an Ethernet port (RJ-45).

• PC with a Web-Browser (Internet Explorer, Safari, Firefox, Opera)

• Ethernet compatible CAT5 cables.

5 WL-303/WL-306/WL-312 Placement

You can place WL-303/WL-306/WL-312 on a desk or other flat surface, or you

can mount it on a wall. For optimal performance, place your Wireless Broadband

Router in the center of your office (or your home) in a location that is away from

any potential source of interference, such as a metal wall or microwave oven.

This location must be close to a power connection and your ADSL/Cable modem.

6 Setu LAN, WAN

WAN connection:

LAN connection:

7 PC Network Ada ter setu (

Windows XP

)

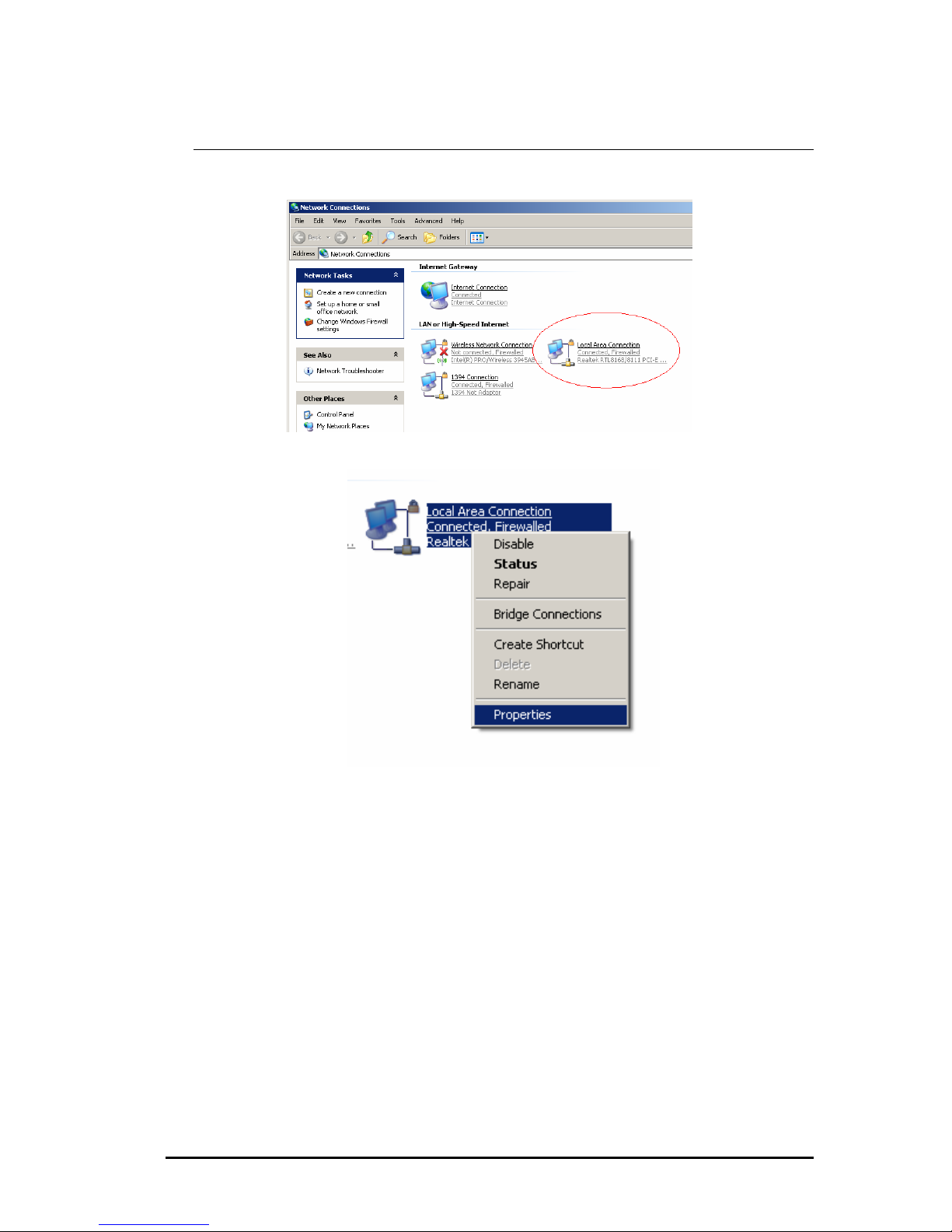

• Enter [Start Menu]  select [Control panel]  select [Net ork].

• Select [Local Area Connection]) icon=>select [properties]
