WLR-1000/2000/3000

Wireless Broadband Router

(802.11b/g/n)

User Manual

ABLE OF

ONTENTS

KEY FEATURES......................................................................................................................... 4

PACKAGE CONTENTS............................................................................................................. 5

PRODUCT LAYOUT.................................................................................................................. 6

NETWORK + SYSTEM REQUIREMENTS............................................................................ 9

WLR-1000/2000/3000 PLACEMENT........................................................................................ 9

SETUP LAN, WAN.................................................................................................................... 10

PC NETWORK ADAPTER SETUP (WINDOWS XP)............................................................11

BRING UP WLR-1000/2000/3000 ............................................................................................ 15

INITIAL SETUP WLR-1000/2000/3000 .................................................................................. 15

CONFIGURATION WIZARD................................................................................................. 24

WIRELESS SETTINGS............................................................................................................ 26

FIREWALL SETTINGS ........................................................................................................... 36

ADVANCED SETTINGS.......................................................................................................... 42

TOOLBOX SETTINGS ............................................................................................................ 52

Revision:1.1

Introduction

Congratulations on your purchase of the WLR-1000/2000/3000 Wireless

Network Broa ban Router. The WLR-1000/2000/3000 is compliant with

802.11n an up to 6 times faster than stan ar 802.11g base routers while

still being compatible with 802.11g & 802.11b. The WLR-1000/2000/3000 is

not only a Wireless Access Point, but also oubles as a 4-port full- uplex

Switch that connects your wire -Ethernet evices together.

At 300 Mbps (150 Mbps for the WLR-1000) wireless transmission rate, the

Access Point built into the Router uses a vance MIMO (Multi-Input, Multi-

Output) technology to transmit multiple steams of ata in a single wireless

channel, giving you seamless access to multime ia content. Robust RF signal

travels farther, eliminates ea spots an exten s network range. For ata

protection an privacy, the WLR-1000/2000/3000 enco es all wireless

transmissions with WEP, WPA, an WPA2 encryption.

With the inbuilt DHCP Server & powerful SPI firewall, the WLR-

1000/2000/3000 protects your computers against intru ers an most known

Internet attacks but provi es safe VPN pass-through. With incre ible spee

an QoS function of 802.11n( raft2.0), the WLR-1000/2000/3000 is i eal for

me ia-centric applications like streaming vi eo, gaming, an VoIP telephony

to run multiple me ia-intense ata streams through the network at the same

time, with no egra ation in performance.

1 Key Features

Features Advantages

Incre ible Data Rate up to

300Mbps* (150Mbps for WLR-1000)

Heavy ata payloa s such as MPEG

vi eo streaming

IEEE 802.11n compliant an

backwar s compatible with

802.11b/g

Fully Interoperable with IEEE

802.11b / IEEE802.11g compliant

evices with legacy protection

Four 10/100 Mbps Fast Switch Ports

(Auto-Crossover)

Scalability, exten your network.

Firewall supports Virtual Server

Mapping, DMZ, IP Filter, ICMP

Blocking, SPI

Avoi s the attacks of Hackers or

Viruses from Internet

Support 802.1x authenticator,

802.11i (WPA/WPA2, AES), VPN

pass-through

Provi e mutual authentication (Client

an ynamic encryption keys to

enhance security

WDS (Wireless Distribution System) Make wireless AP an Bri ge mo e

simultaneously as a wireless

repeater

* Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g, n chipset used. Actual

throughput may vary. Network conditions and environmental factors lower actual throughput rate.

All specifications are subject to change without notice.

2 Package Contents

Open the package carefully, an make sure that none of the items liste

below are missing. Do not iscar the packing materials, in case of return;

the unit must be shippe back in its original package.

1. WLR-1000/2000/3000 Router

2. 5V 1A Power A apter

3. Quick Install Gui e

4. CD (User’s Manual)

5. Warranty car

6. UTP cable

3 Product Layout

Port Description

Power connector Connect the 5V DC adapter to this port

WAN (Blue) Connect your ADSL/Cable modem to this port

LAN (Yellow) Connect your PC’s or network devices to this port

Backlabel

The backlabel escribes the IP a ress, login etails, SSID, security co e an

WPS button functionality.

Button Description

WPS BUTTON

Press 2 seconds for WPS mode

Press 10 seconds to reset the router

Press 15 Seconds to reset the router to factory defaults.

LED Definition

From left to right.

Port Description

LAN (Blue) Shows the cable is connecte .

WAN (Blue) Shows the cable is connecte .

WiFi (Blue) Shows WiFi activity an WPS.

Power (Re ) Shows the evice is turne on.

4 Network + System Requirements

To begin using the WLR-1000/2000/3000, make sure you meet the following

as minimum requirements:

•PC/Notebook.

•Operating System – Microsoft Win ows XP/2000/VISTA

•1 Free Ethernet port.

•WiFi car /USB ongle (802.11 b/g/n) – optional.

•External xDSL (ADSL) or Cable mo em with an Ethernet port (RJ-45).

•PC with a Web-Browser (Internet Explorer, Safari, Firefox, Opera)

•Ethernet compatible CAT5 cables.

5 WLR-1000/2000/3000 Placement

You can place the WLR-1000/2000/3000 on a esk or other flat surface, or

you can mount it on a wall. For optimal performance, place your Wireless

Broa ban Router in the center of your office (or your home) in a location

that is away from any potential source of interference, such as a metal wall or

microwave oven. This location must be close to a power connection an your

ADSL/Cable mo em.

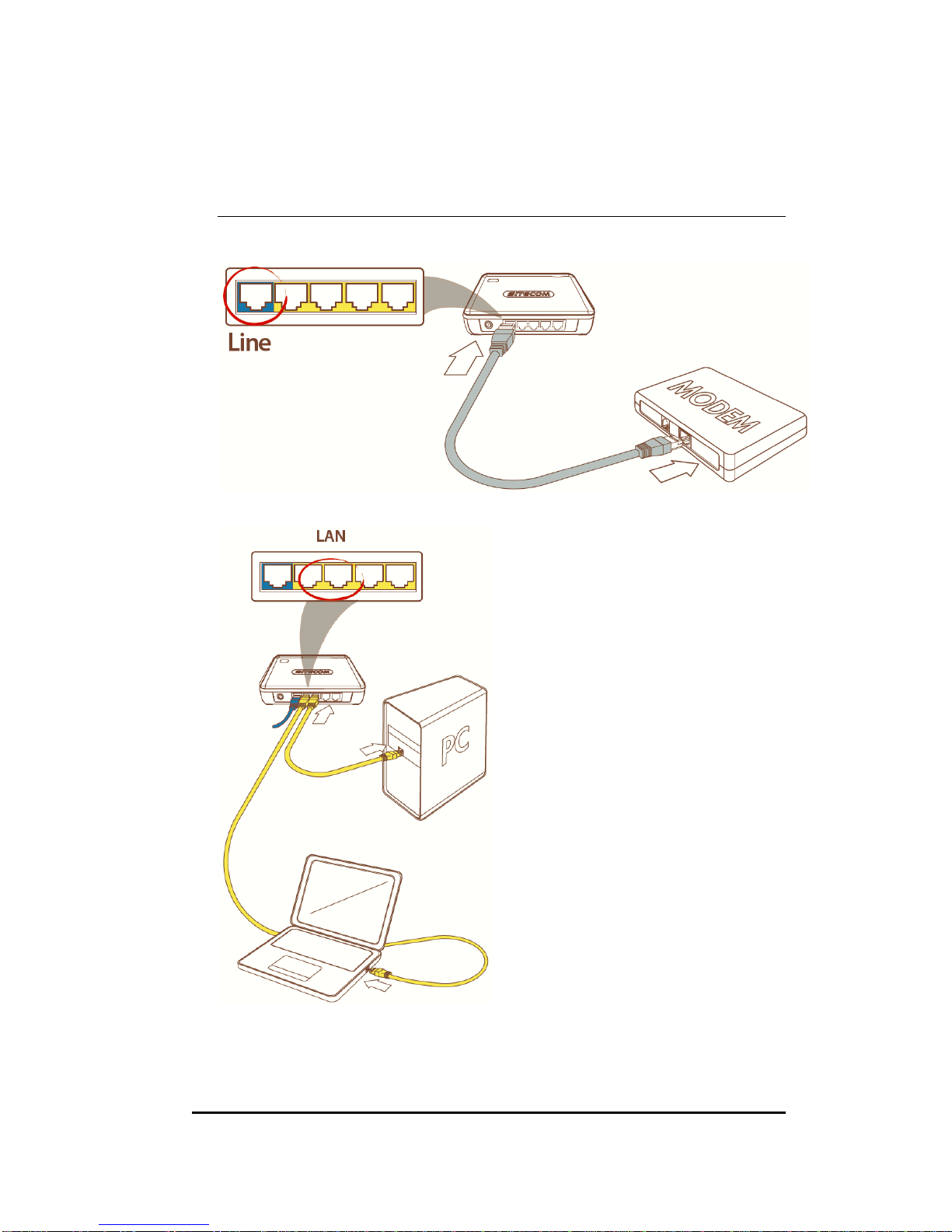

6 Setup LAN, WAN

WAN connection:

LAN connection:
