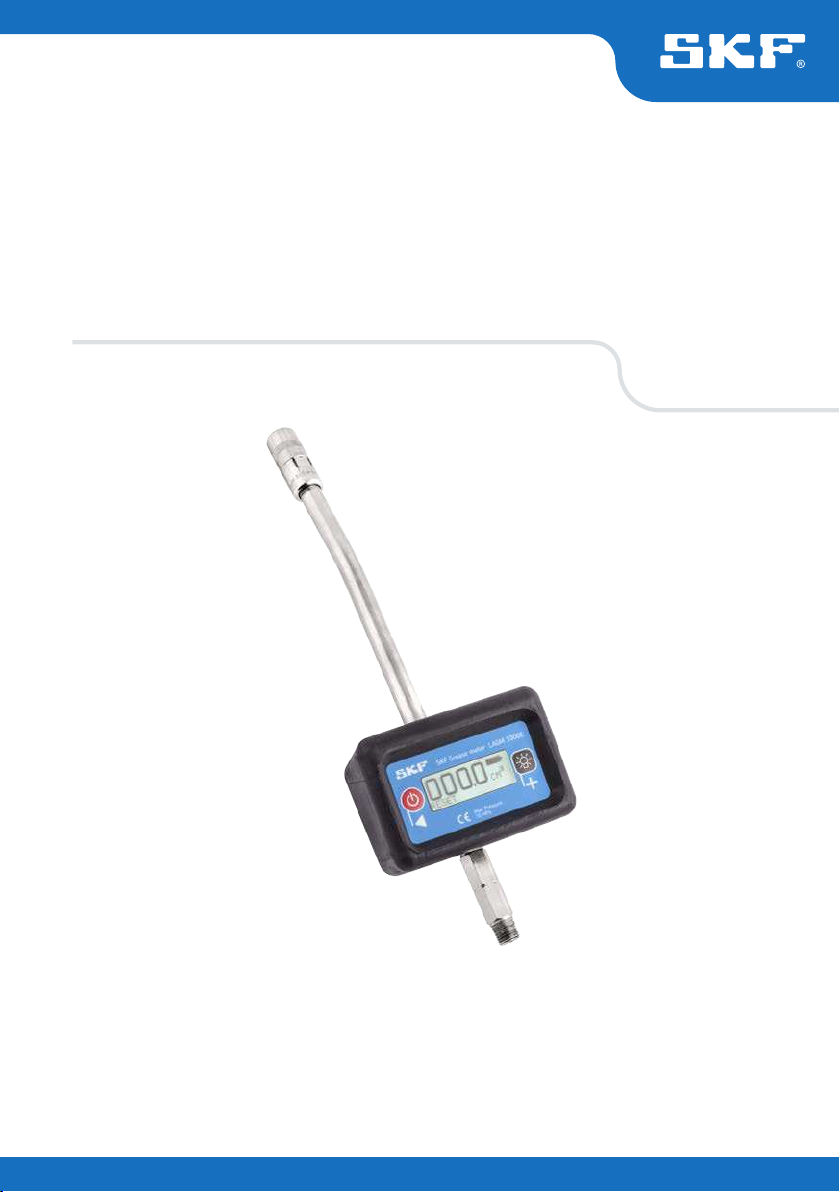

SKF LAGM 1000E Manuale utente

SKF LAGM 1000E

Instructions for use

2 SKF LAGM 1000E

Table of contents

EC Declaration of conformity ....................................................................................3

1. Application .......................................................................................................4

2. Description.......................................................................................................4

3. Technical data ..................................................................................................4

4. Installing or replacing battery...........................................................................4

5. Assembly instructions.......................................................................................5

6. How to use.......................................................................................................5

6.1 Menu functionality......................................................................................................... 6

6.2 Sub total and total counter........................................................................................... 7

6.3 Calibration of the meter................................................................................................ 7

6.3.1 Calculate the correction factor........................................................................... 7

6.3.2 Calculate the calibration factor.......................................................................... 7

6.3.3 Change the calibration factor............................................................................. 8

6.4 Change the displayed units .......................................................................................... 9

6.5 Change auto shut off time............................................................................................ 9

6.6 Change backlight..........................................................................................................10

Original instructions

3SKF LAGM 1000E

EC Declaration of conformity

We,

SKF Maintenance Products

Kelvinbaan 16

3439 MT Nieuwegein

The Netherlands

herewith declare that the following product:

SKF Grease Meter

LAGM 1000E

has been designed and manufactured in accordance with:

EMC DIRECTIVE 2004/108/EC as outlined in the harmonized norm for

EN 61000-6-2:2005

EN 61000-6-4:2007

EN 61000-6-3:2007

EUROPEAN ROHS DIRECTIVE 2011/65/EU

Nieuwegein, The Netherlands,

January 2013

Sébastien David

Manager Product Development and Quality

4 SKF LAGM 1000E

1. Application

The SKF Grease Meter LAGM 1000E accurately measures the amount of grease applied to

a bearing or other lubrication point. The grease meter can be connected to grease pumps

that are air driven, electrically driven or hand operated.

2. Description

The grease meter measures the grease quantity that passes through the meter. The grease

quantity dispensed can be displayed as cm3, gram, oz or ﬂ oz (US). The grease meter is

easily calibrated, and the display is equipped with a backlight for use in dark environments.

3. Technical data

Suitable grease consistency NLGI 0 - NLGI 3

Maximum pressure 70 MPa (10 000 psi)

Thread connection M10 ™1

Maximum ﬂow 1 000 cm3/min (34 us ﬂ oz/min)

Accuracy ± 3% up to 30 MPa (4 300 psi)

± 5% from 30 to 70 MPa (4 300 - 10 000 psi)

Weight 0,3 kg (0.66 lb)

Battery type 1 ™AA (1,5 V)

Battery life 50 hours with backlight

2 000 hours without backlight

10 000 hours without displaying (in stand-by

mode, see 6.5)

Low power indication LOBAT

Operating conditions -20 °C to +54 °C (-4°F to +130 °F)

IP level 67

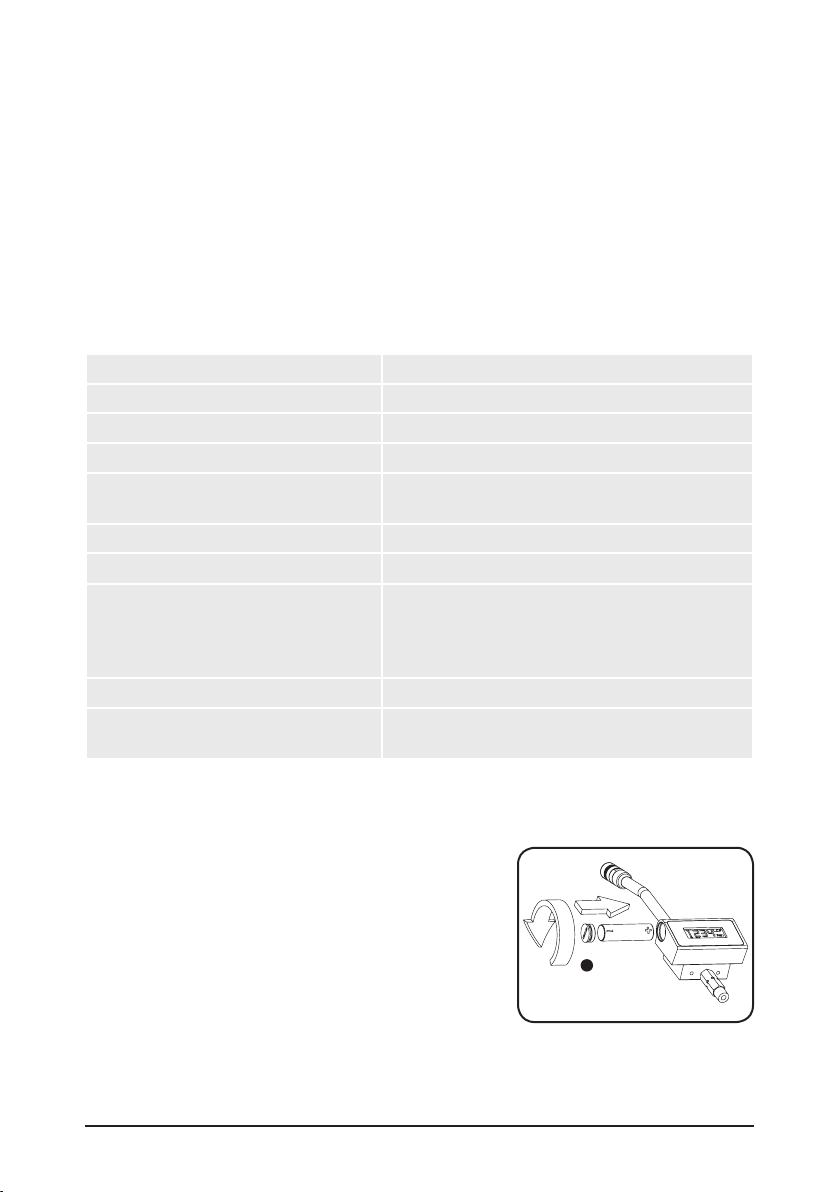

4. Installing or replacing battery

Carefully remove the rubber protective sleeve.

Check polarity when inserting battery. Dispose of

the batteries in accordance with local regulations.

5SKF LAGM 1000E

5. Assembly instructions

Replace the lubrication pipe or high-pressure hose on your grease pump or grease gun

with the grease meter assembly. If wanted the extension pipe with nozzle can be replaced

by the extension hose (1077601).

6. How to use

Mobile installation with a grease gun or pump

There are two ways to start the Grease Meter. Either use it (pump grease through it) or

press the button to conitnue with the previous measurement:

The display lights up:

To reset the Grease Meter after each dispensing press the button.

(The RESET text shows that in this menu the left button has the reset function.)

An alternative way to reset the meter is to wait untill the auto shut off time

(see chapter 6.5) has elapsed and restart the meter by pumping grease though it.

To light up the display when working in dark environments press the button.

The light will automatically switch off 5 seconds after the grease ﬂow has stopped.

The battery symbol indicates how much power is left in the batteries.

Permanent installation (in conjunction with an automatic lubrication systems)

Activate this mode by setting the auto shut off time to “stby” (see chapter 6.5).

In this mode the display don’t activate when it detects grease ﬂow.

The Grease Meter measures the amount passing through it.

Use the button to turn the display on or off (>2 seconds to turn it off).

When this mode is active there is a “STBY”

in the lower right corner on the display.

6 SKF LAGM 1000E

This mode is for permanent installation on a pipe to check amount passing through the

pipe. This mode is very battery efﬁcient. The batteries can last several years.

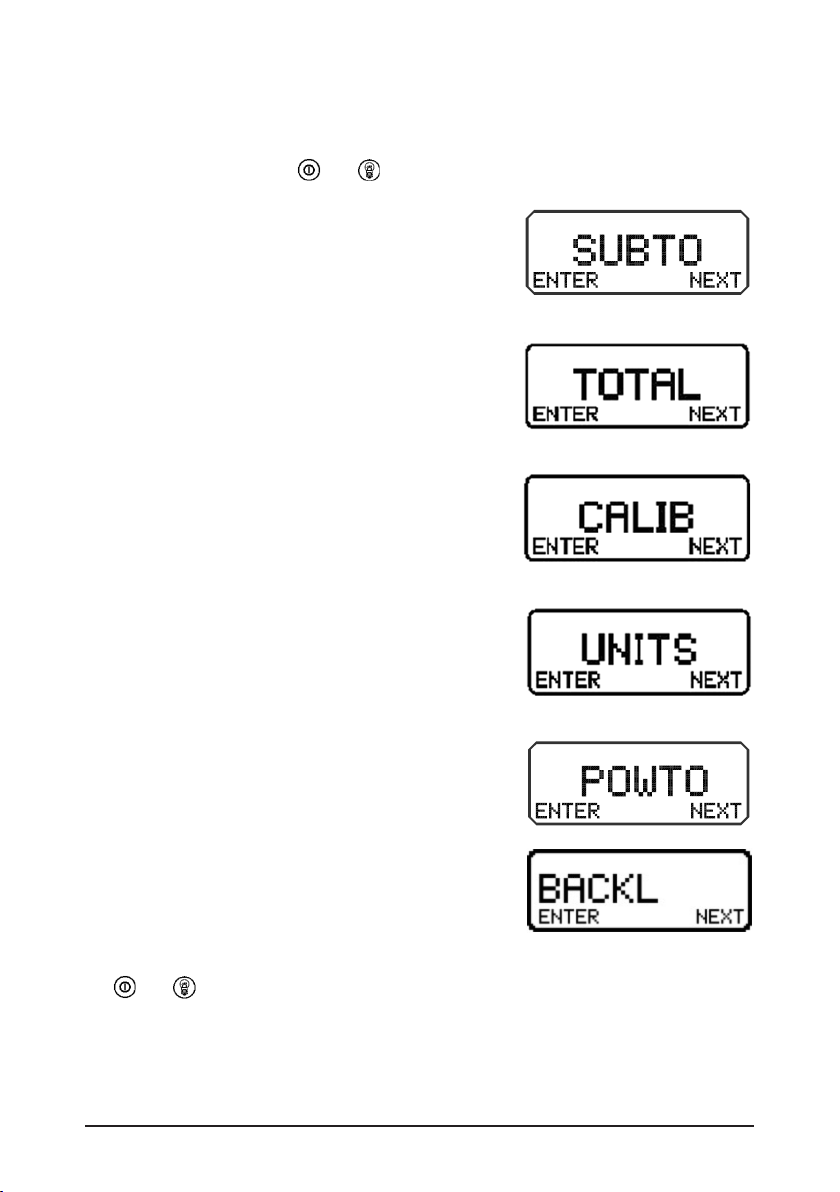

6.1 Menu functionality

To enter the menu press the and buttons at the same time.

The ﬁrst option in the menu is the sub total counter.

Press ENTER (left button) to display this value and

reset it if required or press NEXT (right button) for the

following option in the menu.

The second option in the menu is total counter. Press

ENTER (left button) to display this value and reset it if

required or press NEXT (right button) for the following

option in the menu.

The third option in the menu is for calibration of the

grease meter. Press ENTER (left button) to display

the calibration value and adjust it if required or press

NEXT (right button) for the following option in the

menu.

The fourth option in the menu is for displayed units.

Press ENTER (left button) to display or change the

used unit or press NEXT (right button) for the following

option in the menu.

The ﬁfth option in the menu is the auto shut off time.

Press ENTER (left button) to display or change the

auto shut off time or NEXT (right button) for the

following option in the menu.

The last option in the menu is to set the light level

of backlight. Press ENTER (left button) to display

or change the light level of backlight or NEXT

(right button) for the ﬁrst option in the menu.

It is always possible to exit the menus and return to normal measuring state by pressing

the and buttons at the same time.

7SKF LAGM 1000E

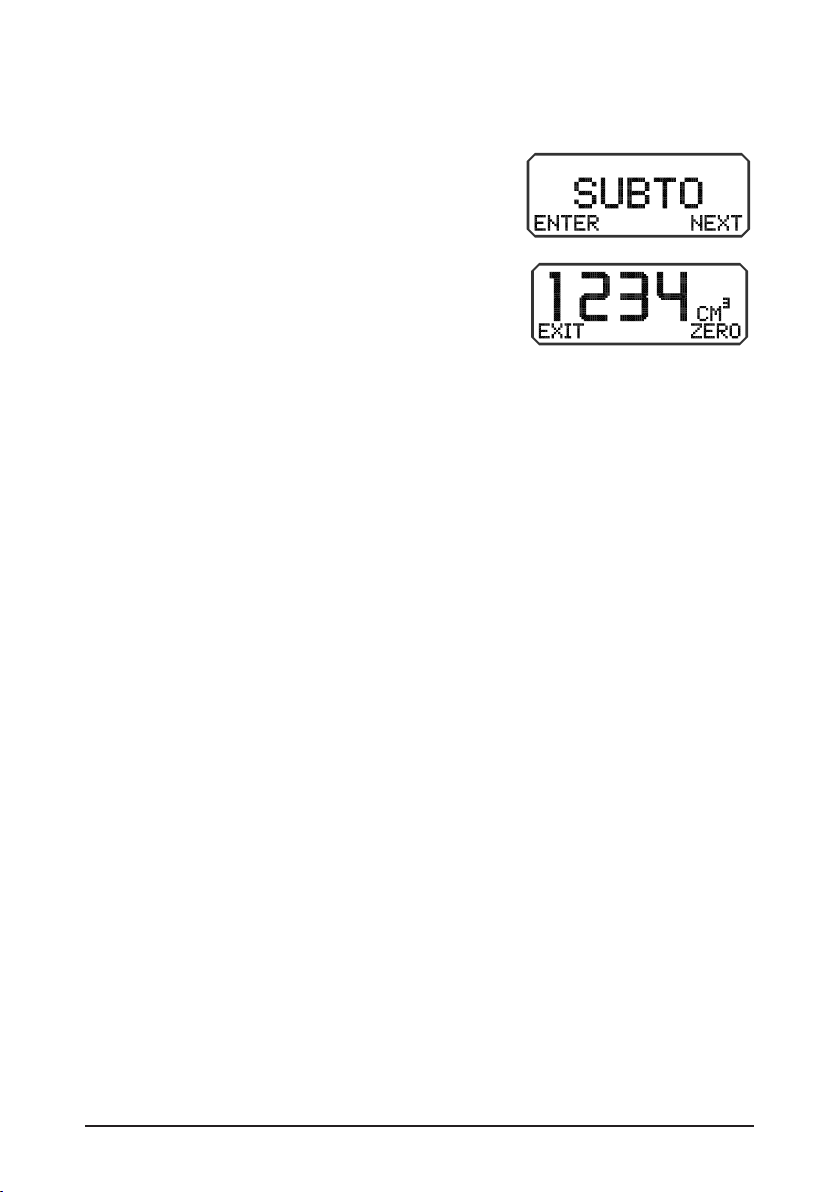

6.2 Sub total and total counter

The grease meter is equipped with a SUB TOTAL and TOTAL counter that can be reset.

Go to the counter option in the menu (see 6.1) to display this value and possibly reset it.

The display shows:

Press ENTER (the left button). The display

shows:

This shows you the SUB TOTAL amount of grease

that has passed the meter since the last reset.

To reset the sub total counter, press ZERO (right button).

To exit the menu press EXIT (left button).

The TOTAL counter is set in the same manner.

6.3 Calibration of the meter

The grease meter can be calibrated for different grease types, characteristics and densities.

6.3.1 Calculate the correction factor

Correction factor = real quantity / shown quantity

Example:

500 grams of grease have been dispensed.

The grease meter shows 485 GRAM.

Correction factor = 500 / 485 = 1,03

6.3.2 Calculate the calibration factor

The new calibration factor = the old calibration factor x the correction factor.

Example:

The old calibration factor is 700.

The correction factor is calculated as 1,03.

The new calibration factor = 700 x 1,03 = 721

8 SKF LAGM 1000E

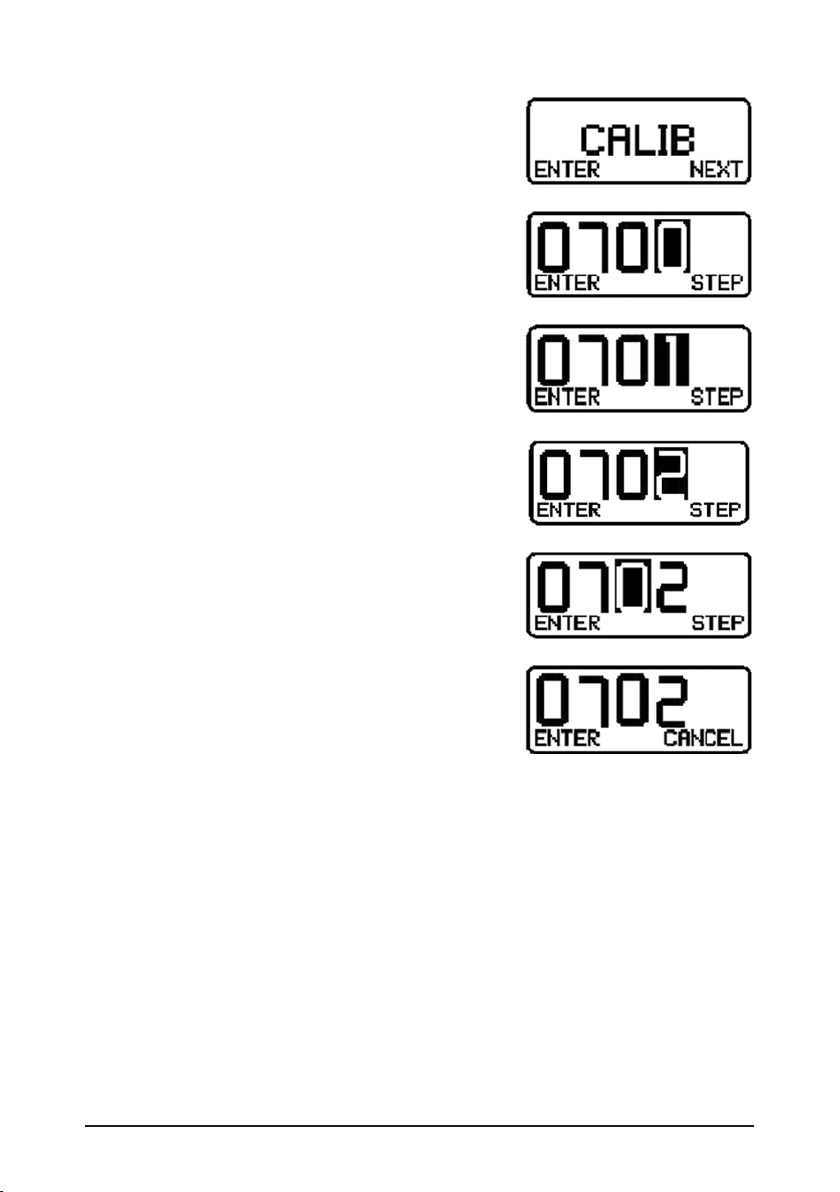

6.3.3 Change the calibration factor

Go to the calibration option in the menu (see 6.1)

to display and change the calibration factor.

Press ENTER (left button). The display shows the

current calibration factor:

The highlighted digit can be stepped up by pressing

STEP (right button):

To highlight the next digit, press ENTER (left button):

Continue to press STEP and ENTER to set the correct

calibration factor.

When the last digit has been accepted by pressing

ENTER, the display shows:

Press ENTER (left button) to accept and save the new

calibration or press CANCEL (right button) to cancel the

changes and return to the old calibration factor.

9SKF LAGM 1000E

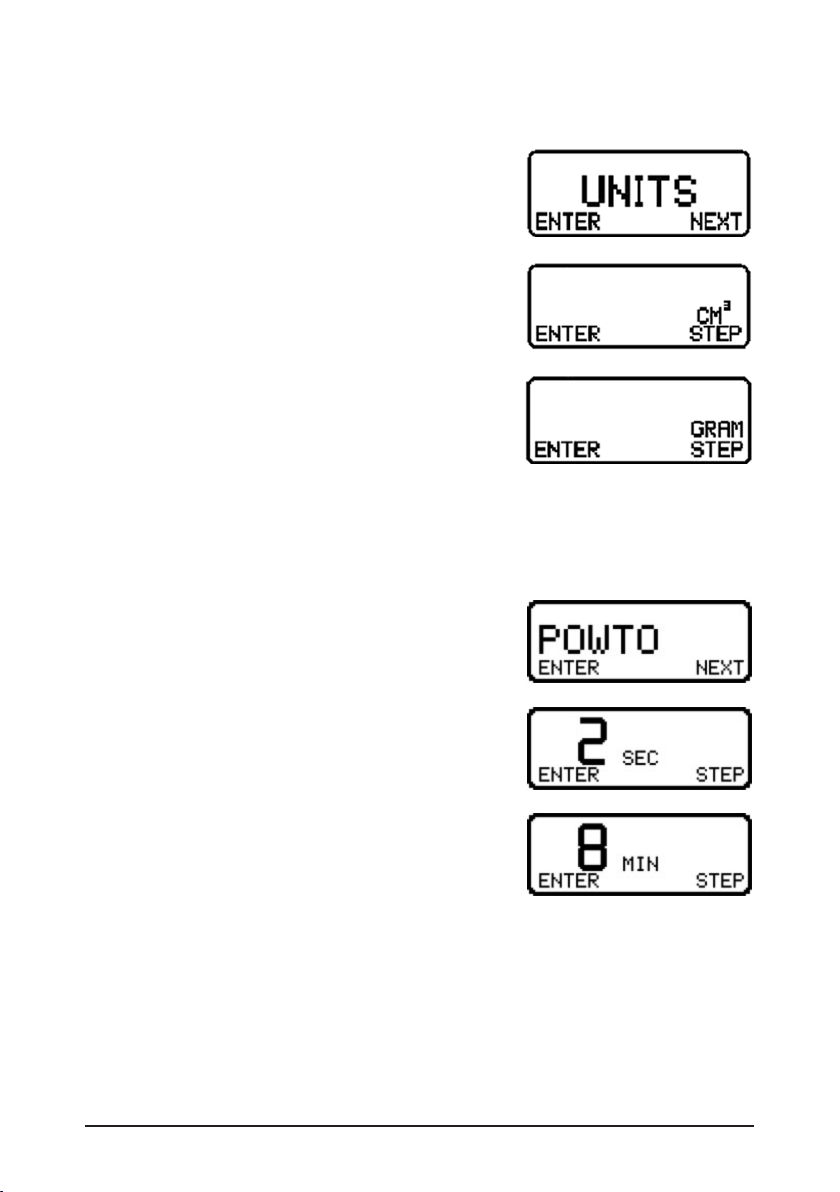

6.4 Change the displayed units

The grease meter can show the grease amount in four different units cm3, gram, oz, and

ﬂ oz (US).

Go to the unit option in the menu (see 6.1) to display

and change the used unit.

Press ENTER (left button), the display shows:

Press STEP (right button) to step to next unit:

Press ENTER (left button) to accept and save the

new unit.

6.5 Change auto shut off time

The grease meter can set to automatically shut off after 2 seconds, 4 seconds,

1 minute, 4 minutes or 8 minutes or work in STANDBY mode.

Press ENTER (left button): the display will show:

Press STEP (right button) to move forward to the

next time or STANDBY mode.

Press ENTER (left button) to accept and save the

new time.

10 SKF LAGM 1000E

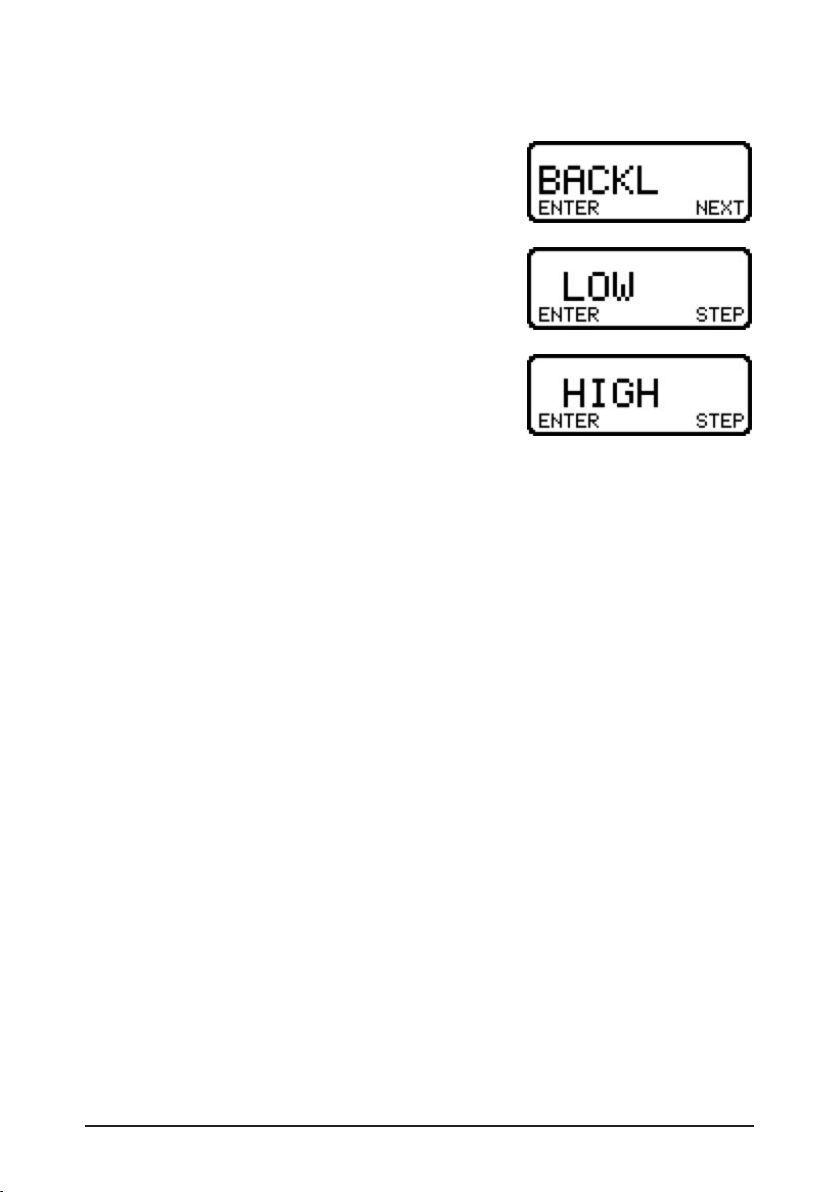

6.6 Change backlight

The backlight of the grease meter can be set to low or how power setting.

Press ENTER (left button): the display will show:

Press ENTER (left button) to choose low power setting

or press STEP (right button) to change to:

Press ENTER (left button) to choose high power setting

or press STEP (right button) to go back to previous

choice.
