sky-tec PA-200 Manuale utente
PORTABLE SOUND SYSTEM FOR iPod
USER'S MANUAL
PA-201
QUICK SETUP GUIDE
1. Make sure all items listed on the front of this guide are included in the box.
2. READ SAFETY INSTRUCTION BOOKLET BEFORE USING
THE PRODUCT.
3. MAKE SURE THAT YOU HAVE COMPLETELY CHARGED
THE BATTERY PRIOR TO FIRST USE FOR MAXIMUM
BATTERY LIFE.

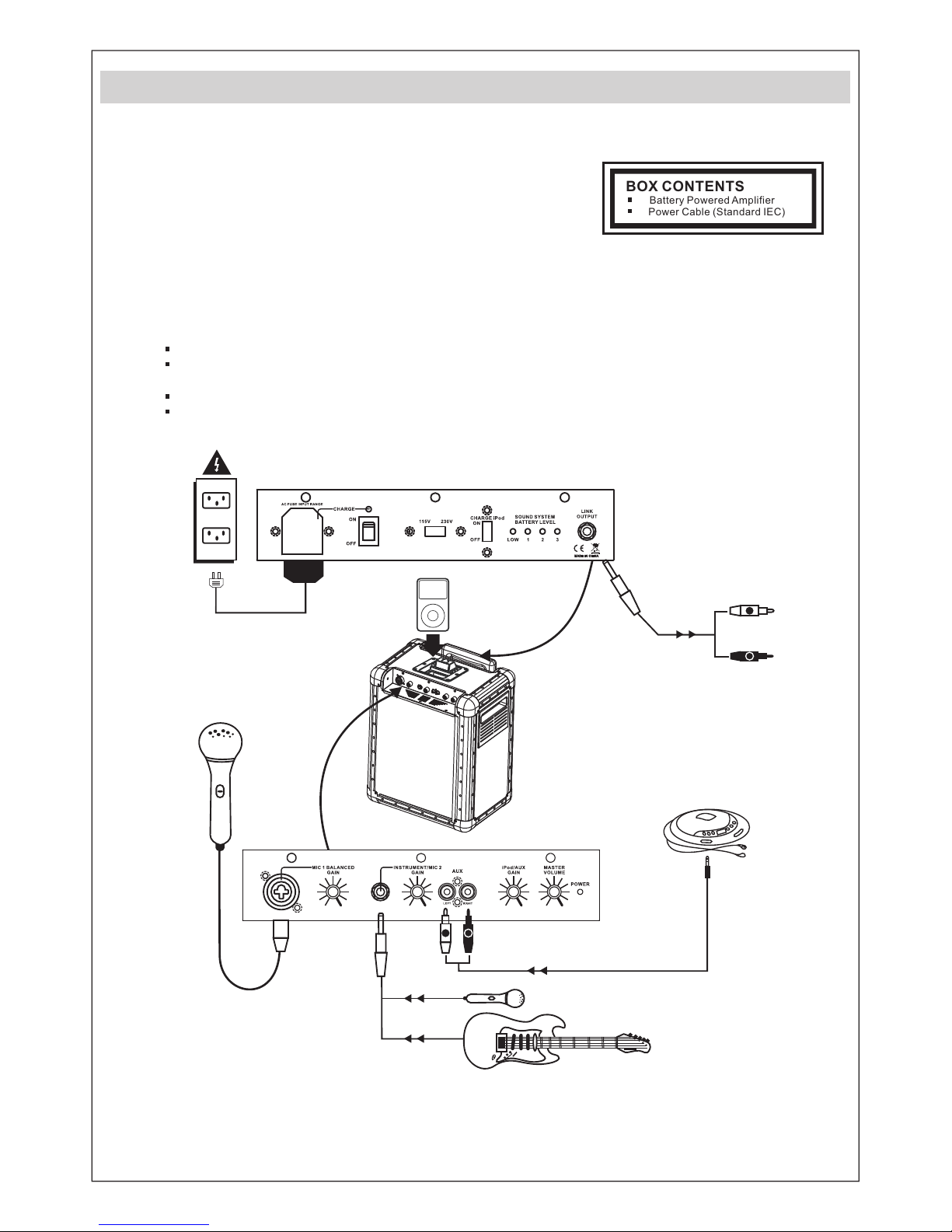

4. Study this setup diagram.
5. Place product in an appropriate position for operation.
6. Make sure all input devices such as microphones,CD players, mp3 players, and linked amplifiers/
PAs are turned off and volume settings are set at "zero"
7. Connect all devices as shown above.
8. Connect the stereo outputs to the power amplifier(s), tape decks, and/or audio sources.
9. Switch everything on in the following order.
audio input sources ( i.e. microphones, instruments, CD/MP3 Players)
last, any amplifiers
When turning off, always reverse this operation by.
turming off amplifiers
last, any input devices
10.
BOX CONTENTS
Battery Powered Amplifier
Power Cable (Standard IEC)
LR
LR
To RCA input on additional
(Cable sold separately)
(Cable sold separately)
OR
POWE R SUPPLY
~115/ 23 0V,6 0/ 50Hz
POWE R CONSUM PTIO N 20 WATTS
FUSE T 2AL 250 V
POWER PANEL:
POWER ADAPTER(IEC): Insert the includ ed power cable here to charge the unit. Note that the can run off the
power adapter while it simultaneously charges the battery. The charge indicator illuminates when the battery is
charging.
5.
POWER ON/OFF SWITCH
6.
USB/SD CHARGING SWITCH
8.
BATTERY LEVEL INDICATOR: While the uni t is power ed ON, these four light s indi cate the power left in the
battery. Battery life varies based on volume and usage.
9.
LINK OUTPUT: This 1/4” jack is a stereo line level output that can be connected to the stereo input of an amplifier
or amplified loudspeaker such as another.
10.
MICROPHONE 1 BALANCED INPUT WITH GAIN CONTROL(1/4” AND XLR):This jack can either take a 1/4”
balanced or a XLR balanced cable. An XLR Cable is included with the microphone.
1.
INSTRUMENT/MICROPHONE 2 INPUT WITH GAIN CONTROL(1/4”): This mono input accepts a 1/4” input such
as a microphone, guitar, or other musical instrument.
2.
MASTER VOLUME CONTROL: This knob controls the master volume of the.
4.
3. USB/SD/AUXULIARY INPUT WITH GAIN CONTR O L (STEREORCA ) : This knob controls the
lev e l o f t h e U SB/ S D a n d t he R CA i n put . T his st e reo RC A i n put ca n b e u s ed t o c onn e ct a C D ,
MP3, or o t her a udio sourc e . To conn e c t t o a p ortab l e de v ice w i th a 1/8 ” hea d phone jack , you
need a standard (1/8” to RCA) adapter which is NOT included.
CONTROL PANEL:
PA-201
1 2 34
POWE R SU PP LY
~115/ 23 0V,6 0/5 0H z
POWE R CO NS UMPTION 2 0 WATTS
FUSE T 2A L 25 0V
5678 109

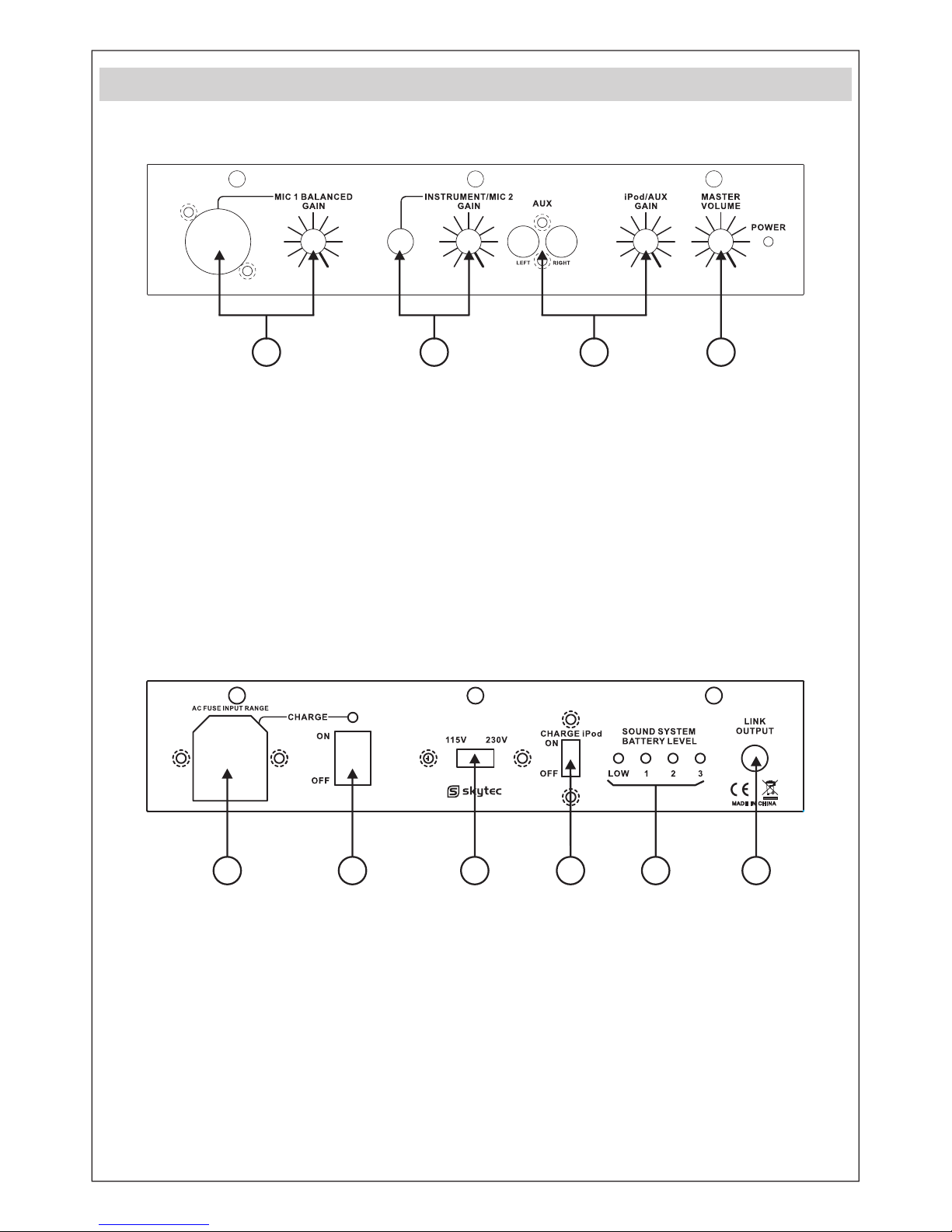

DIAGRAM AND PARTS DESCRIPTION
VOITAGE SELECTOR: Set this to the correct voltage for your location standard.
7.
SPECIFICATIONS
Input Voltage: AC 100-120V/ 60Hz 220-240V/ 50Hz
POWER CONSUMPTION:20 WATTS
Frequency Response: 70Hz~ 50kHz +/- 3dB
Produce dimensions:350x428.5x245.5mm(wxhxd)
Bottom pole mount specifications: Standard Pole Mount found at professional audio retailer:
Depth 80mm (3.15”)
Diameter 35.5mm (1.40”)
Time required to fully charge the: under 4 hours
Battery life: Over 12 hours* at full volume of full volume of the when fully charged.
“Note: Battery life may vary based on temperature, age, and volume usage of product.
IMPORTANT NOTES
Input is clipping: Try lowering the input gain or the volume control on your sound source or music
instrument.
Output is clipping: Lower the main volume level.
There is too much bass: Try adjusting the tone or EQ control on your sound source to lower the
bass level. this will allow you to play the music louder before clipping (distortion) occurs.
The link cable: is being plugged into the instrument or MIC input instead of the RCA line input.
Use this troubleshooting guide if: The sound is distorted at high volumes.
Important: With all large speakers, initial "break-in" period is needed to perform at optimal levels.
To properly "break-in" your, play an audio source at medium volume for a few hours.
