DC ELECTRIC SCISSORS

MODELS SJIII 3220 SJIII 3226 SJIII 4620 SJIII 4626 SJIII 4632

SERVICE MANUAL (KC)

157935AD November 2013

This manual is based on Serial Number(s):

SJIII 3320 60 002 259 to 60 004 188

SJIII 3226 27 006 432 to 27 017 550

SJIII 46xx 70 007 139 to 70 017 595

Please refer to the website www.skyjack.com for older Serial Numbers.

Skyjack Service Center

3451 Swenson Ave. St. Charles, Illinois, 60174 USA

Phone: 630-262-0005

Toll Free: 1-800-275-9522

Fax: 630-262-0006

Email: [email protected]om

Parts (North America)

Toll Free: 1-800-965-4626

Toll Free Fax: 1-888-782-4825

Email: [email protected]

Parts & Service (Europe)

Unit 1 Maes Y Clawdd, Maesbury Road Industrial Estate Oswestry, Shropshire SY10 8NN UK

Phone: +44-1691-676-235

Fax: +44-1691-676-238

Email: info@skyjackeurope.co.uk

Skyjack Brasil

Alameda Júpiter, 710

American Park Empresarial

Indaiatuba, SP, Brasil 13347-653

Tel.: +55 19 3936 0132

Skyjack Australia Pty Ltd.

4 Coates Place, Wetherill Park

New South Wales 2164

Australia

Phone: +61 (0) 28786 3200

Fax: +61(0) 28786 3222

SJIII DC Electric

SJIII 3220 SJIII 3226 SJIII 4620 SJIII 4626 SJIII 4632

157935

SKYJACK, Page 3

SERVICE AND MAINTENANCE

Table of Contents

Section 1 - Scheduled Maintenance Inspections

Table of Contents

Section 2 - Maintenance Tables

Table of Contents

Section 3 - Schematics

Table of Contents

Section 4 - Troubleshooting

Table of Contents

Section 5 - Procedures

Table of Contents

SKYJACK, Page 4 SJIII DC Electric

SJIII 3220 SJIII 3226 SJIII 4620 SJIII 4626 SJIII 4632

157935

Section 1 - Scheduled MaintenanceOperator’s Responsibility for Maintenance

The Safety Alert Symbol identifies important

safety messages on aerial platforms, safety

signs in manuals or elsewhere. When you

see this symbol, be alert to the possibility of

personal injury or death. Follow the instructions

in the safety message.

This Safety Alert Symbol means attention!

Become alert! Your safety is involved.

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided,

will result in death or serious injury.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided,

may result in minor or moderate injury. It may also be used to alert against

unsafe practices.

IMPORTANT

IMPORTANT indicates a procedure) essential for safe operation and which,

if not followed, may result in a malfunction or damage to the aerial platform.

SJIII DC Electric

SJIII 3220 SJIII 3226 SJIII 4620 SJIII 4626 SJIII 4632

157935

SKYJACK, Page 5

Operator’s Responsibility for Maintenance

Purpose of Equipment.................................................................................................................................................7

Use of Equipment ........................................................................................................................................................7

Manuals........................................................................................................................................................................7

Operator .......................................................................................................................................................................7

Service Policy and Warranty ........................................................................................................................................7

Optional Accessories...................................................................................................................................................7

Scope of this Manual ...................................................................................................................................................8

Operator Safety Reminders .........................................................................................................................................8

Electrocution Hazard ...................................................................................................................................................9

Safety Precautions .....................................................................................................................................................10

Maintenance and Inspection Schedule.....................................................................................................................13

Owner’s Annual Inspection Record...........................................................................................................................13

Replacement Parts.....................................................................................................................................................13

Maintenance and Service Safety Tips .......................................................................................................................13

Hydraulic System & Component Maintenance and Repair ......................................................................................14

Maintenance Hints .....................................................................................................................................................14

Service and Maintenance

About this Section......................................................................................................................................................15

Service Bulletins.........................................................................................................................................................15

Maintenance and Inspection .....................................................................................................................................15

Maintenance Instructions...........................................................................................................................................15

Tables

1.1 Owner’s Annual Inspection Record ................................................................................................................16

1.2 Maintenance and Inspection Checklist...........................................................................................................17

Scheduled Maintenance

1.1 Scheduled Maintenance Inspections..............................................................................................................18

1.2 Function Tests..................................................................................................................................................25

Section 1

SCHEDULE MAINTENANCE INSPECTIONS

Table of Contents

SKYJACK, Page 6 SJIII DC Electric

SJIII 3220 SJIII 3226 SJIII 4620 SJIII 4626 SJIII 4632

157935

Notes

SJIII DC Electric

SJIII 3220 SJIII 3226 SJIII 4620 SJIII 4626 SJIII 4632

157935

SKYJACK, Page 7

Section 1 - Scheduled Maintenance Operator’s Responsibility for Maintenance

SKYJACK is continuously improving and expanding product features on its equipment, therefore, specifications

and dimensions are subject to change without notice.

Aerial Platform and Mobile Elevating Work Platform Definition

A mobile device that has a positionable platform supported from ground level by a structure.

Purpose of Equipment

The SKYJACK SJIII DC Electric series aerial platforms are designed to transport and raise personnel, tools and

materials to overhead work areas.

Use of Equipment

The aerial platform is a highly maneuverable, mobile work station. Work platform elevation and elevated driving

must only be done on a firm level surface.

Manuals

Operating

The operating manual is considered a fundamental part of the aerial platform. It is a very important way to

communicate necessary safety information to users and operators. A complete and legible copy of this manual

must be kept in the provided weather-resistant storage compartment on the aerial platform at all times.

Service & Maintenance

The purpose of this is to provide the customer with the servicing and maintenance procedures essential for

the promotion of proper machine operation for its intended purpose.

All information in this manual should be read and understood before any attempt is made to service the machine.

The updated copy of the manuals are found on the company’s website: www.skyjack.com.

Operator

The operator must read and completely understand both this operating manual and the safety panel label located

on the platform and all other warnings in this manual and on the aerial platform. Compare the labels on the aerial

platform with the labels found within this manual. If any labels are damaged or missing, replace them immediately.

Service Policy and Warranty

SKYJACK warrants each new SJIII Series work platform to be free of defective parts and workmanship for the first

24 months. Any defective part will be replaced or repaired by your local SKYJACK dealer at no charge for parts or

labor. Contact the SKYJACK Service Department for warranty statement extensions or exclusions.

Optional Accessories

The SKYJACK aerial platform is designed to accept a variety of optional accessories. These are listed under the

“Standard and Optional Features” Table of the operating manual. Operating instructions for these options (if equipped)

are located in the “Operation” Section of the operating manual.

For options not listed under “Standard and Optional Features,” contact the SKYJACK Service Department at

(: 44-1691-676-235

7: 44-1691-676-239

Include the model and serial number for each applicable aerial platform.

SKYJACK, Page 8 SJIII DC Electric

SJIII 3220 SJIII 3226 SJIII 4620 SJIII 4626 SJIII 4632

157935

Section 1 - Scheduled MaintenanceOperator’s Responsibility for Maintenance

Scope of this Manual

a. This manual applies to the KC version of the SJIII Series aerial platform models listed on Table 2.1.

- Equipment identified with “KC” meets the requirements for South Korea, i.e., Act 2008-75 and the

corresponding KS B ISO 16368:2004 Korean standard.

a. Operators are required to conform to national, state or territorial/provincial and local health and safety regulations

applicable to the operation of this aerial platform.

WARNING

Failure to comply with your required responsibilities in the use and operation of the aerial platform

could result in death or serious injury!

Operator Safety Reminders

A study conducted by St. Paul Travelers showed that most accidents are caused by the failure of the operator to

follow simple and fundamental safety rules and precautions.

You, as a careful operator, are the best insurance against an accident. Therefore, proper usage of this aerial platform

is mandatory. The following pages of this manual should be read and understood completely before operating the

aerial platform.

Common sense dictates the use of protective clothing when working on or near machinery. Use appropriate safety

devices to protect your eyes, ears, hands, feet and body.

Any modifications from the original design are strictly forbidden without written permission from SKYJACK Inc.

WARNING

Risk of an electric shock - Do not remove an Anti-Static Strip from the aerial platform.

Anti-Static

Strip

SJIII DC Electric

SJIII 3220 SJIII 3226 SJIII 4620 SJIII 4626 SJIII 4632

157935

SKYJACK, Page 9

Section 1 - Scheduled Maintenance Operator’s Responsibility for Maintenance

Electrocution Hazard

This aerial platform is not electrically insulated. Maintain a Minimum Safe Approach Distance (MSAD) from energized

power lines and parts as listed below. The operator must allow for the platform to sway, rock or sag. This aerial

platform does not provide protection from contact with or proximity to an electrically charged conductor.

Per ANSI A92.6-2006 8.10(7)

“The operator shall perform only that work for which he or she is qualified, in compliance with all applicable

safety related work practices intended to prevent electric shock covered by the Code of Federal Regulations

(CFR) 1910.333. The operator’s level of competence shall be established only by persons qualified to do so. Op-

erators shall maintain the appropriate minimum approach distance (MAD) from energized power lines and parts

covered by CFR 1910.333 (c).”

Unqualified persons must maintain a minimum approach distance of 10 feet from any energized power line up to

50 kV. Energized power lines over 50 kV require a greater minimum approach distance to be maintained. Refer to

CFR 1910.333.

As per CSA B354.2-01

“The operator shall maintain the minimum safe approach distance (MSAD) from energized conductors at all times

in accordance with the authority having jurisdiction.”

DO NOT USE THE AERIAL PLATFORM AS A GROUND FOR WELDING.

DO NOT OPERATE THE AERIAL PLATFORM DURING LIGHTNING OR STORMS.

DO NOT OPERATE THE AERIAL PLATFORM NEAR POWER LINES. MAINTAIN A MINIMUM SAFE AP-

PROACH DISTANCE (MSAD) FROM ENERGIZED POWER LINES.

Voltage Range Minimum Safe Approach Distance

(Phase to Phase) (Feet)

0 to 300V Avoid Contact

Over 300V to 50KV 10

Over 50KV to 200KV 15

Over 200KV to 350KV 20

Over 350KV to 500KV 25

Over 500KV to 750KV 35

Over 750KV to 1000KV 45

60023AD-ANSI

DANGER

FAILURE TO AVOID THIS HAZARD WILL RESULT IN DEATH OR SERIOUS INJURY!

Avoid Power Lines

Minimum Safe Approach Distance

ANSI/SIA A92.6-2006 & CSA B354.2-01 Requirements

SKYJACK, Page 10 SJIII DC Electric

SJIII 3220 SJIII 3226 SJIII 4620 SJIII 4626 SJIII 4632

157935

Section 1 - Scheduled MaintenanceOperator’s Responsibility for Maintenance

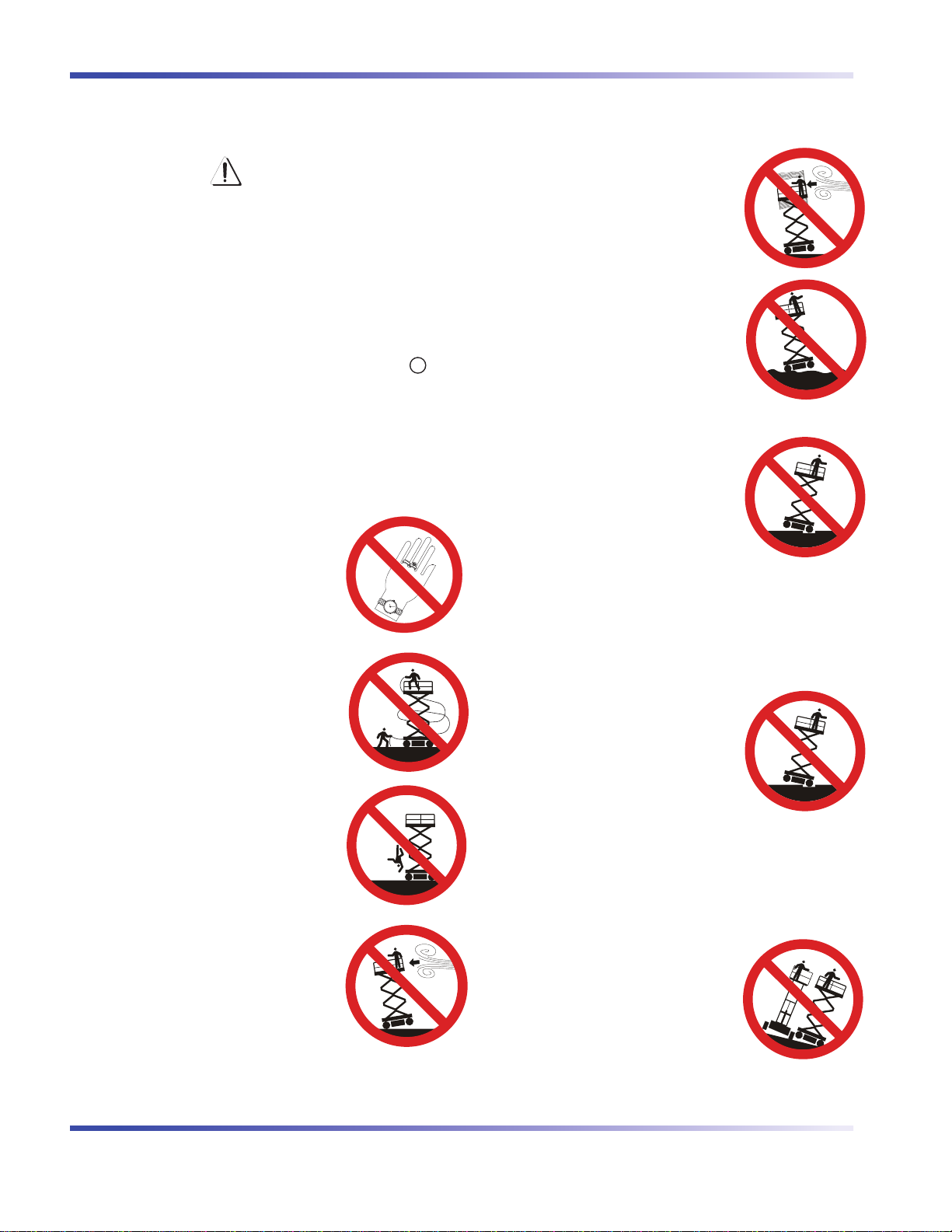

Safety Precautions

Know and understand the safety precautions before going on to next section.

WARNING

Failure to heed the following safety

precautions could result in tip over,

falling, crushing, or other hazards leading

to death or serious injury.

• KNOW all national, state or territorial/provincial

and local rules which apply to your aerial platform

and jobsite.

• TURN main power disconnect switch “ ” off

when leaving the aerial platform unattended.

Remove the key to prevent unauthorized use of

the aerial platform.

• WEAR all the protective clothing and personal

safety devices issued to you or called for by job

conditions.

• DO NOT wear loose clothing,

dangling neckties, scarves,

rings, wristwatches or other

jewelry while operating this lift.

• AVOID entanglement with

ropes, cords or hoses.

• AVOID falling. Stay within the

boundaries of the guardrails.

• DO NOT raise the aerial

platform in windy or gusty

conditions.

• DO NOT increase the lateral

surface area of the platform.

Avoid tenting.

• DO NOT drive elevated on a

soft or uneven surface.

• DO NOT elevate the aerial

platform if it is not on a firm,

level surface.

• DO NOT drive elevated near

depressions or holes of any

type, loading docks, debris,

drop-offs or surfaces that may

affect the stability of the aerial

platform.

• IF OPERATION IN AREAS

WITH HOLES OR DROP-

OFFS IS ABSOLUTELY

NECESSARY, elevated driving

shall not be allowed. Position

the aerial platform horizontally

only with the platform fully-

lowered. After ensuring that

all 4 wheels or outriggers (if

equipped) have contact with

a firm, level surface, the aerial

platform can be elevated. After

elevation, the drive function

must not be activated.

• DO NOT elevate or drive

elevated on a slope. Elevated

driving must be done on a

firm, level surface.

• DO NOT ascend or descend

a grade when elevated.

When fully-lowered, ascend

or descend grades up to

maximum rated inclines listed

in Table 4-3a and Table 4-3b.

Altri manuali per SJIII 3220

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Skyjack Sistema di sollevamento

Skyjack

Skyjack SJ6826 RT Manuale utente

Skyjack

Skyjack SJ12 E Manuale utente

Skyjack

Skyjack SJ20 Manuale utente

Skyjack

Skyjack SJ40 T+ Manuale utente

Skyjack

Skyjack 3215 SJIII Compact Series Manuale utente

Skyjack

Skyjack SJ12 Manuale utente

Skyjack

Skyjack SJIII Series Manuale utente

Skyjack

Skyjack SJ61T Manuale utente

Skyjack

Skyjack SJ12 E Manuale utente

Skyjack

Skyjack SJ1044 TH Manuale utente

Skyjack

Skyjack SJ 3220 Manuale utente

Skyjack

Skyjack SJ12 Manuale utente

Skyjack

Skyjack SJKB-40-D Scheda tecnica

Skyjack

Skyjack SJ 46AJ Manuale utente

Skyjack

Skyjack SJ-600 Series Manuale utente

Skyjack

Skyjack SJIII 3220 Manuale di installazione e funzionamento

Skyjack

Skyjack SJ16 Manuale utente

Skyjack

Skyjack Telescopic Boom Series Manuale utente

Skyjack

Skyjack SJ519 TH Manuale utente

Skyjack

Skyjack SJ-8831FE Manuale utente

Skyjack

Skyjack SJ 3215 Manuale utente

Skyjack

Skyjack SJ46 AJ Manuale utente

Skyjack

Skyjack 3226 Manuale utente

Skyjack

Skyjack 7127 Manuale utente

Manuali Sistema di sollevamento popolari di altre marche

morse

morse 82H-124 Manuale utente

Braun

Braun NL955 Series Manuale utente

haacon

haacon 1889.10 Manuale utente

Protekt

Protekt AT 252 Manuale utente

R. Beck Maschinenbau

R. Beck Maschinenbau HS 600 Manuale utente

Nova Technology International, LLC

Nova Technology International, LLC NAS Series Manuale utente

Genie

Genie Z-60/34 Manuale utente

Screen Technics

Screen Technics INTERFIT Vertical Up Lift Manuale utente

Mortuary Lift

Mortuary Lift ULTIMATE 1000 Manuale utente

Custom Equipment

Custom Equipment Hy-Brid 3 Series Manuale di programmazione

Custom Equipment

Custom Equipment Hy-Brid Lifts 2 Series Manuale di programmazione

Hy-Brid Lifts

Hy-Brid Lifts HB-P3.6 Manuale di programmazione

BERG

BERG BeNomic EasyLeaf Manuale utente

Powermate

Powermate LiftGate LG-3 Manuale utente

Snorkel

Snorkel TM12 Series Manuale utente

Terberg

Terberg OMNIDEKA Manuale utente

Harmar Mobility

Harmar Mobility AL625 Istruzioni operative

Rotary

Rotary SPO16 Manuale utente
