Skywalker X-8 Installation Manual
Thank you for Purchasing the Sky- walker X-8 Plane.
The skywalker X-8 is designed for
First-Person-Vision(FPV) application specifically.
Technical parameters
Wingspan：2120mm weight：880G motor：2820
KV730 speed regulator：60A Servo：17G
battery pack：4S8000MAH propeller：12X6~13X8
Take-off weight ：3200G
２
KIT version configuration：Fuselage, wing, wing connection plastic parts , tube, accessories bag, sticker

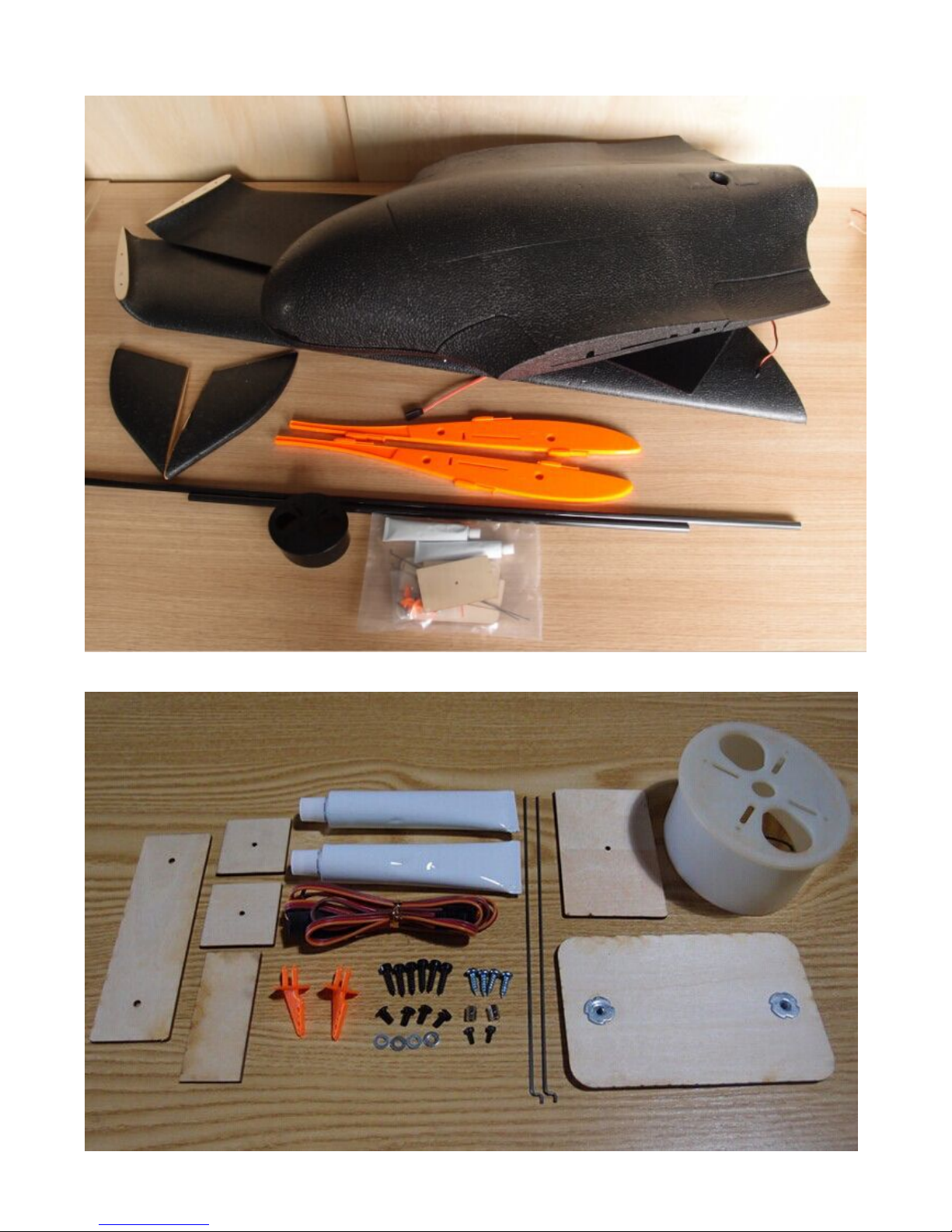

Parts List
３
NOTES: Foam Glue is needed for installation

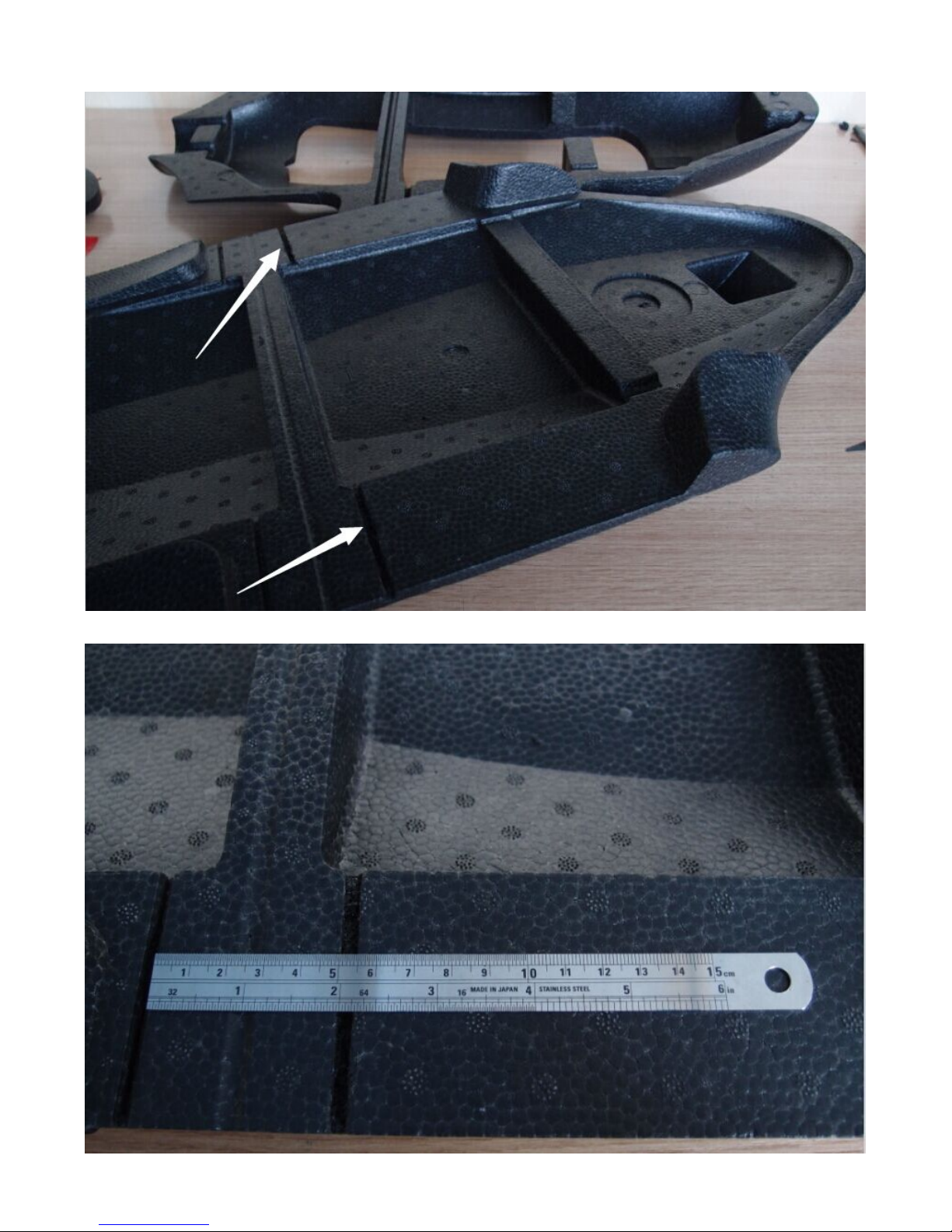

1. Cut the extension cable slot in the fuselage before gluing as the photo shows. ( Slot width: 5mm, depth: 3mm)
４

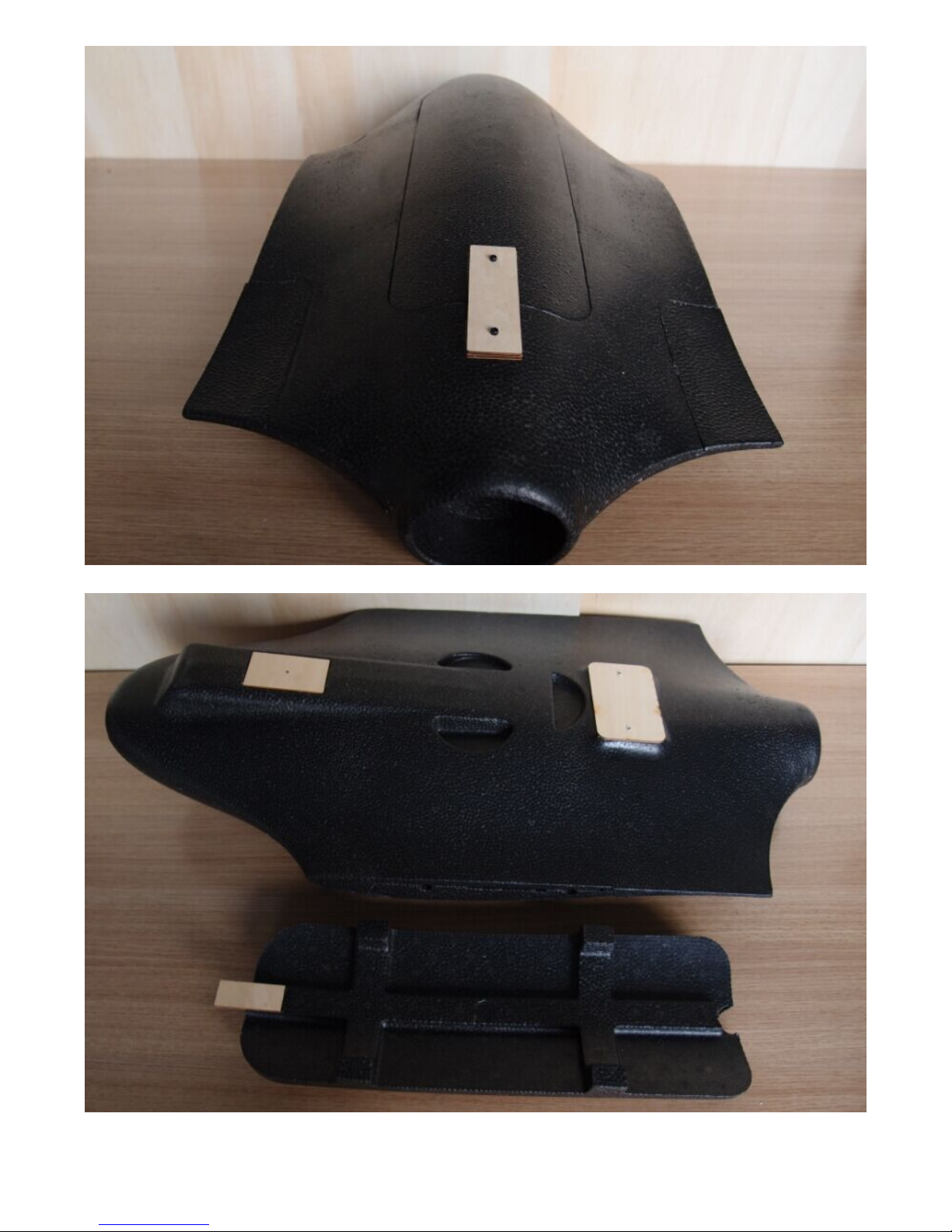

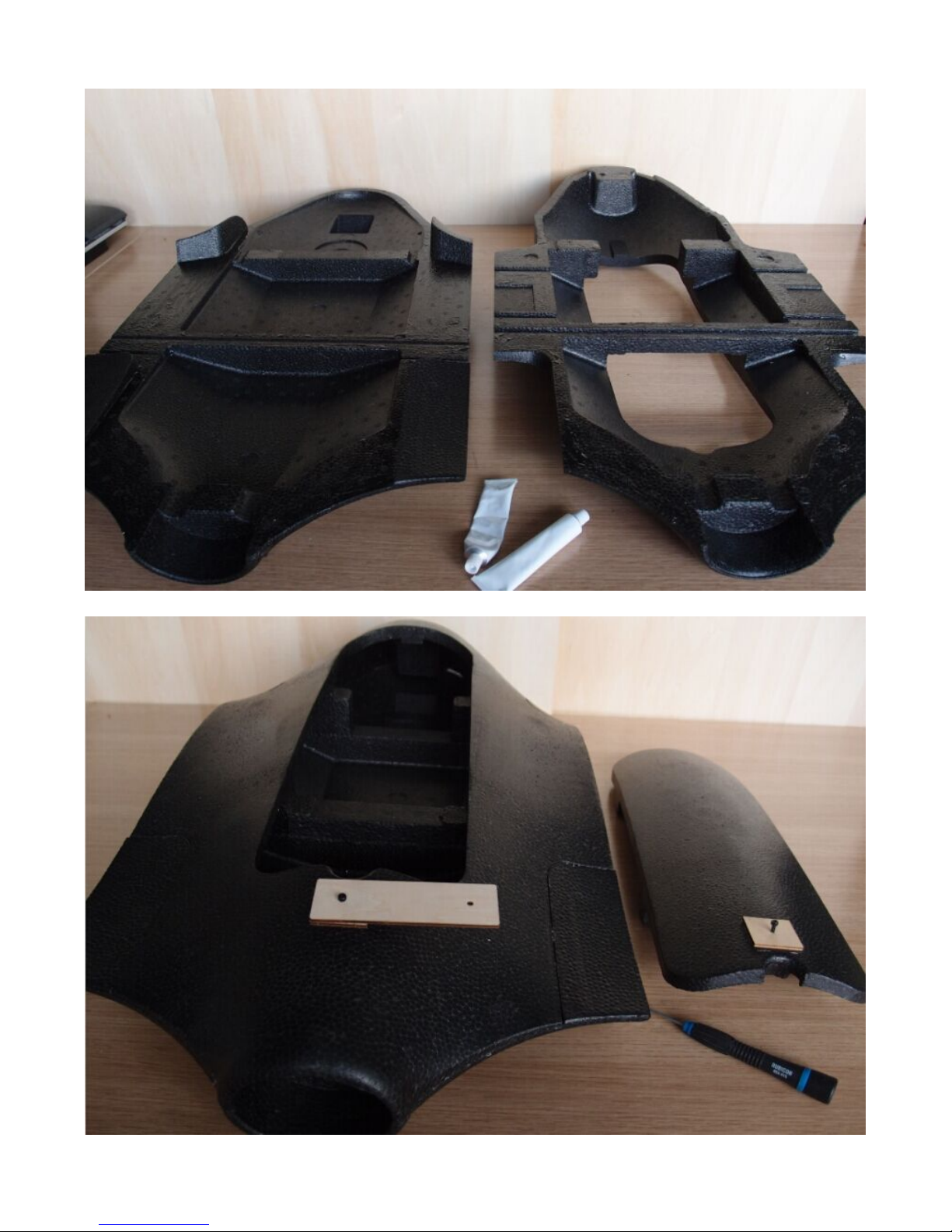

2、Glue the fuselage together. And then glue the plywood according to the photos before.
５

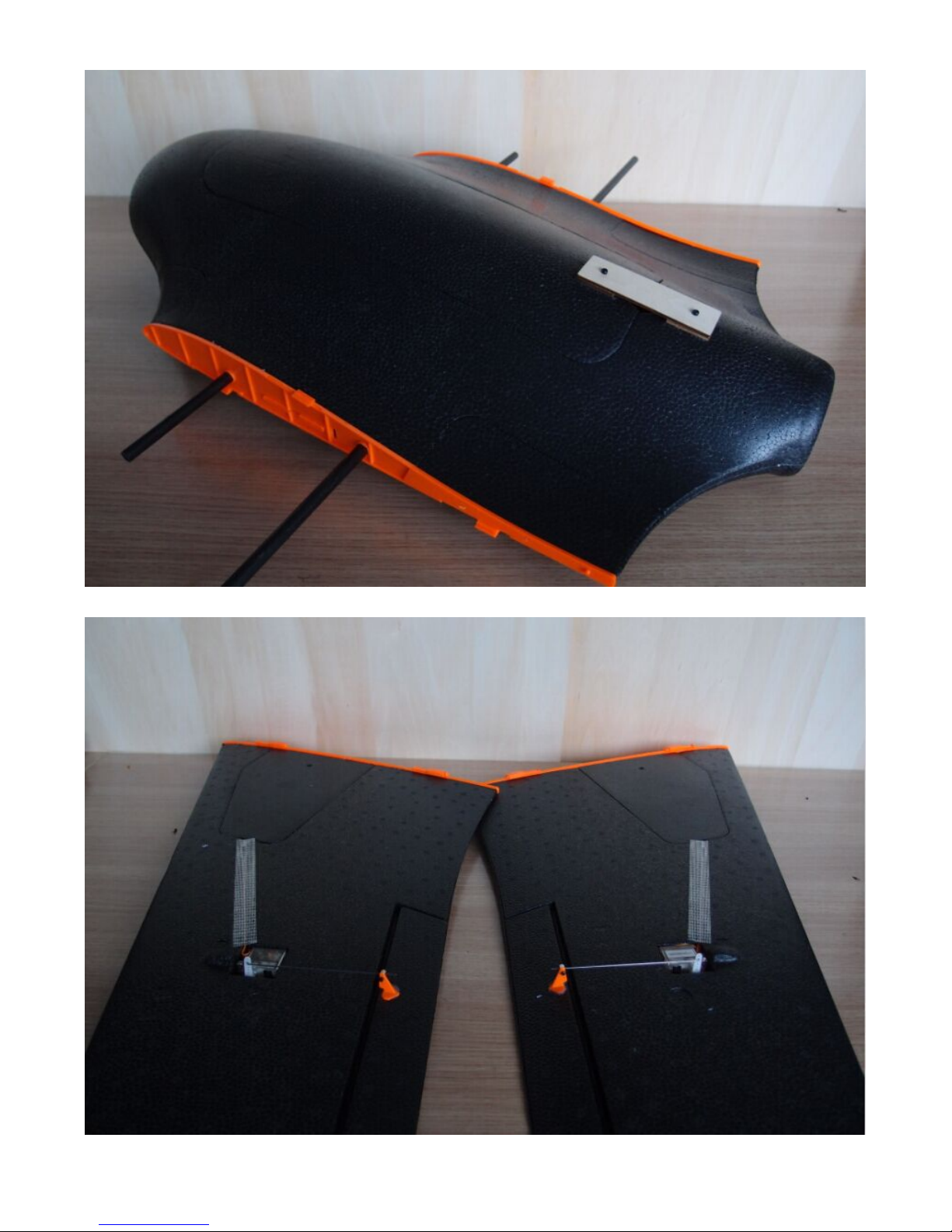

1. Install the fuselage connection plastic parts accordingly (L and R). Notes: Insert the 2pcs carbon tube to the fuselage
６
for positioning before glue the plastic parts.

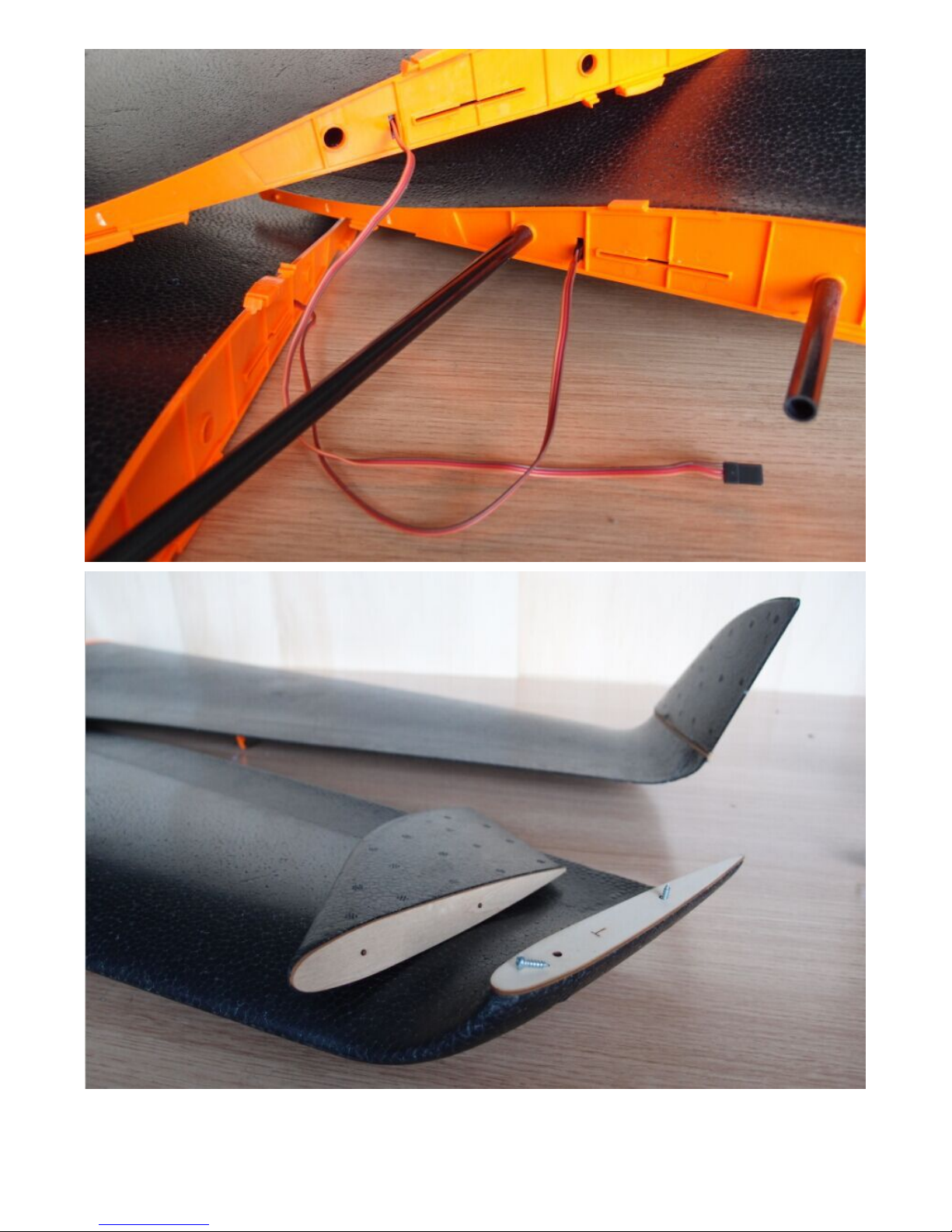

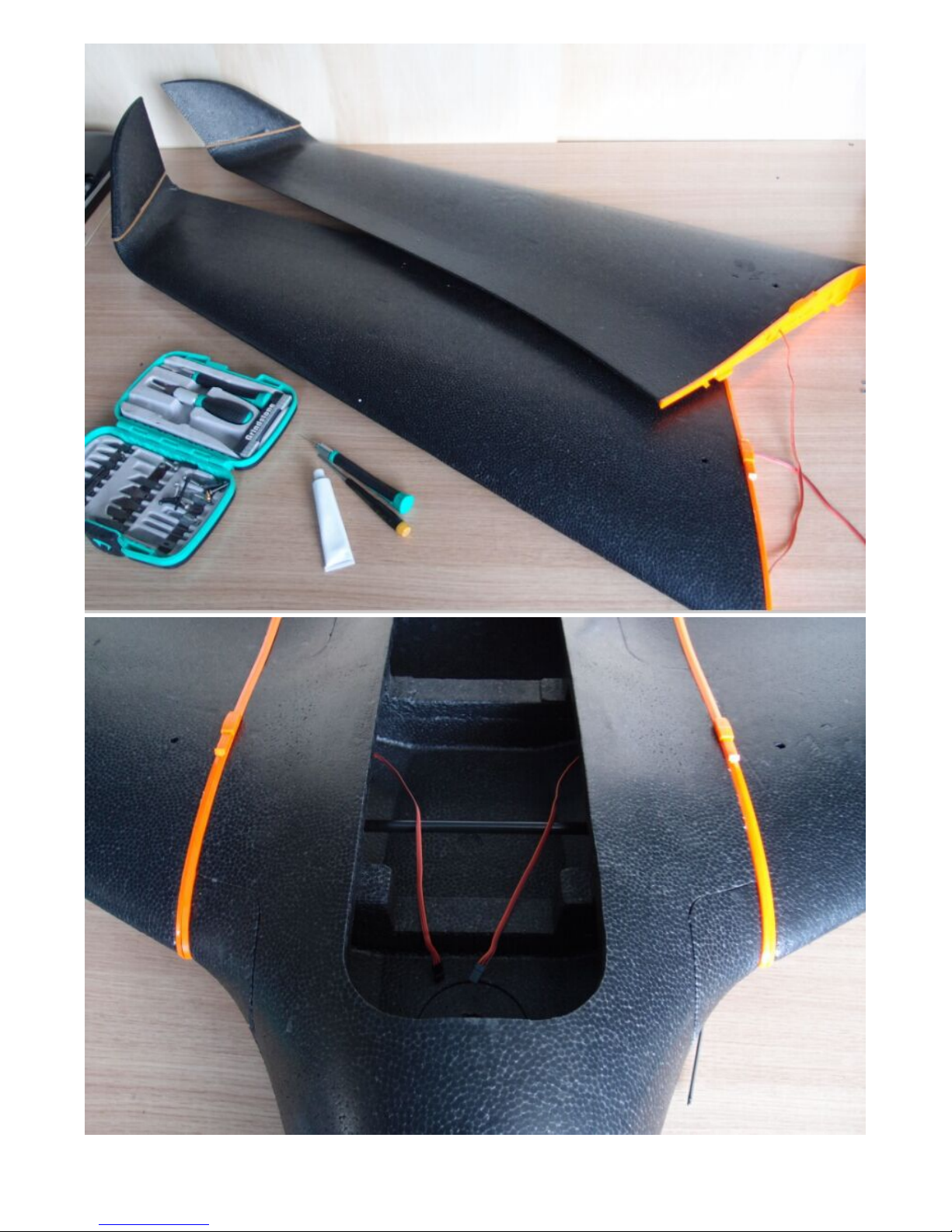

2. Fuselage assembly. Glue the plastic parts to the wing separately. Then install the servos, servo horns and push rods.
７
８
９

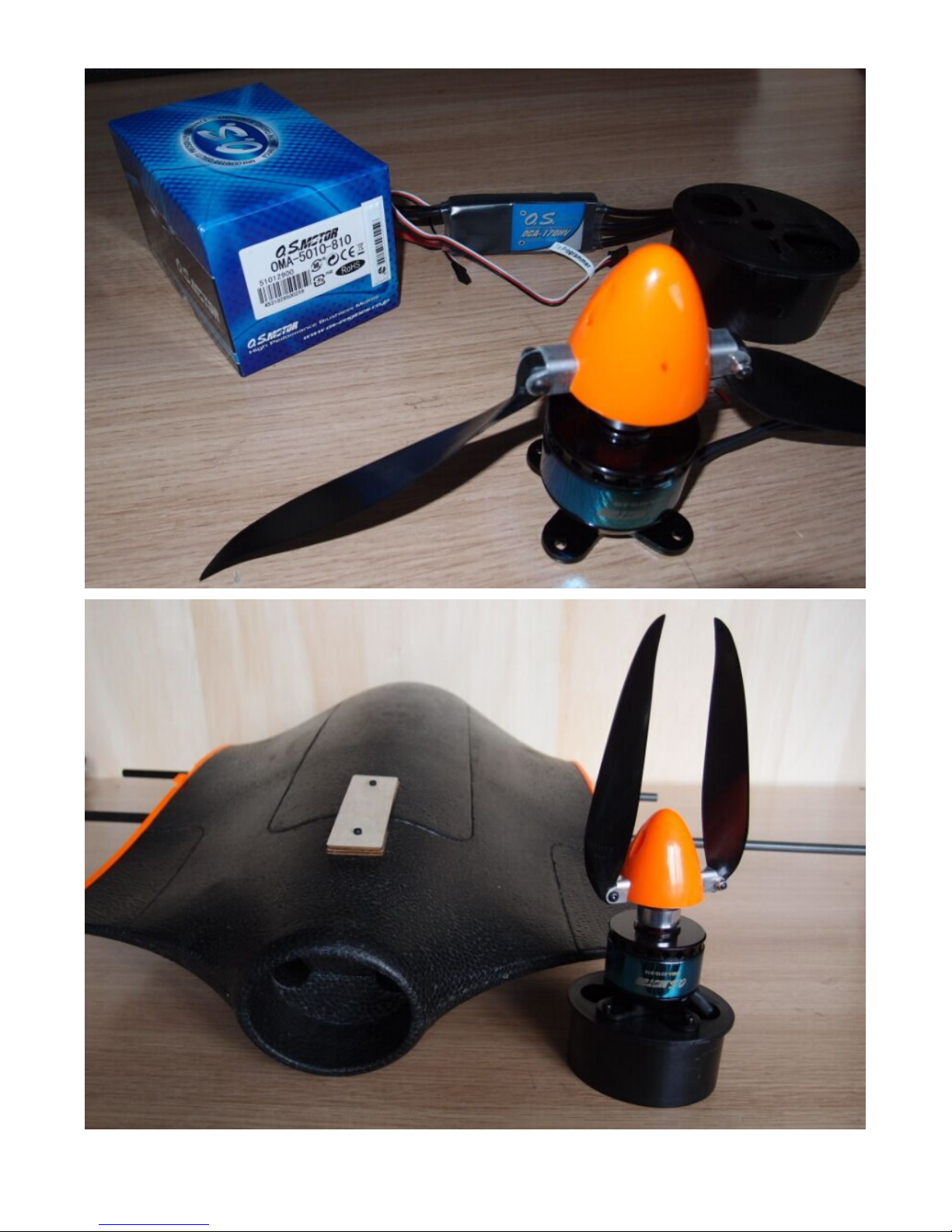

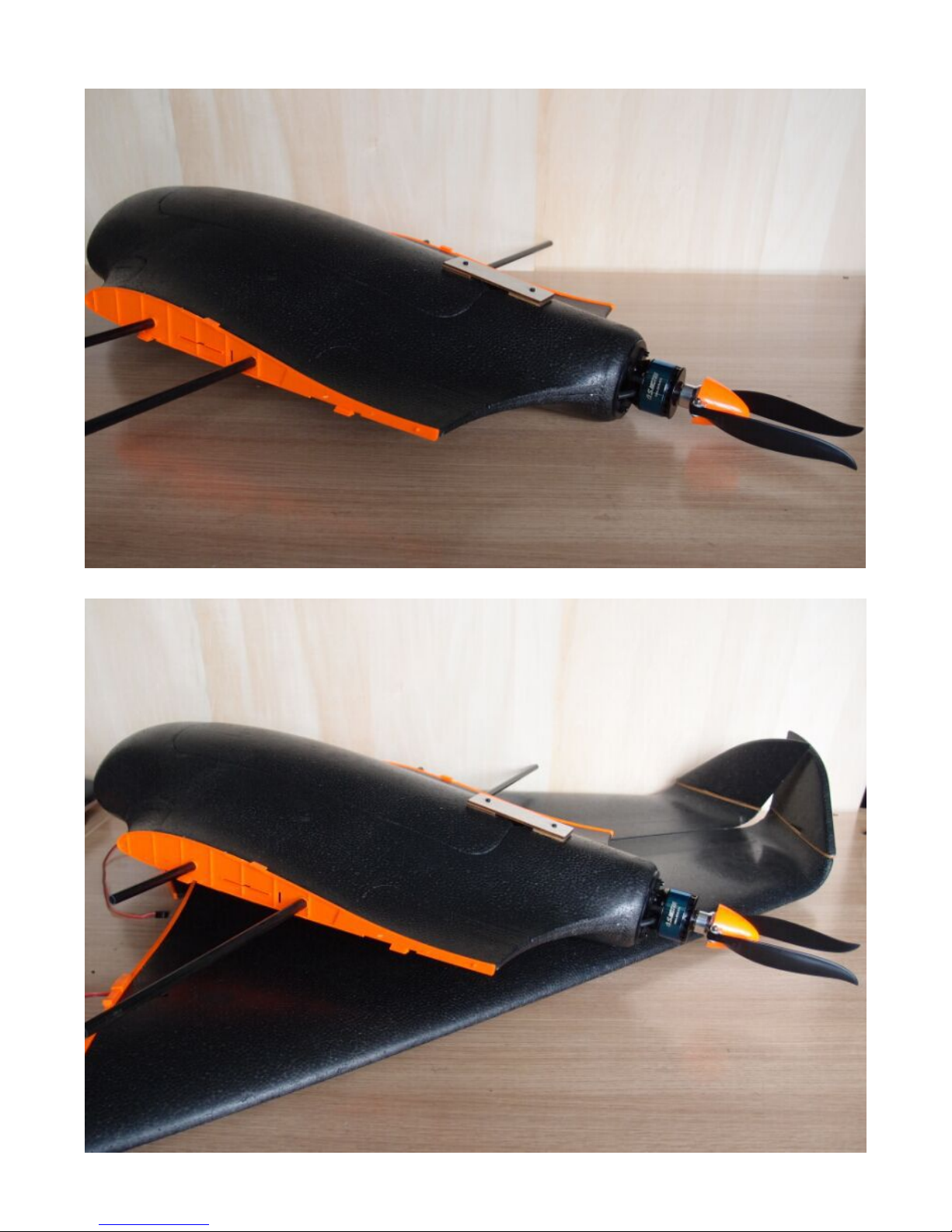

3. After fuselage is assembled, install the motor correctly.
１０
