SkywalkerX‐8InstallationManual
ThankyouforPurchasingtheSky‐ walkerX‐8Plane.TheSkywalkerX‐8isdesignedfor
First‐Person‐Vision(FPV)applicationspecifically.
Technicalparameters
Wingspan：2120mmweight880Gmotor2820KV730speedregulator60Abattery
pack4S8000MAHpropeller12X6~13X8
Take‐offweight：3200G
KITversionconfiguration：Fuselage,wing,winglet,tube,accessoriesbag,sticker
２
PartsListing
３
Assembly

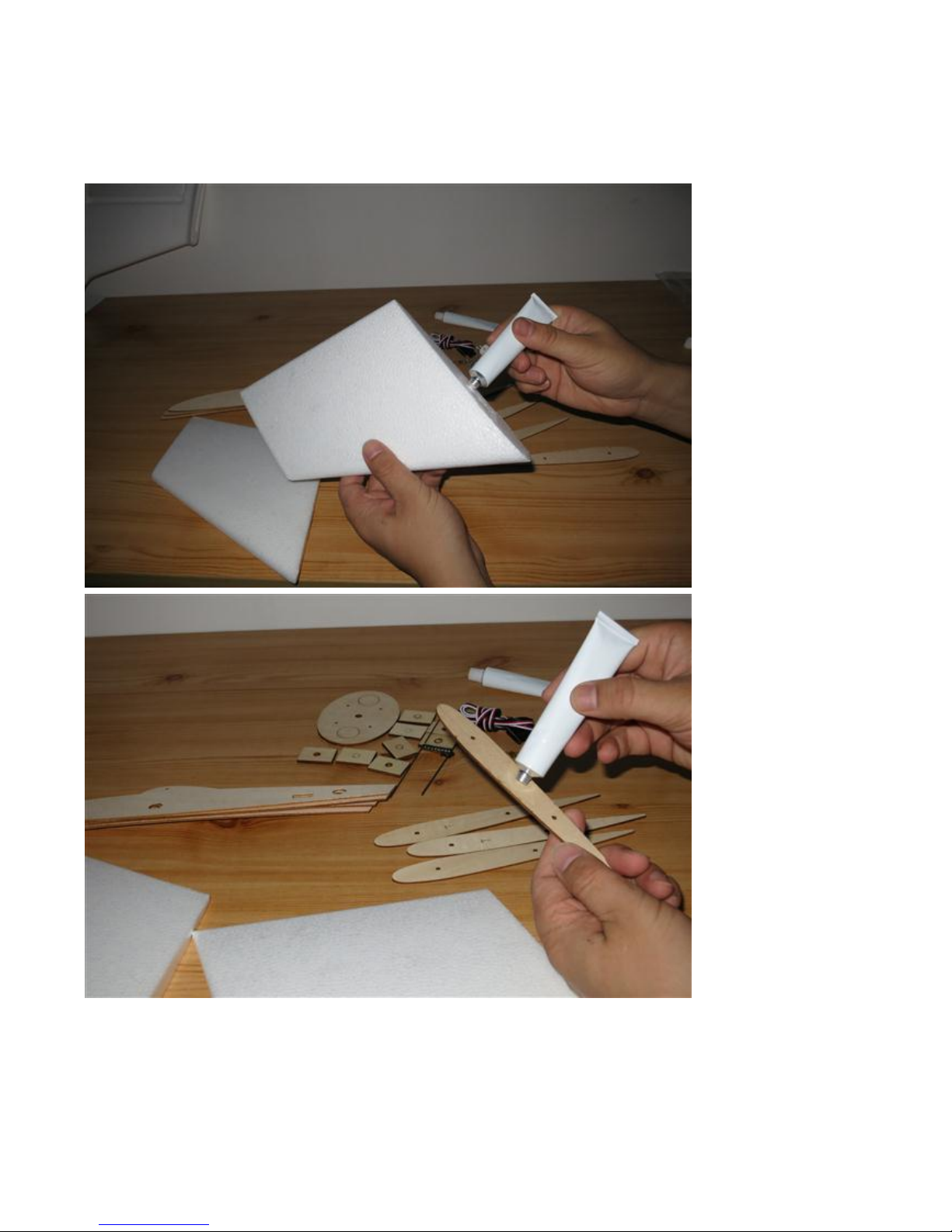

Gluethewingletlayers,spreadtheglueevenlyoverthewingandbothsidesofthelayers(the
layermarkedwithTboardbelongstopartsofthemainwing)
Waitfor5minutestoallowgluetodryuntilitisnon‐sticky,thentheycanbegluedin
alignment,
４
Gluethehatchmagnets,aftercompressingthemagnettightly,fixthemwithCAglue.
５
Gluethewoodchipontothehatchandfuselage,payattentiontothedirectionofSNofthe
magneticpole
６
Aftergluing,putittogetherandinspectthemountingspacing
７
Gluetheservo,pleasechoosethestandardservoprovidedbyskywalkerorservowith
momentmorethan2.5KG
８
９
Gluetherudderhorn,spreadtheglueevenlyandwaitforitsdryness,thenGluetherudder
horn
１０
Powerontheservoandplaceitinthemid‐position,thenlocktheregulatorscrew,tighten
thesteelwire.Andshortentheextralengthofthewire.
