Introduction

III

INTRODUCTION

The TP301 is from the well-know Hart® 

family of Smar’s devices. It is a smart transmitter for

position measurements. It can measure displacement or movement of rotary or linear type. The

digital technology and communication provide an easy interface between the field and control room

and several interesting features that considerably reduce the installation, operation, and

maintenance costs.

TP301 uses a magnetic coupler without physical contact to measure the position. Therefore, it is

immune to vibrations resulting in a larger operational timelife. The magnetic coupler replacing the

mechanical connection, results in a clear reduction of the deadband. TP301 can be set up in any

linear or rotary valve, actuator or a variety of other equipment, such as floodgate skylight, dampers,

rolls mill height, crusher, etc.

The TP301, besides the normal function of position measurement and 4-20 mA output generation,

offers the following features:

Linear or rotary travel type;

0.1% F.S.;

Position calibration (4 - 20 mA) via local adjustment or remote calibration via configurator;

Non contact position sensing;

Optional LCD indicator;

Diagnostics and configuration via Hart® communication.

NOTE

Get the best results of the TP301 by carefully reading these instructions.

TP301 – Operation, Maintenance and Instructions Manual

NOTE

This manual is compatible with version 1.

XX, where 1 denotes software version and XX software

release. The indication 1.XX means that this manual is compatible with any release of software

version 1.

Waiver of responsibility

The contents of this manual abides by the hardware and software used on the current equipment

version. Eventually there may occur divergencies between this manual and the equipment. The

information from this document are periodically reviewed and the necessary or identified corrections

will be included in the following editions. Suggestions for their improvement are welcome.

Warning

For more objectivity and clarity, this manual does not contain all the detailed information on the

product and, in addition, it does not cover every possible mounting, operation or maintenance

cases.

Before installing and utilizing the equipment, check if the model of the acquired equipment complies

with the technical requirements for the application. This checking is the user’s responsibility.

If the user needs more information, or on the event of specific problems not specified or treated in

this manual, the information should be sought from Smar. Furthermore, the user recognizes that the

contents of this manual by no means modify past or present agreements, confirmation or judicial

relationship, in whole or in part.

All of Smar’s obligation result from the purchasing agreement signed between the parties, which

includes the complete and sole valid warranty term. Contractual clauses related to the warranty are

not limited nor extended by virtue of the technical information contained in this manual.

Only qualified personnel are allowed to participate in the activities of mounting, electrical connection,

startup and maintenance of the equipment. Qualified personnel are understood to be the persons

familiar with the mounting, electrical connection, startup and operation of the equipment or other

similar apparatus that are technically fit for their work. Smar provides specific training to instruct and

qualify such professionals. However, each country must comply with the local safety procedures,

legal provisions and regulations for the mounting and operation of electrical installations, as well as

with the laws and regulations on classified areas, such as intrinsic safety, explosion proof, increased

safety and instrumented safety systems, among others.

The user is responsible for the incorrect or inadequate handling of equipments run with pneumatic

or hydraulic pressure or, still, subject to corrosive, aggressive or combustible products, since their

utilization may cause severe bodily harm and/or material damages.

The field equipment referred to in this manual, when acquired for classified or hazardous areas, has

its certification void when having its parts replaced or interchanged without functional and approval

tests by Smar or any of Smar authorized dealers, which are the competent companies for certifying

that the equipment in its entirety meets the applicable standards and regulations. The same is true

when converting the equipment of a communication protocol to another. In this case, it is necessary

sending the equipment to Smar or any of its authorized dealer. Moreover, the certificates are

different and the user is responsible for their correct use.

Always respect the instructions provided in the Manual. Smar is not responsible for any losses

and/or damages resulting from the inadequate use of its equipments. It is the user’s responsibility to

know and apply the safety practices in his country.

Installation Flowchart

TABLE OF CONTENTS

SECTION 1 - INSTALLATION.....................................................................................................................1.1

GENERAL.....................................................................................................................................................................1.1

MOUNTING ..................................................................................................................................................................1.1

ELECTRONIC HOUSING ROTATING.........................................................................................................................1.7

ELECTRIC WIRING .....................................................................................................................................................1.7

RECOMMENDATIONS FOR MOUNTING APPROVED EQUIPMENTS WITH THE IP66/68 W CERTIFICATIONS

(“W" INDICATES CERTIFICATION FOR USE IN SALINE ATMOSPHERES) ............................................................1.9

ROTARY AND LINEAR MAGNET ...............................................................................................................................1.9

REMOTE POSITION SENSOR..................................................................................................................................1.10

INSTALLATION IN HAZARDOUS AREAS ................................................................................................................1.11

SECTION 2 - OPERATION..........................................................................................................................2.1

FUNCTIONAL DESCRIPTION - POSITION SENSOR ................................................................................................2.1

FUNCTIONAL DESCRIPTION - ELECTRONICS........................................................................................................2.1

LOCAL INDICATOR .....................................................................................................................................................2.2

SECTION 3 - CONFIGURATION.................................................................................................................3.1

JUMPER CONNECTION..............................................................................................................................................3.1

LOCAL ADJUST...........................................................................................................................................................3.2

PROCEDURE TO CALIBRATE THE POSITION TRANSMITTER ..............................................................................3.4

CONFIGURATION VIA CONFIGURATORS................................................................................................................3.4

FAIL SAFE (ALARM SELECTION) ..............................................................................................................................3.9

SECTION 4 - MAINTENANCE PROCEDURES...........................................................................................4.1

GENERAL.....................................................................................................................................................................4.1

RECOMMENDATIONS FOR MOUNTING APPROVED EQUIPMENT WITH THE IP66/68 W CERTIFICATIONS (“W"

INDICATES CERTIFICATION FOR USE IN SALINE ATMOSPHERES) ....................................................................4.1

DIAGNOSTIC WITH CONFIGURATOR.......................................................................................................................4.1

DIAGNOSTICS WITHOUT CONFIGURATOR.............................................................................................................4.2

DISASSEMBLY PROCEDURE ....................................................................................................................................4.2

REASSEMBLY PROCEDURE .....................................................................................................................................4.3

INTERCHANGEABILITY ..............................................................................................................................................4.4

ACCESSORIES............................................................................................................................................................4.4

EXPLODED VIEW........................................................................................................................................................4.5

SPARE PARTS LIST....................................................................................................................................................4.6

SECTION 5 - TECHNICAL CHARACTERISTICS........................................................................................5.1

FUNCTION SPECIFICATIONS....................................................................................................................................5.1

PERFORMANCE SPECIFICATIONS ..........................................................................................................................5.1

PHYSICAL SPECIFICATIONS.....................................................................................................................................5.1

ORDERING CODE.......................................................................................................................................................5.2

APPENDIX A - CERTIFICATIONS INFORMATION ................................................................................... A.1

EUROPEAN DIRECTIVE INFORMATION.................................................................................................................. A.1

HAZARDOUS LOCATIONS GENERAL INFORMATION ........................................................................................... A.1

HAZARDOUS LOCATIONS APPROVALS ................................................................................................................. A.2

IDENTIFICATION PLATES ......................................................................................................................................... A.5

CONTROL DRAWING................................................................................................................................................. A.7

APPENDIX B – SRF – SERVICE REQUEST FORM .................................................................................. B.1

RETURNING MATERIALS.......................................................................................................................................... B.2

TP301 – Operation, Maintenance and Instructions Manual

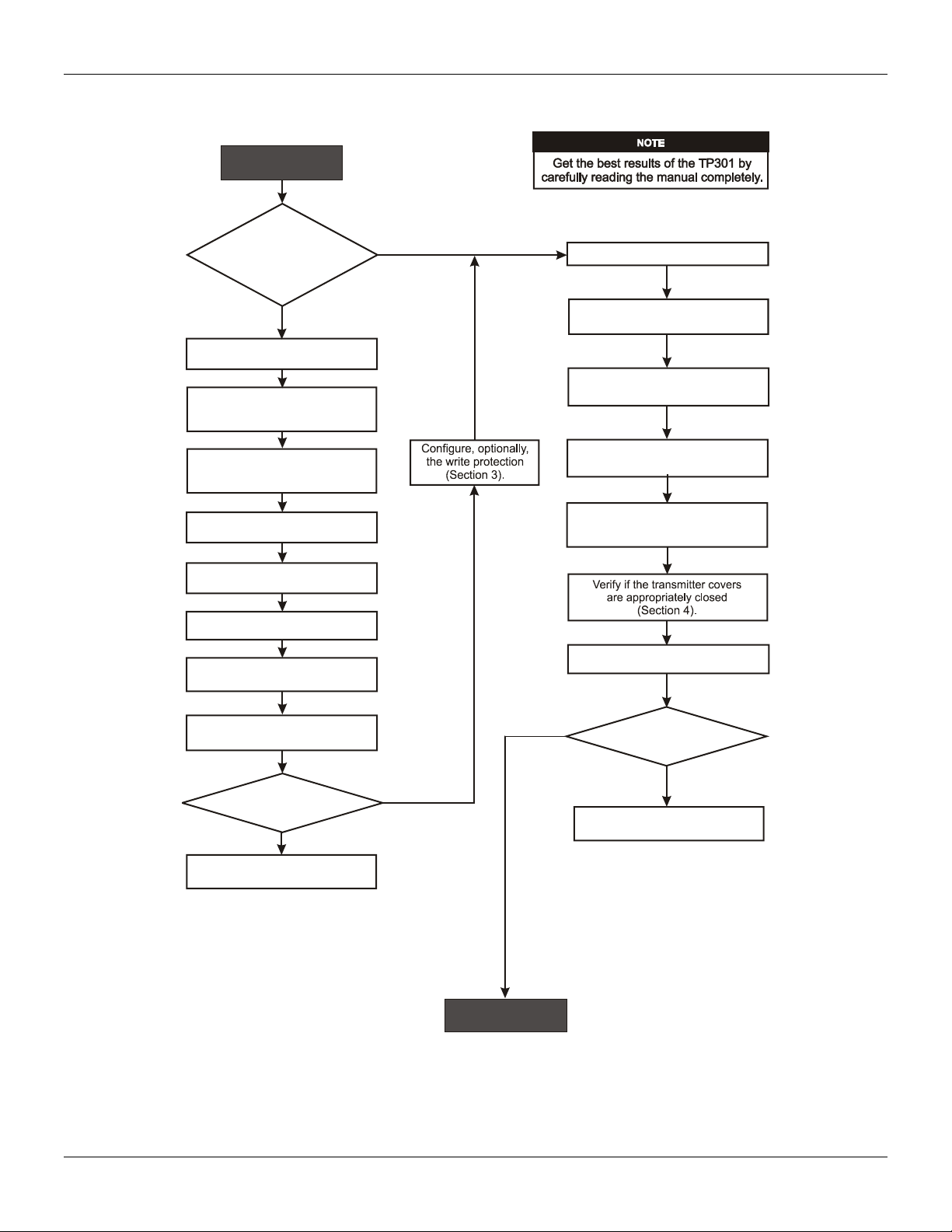

Installation Flowchart

Has the transmitter

been configured

on the bench for the

application ?

Configure the transmitter

( section 1 and section 3).

Start

Field Installation.

Install the transmitter according to

the application.

Verify the most appropriate

position for local indicator.

Verify the area classification and

its related practices (Section 1).

YES

Configure the Fail Safe value

(Section 4).

Configure the Damping (Section 3).

Configure the indication in

local indicator (Section 3).

Configure the user_unit in case of

specific measurements (Section 3).

Is the measurement

OK ?

YES

Power on the transmitter.

the

measuring ok

YES

Consult the manual

Section 4 - Maintenance.

Consult the manual

Section 4 - Maintenance.

Move the system to the upper

position, execute the upper

position trim for 100% (20 mA).

Fix the transmitter magnet

in a position that allows to the

sensor to travel all magnet range.

Move the system to the lower

position, execute the lower

position trim for 0% (4 mA).

Configure action Direct or Reverse

(Section 3).

Section 1

1.1

INSTALLATION

General

NOTE

The installation carried out in hazardous areas should follow the recommendations of the IEC60079-14 standard.

NOTE

See appendix “A” Hazardous Area Certifications.

The overall accuracy of measurement and control depends on several variables. Although the

converter has an outstanding performance, proper installation is essential, in order to maximize its

performance.

Among all factors, which may affect converter accuracy environmental conditions are the most

difficult to control. There are, however, ways of reducing the effects of temperature, humidity and

vibration.

In warm environments, the transmitter should be installed to avoid, as much as possible, direct

exposure to the sun. Installation close to lines and vessels subjected to high temperatures should

also be avoided. Use of sun shades or heat shields to protect the transmitter from external heat

sources should be considered, if necessary.

Humidity is fatal to electronic circuits. In areas subjected to high relative humidity, the o-rings for the

electronics cover must be correctly placed. Removal of the electronics cover in the field should be

reduced to the minimum necessary, since each time it is re-moved, the circuits are exposed to the

humidity.

The electronic circuit is protected by a humidity proof coating, but frequent exposures to humidity

may affect the protection provided. It is also important to keep the covers tightened in place. Every

time they are removed, the threads are exposed to corrosion, since these parts cannot be protected

by painting. Code approved sealing methods on conduit entering the transmitter should be

employed.

Although the transmitter is virtually insensitive to vibration, installation close pumps, turbines or

other vibrating equipment should be avoided.

Mounting

The TP301 mounting depends on the type movement, linear or rotary. Two brackets are required for

mounting, one for the magnet and the other for the transmitter itself.

NOTE

Make sure that arrow engraved on the magnet coincides with the arrow engraved on the Position Transmitter

when the system is in mid travel. When mounting the the Position Transmitter, consider that:

1 . There is no friction between the internal magnet face and the position sensor salience all over the travel

(rotary or linear).

2. A minimum distance of 2 mm to of 4 mm distance is recommended between the magnet external face

and the Position Transmitter face.

Should the transmitter installation change, or magnet change, or should any other modification, the

transmitter will require a re-calibration.

IMPORTANT

If the self diagnostics detect a transmitter failure, for example the loss of the power, the analog signal will go

to 3.9 mA or to 21.0 mA to alert the user (High or low alarm signal is user selectable).

TP301 –Operation, Maintenance and Instructions Manual

1.2

The following Figures 1.1 and 1.3 show both linear and rotary typical mounting:

Rotary Movement

Install the magnet on the valve stem using the magnet mounting bracket.

ROTATY

MAGNET

BRACKET

VALVE

STEM

ROTARY

MAGNET POSITIONER

TRANSMITTER

POSITIONER

TRANSMITTER

BRACKET

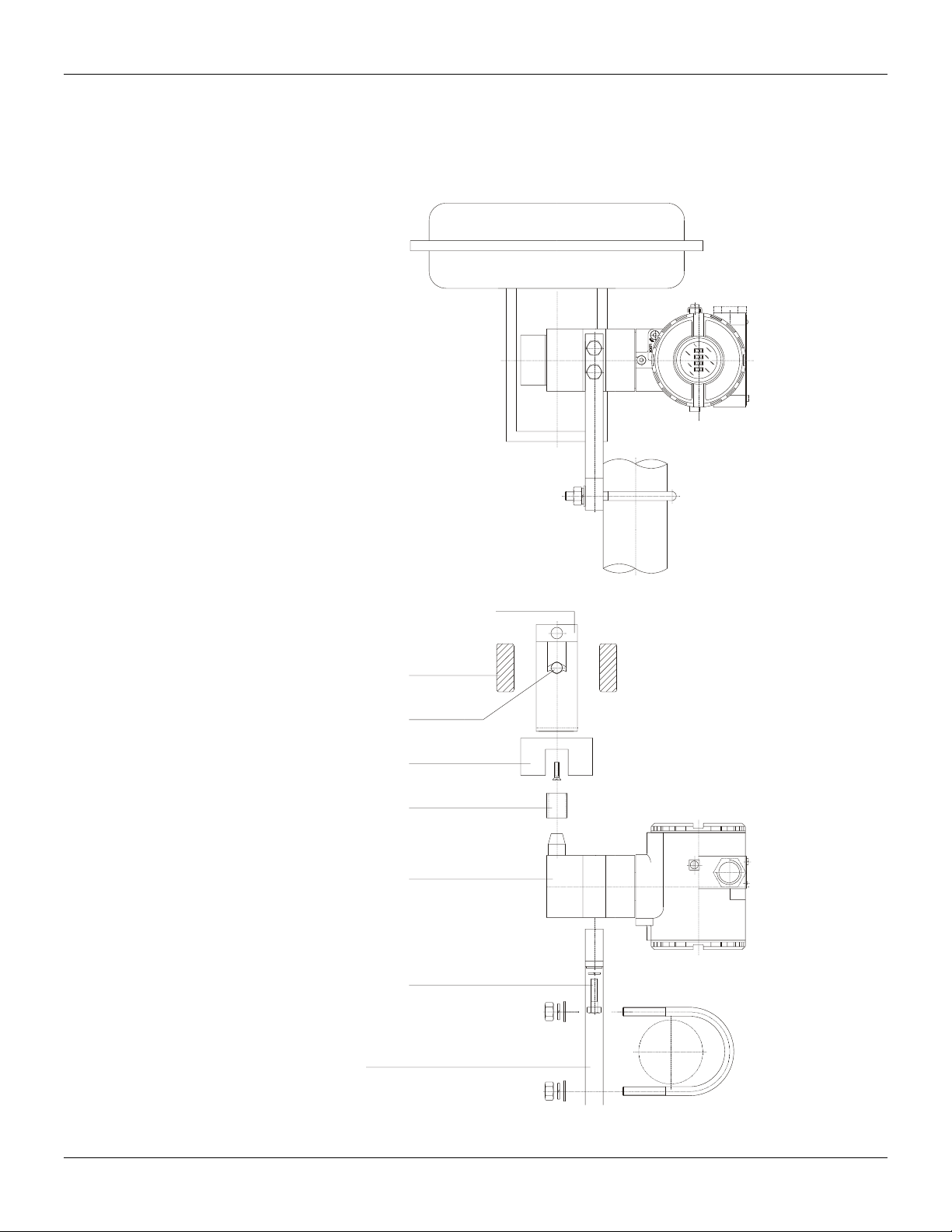

Figure 1.1 - Transmitter on a Rotary Actuator

BRACKET FOR REMOTE

SENSOR

REMOTE SENSOR

REMOTE POSITION

TRANSMITTER

M6 x 1SCREWS

(2 PLACES)

“L” BRACKET WITH “U” CLAMP FOR

REMOTE POSITION TRANSMITTER.

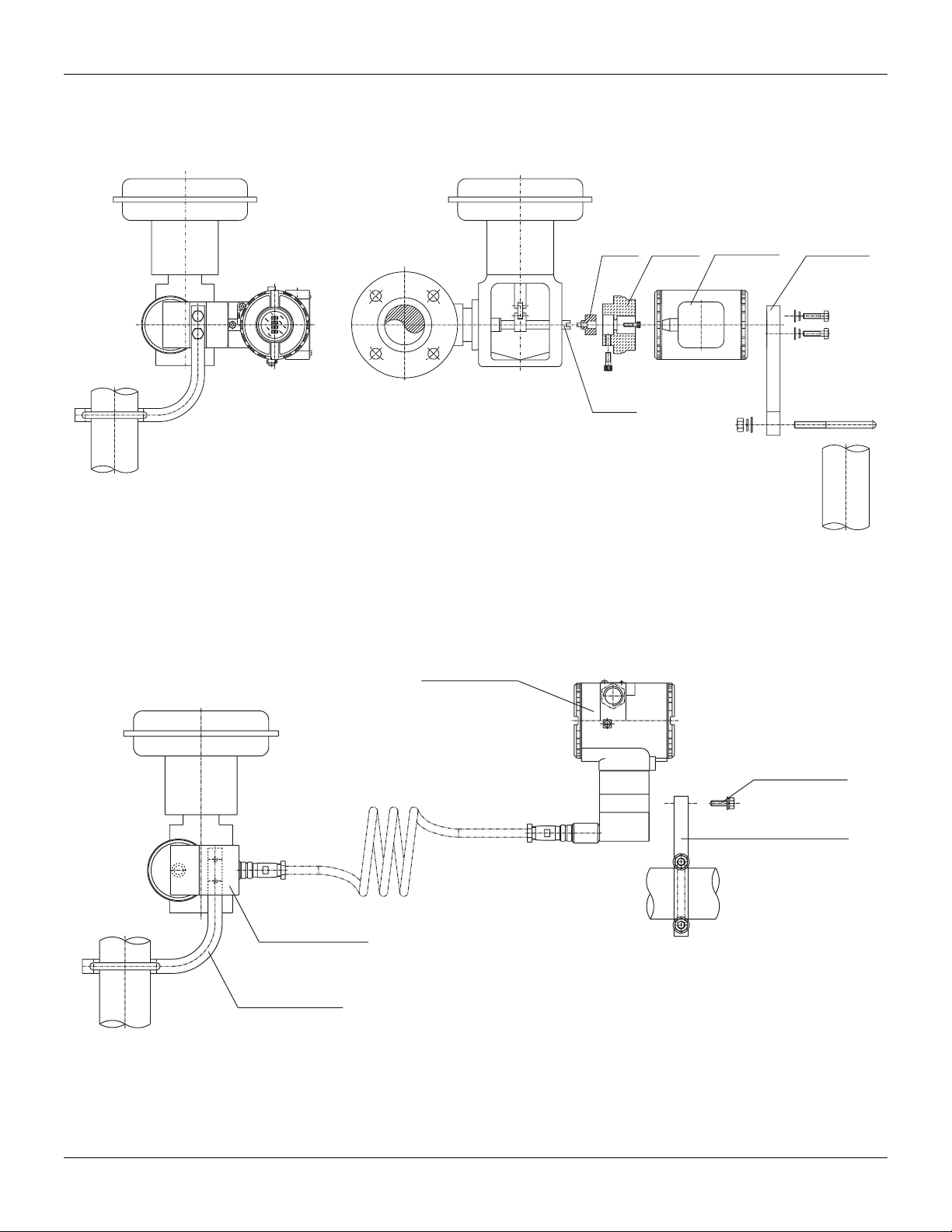

Figure 1.2 –Position Transmitter on Rotary Actuator with Remote Position Sensor

Installation

1.3

Linear Movement

Install the magnet on the valve stem using the magnet mounting bracket.

The linear magnet movement must be orthogonal in relation to the main axis of the position

transmitter. For example, if the linear magnet movement is vertical, the transmitter main axis must

be horizontal, as show in Figure 1.3.

Magnet Bracket

Linear

Valve Yoke

Valve Stem

Linear Magnetic

Centralizer Gadget Linear

Position Transmitter

M6 x 25 Screw

Position Trasmitter Bracket

with Clamp “L”

“U”

Figure 1.3 - Transmitter on a Linear Actuator

TP301 –Operation, Maintenance and Instructions Manual

1.4

CENTRALIZER

DEVICE

VALVE

STEM

VALVE YOKE

LINEAR

MAGNET

REMOTE

SENSOR

“L” BRACKET WITH “U” CLAMP

FOR REMOTE SENSOR

REMOTE POSITION

TRANSMITTER

LINEAR MAGNET

BRACKET

M6 x 1 SCREWS

(2 PLACES)

M6x1 SCREWS

(2 PLACES)

“L” BRACKET WITH “U”

CLAMP FOR REMOTE

POSITION TRANSMITTER

Figure 1.4 –Position Transmitter on Linear Actuator with Remote Position Sensor

Indice

Manuali Trasmettitore popolari di altre marche

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuale del proprietario

Honeywell

Honeywell 5816WMBR Manuale utente

Kamstrup

Kamstrup READy MTU Istruzioni operative

Omega

Omega ZW Series Manuale utente

ABB

ABB Field 264H Guida

Alinco

Alinco DJ-V17T Manuale utente

Dejero

Dejero EnGo 3x Manuale utente

Rosemount

Rosemount 4600 Manuale utente

Speaka Professional

Speaka Professional 2342740 Manuale utente

trubomat

trubomat GAB 1000 Manuale utente

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuale utente

Rondish

Rondish UT-11 Manuale utente

MG 10JRE Manuale utente

Burkert

Burkert 8177 Manuale utente

Firetide

Firetide HotPort 3203 Manuale

Tele Radio

Tele Radio T9-02 Manuale utente

Rotronic

Rotronic HygroFlex HF3 Series Manuale utente

Jamara

Jamara FCX6 Pro Tel Manuale utente
