SMART-AVI DVR8X8 Manuale utente

Made in U.S.A. www.SmartAVI.com 1-800-AVI-2131

DVR 8X8

User Manual

Display Content From Any 8 Computers

On Any 8 Screens Independently

Up To 20 Feet Away

8-port DVI-D Matrix Switch

TABLE OF CONTENTS

WHAT'S IN THE BOX? 2

INTRODUCTION 3

FEATURES 3

APPLICATIONS 3

TECHNICAL SPECIFICATIONS 4

HARDWARE INSTALLATION 5

FRONT PANEL CONTROL 6

DDC LEARNING 7

IR REMOTE CONTROL 7

ESTABLISHING AN RS-232 CONNECTION 8

USING THE SmartControl SOFTWARE 9-11

LIMITED WARRANTY STATEMENT 12

Figure 2-1

WHAT’S IN THE BOX?

PART NO. QTY DESCRIPTION

DVR8X8S 1 DVI-D 8x8 Router

PS5VDC4A 1 Power Adapter

SM-EYE2 1 IR Eye (Optional)

SAVI-RMT 1 IR Remote Control (Optional)

EN-DVR8X8-

EAR-P 2 Rack Mount Brackets

1 Quick Start Guide

INTRODUCTION

The DVR 8x8 is a high-quality switching matrix for up to 8 input and 8 output video signals. This allows an

easy and dynamic approach to displaying content from 8 video sources on 8 screens independently.

The matrix provides DVI-D, single-link Video interface at the maximum TMDS rate of 2 x 1.65 Gbps at

resolutions up to 1920 x 1200. The DVI signals can be transmitted up to 20 feet on both the input

and output sides of the switch.

Control the matrix instantly either locally via the front panel button or remotely using RS-232 connection

and Windows based software that is easy to understand and simple to use –a cornerstone of all

SmartAVI products.

FEATURES

 Supports resolutions up to 1920 x 1200

 Control from either Front Panel or via RS-232

 IR Remote Control available optionally

 Ethernet control available optionally

 Easy-to-use Windows®-based software for remote control via RS-232.

 Supports DVI operation at the maximum TMDS rate of 2 x 1.65 Gbps

 Multiple EDID Support

 Programmable EDID

 Automatic EDID learning from monitor

APPLICATIONS

 Wall Displays

 Digital Media

 Airports

 Dealer Rooms

 Control Rooms

 Audio/Visual Presentations

 Shopping Centers

 Security

 Point-of-Sale

 Hotels/Resort

TECHNICAL SPECIFICATIONS

VIDEO

Format DVI-D Single Line

Input Interface (8) DVI-I 29-pin (Female)

Output Interface (8) DVI-I 29-pin (Female)

Resolution Up to 1920 x 1200 @ 60Hz

DDC 5 volts p-p(TTL)

Input Equalization Automatic

Input Cable Length Up to 20 ft.

Output Cable Length Up to 20 ft.

CONTROL

Front Panel Buttons, Select/Switch between sources and view the current selected channel.

RS-232 DB9 Female - 115200, N,8,1, No flow control

IR Remote Control Remote Control and IR EYE (Optional)

OTHER

Power External 100-240 VAC / 5VDC4A

Weight 2.55 lbs.

Dimensions 17” W x 7” D x 2” H

Operating Temp. 0 to 55 °C (32 to 131°F)

Storage Temp. -20 to 85 °C (-4 to 185 °F)

Humidity Up to 95% No Condensation

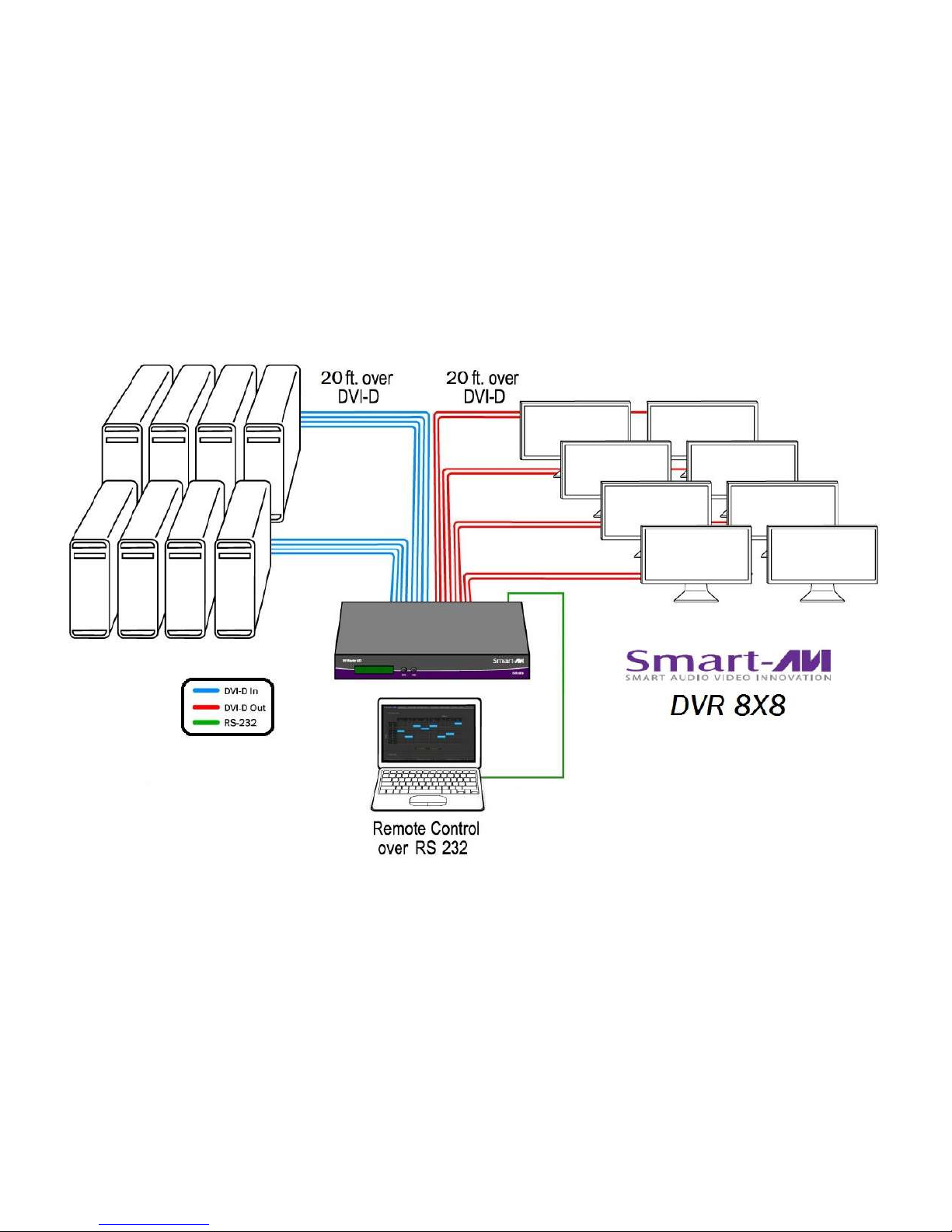

HARDWARE INSTALLATION

1. Power off the computers and displays.

2. Connect the DVI video cables from the computers to the DVI-D inputs on the rear of the DVR 8X8.

3. Connect the DVI displays to the DVI-D outputs on the rear of the DVR 8X8.

4. Optionally connect the IR Eye for IR remote control.

5. Optionally connect a computer to the RS-232 port on the DVR 8X8 for additional remote control.

6. Power on the DVR 8X8.

7. Power on the computers and displays.

SmartAVI’s DVR 8X8 uses the Windows®-based SmartControl software application that makes user inter-

face via RS-232 simple. See the full manual for more information.

Figure 5-1

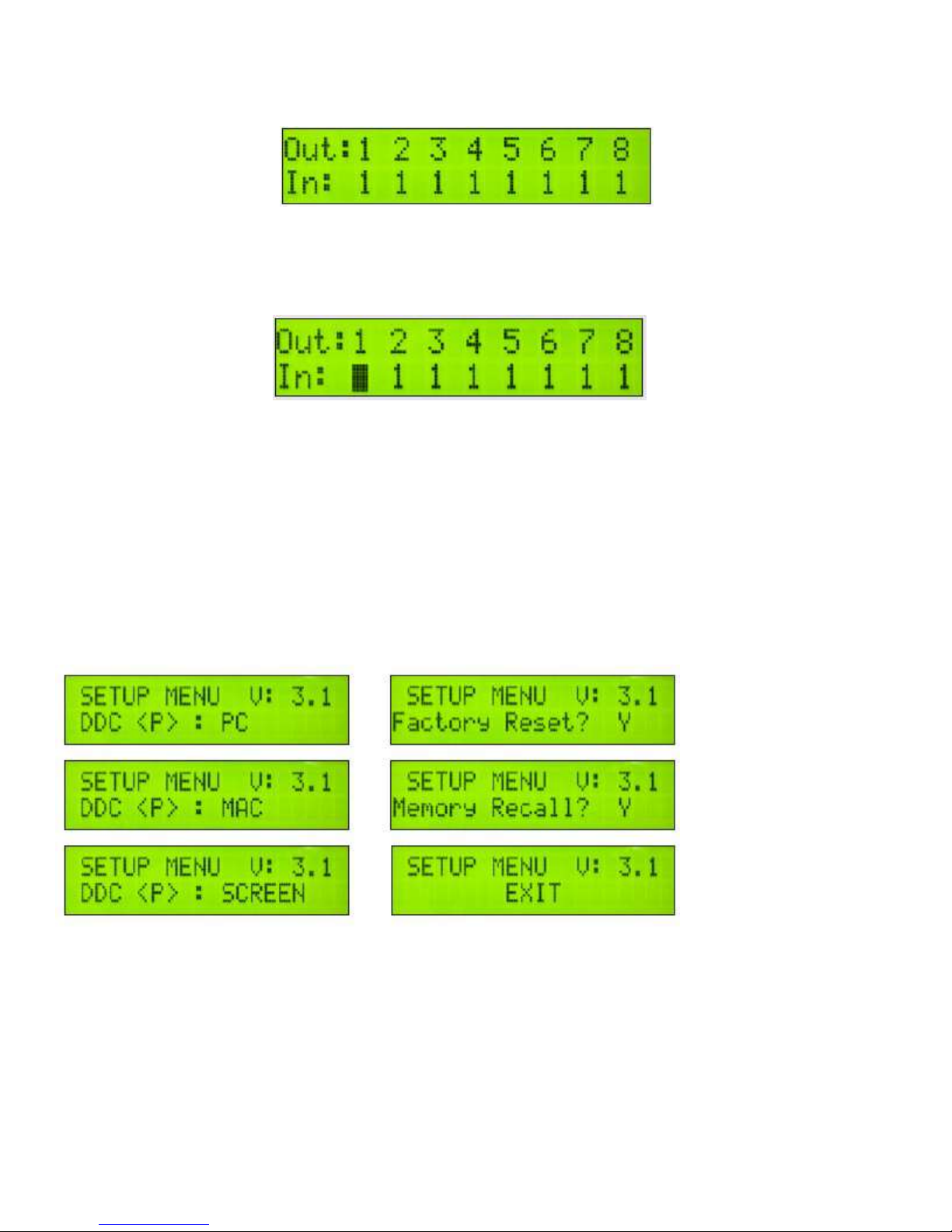

FRONT PANEL CONTROL

During normal operation, you will see a list of ports on the front panel display. The display will list the

status of ports 1-8:

Figure 6-1

To switch ports using the front panel, press and hold the Scroll button for one second to enter port selec-

tion mode. A block cursor will appear over the first input port

Figure 6-2

1. Press Enter to select the output port you would like to change.

2. When selected, press the Scroll button to change the input port number.

3. Press Enter to execute and move the cursor to the next output port.

To exit the port editing mode, wait 5 seconds and the DVR8X8 will return to status mode.

MENU Options

To access the other features of the DVR8X8, press and hold both the Scroll and Enter buttons simultane-

ously for 3 seconds and release to bring up the MENU screen. Press Scroll to cycle through the following

list of options:

Figure 6-3

To change the status of the selected option, press the Enter button.

 DDC : PC - changes the DDC table to PC (see DDC Learning)

 DDC : MAC - changes the DDC table to Mac (see DDC Learning)

 DDC : SCREEN - changes the DDC table to SCREEN (see DDC Learning)

 FACTORY RESET - resets the DVR8X8 to the factory default settings.

 MEMORY RECALL - recalls the last working configuration after a power cycle.

 EXIT - exits the MENU

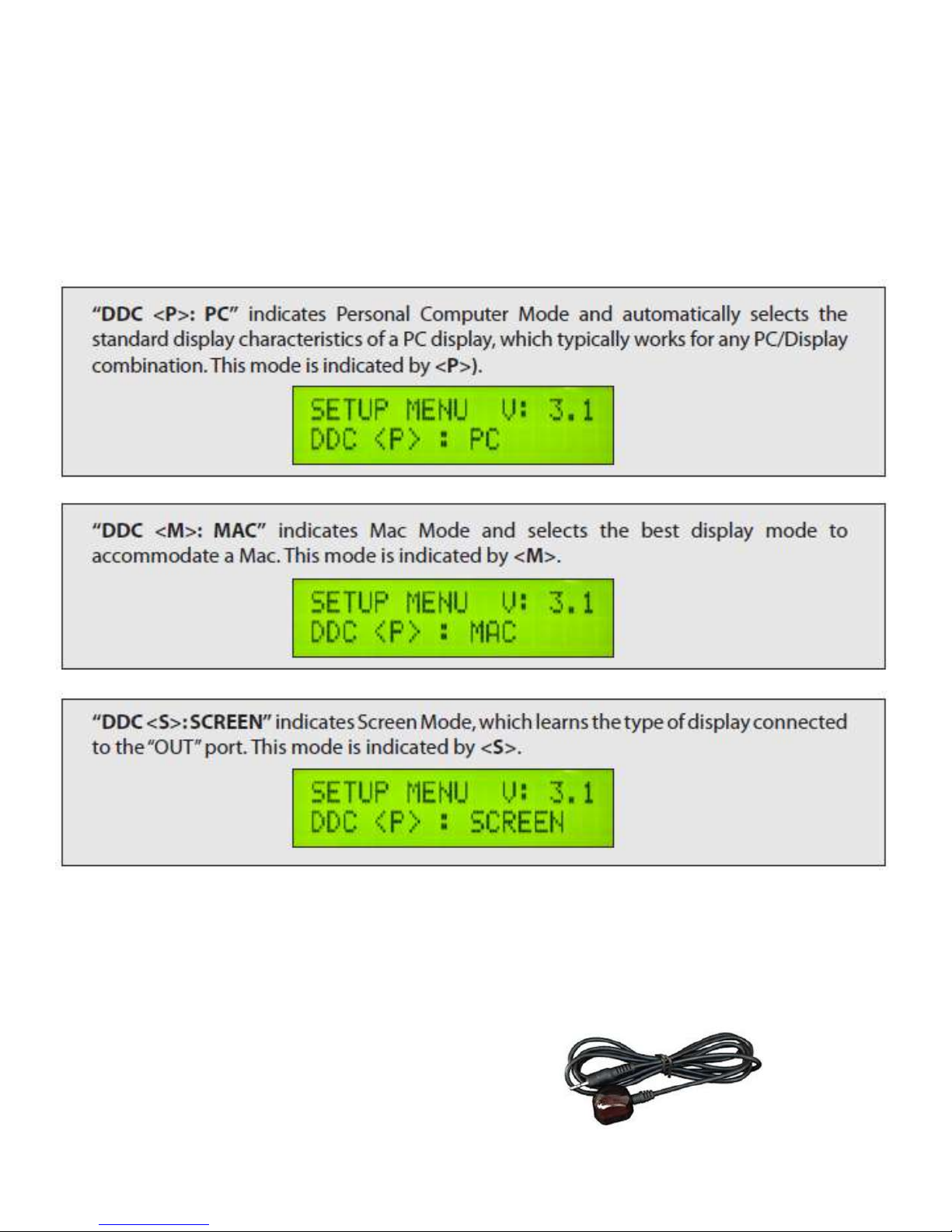

DDC LEARNING

DDC provides plug-and-play capability to your displays. When you plug a display into your computer, the

DDC table in the display tells the computer the optimal resolution to use. In order to preserve this plug-

and-play capability, we have integrated DDC learning into all of our DVI Solutions.

To enter CHANGE DDC mode, press and hold both the Scroll and Enter buttons simultaneously for 3 sec-

onds to bring up the MENU screen and use Scroll to cycle through the menu options. To select a mode,

press Enter. The currently selected DDC Mode will be indicated by a letter in brackets (P for PC, M for

Mac, and S for Screen).

Figure 7-1

IR REMOTE CONTROL

Plug in the optional IR Eye (Receiver) into the IR port on the back of the DVR8X8. Secure it with tape so it

is visible to the remote control. Point the optional remote control at the IR Eye and:

1. Press the “IN” button.

2. Press the number for the input (source) port.

3. Press the “OUT” button.

4. Press the number for the output (display) port.

5. Press the “OK” button to execute.

Figure 7-2

ESTABLISHING AN RS-232 CONNECTION

Before you start:

Controlling a Smart-AVI device via RS-232 requires an RS-232 card installed on your computer or a USB

to RS-232 adapter. Below are instructions on how to create an RS-232 connection between a PC and the

Smart-AVI device.

Make sure to use communication settings 9600 bps, N, 8, 1, No flow control.

Check the device and your PC to determine if you need a male to male or a male to female cable and how

long it needs to be. The Smart-AVI device requires a straight through cable. You can use a Null Modem

Adapter to convert a crossed cable to a straight through cable. Examples of crossed and straight thorough

cable pin-outs are shown below. The standard maximum length for an RS-232 cable is 50 feet. Call our

Smart-AVI Support Engineer if you require more information.

Figure 8-1

Examples of 9 pin RS-232 Straight Through and Crossed Cables

Establish a connection to the Smart-AVI device:

1. Connect an RS-232 cable to the RS-232 connector on the PC.

2. Connect the other end of the cable to the RS-232 port of the Smart-AVI device.

3. Use Windows Control Panel / Device Manager to identify the Com port number. See instructions and

Figure 8-2 below.

4. Power on the device.

If you are using a USB to COM port adapter on a Win-

dows PC and need to identify the COM port used, do

the following:

1. Click on the start button.

2. Click on Control Panel.

3. Click on Device Manager. In Windows 7 you need

to click on “Hardware and Sound” to get to Device

Manager.

4. Click on the arrow next to Ports (COM & LPT). You

should see the name of your adapter and the

COM port number in use.

Figure 8-2

USING THE SmartControl SOFTWARE

RS-232: Controlling the HDR16X16 has never been simpler with SmartControl software. With SmartCon-

trol, you can assign a unique name to each port on the HDR16X16, as well as each display, customizing

projects to meet your needs. Although all the functions of the matrix are available locally on the front

panel of the HDR16X16, using SmartControl allows for customization of all the matrix functions.

 Download the Smart Control Pro software from the Smart-AVI website. www.smartavi.com

 Double click SmartControlPro-v5-0-03_Installer.exe in order to initiate software installation.

 Click Install. After installation has completed, click CLOSE.

 In order to use the software, click on the START button>Programs>SmartControl Pro.

 There you should see a help file, the SmartControl Pro launcher as well as a shortcut to uninstall

SmartControl Pro.

Click on SmartControl Pro in order to launch the software. When the software starts you will see a

screen like this:

Advanced Configuration:

If you have more than one Router in-

stalled you will want to check this box.

Router Type:

Select DVR 8X8

Inputs/Outputs:

Enter the number of Inputs/Outputs your HDR16X16 has.

The HDR16X16 can have up to 16 inputs and 16 outputs.

Com Port:

See the section in this manual on establishing an RS-232 connection for instructions on how to identify

the com port number.

Router Time out:

This field is set to 0 by default, meaning the computer acknowledges commands almost instantly. Some-

times a computer takes longer to respond. This setting should be left at 0. If you need to change it, it

should be no higher than 0.2.

After you have entered in the necessary information click OK. This will now take you to the Main Routing

Window where you can route the different video/audio connections.

Figure 9-1

USING THE SmartControl SOFTWARE (continued)

Main Routing Window

The Main Routing Window enables you to control the router(s) connections by means of the Crosspoint

panel, the button panel, or with pre-recorded routes called macros.

Crosspoint Panel: This is the simplest way to route the connections. Simply click on the cross point itself.

The input on the left will then be routed to the output above.

Note: Inputs can be routed to several different outputs, but each output can only have a single input at

any one time. That means you can have several connections horizontally but not vertically.

On the screen shown in figure 10-1 the input buttons run down the left side and the output buttons run

across the top. They’re each labeled 1 through 8. This configuration directs video from source 1 to be dis-

played on all 8 displays.

Figure 10-1

Figure 10-2

On the screen shown in figure 10-2 source 1 is sent to display 1, source 2 to display 2, 3 to 3, 4 to 4, 5 to

5, etc.
