SMART-AVI QuadKVM Manuale utente

www.smartavi.com

Installation

Manual

View four dierent analog/digital video sources

simultaneously on one screen

with USB keyboard and mouse support.

QuadKVM

Quadruple View KVM Switch

2www.smartavi.com

Introduction

The QuadKVM Switch allows you to view up to four dierent analog and

digital video sources simultaneously on one display device. It also supports

keyboard and mouse functionality, allowing you to access all four displays

with one set of interface controls. Connections to video sources are managed

via DVI-I connectors. Advanced viewing options include dual-mode, quad-

mode, full-screen mode, and PIP (picture in picture) mode. Use this device to

simplify management of multiple sources by accessing and controlling them

all through a single display and set of controls.

Features

• View up to four computers on a single monitor at the press of a button

• Supports USB keyboard and mouse

• On-screen display (OSD) makes setup and switching easy

• Change views by pressing the tact switches, keyboard hotkeys, and RS-232

• Display each computer with clean and crisp high-resolution video

• Supports DVI-D resolutions up to 1900 x 1200 @ 60 Hz

• Supports VGA resolutions up to 1600 x 1200 @ 60Hz

• Quad-mode splits the screen to show four computers on one screen

• Dual-mode splits the screen to show two computers on one screen

• PiP-mode displays one computer in full screen with three thumbnail views

• Control any one computer while monitoring three others

• User-dened frame rate for each input

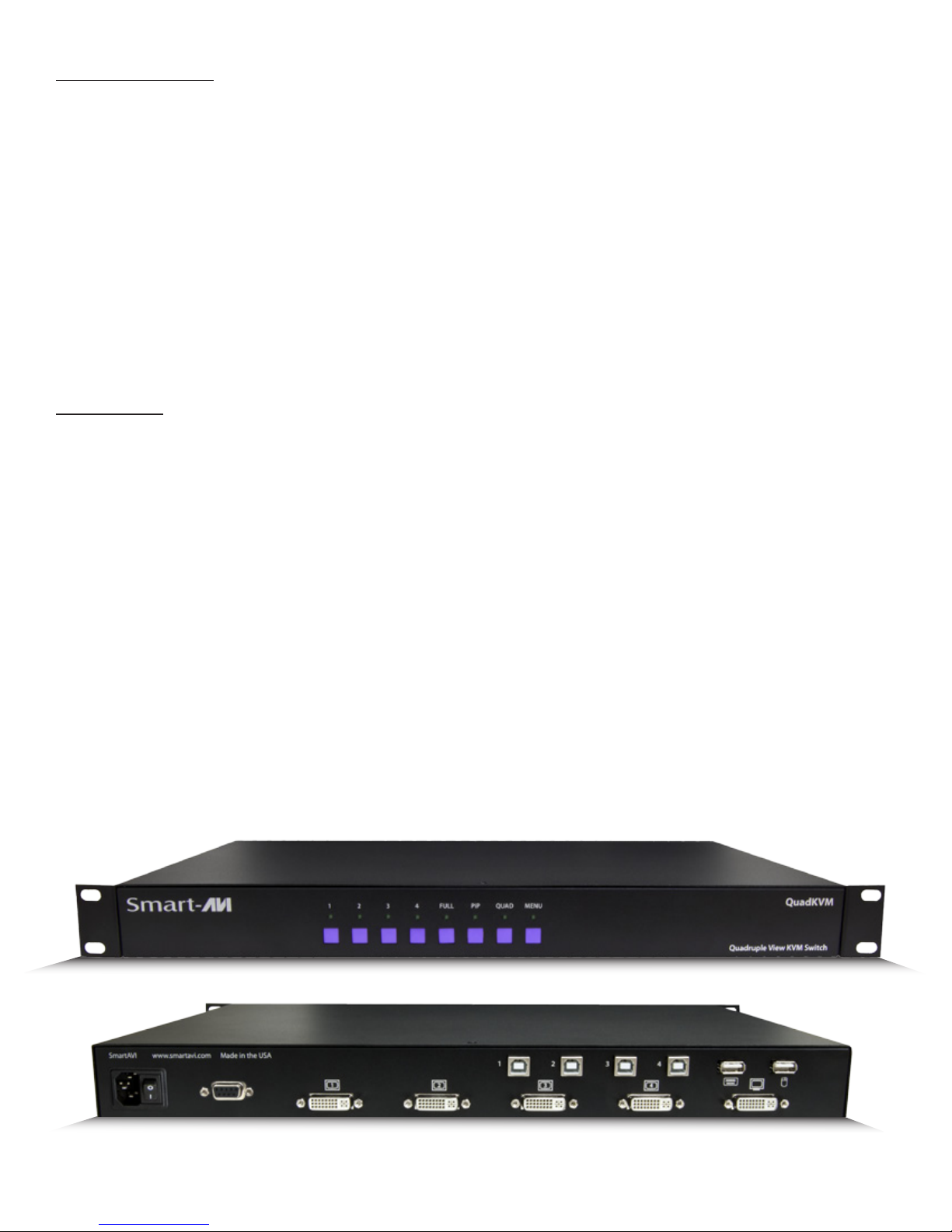

QuadKVM Front

QuadKVM Rear

www.smartavi.com

Technical Specications

What’s in the Box?

PART NO. QTY DESCRIPTION

SMQKVM 1 4-Port DVI, USB 1.1 KVM switch with PiP/Dual/Quad/Full modes.

PS5VDC4A 1 5VDC4A Power Supply

USB

Signal Type USB 1.1 and 1.0

Input Interface (TX) (4) USB Type B (Female)

Output Interface (RX) (2) USB Type A (Female)

VIDEO

Format DVI-D Single Line

Maximum Pixel Clock 165 MHz

Input Interface (4) DVI-D 29-pin female

Output Interface (1) DVI-D 29-pin female

Resolution DVI-D up to 1920 x 1200 @60Hz

VGA up to 1600 x 1200 @60Hz

DDC 5 volts p-p(TTL)

Input Equalization Automatic

Input Cable Length Up to 20 ft.

Output Cable Length Up to 20 ft.

CONTROL

Front Panel Tact Switches

Keyboard Hotkeys

RS-232 RS-232 Commands

OTHER

Power External 100-240 VAC/5VDC4A @20W

Dimensions 17”W x 1.75”H x 10.25”D

Weight 5 lbs.

Approvals UL, CE, ROHS Compliant

Operating Temp. 32-131°F (0-55 °C)

Storage Temp. -4-185 °F (-20-85 °C)

Humidity Up to 95%

4www.smartavi.com

Mac

QuadKVM

• Corporate or Educational Presentations

• Financial (Remote Servers/User Control)

• Call Centers for Technical Support

• Industrial (Long-Range Workstation Isolation)

• Airport Installations (Air Trac Control/Passenger Information)

• KVM Extension where Exceptional Quality of Signal is Crucial

• Medical (Remote Operation Away from Sensitive/Magnetic Equipment)

• Recording (for Large Studios where Editing/Mixing Stations are Compact

and/or Require Complete Silence)

The QuadKVM can be used in many applications that require the real-time

monitoring of multiple computers. It is a perfect solution in situations where a

user needs to monitor several computers at the same time. In Air Trac Control

environments, several computers need to be monitored for the progress of

ights and ight information. The QuadKVM is perfect for multi-tasking, allowing

the user to run tasks on each computer and monitor their progress without

having to switch back and forth between them.

Applications

www.smartavi.com

1. Power o all computers and the display.

2. Connect the USB output of each computer to the USB inputs on the

QuadKVM using male to male A to B USB cables.

3. Connect the DVI-D output of each computer to the DVI-D inputs on the

QuadKVM using male to male DVI-D cables.

4. Connect the USB keyboard and mouse to the USB outputs on the QuadKVM.

5. Connect the DVI-D display to the DVI-D output on the QuadKVM.

6. Power on the QuadKVM by connecting the power cable.

7. Power on the computers and the display.

Installation

DVI-D INPUTS (to computers)POWER DVI-D OUTPUT (to display)RS-232 UPDATE

USB OUTPUTS (to keyboard/mouse)USB INPUTS (to computers)

USB DVI-D

6www.smartavi.com

The QuadKVM operates in much the same way as a conventional KVM. To view and control any

input, simply press the corresponding button on the front of the QuadKVM. For example, press

1 for the rst input, 2 for the second input, and so on. The LED lights will change accordingly.

The rst time you connect a display to the QuadKVM, you will need to set the output resolution

to that of your display. To change the resolution, press MENU and then a number 1-3.

The corresponding resolutions are as follows:

1- XGA 1024x768

2- HDTV 1080p

3- WUXGA 1920x1200

Operation

Front Panel Operation

Setting the Resolution

In addition to the standard KVM functions, the QuadKVM is capable of displaying several

inputs at a time with dierent modes of operation. To switch to a particular mode, simply

press the the corresponding button on the front of the QuadKVM. The available modes are

dened as follows:

FullScreen Mode - In the FullScreen mode, one of the four

computers` video sources is displayed in full screen size and maximum

resolution. Keyboard and mouse operation automatically switch to the

corresponding computer.

For Fullscreen Mode, press FULL.

PiP Mode - In the PiP(picture in picture) mode, the full screen display

of one of the four video sources is accompanied by one or three small

images (thumbnails) containing the other video sources on the right-

hand margin of the screen allowing simultaneous monitoring.

For Picture-in-Picture Mode, press PiP.

QuadKVM Front

Panel Buttons

and Indicators

www.smartavi.com

The QuadKVM can be controlled via keyboard hot-keys that make the functions of the QuadKVM available at

the console keyboard. The hot-keys are programmable via the OSD menus. By default, the primary hot-key is

Scroll Lock.

To change the active input, press Scroll Lock twice and then press the up/down arrows to cycle the next/

previous inputs. You can also select a specic input in Quad and Dual mode by pressing Scroll Lock twice,

followed by the letter U, and then the number of the input you would like to select.

To bring up the on-screen display (OSD), press Scroll Lock twice and then the letter O. The OSD may also be

accessed by pressing and holding the Menu button on the front of the QuadKVM for 2 seconds. Once the OSD

is displayed, use the number or arrow keys to select an option.

Dual-Mode - In Dual mode, the screen is split into two elds of equal

size with the screen content of two video sources or computers being

displayed in each of these elds. Keyboard and mouse operation can be

selected to the eld of the corresponding computer.

12Press Quad to toggle between Dual-Mode and Quad-Mode.

After selecting Dual-Mode, press the number for the left-

side input and then the number for the right-side input.

Quad-Mode - In Quad mode, the screen is split into four elds of equal

size with the screen content of four video sources or computers being

displayed in each of these elds. Keyboard and mouse operation can be

selected to the eld of the corresponding computer.

3 4

Press Quad to toggle between Dual and Quad-Mode

Front Panel Operation continued

Keyboard Hot-Key Operation with the On-Screen-Display (OSD)

Screenshot of the QuadKVM’s Main OSD

SMARTAVI

QUADKVM

F2 . MODE

F3 . CONFIGURATION

F4 . VIDEO

F5 . HELP

F1 . SYSTEM

8www.smartavi.com

The SYSTEM OSD option (F1 from the main OSD) allows the user to congure the hotkeys (F1),

change the OSD position (F2), select from set users (F3), and scan the inputs 1-4 once (F4).

Screenshot of the QuadKVM’s System OSD

SYSTEM

The MODE OSD option (F2 from the main OSD) allows the user to set the mode. The available

modes via OSD are PiP (Picture in Picture) (F1), Full (F2), and Quad (F3).

MODE

Screenshot of the QuadKVM’s MODE OSD

SYSTEM

F2 . OSD POSITION

F3 . USER SELECT

F4 . SCAN

F1 . HOTKEY CFG

MODE

F2 . FULL

F3 . QUAD

F1 . PIP

www.smartavi.com

The CONFIGURATION OSD option (F3 from the main OSD) allows the user to back up the

settings (including pre-dened user settings) (F1) and to perform a factory reset to reset the

QuadKVM to its factory default settings (F2).

The VIDEO OSD option allows the user to select the active video display inputs (F1) and the

corresponding outputs (F2).

CONFIGURATION

VIDEO

Screenshot of the QuadKVM’s CONFIGURATION OSD

Screenshot of the QuadKVM’s VIDEO OSD

CONFIGURATION

F2 . FACTORY RESET

F1 . SAVE SETTINGS

VIDEO

F2 . OUTPUT SELECT

F1 . VIDEO INFO

10 www.smartavi.com

Once you have connected to the QuadKVM, you must log in. To do so, type‘i’at the prompt

and press <enter>. This will bring up the password entry feild. Type ‘smart’and press <enter> to

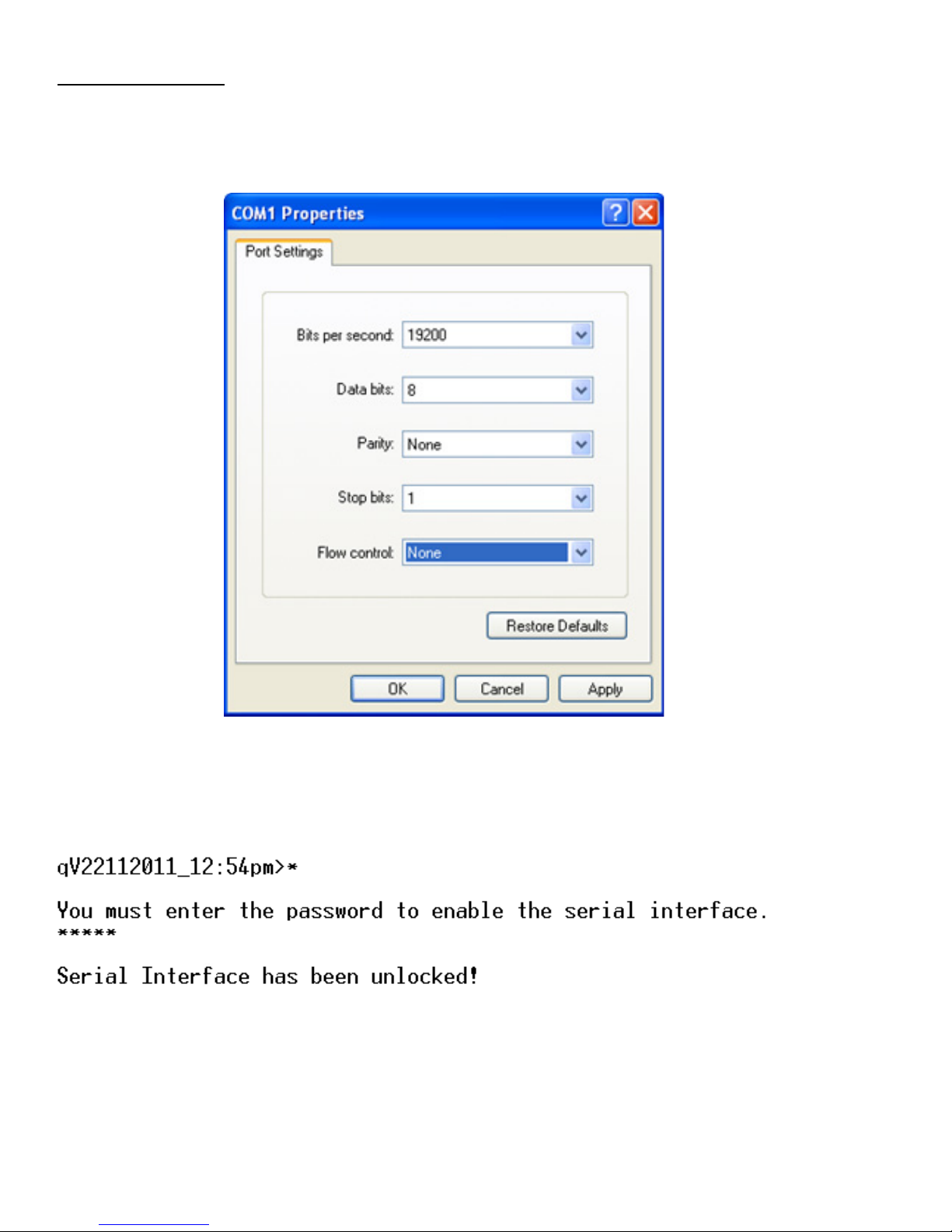

The QuadKVM may also be controlled via RS-232 commands. To use these commands, you

must use HyperTerminal or an alternate terminal application. The settings for the connection

are as follows:

RS-232 Operation
