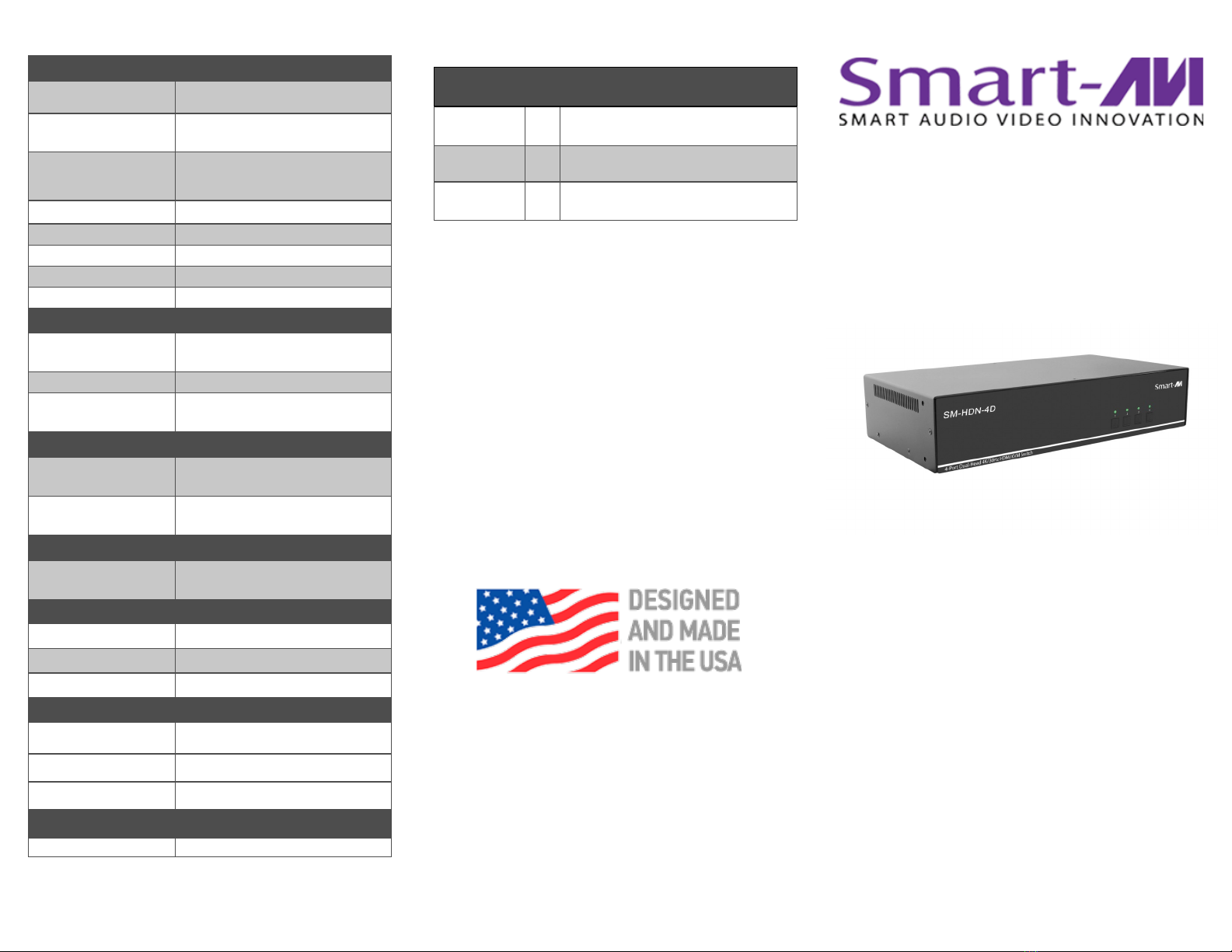

SM-HDN-4D
Quick Start Guide
A full Manual can be downloaded from
www.smartavi.com/SM-HDN-4D/
Advanced KVM Switch
TECHNICAL SPECIFICATIONS
VIDEO
Format HDMI
Input Interface (8) HDMI 19-pin
Output Interface (2) HDMI 19-pin
Resolution Up to 4K (3840x2160 @30Hz)
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
USB
Signal Type USB 2.0, 1.1, and 1.0 w/ internal
hub
Input Interface (4) USB Type B
Output Interface
(2) USB 1.1 Type A for KVM Devices
(2) USB 2.0 Type A Transparent
AUDIO
Input (4) 3.5 mm Stereo Audio
Output (1) 3.5 mm Stereo Audio
POWER
Power Requirements 12V DC, 2A power adapter with
center-pin positive polarity
ENVIRONMENT
Operating Temp 32° to 104° F (0° to 40° C)
Storage Temp -4° to 140° F (-20° to 60° C)
Humidity 0-80% RH, non-condensing
CONTROL
Front Panel Push Buttons with LED indicators
RS-232 Via Serial @ 115200 bps
Hot Keys Via Keyboard
OTHER
Emulation Keyboard, Mouse and Video
WHAT’S IN THE BOX
PART NO. QTY DESCRIPTION
SM-HDN-4D-S 1 4-Port HDMI KVM Switch with Audio
and USB 2.0 Support.
PS12VD2A 1 12V DC, 2A power adapter with
center-pin positive polarity.
1 Quick Start Guide
NOTICE
The information contained in this document is subject
to change without notice. SMART-AVI makes no war-
ranty of any kind with regard to this material, includ-
ing but not limited to, implied warranties of merchant-
ability and fitness for particular purpose. SMART-AVI
will not be liable for errors contained herein or for
incidental or consequential damages in connection
with the furnishing, performance or use of this materi-
al. No part of this document may be photocopied,
reproduced, or translated into another language with-
out prior written consent from SMART-AVI, Inc.
Toll Free: (800) AVI-2123
Phone: (702) 800-0005
2455 W. Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
smartavi.com
DUAL HEAD 4-PORT HDMI
KVM SWITCH WITH USB 2.0
SHARING
HARDWARE INSTALLATION
1. Ensure that power is turned off or disconnected from the unit and the computers.
2. Use HDMI cables to connect the HDMI output ports from each computer to the correspond-
ing HDMI ports of the unit.
3. Use a USB cable (Type-A to Type-B) to connect a USB port on each computer to the respec-
tive USB ports of the unit.
4. Optionally connect a stereo audio cable (3.5mm to 3.5mm) to connect the audio output of
the computers to the AUDIO IN ports of the unit.
5. Connect monitors to the HDMI console ports of the unit using HDMI cables.
6. Connect a USB keyboard and mouse in the two USB console ports.
7. Optionally connect stereo speakers to the AUDIO OUT port of the unit.
8. Finally, power on the KVM by connecting a 12VDC power supply to the power connector, and
then turn on all the computers.
Note: You can connect up to 4 computers to the 4 port KVM.
EDID LEARN
The KVM is designed to learn a connected
monitor’s EDID upon power up. In the event
of connecting a new monitor to the KVM, a
power re-cycle is required.
SYSTEM CONTROL
There are three ways to control the SM-HDN:
Keyboard HotKeys, RS-232 Serial
Commands, and Front Panel Buttons.
The settings for the serial connection are as
follows: Baud rate: 115200; Data Bits: 8;
Parity: None; Stop Bits: 1;
Flow Control: None.
Command HotKey RS-232
Switch KVM [CT][CT]m[#]<CR> //m[#]<CR>
Audio Only [CT][CT]a[#]<CR> //a[#]<CR>
KM Only [CT][CT]c[#]<CR> //c[#]<CR>
USB Only [CT][CT]u[#]<CR> //u[#]<CR>
Learn EDID [CT][CT]e<CR> //e<CR>
SW Reset [CT][CT]r//r <CR>
Status Query N/A //?? <CR>
Current HK
Trigger
[Alt][Alt][Alt]
k0 <CR>
//hk <CR>
Update HK
Trigger
[HK][HK] k
[1|2|3] <CR>
N/A
Chart Key
[CT] = Ctrl
<CR> = Carriage Return (Enter Key)
[HK] = Current Hot Key Trigger
1 = Ctrl (Default) | 2 = Shift | 3 = Scroll Lock
