Unmanaged Switch SMCGS16-Smart / SMCGS24-Smart

EZSwitch 10/100/1000

16 and 24 Port Gigabit Web Managed Smart Switches

www.smc.com

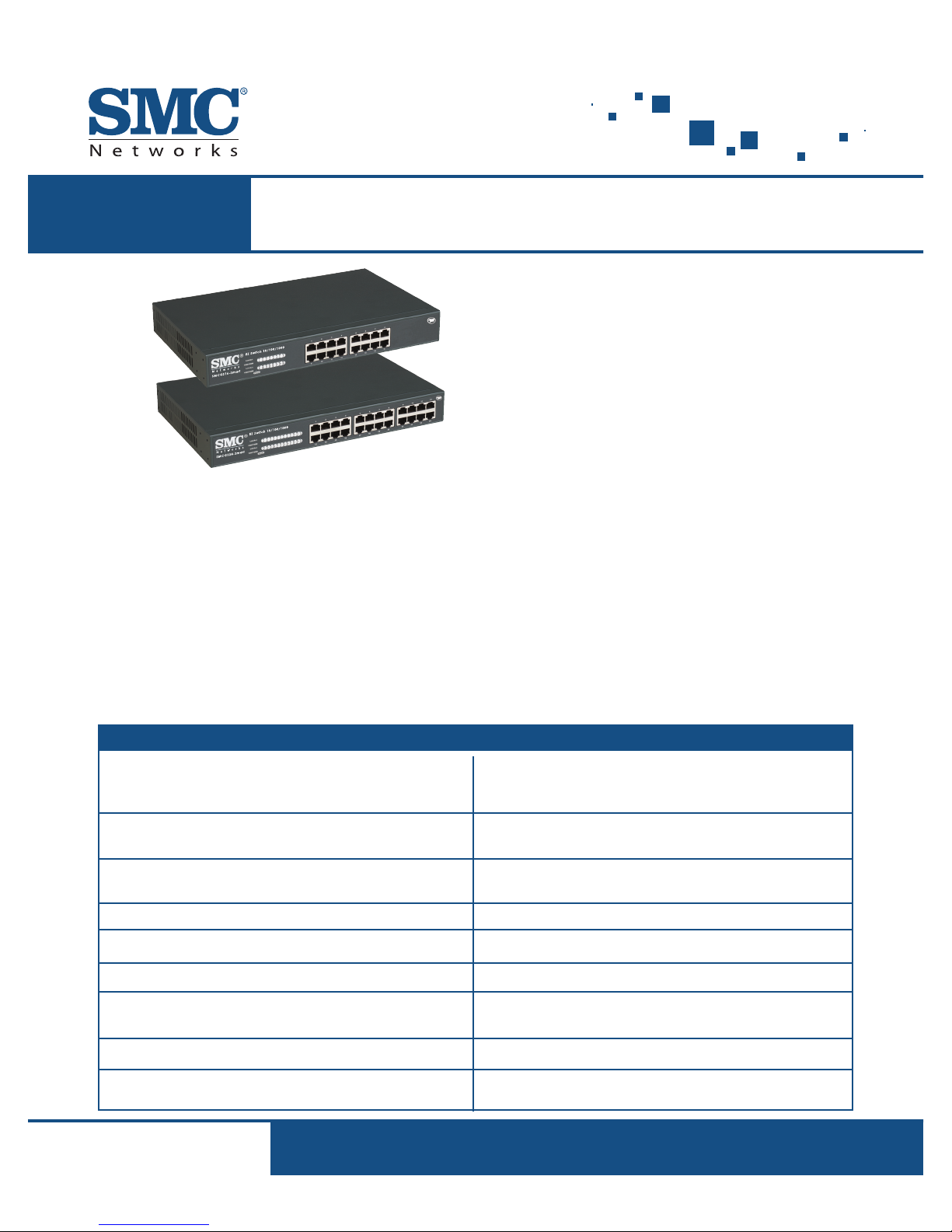

SMC Networks’ EZSwitch 10/100/1000 (SMCGS16-Smart/

SMCGS24-Smart) are 16 and 24 port gigabit smart switches that

bring the speed of gigabit copper to the desktop combined with

user friendly web based configuration. SMCGS16-Smart and

SMCGS24-Smart provide a flexible web based management

interface to enable the configuration of port settings, QoS (IP

Port, DSCP and 802.1p), link aggregation and VLAN's. These

features allow traditionally unmanaged networks to increase

throughput and security which is becoming critical in next

generation networks. Ideal for users looking to migrate from

unmanaged to managed networks, these Smart switches

are easy to install and provide 10 times the throughput than

100M switches. Notebook and desktop computers are being

configured with 1000BASE-T ethernet ports, combined with

SMC’s gigabit Smart switches, computers on your network will

work to their fullest potential; downloading files from the sever

or other central network resources, better control and

configuration options, non-blocking wire-speed throughput, and

scalable solutions for increased performance and productivity

needs. The SMCGS16-Smart and SMCGS24-Smart are a perfect

solution for enterprise and SOHO businesses.

FEATURES

10/100/1000 Gigabit Copper Ports

Smart Web Management

Flexible QoS

Configurable 802.1Q VLAN

Static Link Aggregation

Auto-MDIX ports

Fanless operation (Applies to SMCGS16-Smart only)

Compact chassis size

Limited Lifetime Warranty

BENEFITS

OVERVIEW

Provides high speed and legacy connections to all nodes

on the network, thereby ensuring a migration path for

network installations.

Flexible and easy to use web interface enables quick

installation for any user

Allows prioritisation based on 802.1p, IP Port (eg Port 80 for

HTTP), DSCP (eg 46 for expedited forwarding)

Allows both port and tag based VLANs

Allows up to 8 ports within a single aggregation

No crossover cables required, pure plug and play

Ideal of desktop installation due to the switch not

requiring fans.

Chassis ideal for desktop or rack mounting applications

Investment protection and quality assurance

TECHNICAL SPECIFICATIONS SMCGS16-Smart / SMCGS24-Smart

PORTS

• SMCGS16-Smart: 16 Auto-MDIX 10BASE-T/100BASE-TX/1000BASE-T

RJ-45 ports

• SMCGS24-Smart: 24 Auto-MDIX 10BASE-T/100BASE-TX/1000BASE-T

RJ-45 ports

NETWORK INTERFACE

• 10BASE-T: RJ-45 UTP CAT. 3,4,5

• 100BASE-TX: RJ-45 UTP Cat. 5

• 1000BASE-T: RJ-45 connector

SWITCH FABRIC

• SMCGS16-Smart - 32Gbps

• SMCGS24-Smart – 48Gbps

SWITCHING DATABASE

• 8K MAC address entries

LED

• System: Power

• Port: Link/activity

• 1000/100M

WEIGHT

• SMCGS16-Smart: 2.0 kg (4.04 lbs)

• SMCGS24-Smart: 2.2 kg (4.85 lbs)

SIZE

• 33 x 20.4 x 4.4 cm (12.99 x 8.04 x 1.73 in.)

MEMORY BUFFER

• SMCGS16-Smart: 272 Kbits on-chip frame buffer

• SMCGS24-Smart: 400 Kbits on-chip frame buffer

POWER CONSUMPTION

• SMCGS16-Smart: 15.8 Watts

• SMCGS24-Smart: 24.2 Watts

TEMPERATURE

• Operating: 0 ~ 40 ºC / 32 ~ 104 ºF

• Storage: -40 ~ 70 ºC / -40 ~ 158 ºF

HUMIDITY

• 5% to 95% non-condensing

MANAGEMENT FEATURES

• In-Band Management

• Web-based HTTP

• Software Loading

• HTTP InBand

SWITCH FEATURES

• Forwarding Mode

• Store-and-forward

• VLAN Support

• Up to 8 groups; port-based or with 802.1Q

• VLAN tagging

• Quality of Service

• Supports two levels of priority with flexible classification and

prioritization based on 802.1p / IP Port / DSCP

• Port Trunking

• Port Mirroring

• Rate limiting

• Jumbo Frame support

STANDARDS

• IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet,

• IEEE802.1D Spanning Tree Protocol and traffic priorities,

• IEEE802.1p Priority tags

• IEEE802.1Q VLAN

• IEEE802.1ac VLAN tagging

EMC/SAFETY COMPLIANCES

• CE Mark

IMMUNITY

• EN 61000-4-2/3/4/5/6/8/11

EMISSIONS

• FCC Class A, CISPR Class A, EN 61000-3-2/3

SAFETY

• CSA/CUS (CSA60950-1 & UL60950-1)

• TUV / GS EN60950-1

• CB IEC60950-1

WARRANTY

• Limited lifetime

North America

38 Tesla

Irvine, CA 92618

1-800-SMC-4YOU

24/7 Technical Support

Europe / Africa

Fructuos Gelabert 6-8

08970 Sant Joan Despí

Barcelona, Spain

Check www.smc.com for your local

country contact information

www.smc.com
