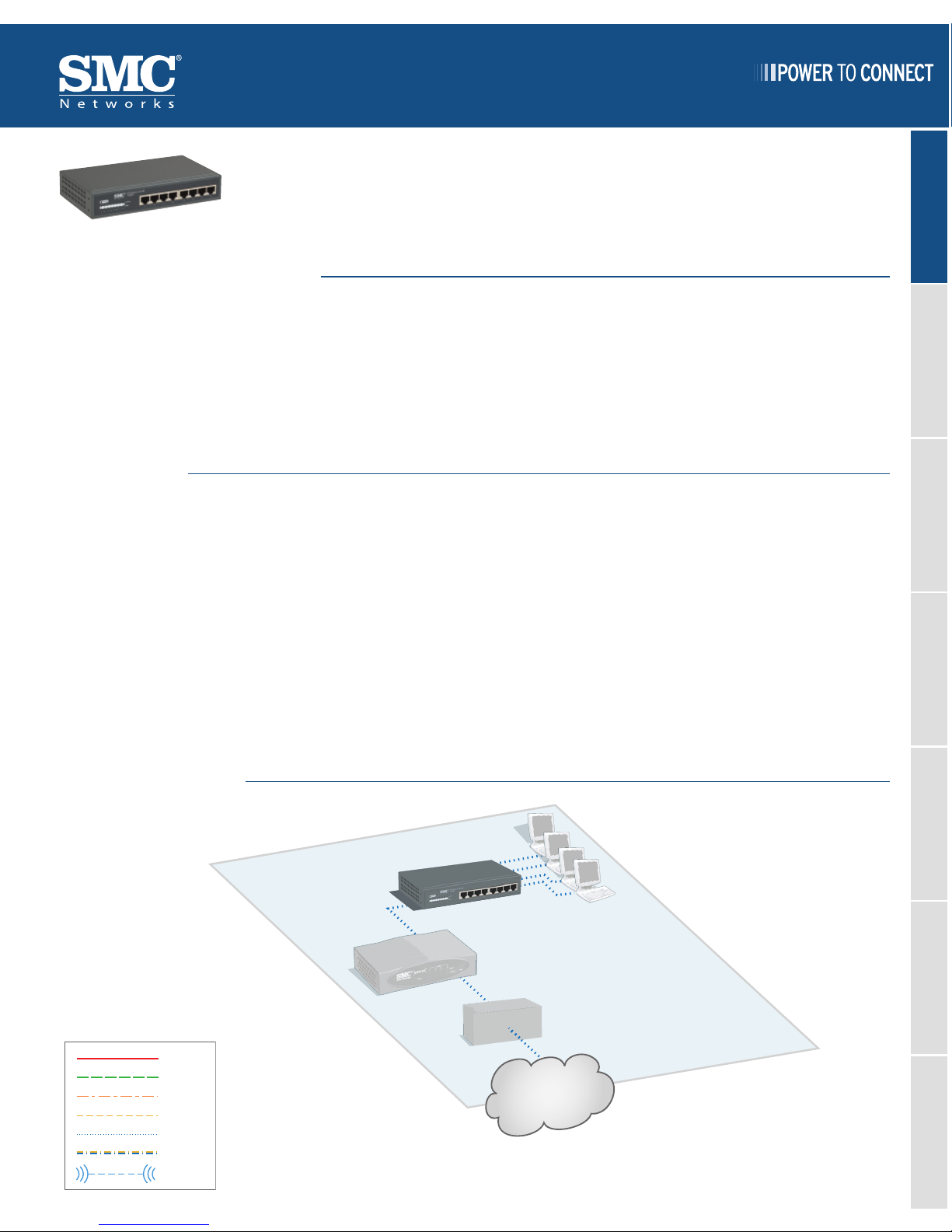

SMC Networks SMC-EZ108DT Manuale utente

OVERVIEW

SMC’s EZ Switch™ 10/100 is a compact, internal-powered 8-port standalone, unmanaged switch with

LEDs located on the front of the unit for easy network diagnosis. The 10BASE-T/100BASE-TX ports deliver

dedicated 10/100Mbps links to each attached LAN segment – all with conventional cabling and adapters.

SMC’s EZ SwitchTM 10/100 offers a simple, cost-effective strategy for connecting network devices together.

Designed for easy integration with any SOHO network, SMC EZ Switch 10/100 contains added features like

Store-and-Forward, Flow Control, “At-a-Glance LEDs,” and internal power supply to ensure data delivery and

network integrity. Powerful enough to run smaller networks and ﬂexible enough to support edge connections

to larger infrastructures, the EZ Switch™ 10/100 brings the power of switching to you.

www.smc.com

SMC-EZ108DT

EZ Switch™ 10/100 8-port Fast Ethernet Switch

10G FIBER

1G FIBER

10G COPPER

1G COPPER

10/100

PoE

WIRELESS

LEGEND

@ek\ie\k

JD:$<Q('/;K

JD:.''+M9I

=`i\nXcc

G:Ëj

APPLICATION DIAGRAM

KEY FEATURES

Internal power supply Compact Metal Chassis

The internal power supply is simple and easy to use. No fumbling

with oversized AC adapters.

The compact, rack mountable metal chassis is ideal for desktop or

rack mounting applications. In addition, the lack of fans ensures

silent operation.

Auto-MDIX ports LED indicators

No crossover cables required, pure plug and play for easy operation. Simple, at-a-glance LEDs to see port status and for simple trouble-

shooting.

SWITCHES VDSL WIRELESS VOIP STORAGE BROADBAND ADAPTERS

PORTS

• 8 10/100 Mbps RJ-45 auto MDI/MDI-X

LED

• Power – One

• Link/Act (10/100Mbps) – one per port

• 10/100 (10/100Mbps) – one per port

MAXIMUM CURRENT

• 0.5A@110VAC

• 0.22@240VAC

• 100 mA typical, 300 mA max

POWER CONSUMPTION

• 13.2 Watts maximum, 5.2 Watts typical @ 100-240 VAC

DIMENSIONS

• 19.68 x 11.67 x 3.7cm

• 7.76 x 4.6 x 1.46 in

WEIGHT

• 0.675 Kg

• 1 lbs 8 oz

HUMIDITY

• 10% to 90%

TEMPERATURE

• Operating: 0° to 40° C / 32° to 104° F

• Storage: -40° to 70° C / -40° to 158° F

MAC ADDRESS TABLE

• 2K entries per system

MEMORY BUFFER

• 0.75Mbits

POWER REQUIREMENTS

• AC 100~240V 50/60Hz

HEAT DISSIPATION

• 45 BTU/hr maximum

MTBF

• 8 years

STANDARDS

• IEEE802.3

• IEEE802.3u

• IEEE802.3x

• ISO/IEC 8802-3

EMC/SAFETY COMPLIANCES

• CE Mark

• Emissions

• EN 55022 (CISPR 22) Class A

• EN 61000-3-2/3

• Immunity

• EN 61000-4-2/3/4/5/6/8/11

• Safety

• CB (IEC60950-1)

EMI

• FCC Class B

WARRANTY

• Please check www.smc.com for the warranty

terms in your country/region.

CONTACT

North America

20 Mason

Irvine, CA 92618

1-800-SMC-4YOU

24/7 Technical Support

Europe/Africa

Fructuos Gelabert 6-8

08970 Sant Joan Despí

Barcelona, Spain

Check www.smc.com for your local country

contact information

of SMC Networks in the United States or other countries. Other trademarks

or registered trademarks are the property of their respective owners. Infor-

2/2009

www.smc.com

TECH SPECS - SMC-EZ108DT
